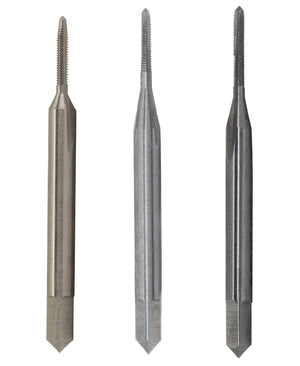

# 4-48 UNF HSS Tap Set

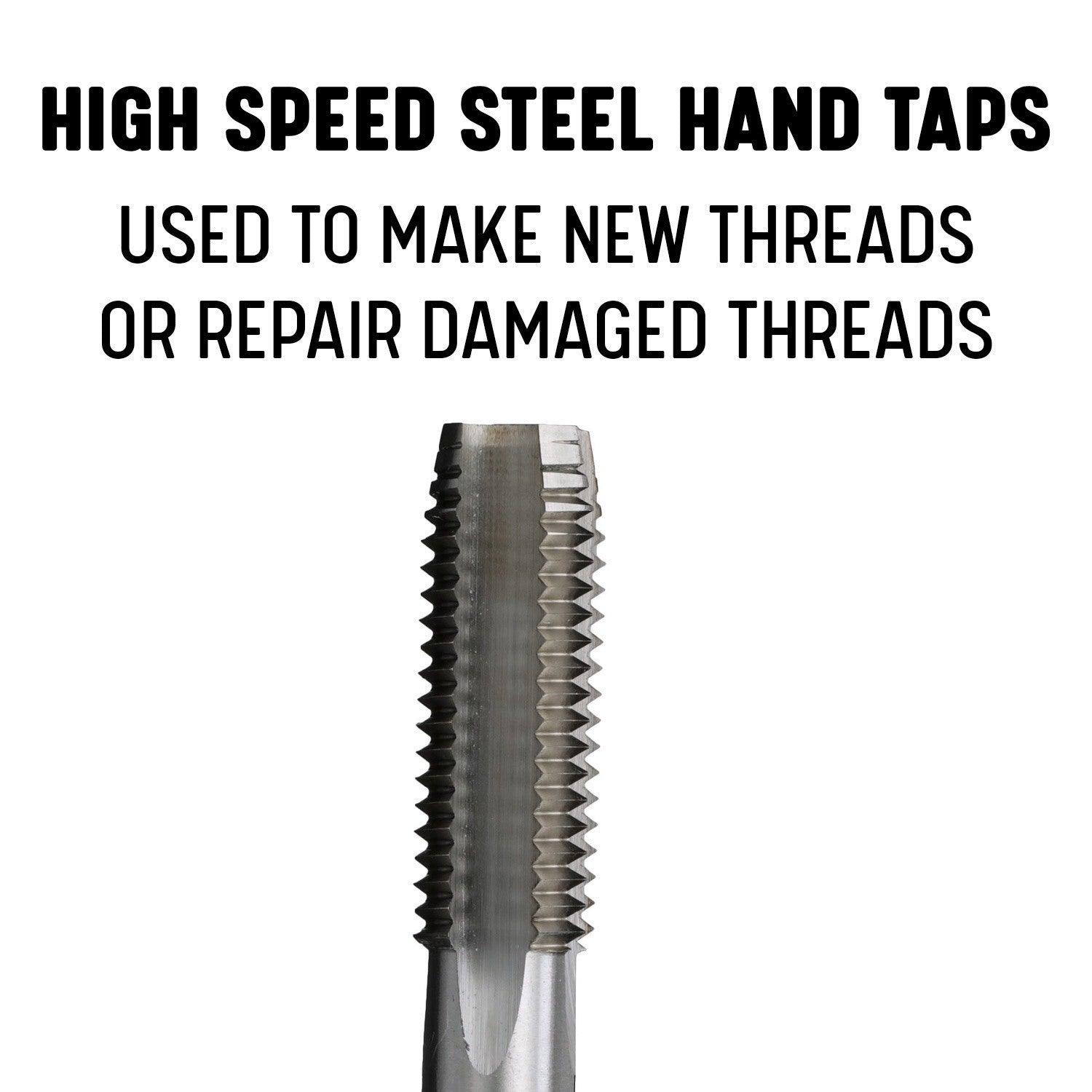

The # 4-48 UNF HSS Tap Set includes high-speed steel hand taps designed for creating new threads or re-threading damaged and jammed threads. These versatile taps are ideal for hand use and general machine tapping, suitable for a wide range of materials in both through and blind holes. This set contains three styles: Taper, Plug, and Bottoming, providing the necessary tools for various threading requirements. These taps are a great addition to any toolbox.
Tool Features
- Used to make new threads or re-thread damaged and jammed threads.

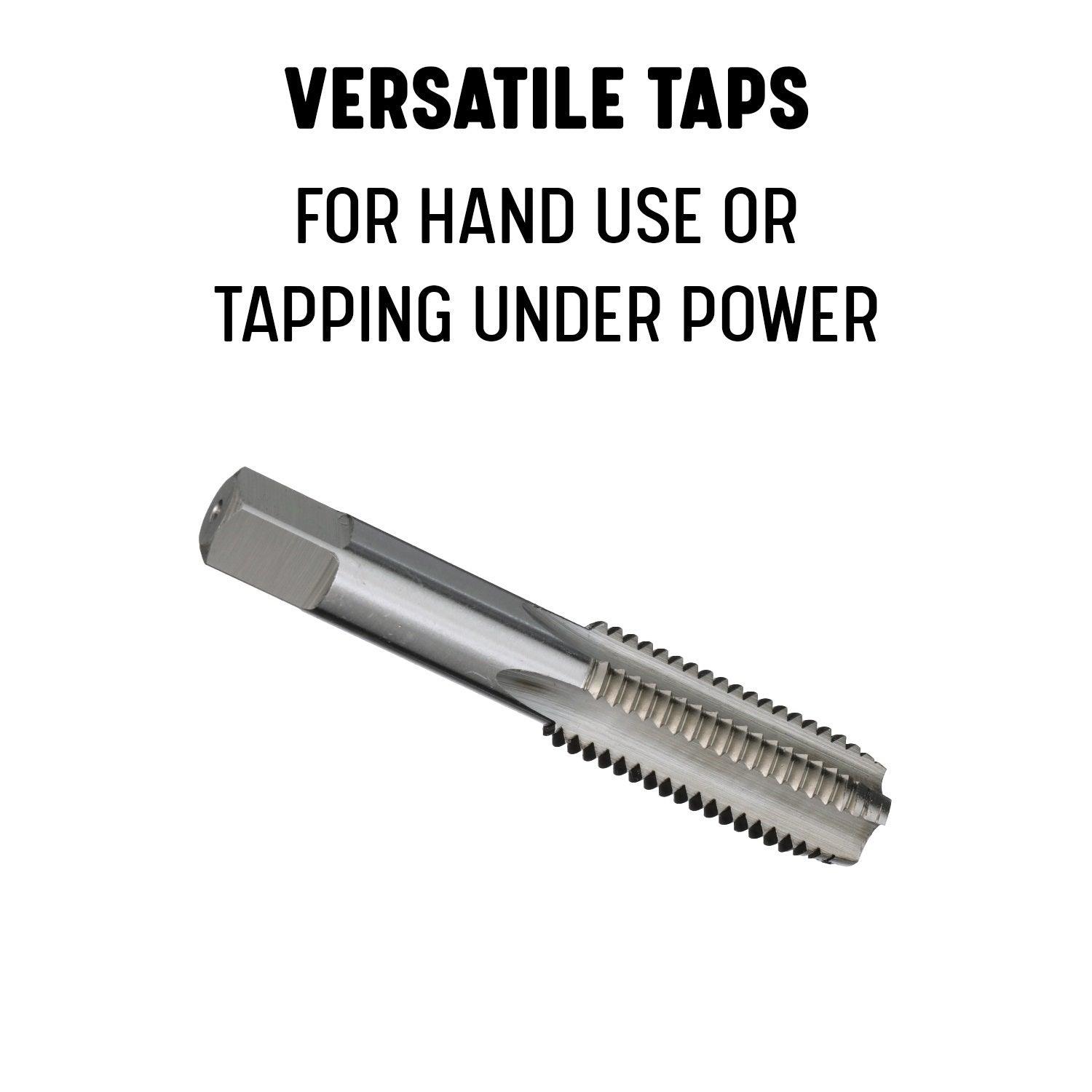

- Hand taps are versatile for hand use and general machine tapping.
- Suitable for a wide range of materials in through or blind holes.

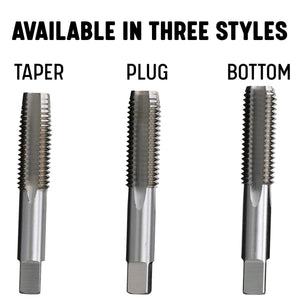

- Set includes three taps: Taper, Plug, and Bottoming.
- Taper Style: Starts the thread square with the workpiece.
- Plug Style: Generally used in thru holes.
- Bottom Style: Generates the thread to the bottom of the hole.
Product Specifications
| Attribute | Details |
|---|---|
| Size | #4-48 |
| Material | High Speed Steel |
| Type | Set |
| Finish | Uncoated (Bright) |
| Number of Flutes | 3 |
| Overall Length | 1-7/8" |

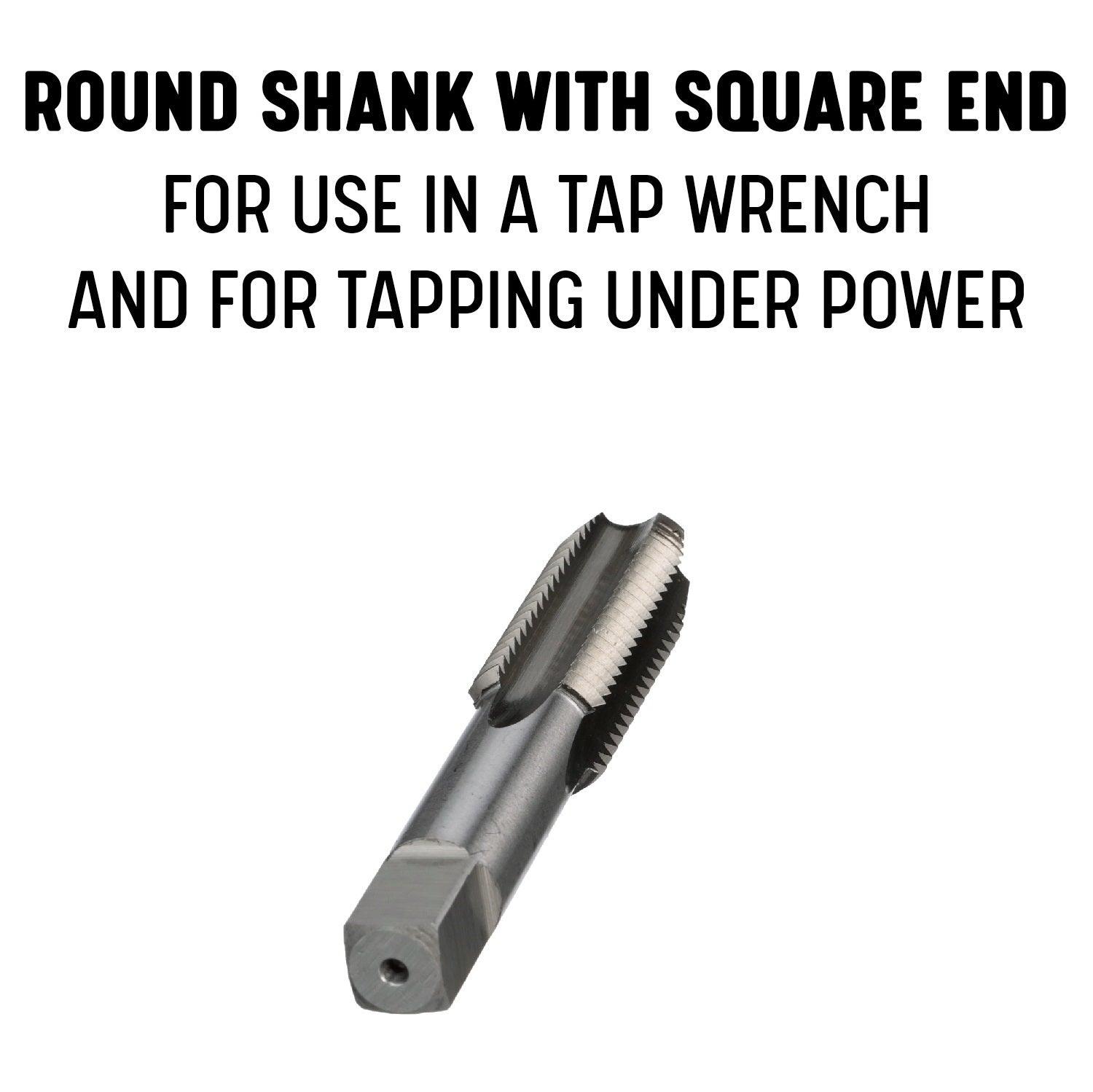

| Shank Type | Square |
| Tap Drill Size | #42 |
| Thread Standard | UNF |
Additional Resources
Watch the Video
