ACOEM AT-200 Advanced Laser Shaft Alignment Tool, High Performance, Vertical Smart App-Based Horizontal & Vertical Laser Shaft Alignment Tool
- Regular price
- €13.027,95
- Sale price
- €13.027,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- Digital sensor detectors Large 30 mm digital sensor detectors – capacity to handle long measurement distances and large angular misalignment errors
- SoftCheck™ - Soft foot detector Easily verify the presence of soft foot to make a reliable alignment
- FeetLock™ - Automatic guidance Get better automatic guidance for a base-bound or bolt-bound situation
- VertiZontal™ - Align machines in one move Align machines in horizontal and vertical direction in only one move and save time
- Tolerances - Automatic quality assessment Automatic alignment quality assessment according to Tolerances based on industry standards
- GuideU™ - Intuitive 3D graphical user interface Easily align your rotating assets following the highly visual Acoem GuideU™ interface
- True Live™ - Real time positioning Get the position of both the shafts in real time with Acoem True Live™ feature
- Sensor technology - Remove disturbance Remove industrial environment disturbance (light, vibration) with the smart digital filtering provided with our sensor technology
- The spacer shaft - Coupling function Used when the alignment is performed on machinery using membrane coupling
- Target values - Cold and Hot alignment (optional) Easily Manage thermal growth with Cold and Hot alignment
Description

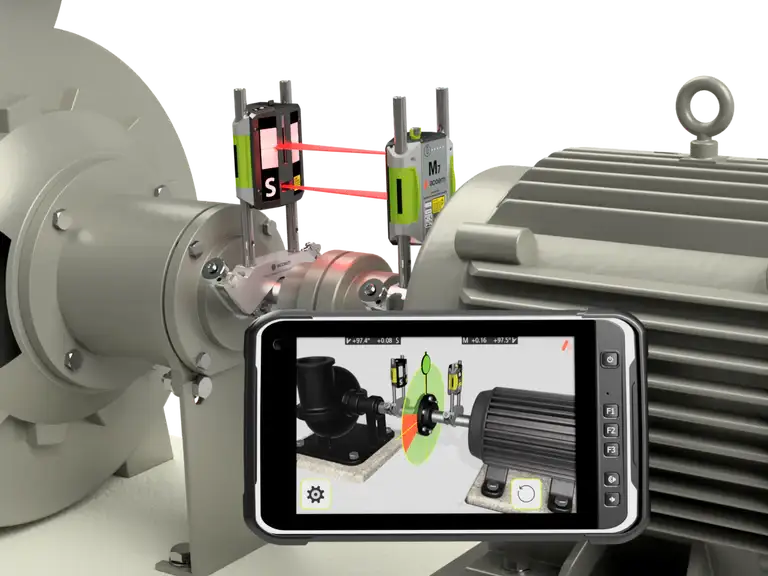

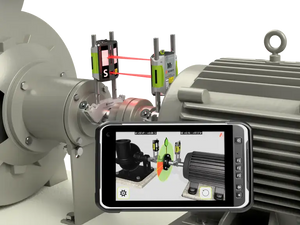

The smart app-based shaft alignment solution
This new generation of horizontal & vertical laser shaft alignment solution is the result of almost 40 years of expertise and innovation.
Integrated apps, customized technology features and easy connectivity : the AT-200 leverages technology to enhance your user experience and improve the efficiency of your maintenance teams. Providing unparalleled measurement performance and fast, precision alignment, the AT-200 improve measurement and reporting capabilities, to help you extend every critical machinery’s lifespan.
So much more than an horizontal and vertical laser shaft alignment tool, the AT-200 Toolbox gives you the power to make informed decisions and take corrective maintenance action immediately, straight from your tablet or smartphone :
Fast and accurate results, powered by intelligent sensor technologyEasy-of-use, via our shaft alignment appsEasy data sharing capabilities thanks to a full integration and connectivity system
The toolbox includes:
Two smart wireless sensors with their accessoriesTask oriented Horizontal & Vertical shaft alignment mobile appsAcoem Cloud connectivity with report storage, trending and work order and sharing capabilities with secure communication (optional)
WHAT'S INCLUDED
-

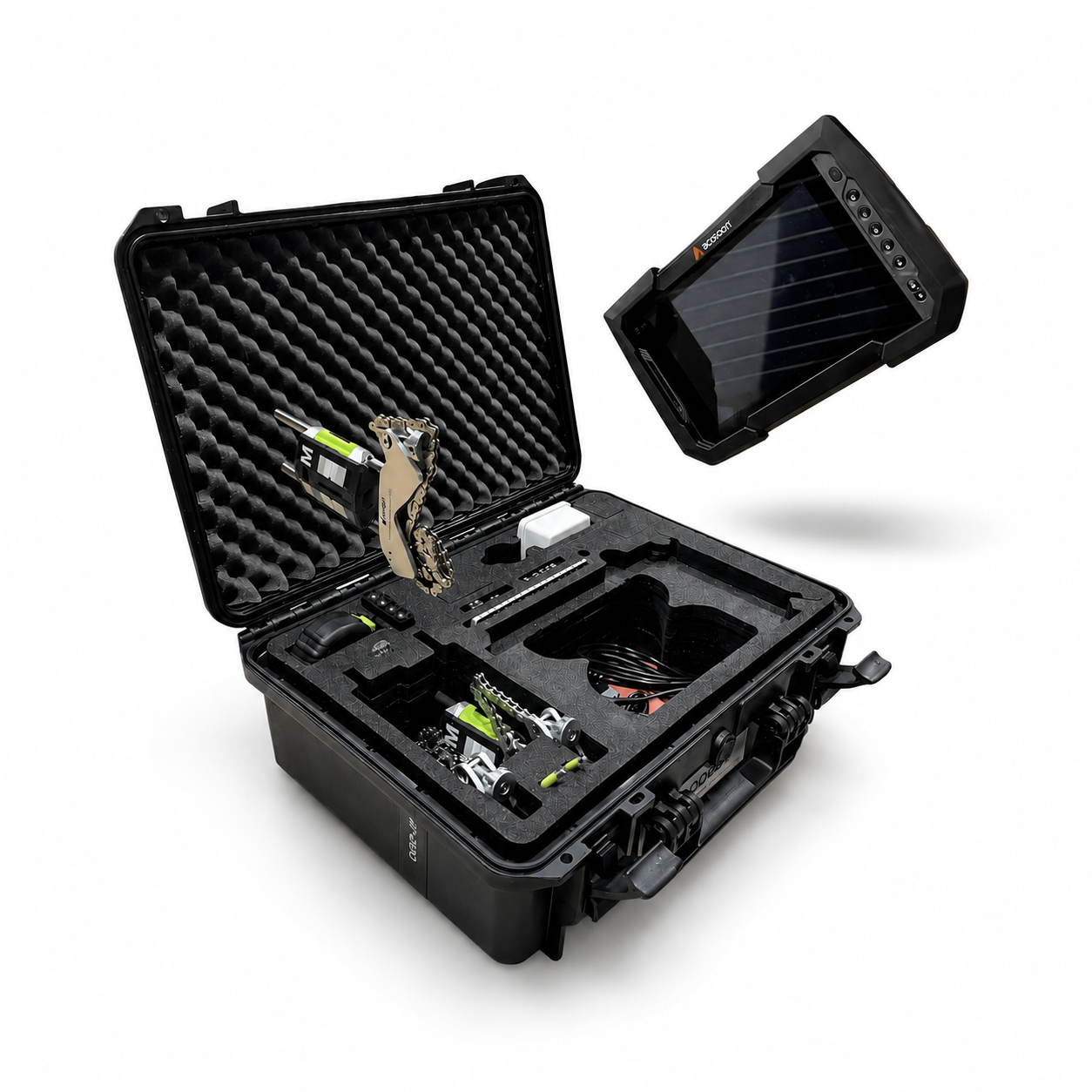

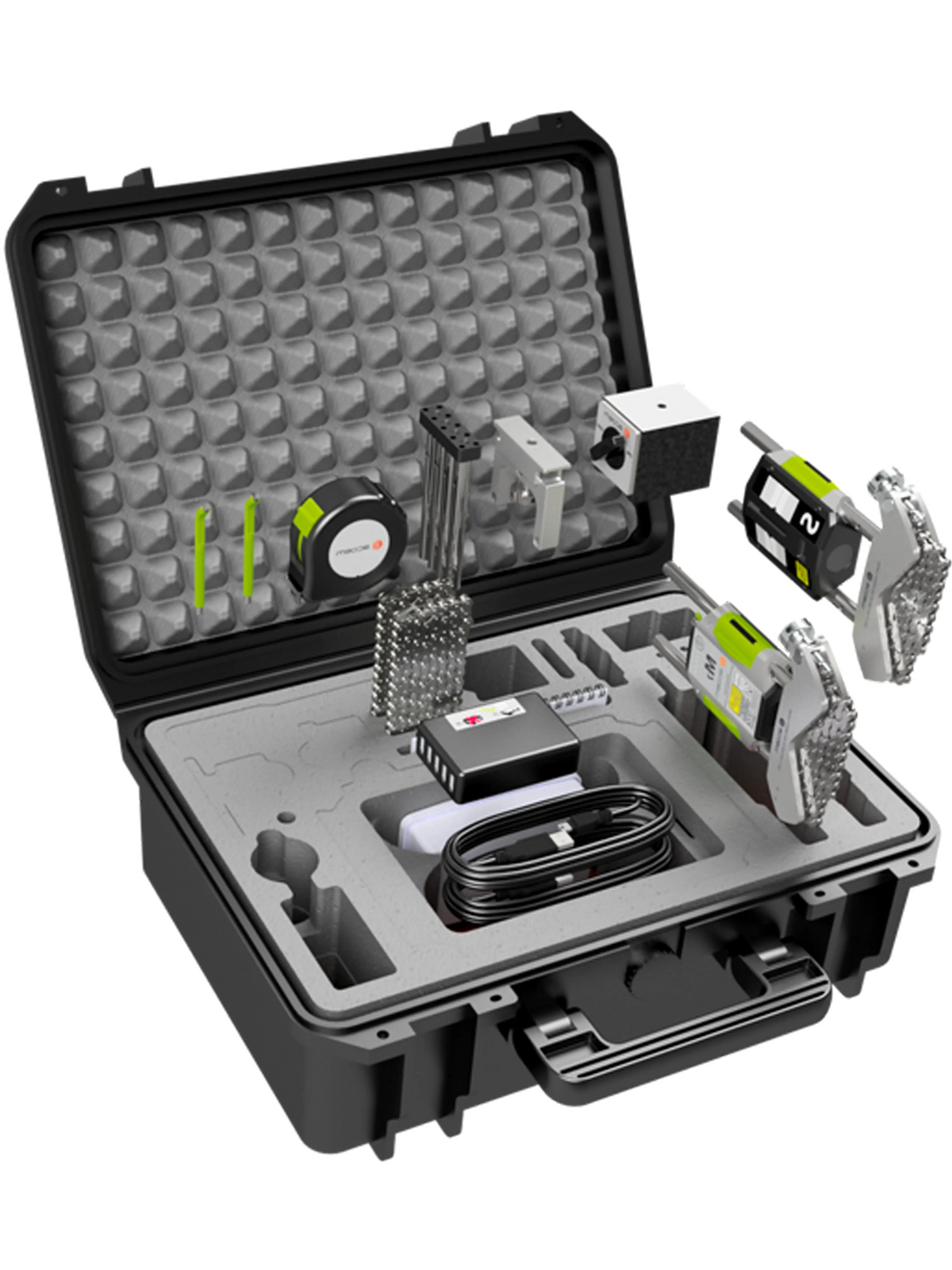

AT-200 package with case
-

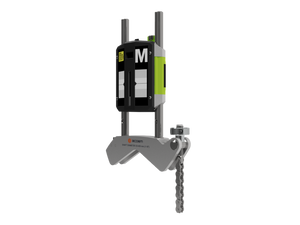

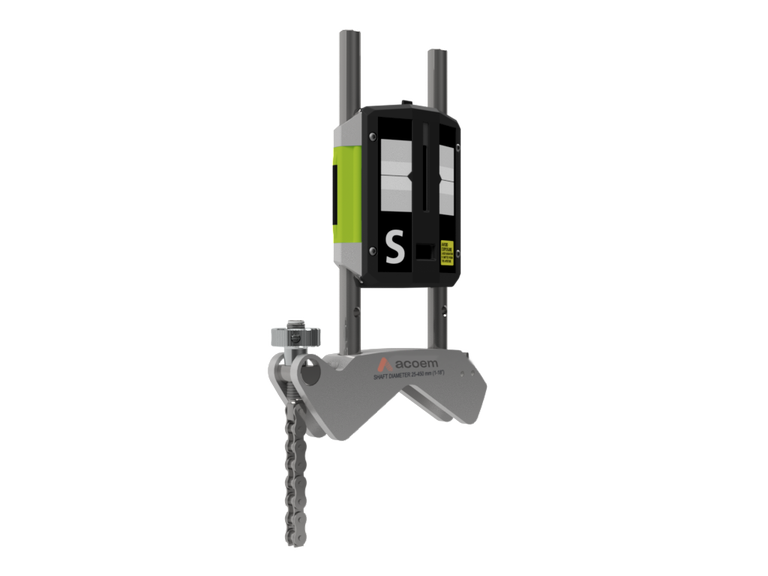

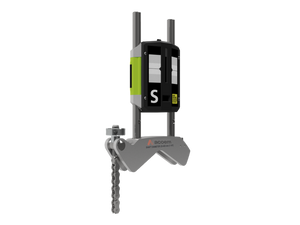

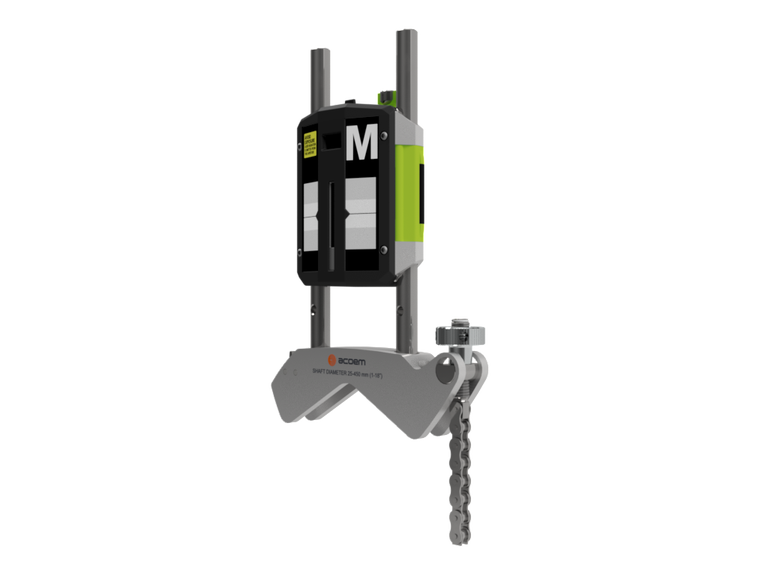

2 Sensors, M7 & S7
-
2 V-brackets complete with chain
-
Tape measure, 5 m
-
2 pcs of angled universal tools
-
External power cable, EU, 2 m
-
External power cable, US, 2 m
-
2 pcs of USB-cables, A-mini B, 2 m
-
Power supply 5 USB-ports 5 VDC
Specifications
Hardware
| Hardware Type | M7 1-1216, S7 1-1217 |
Physical
| Housing Material | Anodized Aluminum frame and high impact ABS plastic over molded with TPE rubber |
| Weight | M7: 212 g (7,5 oz), S7: 186 g (6,6 oz) |
| Dimensions | 92 mm x 77 mm x 33 mm (3,6 in x 3,0 in x 1,3 in) |
Environment
| Operating Temp | -10 to 50 °C (14 to 122 °F) |
| Storage Temp | -20 to 70 °C (-4 to 158 °F) |
| Long term storage Temp | Room Temp 18 to 28 °C (64 to 82 °F) |
| Battery Charging Temp | 0 to 40 °C (32 to 104 °F) |
| Relative humidity | 10 – 90 % |
| Environmental protection | IP65 (Dust tight and protected against watere jets) |
Sensing Technology
| Laser | 650 nm class II diode laser |
| Laser line fan angle | 6 ° |
| Laser line width (1 / e2) | 1.6 mm |
| Laser line divergence (full angle) | 0.25 mrad |
| Laser power | < 1 mW |
| Measurement distance | Up to 10 m |
| Detector | 2nd gen. scientific grade CCD |
| Detector length | 30 mm (1,2 in) |
| Detector angular subtense | 30 mrad/m (3mm/100mm per meter) |
| Detector resolution | 1 µm |
| Measurement accuracy | 0,3 % ± 7 µm |
| Signal processing | Digital signal processing with sidespot rejection, edge detection, ambient light elimination and anti-vibration mode |
| Ambient light protection | Optical filtering and digital ambient light signal elimination |
| Inclinometer | Dual High Performance MEMS inclinometers |
| Inclinometer resolution | 0,01 ° |
| Inclinometer accuracy | ±0,2 ° |
| Gyroscope | 6-Axis MEMS Inertial Motion Sensor with drift compensation and automatic field calibration |
| Gyroscope accuracy | ±1 ° |
Battery
| Type | High performance Li Ion rechargeable battery or external power |
| Operating time | 11 hours continuous use (measuring) |
| Charging | 8 h |
| LED indicators | Unit state, laser transmission and 5 battery status indicators with instant battery check |
Communication
| Wireless communication | Class I Bluetooth transmitter |
| Communication range | 10 m (33 ft) |
| Connectors | 1 USB Mini port (IP67) |

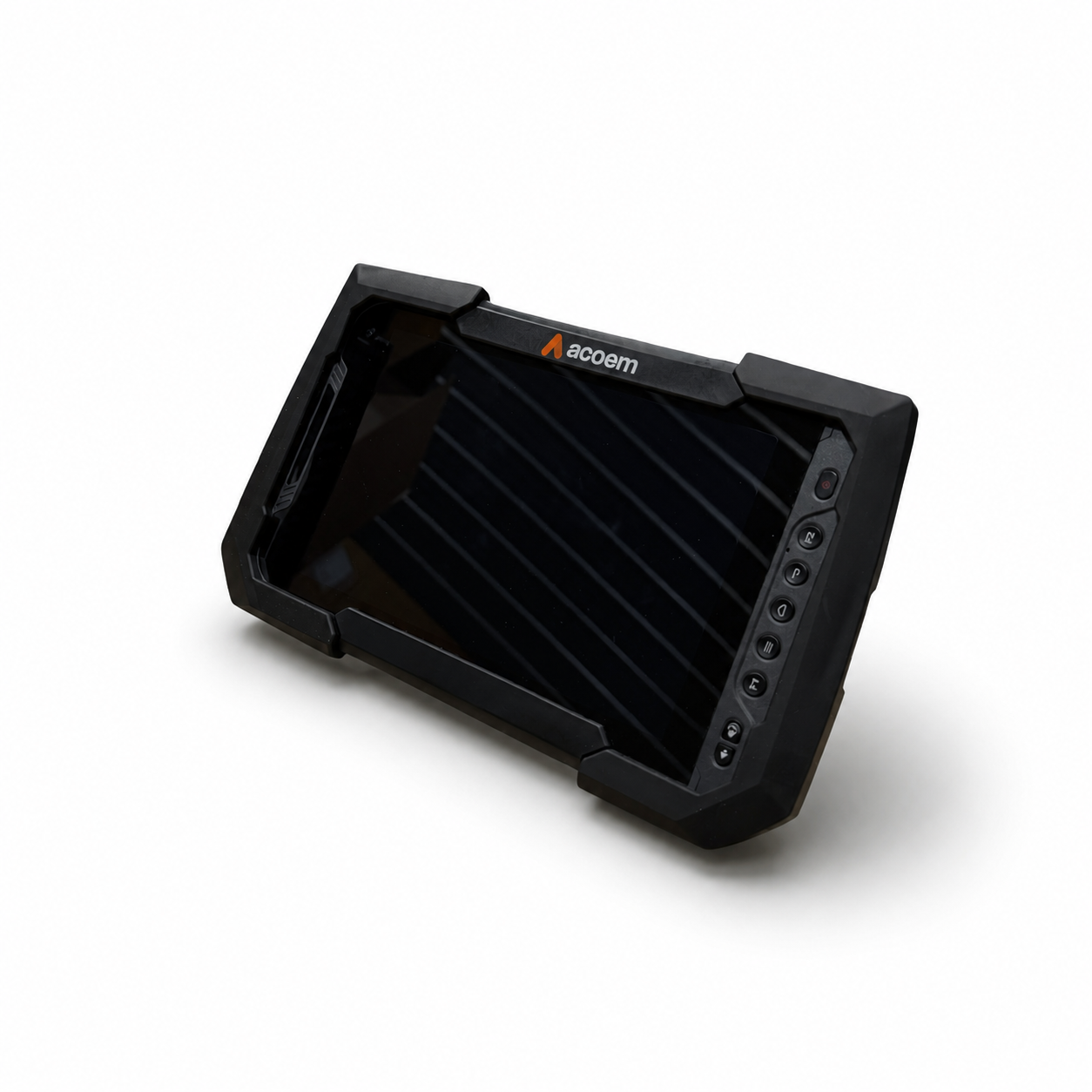

Handheld Algiz RT8 (optional)
| Display | A sunlight-readable, 8-inch capacitive multi-touch display with super-hardened Gorilla Glass, plus rain and glove mode. |
| Ruggedness rating | IP67 ruggedness rating (including the ports) for fully waterproof and dust-tight performance. |
| Operating temperature | Wide operating temperatures of -20°C to 60°C (-4°F to 140°F). |
