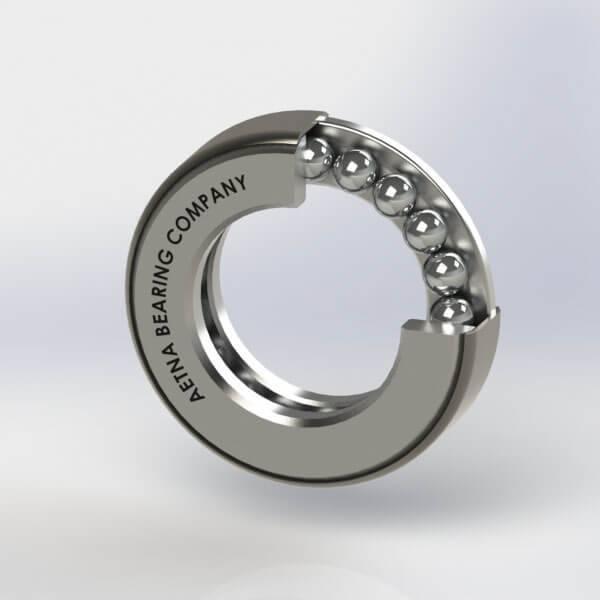

The Aetna E-26 is a thrust ball bearing with these specifications:
- Bore Size: 2 1/16 inches
- Small Bore Diameter Tolerance: +0.006 inches to +0.008 inches
- Large Bore Diameter: 2 1/8 inches
- Large Bore Diameter Tolerance: ± 0.010 inches
- Outside Diameter: 3 11/32 inches
- Outside Diameter Tolerance: ± 0.010 inches
- Height: 13/16 inches
- Height Tolerance: ± 0.005 inches
- Ball Diameter: 3/8 inches
- Maximum Fillet Radius: 0.060 inches
- Bearing Weight: 0.90 lbs
- Static Thrust Load Capacity: 21960 lbs
- Thrust Load Capacity at 500 rpm: 2935 lbs
- Maximum Permissible Speed: 1778 rpm
Description
The Aetna E-26 is a thrust ball bearing with these specifications:
- Bore Size: 2 1/16 inches
- Small Bore Diameter Tolerance: +0.006 inches to +0.008 inches
- Large Bore Diameter: 2 1/8 inches
- Large Bore Diameter Tolerance: ± 0.010 inches
- Outside Diameter: 3 11/32 inches
- Outside Diameter Tolerance: ± 0.010 inches
- Height: 13/16 inches
- Height Tolerance: ± 0.005 inches
- Ball Diameter: 3/8 inches
- Maximum Fillet Radius: 0.060 inches
- Bearing Weight: 0.90 lbs
- Static Thrust Load Capacity: 21960 lbs
- Thrust Load Capacity at 500 rpm: 2935 lbs
- Maximum Permissible Speed: 1778 rpm
