Description
| Bore Type | Straight |
|---|---|
| Bore Diameter | 1.3750 in |
| Duty Type | Light Duty |
| Internal Clearance | Standard |
| Outside Diameter | 2.8350 in |
| Outer Ring Width | 0.7500 in |
| Maximum Operating Temperature | 200 °F |
| Inner Ring Width | 1.2810 in |
| Overall Width | 1.2810 in |
| Locking Device | Setscrew |
| Operating Temperature Range | -20 to 200 F |
| Fillet Radius | 0.0800 in |
| Radial Dynamic Load Capacity | 5782 lb |
| Radial Static Load Capacity | 3493 lb |
| Bearing Material | 52100 Bearing Steel, Black Oxided |
| Cage Material | Plastic |
| Snap Ring Included | Without Snap Ring |
| Finish/Coating | Black Oxide Coated |
| Maximum RPM | 2500 rpm |
| Retainer Material | Molded fiber glass reinforced nylon |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Set Screw Thread Size | 5/16-24 |
| Series | SLS 100 |
| Precision Rating | ABEC 1 |
| Misalignment Angle | None |
| Housing Type | Insert Only |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Dynamic Load Capacity | 5782 lbs |
| Lubrication | Lithium Complex NLGI 2 Grease |
| CAD Drawing | |
| Manufacturer Catalog Number | SLS-122 |
| Manufacturer Product Page | |
| Manufacturer Catalog | |
| Manufacturer UPC Number | 662460344003 |
| Weight | 0.96 lbs |
| Bore Diameter | 1.3750 in |
| Outside Diameter | 2.8350 in |
Description
| Bore Type | Straight |
|---|---|
| Bore Diameter | 1.3750 in |
| Duty Type | Light Duty |
| Internal Clearance | Standard |
| Outside Diameter | 2.8350 in |
| Outer Ring Width | 0.7500 in |
| Maximum Operating Temperature | 200 °F |
| Inner Ring Width | 1.2810 in |
| Overall Width | 1.2810 in |
| Locking Device | Setscrew |
| Operating Temperature Range | -20 to 200 F |
| Fillet Radius | 0.0800 in |
| Radial Dynamic Load Capacity | 5782 lb |
| Radial Static Load Capacity | 3493 lb |
| Bearing Material | 52100 Bearing Steel, Black Oxided |
| Cage Material | Plastic |
| Snap Ring Included | Without Snap Ring |
| Finish/Coating | Black Oxide Coated |
| Maximum RPM | 2500 rpm |
| Retainer Material | Molded fiber glass reinforced nylon |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Set Screw Thread Size | 5/16-24 |
| Series | SLS 100 |
| Precision Rating | ABEC 1 |
| Misalignment Angle | None |
| Housing Type | Insert Only |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Dynamic Load Capacity | 5782 lbs |
| Lubrication | Lithium Complex NLGI 2 Grease |
| CAD Drawing | |
| Manufacturer Catalog Number | SLS-122 |
| Manufacturer Product Page | |
| Manufacturer Catalog | |
| Manufacturer UPC Number | 662460344003 |
| Weight | 0.96 lbs |
| Bore Diameter | 1.3750 in |
| Outside Diameter | 2.8350 in |
Browning
by
Browning

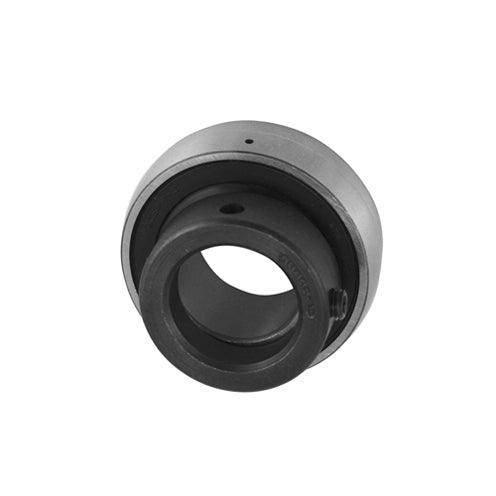

BROWNING SLS-122 Ball Insert Bearings
- Regular price
- €38,95
- Sale price
- €38,95
- Regular price
-
1 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Free 90-day returns
Shop risk-free with easy returns.
Need Help?
Call us 1 (248) 429-9073
