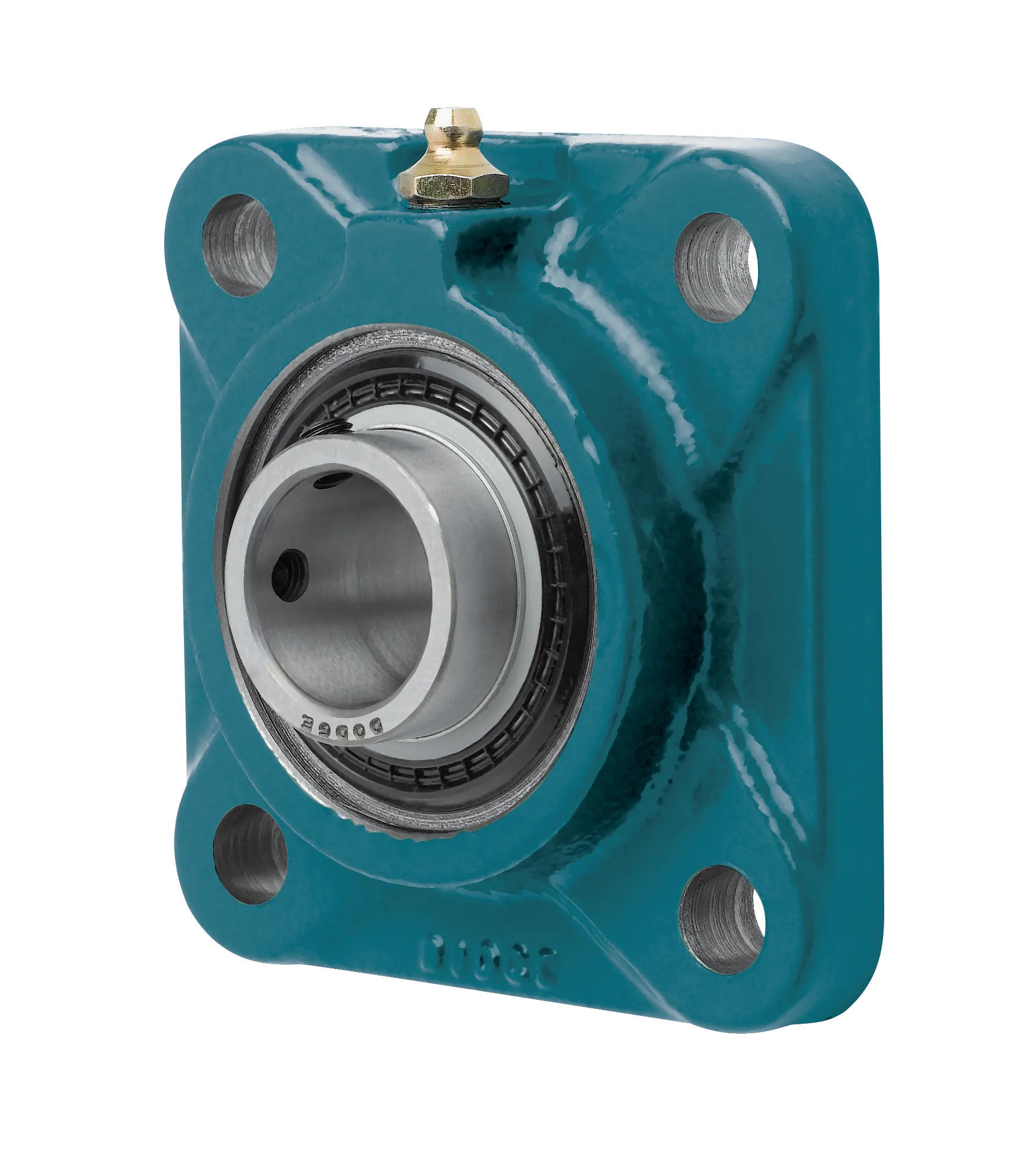

Dodge F4B-SCM-200 (126192) Flange-Mount Ball Bearing Unit - 2 in Bore, 4-Bolt Flange Mount, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Medium Duty, Single Lip Contact Seal Seal
- Regular price
- €265,95
- Sale price
- €265,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Locking Mechanism: Setscrew locking — ensures stable shaft attachment; features a 65° setscrew angle for optimal grip with minimal inner-ring stress
- Duty Type: Medium‑duty, non-expansion (fixed) design — made for reliable, stable service
- Mounting Type: 4‑bolt flange mount — allows for secure, easy installation in confined spaces
- Anti-Rotation Feature: Anti‑rotation device prevents insert rotation under light or variable loads—adds stability during operation
Description
Dodge Mounted Bearings are engineered for reliable performance in demanding industrial applications. Known for their rugged construction and long service life, Dodge bearings are built to handle heavy loads, high speeds, and harsh environments with ease. Available in a wide range of housings—such as pillow block, flange, and take-up styles—these mounted units provide precise shaft support while simplifying installation and maintenance. Dodge’s advanced sealing options help keep contaminants out, extending bearing life and reducing downtime. Trusted across industries including food processing, mining, HVAC, and material handling, Dodge mounted bearings deliver dependable operation, reduced maintenance costs, and exceptional value for today’s industrial needs.
Specifications
Attributes
| Bearing Type | Ball |
| Ball Bearing Series | 211 Series |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Shaft Attachment | Setscrew |
| Insert Material | Steel |
| Sensor Ready | Adapter Required |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
| Standoff Housing | No |
| Seal Type | Single-Lip Contact |
| Greasable | Yes |
| Lubrication Type | Grease |
| Lubrication Name | Unirex N2 |
| Dynamic Load Capacity | 9755 lbf |
| Dynamic Load Capacity | 43392.402 N |
| Static Load Capacity | 6588 lbf |
| Static Load Capacity | 29304.884 N |
| Maximum Speed | 2500 rpm |
| Maximum Speed | 41.667 hz |
| Bolt to Bolt Min | 5.1300 in |
| Bolt to Bolt Min | 130.302 mm |
| Bolt to Bolt Max | 5.1300 in |
| Bolt to Bolt Max | 130.302 mm |
| Shaft Diameter | 2.0000 in |
| Shaft Diameter | 50.8 mm |
| Length Through Bore | 2.2200 in |
| Length Through Bore | 56.388 mm |
| Bolt Diameter | 0.6250 in |
| Bolt Diameter | 15.875 mm |
