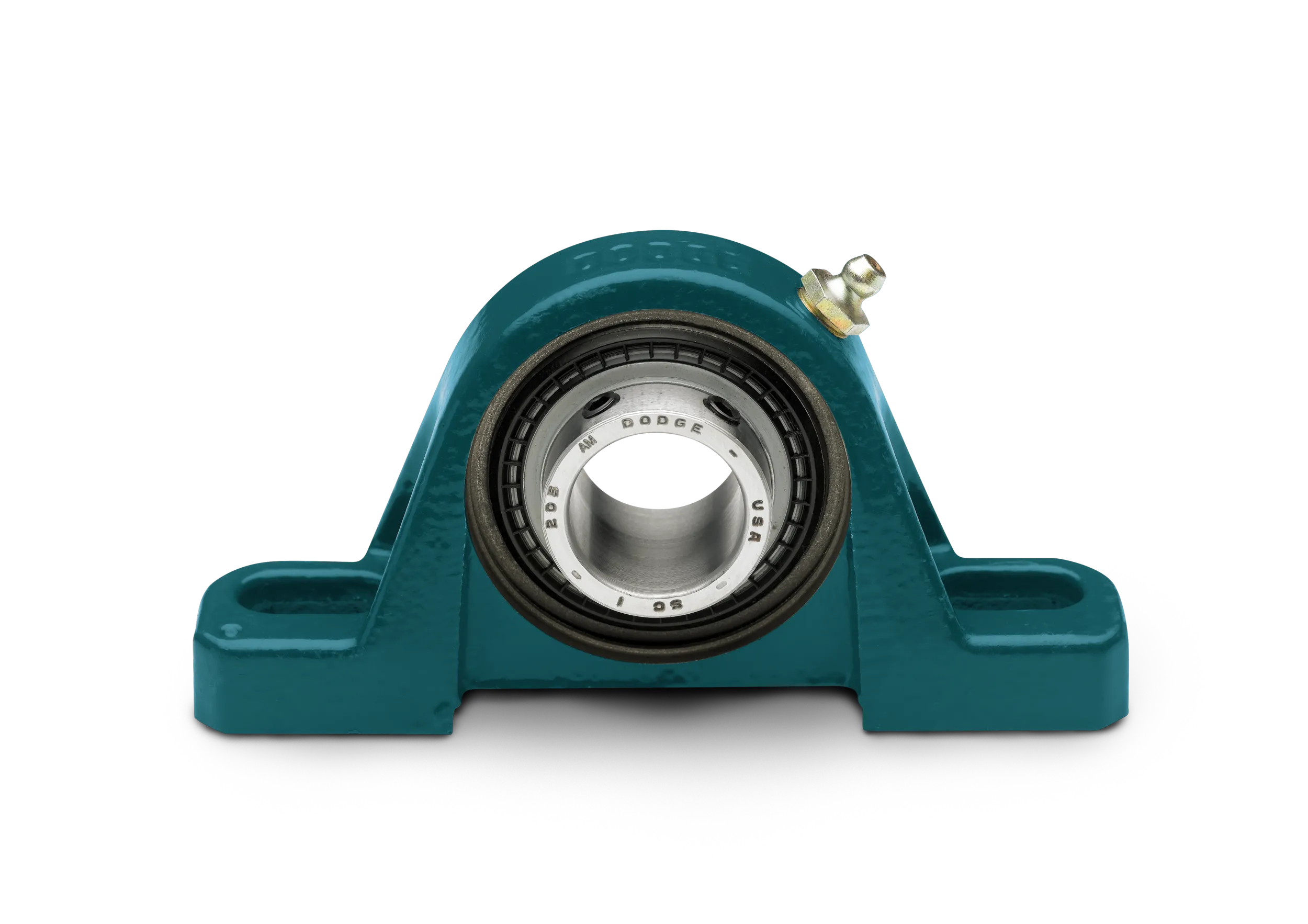

Dodge P2B-SC-100 (123806) Pillow Block Ball Bearing Unit - 2-Bolt Base, 1 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)
- Regular price
- €97,95
- Sale price
- €97,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Bore Diameter: 1 inch — suitable for standard shaft applications
- Mounting: Two‑bolt pillow block design — ensures stable and secure mounting
- Locking Mechanism: Setscrew inner ring — reliable shaft attachment
- Series: 205 Series bearing — widely used, reliable series
Description
Dodge Mounted Bearings are engineered for reliable performance in demanding industrial applications. Known for their rugged construction and long service life, Dodge bearings are built to handle heavy loads, high speeds, and harsh environments with ease. Available in a wide range of housings—such as pillow block, flange, and take-up styles—these mounted units provide precise shaft support while simplifying installation and maintenance. Dodge’s advanced sealing options help keep contaminants out, extending bearing life and reducing downtime. Trusted across industries including food processing, mining, HVAC, and material handling, Dodge mounted bearings deliver dependable operation, reduced maintenance costs, and exceptional value for today’s industrial needs.
Specifications
Attributes
| Bearing Type | Ball |
| Ball Bearing Series | 205 Series |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Shaft Attachment | Setscrew |
| Bearing Component | Mounted Bearing |
| Insert Material | Steel |
| Sensor Ready | Adapter Required |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
| Standoff Housing | No |
| Take-Up Frame Size | LD-10, TS-100 |
| Seal Type | Single-Lip Contact |
| Greasable | Yes |
| Lubrication Type | Grease |
| Lubrication Name | Unirex N2 |
| Dynamic Load Capacity | 3146 lbf |
| Dynamic Load Capacity | 13994.105 N |
| Static Load Capacity | 1769 lbf |
| Static Load Capacity | 7868.904 N |
| Maximum Speed | 4500 rpm |
| Maximum Speed | 75.0 hz |
| Bolt to Bolt Min | 3.6900 in |
| Bolt to Bolt Min | 93.726 mm |
| Bolt to Bolt Max | 4.5000 in |
| Bolt to Bolt Max | 114.3 mm |
| Shaft Diameter | 1.0000 in |
| Shaft Diameter | 25.4 mm |
| Length Through Bore | 1.3400 in |
| Length Through Bore | 34.036 mm |
| Bolt Diameter | 0.3750 in |
| Bolt Diameter | 9.525 mm |
