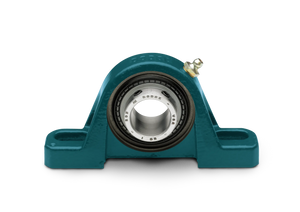

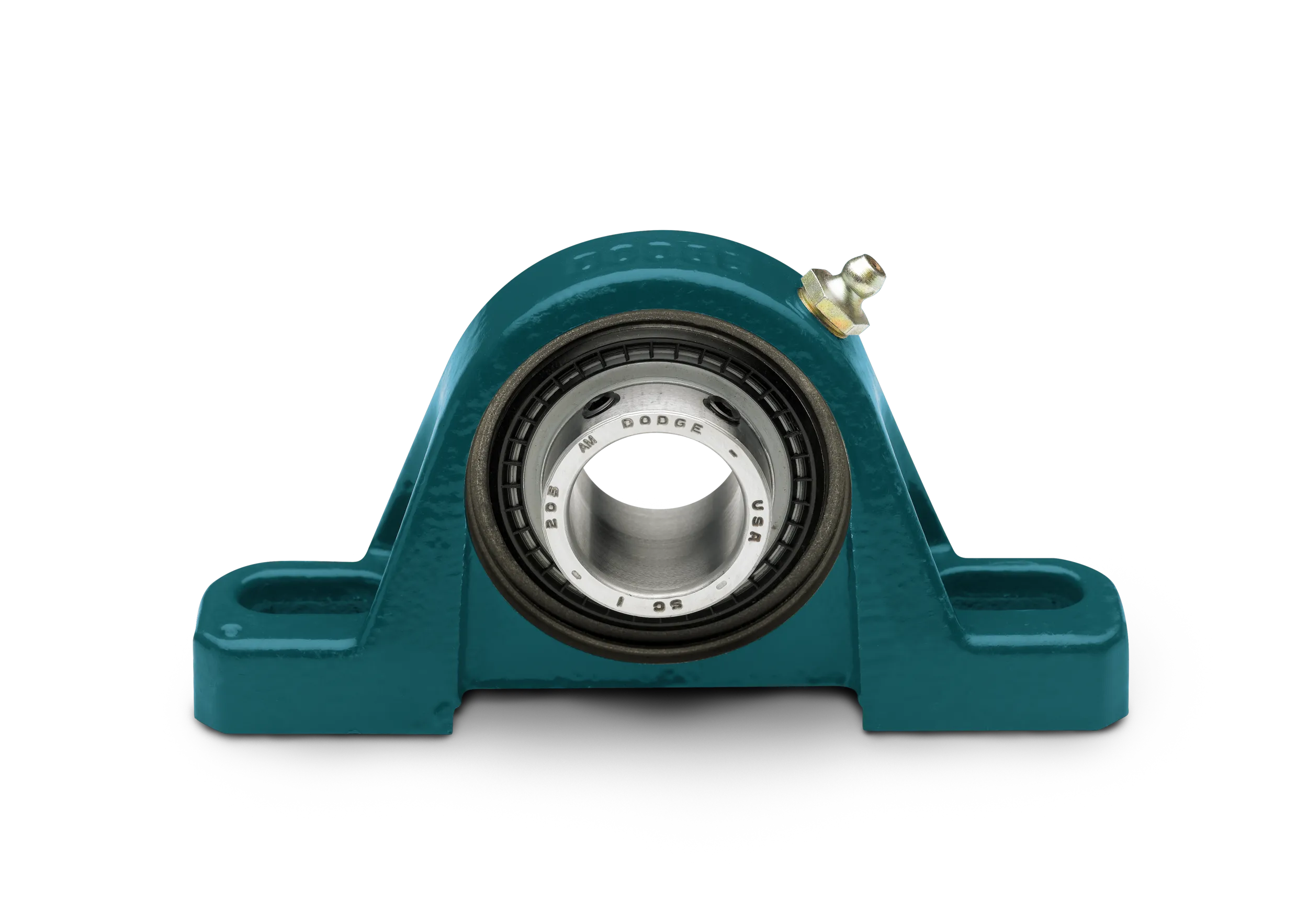

Dodge P2B-SC-207 (123822) Pillow Block Ball Bearing Unit - 2-Bolt Base, 2-7/16 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)
- Regular price
- €288,95
- Sale price
- €288,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Heavy-Duty Build – Solid cast iron housing resists shock, vibration, and wear for long-lasting reliability.
- Shaft Compatibility – Designed for 2-7/16 inch shafts, ideal for conveyors, HVAC systems, and general power transmission.
- High Load Ratings – Handles dynamic loads up to 11,800 lbf and static loads up to 8,100 lbf.
- Secure Locking – 65° set-screw system ensures a tight grip without damaging the shaft.
- Sealing & Lubrication – Equipped with premium contact seals and pre-lubricated with Unirex N2 grease, fully relubricatable for extended service life.
Description
Dodge Mounted Bearings are engineered for reliable performance in demanding industrial applications. Known for their rugged construction and long service life, Dodge bearings are built to handle heavy loads, high speeds, and harsh environments with ease. Available in a wide range of housings—such as pillow block, flange, and take-up styles—these mounted units provide precise shaft support while simplifying installation and maintenance. Dodge’s advanced sealing options help keep contaminants out, extending bearing life and reducing downtime. Trusted across industries including food processing, mining, HVAC, and material handling, Dodge mounted bearings deliver dependable operation, reduced maintenance costs, and exceptional value for today’s industrial needs.
Specifications
Attributes
| Bearing Type | Ball |
| Ball Bearing Series | 212 Series |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Shaft Attachment | Setscrew |
| Insert Material | Steel |
| Sensor Ready | Adapter Required |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
| Standoff Housing | No |
| Take-Up Frame Size | LD-40, TS-300 |
| Seal Type | Single-Lip Contact |
| Greasable | Yes |
| Lubrication Type | Grease |
| Lubrication Name | Unirex N2 |
| Dynamic Load Capacity | 11791 lbf |
| Dynamic Load Capacity | 52448.981 N |
| Static Load Capacity | 8100 lbf |
| Static Load Capacity | 36030.595 N |
| Maximum Speed | 2000 rpm |
| Maximum Speed | 33.333 hz |
| Bolt to Bolt Min | 6.8800 in |
| Bolt to Bolt Min | 174.752 mm |
| Bolt to Bolt Max | 7.9400 in |
| Bolt to Bolt Max | 201.676 mm |
| Shaft Diameter | 2.4375 in |
| Shaft Diameter | 61.913 mm |
| Length Through Bore | 2.3100 in |
| Length Through Bore | 58.674 mm |
| Bolt Diameter | 0.6250 in |
| Bolt Diameter | 15.875 mm |
