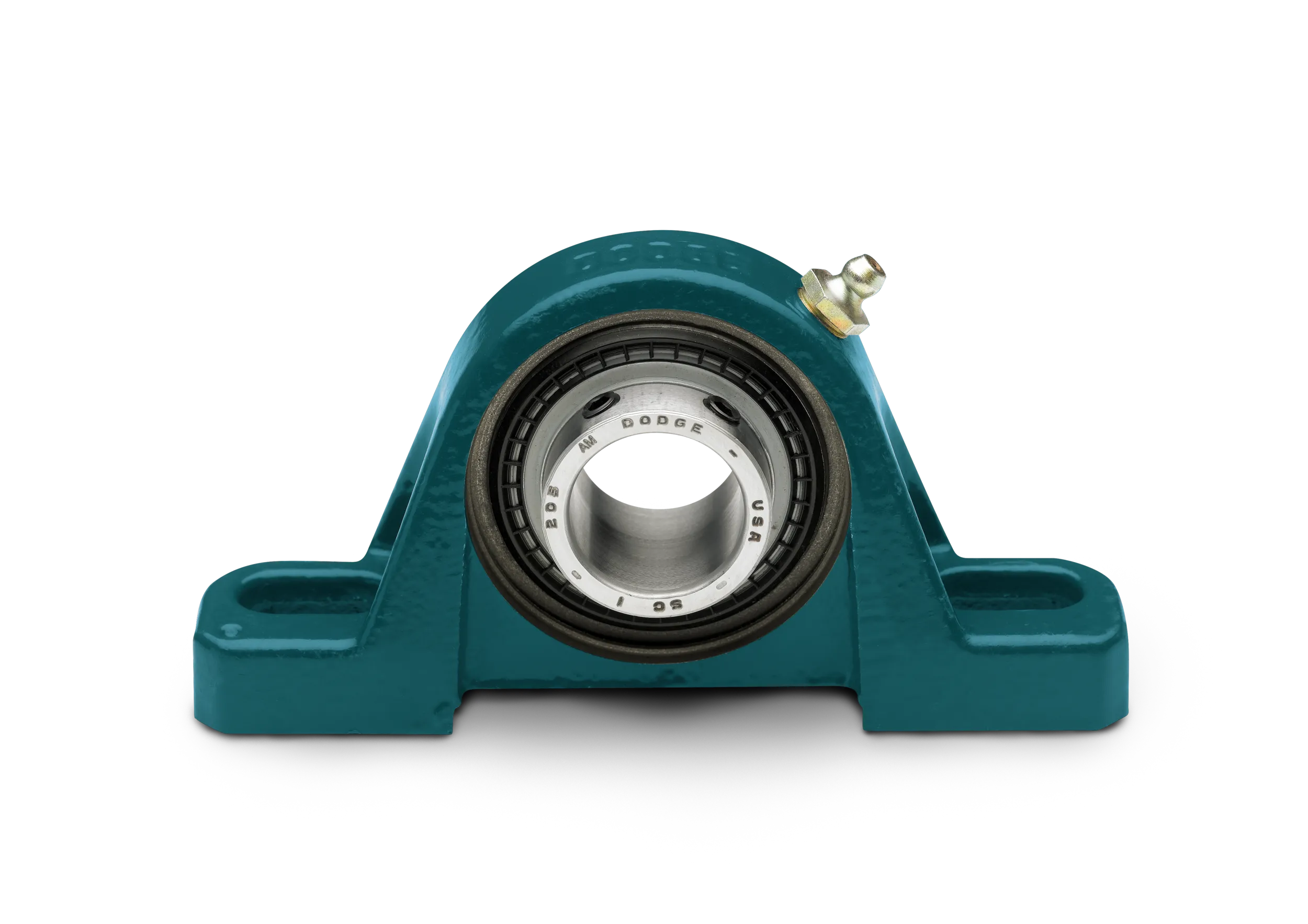

Dodge P2B-SCM-115 (126814) Pillow Block Ball Bearing Unit - 2-Bolt Base, 1-15/16 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)
- Regular price
- €97,95
- Sale price
- €97,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Bore Diameter: 1 inch — suitable for standard shaft applications
- Mounting: Two‑bolt pillow block design — ensures stable and secure mounting
- Locking Mechanism: Setscrew inner ring — reliable shaft attachment
- Series: 205 Series bearing — widely used, reliable series
Description
Dodge Mounted Bearings are engineered for reliable performance in demanding industrial applications. Known for their rugged construction and long service life, Dodge bearings are built to handle heavy loads, high speeds, and harsh environments with ease. Available in a wide range of housings—such as pillow block, flange, and take-up styles—these mounted units provide precise shaft support while simplifying installation and maintenance. Dodge’s advanced sealing options help keep contaminants out, extending bearing life and reducing downtime. Trusted across industries including food processing, mining, HVAC, and material handling, Dodge mounted bearings deliver dependable operation, reduced maintenance costs, and exceptional value for today’s industrial needs.
Specifications
Attributes
| Bearing Type | Ball |
| Ball Bearing Series | 211 Series |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Shaft Attachment | Setscrew |
| Insert Material | Steel |
| Sensor Ready | Adapter Required |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
| Standoff Housing | No |
| Take-Up Frame Size | LD-40, TS-300 |
| Seal Type | Single-Lip Contact |
| Greasable | Yes |
| Lubrication Type | Grease |
| Lubrication Name | Unirex N2 |
| Dynamic Load Capacity | 9755 lbf |
| Dynamic Load Capacity | 43392.402 N |
| Static Load Capacity | 6588 lbf |
| Static Load Capacity | 29304.884 N |
| Maximum Speed | 2500 rpm |
| Maximum Speed | 41.667 hz |
| Bolt to Bolt Min | 6.3800 in |
| Bolt to Bolt Min | 162.052 mm |
| Bolt to Bolt Max | 7.4400 in |
| Bolt to Bolt Max | 188.976 mm |
| Shaft Diameter | 1.9375 in |
| Shaft Diameter | 49.213 mm |
| Length Through Bore | 2.2200 in |
| Length Through Bore | 56.388 mm |
| Bolt Diameter | 0.6250 in |
| Bolt Diameter | 15.875 mm |
