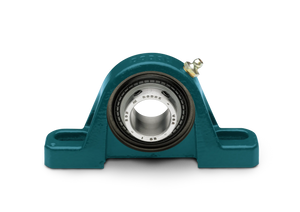

Dodge P2B-SCM-215 (126821) Pillow Block Ball Bearing Unit - 2-Bolt Base, 2-15/16 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)
- Regular price
- €557,95
- Sale price
- €557,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Heavy-duty cast iron housing – Rugged 2-bolt design resists shock, vibration, and misalignment while ensuring stable shaft support in tough industrial settings.
- Large bore capacity – Engineered to fit 2-15/16 inch shafts (≈2.9375 in), making it suitable for medium- to heavy-duty applications across conveyors, processing equipment, and mechanical drives.
- High load ratings – Handles demanding conditions with a dynamic load capacity of 17,407 lbf and a static capacity of 13,102 lbf, ensuring reliability under continuous operation.
- Optimized mounting dimensions – Designed with 8.5–9.5 in bolt spacing and a 3.5 in center height, simplifying installation and ensuring proper alignment in a wide range of systems.
- Enhanced sealing and lubrication – Equipped with a single-lip contact seal to keep out contaminants, factory-packed with premium Unirex N2 grease, and fully relubricatable for extended service life.
- Secure shaft retention – Features a set-screw locking system, delivering firm, vibration-resistant clamping without excessive shaft distortion.
Description
Dodge Mounted Bearings are engineered for reliable performance in demanding industrial applications. Known for their rugged construction and long service life, Dodge bearings are built to handle heavy loads, high speeds, and harsh environments with ease. Available in a wide range of housings—such as pillow block, flange, and take-up styles—these mounted units provide precise shaft support while simplifying installation and maintenance. Dodge’s advanced sealing options help keep contaminants out, extending bearing life and reducing downtime. Trusted across industries including food processing, mining, HVAC, and material handling, Dodge mounted bearings deliver dependable operation, reduced maintenance costs, and exceptional value for today’s industrial needs.
Specifications
Attributes
| Bearing Type | Ball |
| Ball Bearing Series | 216 Series |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Shaft Attachment | Setscrew |
| Insert Material | Steel |
| Sensor Ready | Adapter Required |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
| Standoff Housing | No |
| Take-Up Frame Size | LD-50, TS-400 |
| Seal Type | Single-Lip Contact |
| Greasable | Yes |
| Lubrication Type | Grease |
| Lubrication Name | Unirex N2 |
| Dynamic Load Capacity | 17407 lbf |
| Dynamic Load Capacity | 77430.194 N |
| Static Load Capacity | 13102 lbf |
| Static Load Capacity | 58280.6 N |
| Maximum Speed | 1000 rpm |
| Maximum Speed | 16.667 hz |
| Bolt to Bolt Min | 8.5000 in |
| Bolt to Bolt Min | 215.9 mm |
| Bolt to Bolt Max | 9.5000 in |
| Bolt to Bolt Max | 241.3 mm |
| Shaft Diameter | 2.9375 in |
| Shaft Diameter | 74.613 mm |
| Length Through Bore | 2.3800 in |
| Length Through Bore | 60.452 mm |
| Bolt Diameter | 0.8750 in |
| Bolt Diameter | 22.225 mm |
