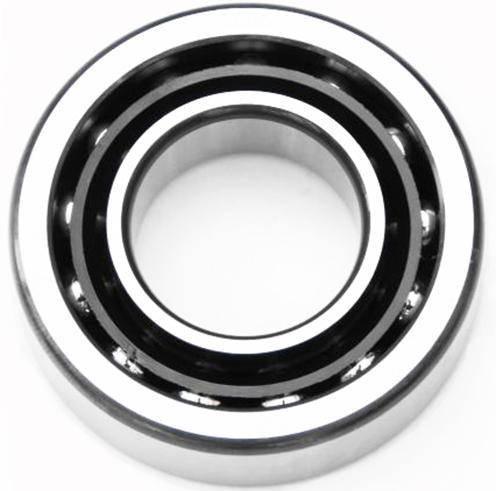

FAG 7603025-TVP Thrust Angular Contact Ball Bearing - Apollo Industries llc
    FAG 7603025-TVP Thrust Angular Contact Ball Bearing - Apollo Industries llc
FAG 7603025-TVP Thrust Angular Contact Ball Bearing - Apollo Industries llc
FAG 7603025-TVP Thrust Angular Contact Ball Bearing - Apollo Industries llc
    FAG 7603025-TVP Thrust Angular Contact Ball Bearing - Apollo Industries llc
FAG 7603025-TVP Thrust Angular Contact Ball Bearing - Apollo Industries llc

About

Description
O.D. 62 mm
LUBRICANT Oil Preservative
BORE TYPE Round Bore, Metric Type
NO. IN SET Single Bearing
BALL MATERIAL Steel
ORIGIN Single Row Angular Contact
OUTER RING WIDTH 17 mm
CAGE MATERIAL Polyamide (Molded Nylon)
BEARING ARRANGEMENT N/A
SEAL TYPE Unsealed
PRECISION LEVEL Extra Precision (ABEC 7)
INNER RING WIDTH 17 mm
MATERIAL Steel
RADIAL INTERNAL CLEARANCE SPECIFICATION Normal Clearance
SEAL MATERIAL None
I.D. 25 mm
INCH/METRIC Metric
O.D. TYPE Straight
ENCLOSURE Open
STATIC LOAD RATING [MAX] 15300 lbf
BEARING TYPE Thrust Angular Contact
PRELOAD LEVEL Light
CONTACT ANGLE 60°
FILLET RADIUS 1.1 mm
PRELOAD AMOUNT 740 lbf
LIMITING SPEED - GREASE 3000 rpm
DYNAMIC LOAD RATING 28500 N
WEIGHT 0.58 LB
EAN OR UPC 4012801166744
Description
O.D. 62 mm
LUBRICANT Oil Preservative
BORE TYPE Round Bore, Metric Type
NO. IN SET Single Bearing
BALL MATERIAL Steel
ORIGIN Single Row Angular Contact
OUTER RING WIDTH 17 mm
CAGE MATERIAL Polyamide (Molded Nylon)
BEARING ARRANGEMENT N/A
SEAL TYPE Unsealed
PRECISION LEVEL Extra Precision (ABEC 7)
INNER RING WIDTH 17 mm
MATERIAL Steel
RADIAL INTERNAL CLEARANCE SPECIFICATION Normal Clearance
SEAL MATERIAL None
I.D. 25 mm
INCH/METRIC Metric
O.D. TYPE Straight
ENCLOSURE Open
STATIC LOAD RATING [MAX] 15300 lbf
BEARING TYPE Thrust Angular Contact
PRELOAD LEVEL Light
CONTACT ANGLE 60°
FILLET RADIUS 1.1 mm
PRELOAD AMOUNT 740 lbf
LIMITING SPEED - GREASE 3000 rpm
DYNAMIC LOAD RATING 28500 N
WEIGHT 0.58 LB
EAN OR UPC 4012801166744
