Description

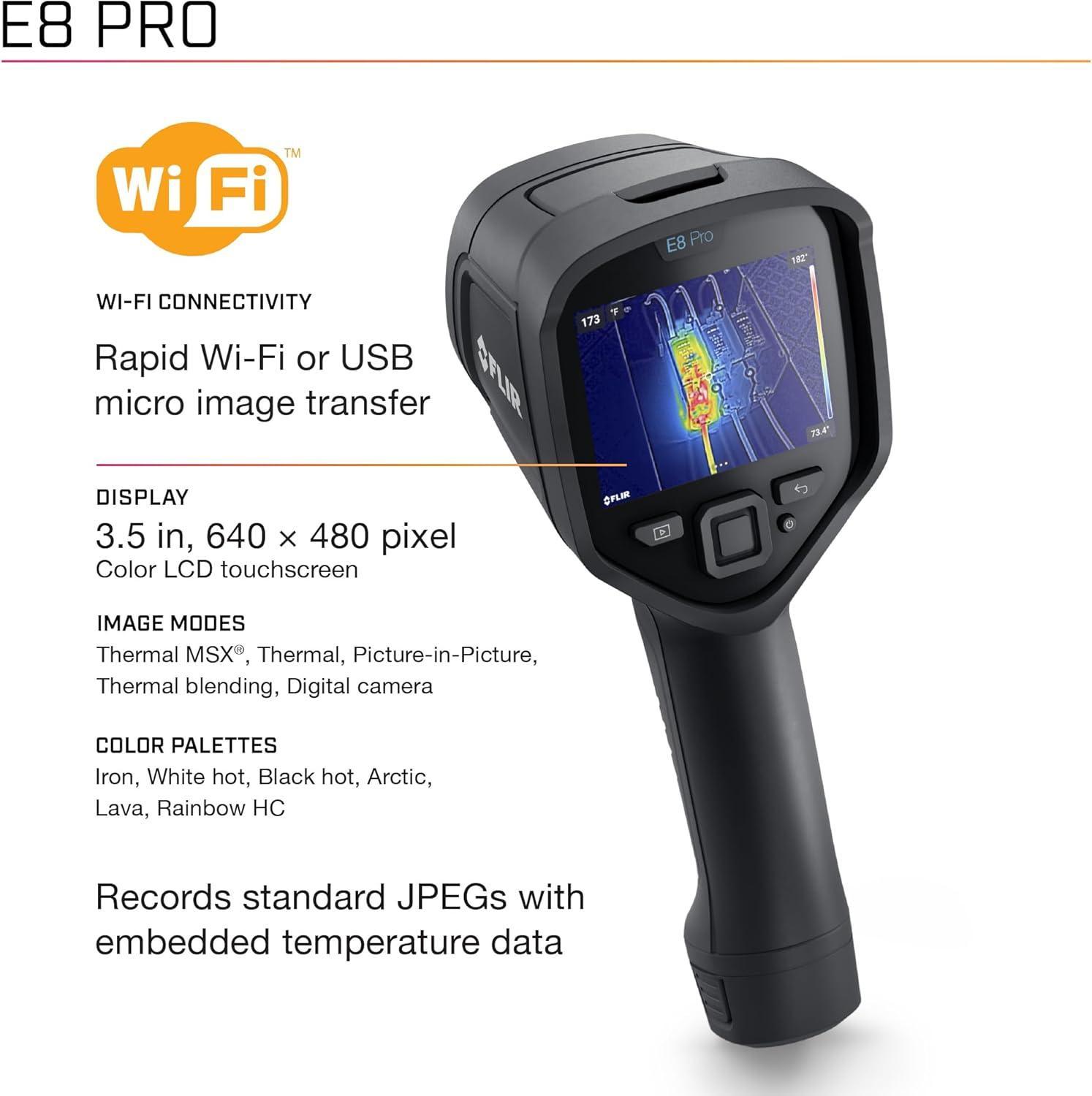

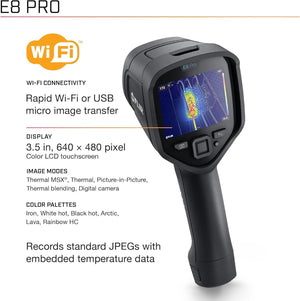

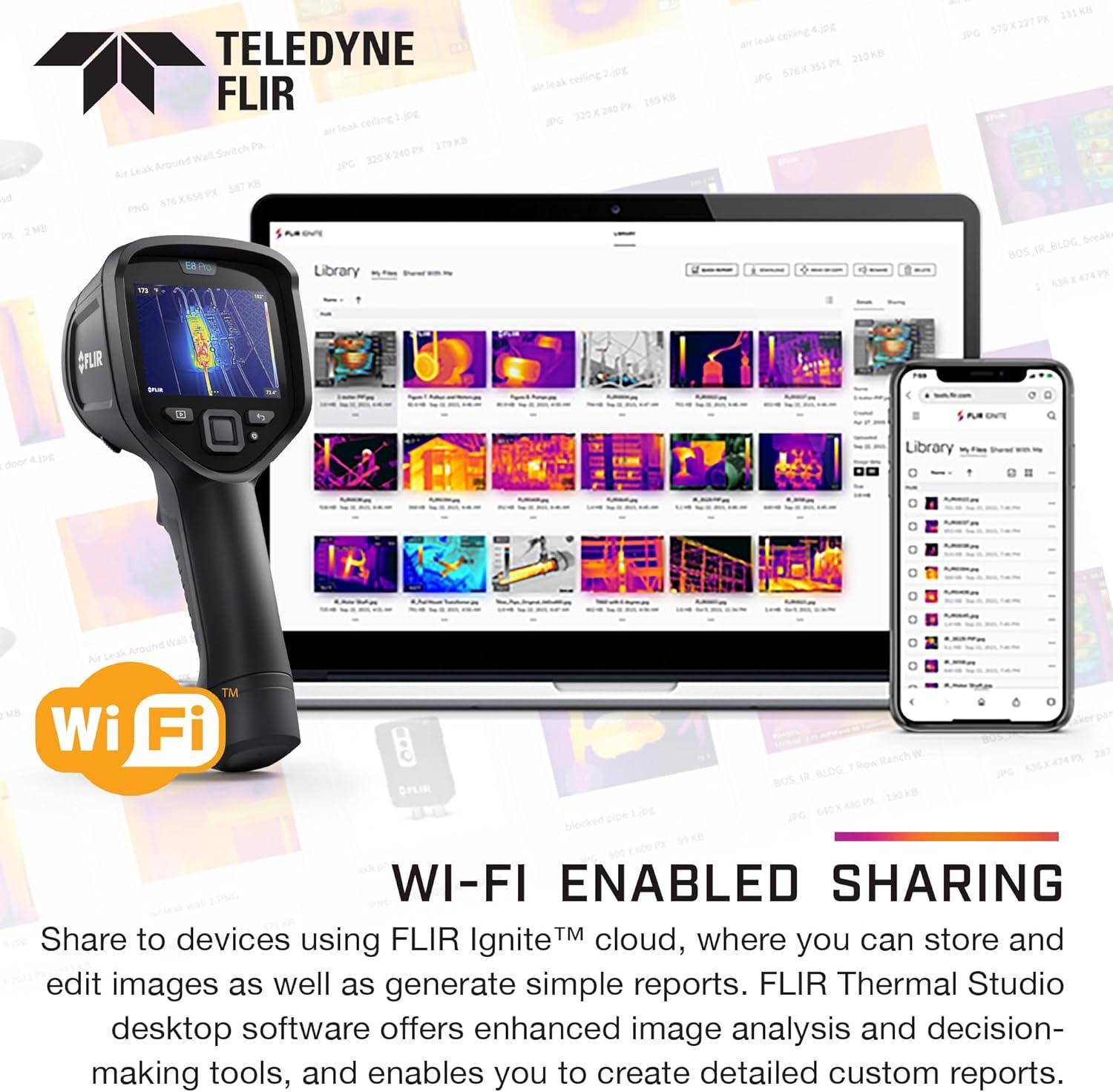

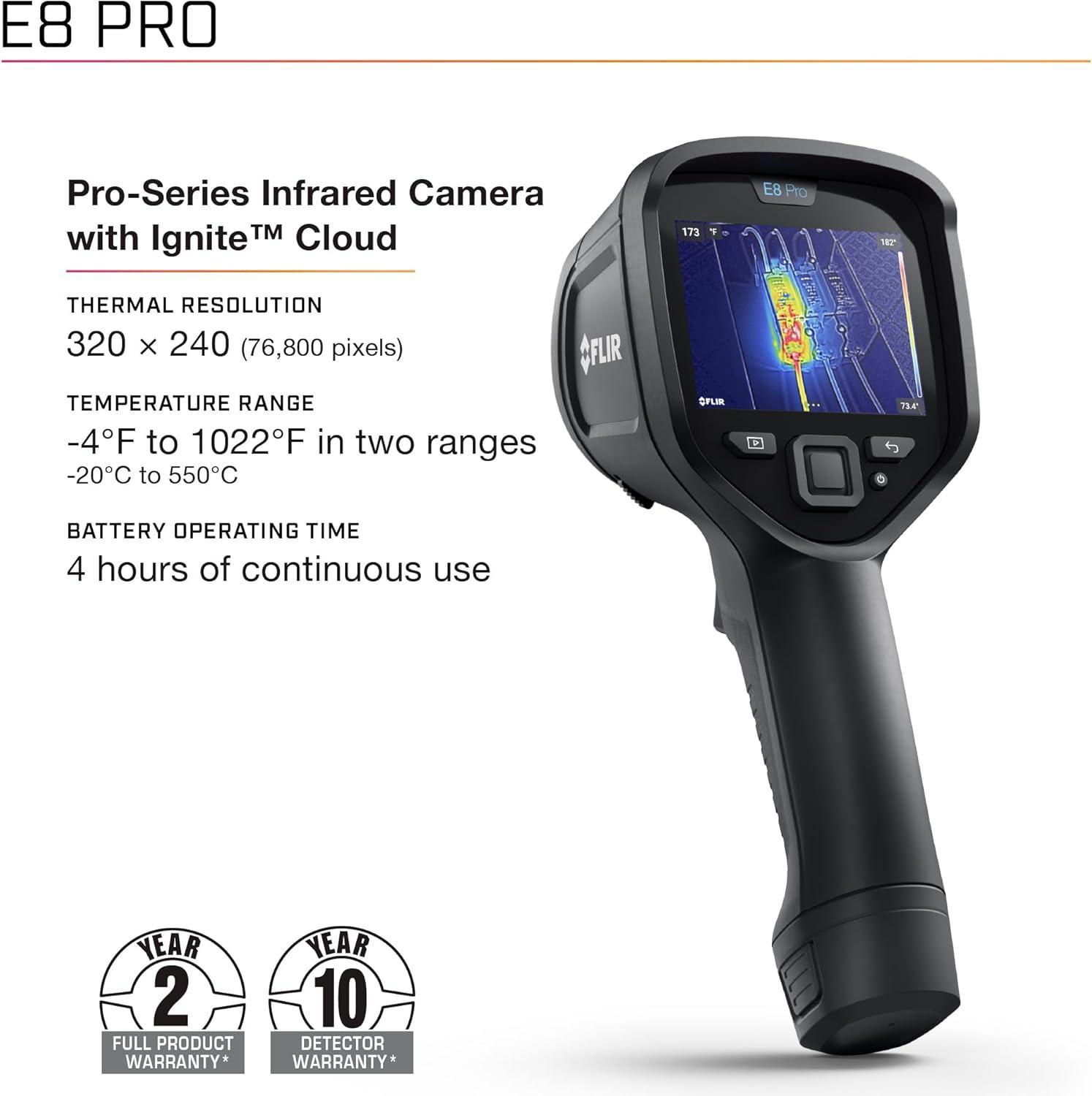

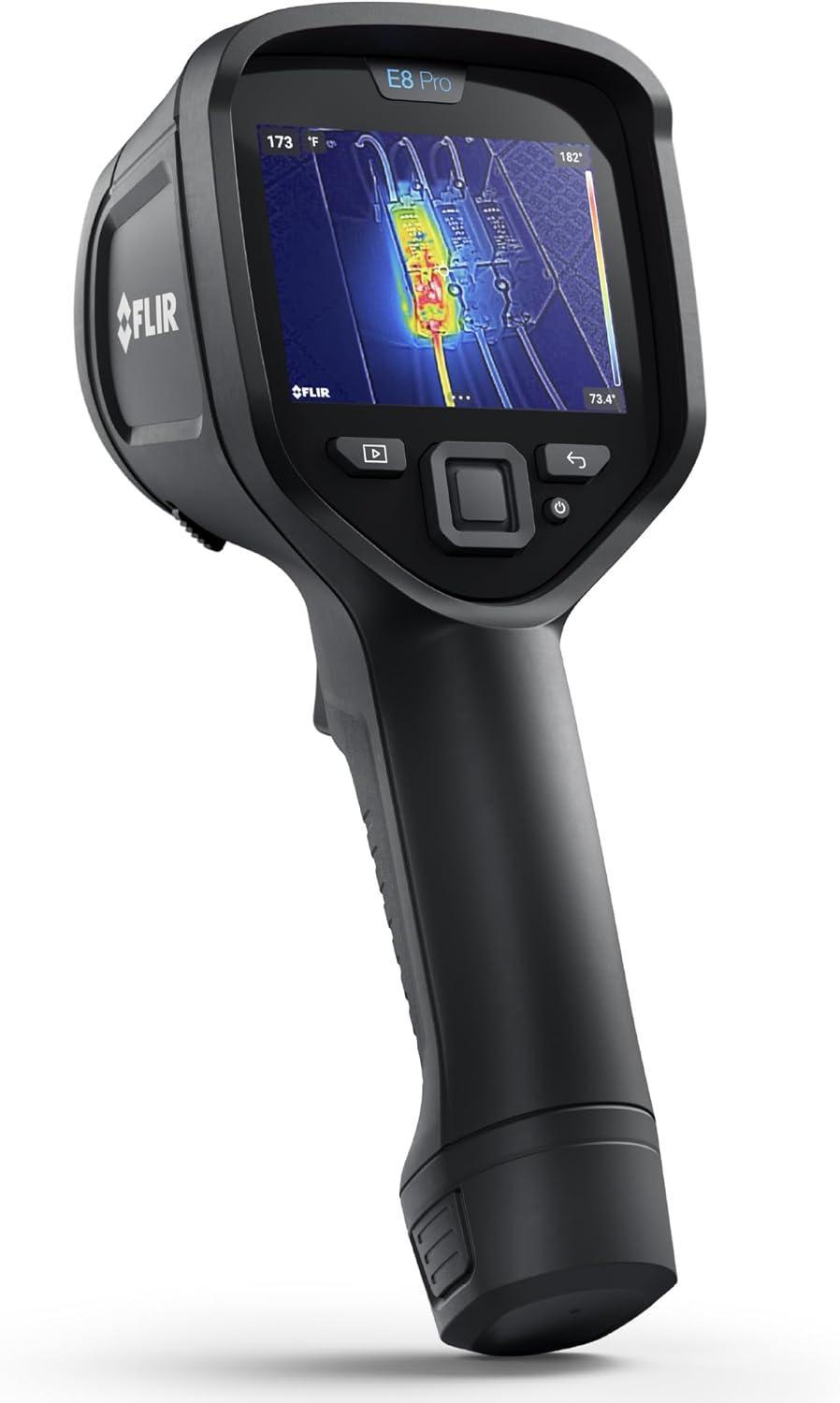

The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX (Multi-Spectral Dynamic Imaging) enhancement. Your inspections will be more efficient because you can do all your work from the touchscreen: organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you’re ready to share images and create client reports, your images and notes are already available for your use in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.





Category Specification Details

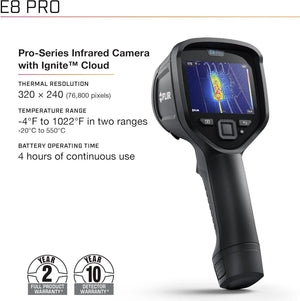

Imaging & Optical IR Resolution 320 × 240 (76,800 pixels)
Thermal Sensitivity/NETD <0.04°C (0.07°F) / <40 mK at 30°C (86°F)
Field of View (FOV) 33°
Digital Camera 5 MP
Image Modes Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display 3.5 in, 640 × 480 color LCD
Storage Media Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
Color Palettes Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
Detector Type Uncooled microbolometer
Focus Focus free
Minimum Focus Distance 0.36 m (1.18 ft)
Spectral Range 7.5 µm to 13 µm
Measurement & Analysis Accuracy ±2°C (±3.6°F) or ±2% of reading
Delta T Yes, NFPA 70B compliant
Isotherm Above alarm, below alarm
Object Temperature Range -20°C to 550°C (-4°F to 1022°F) in two ranges
User Interface Display 3.5 in, 640 × 480 color LCD

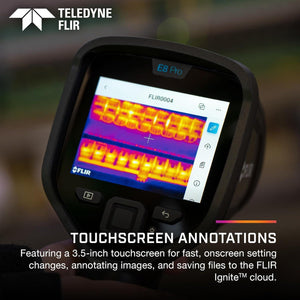

Text Annotation Text annotation on image using onscreen keyboard
Touchscreen Capacitive touch
Power Battery Operating Time 4 hours
Battery Type Rechargeable Lithium-ion battery
Charging System Battery charged inside camera or in specific charger
Charging Time 2 hours
Power Management Automatic shut-down
Environmental & Certifications Certifications UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
EMC
  • EN 301 489-1
  • EN 301 489-17
  • EN 61000-6-3
  • EN 61000-6-2
  • FCC 47 CFR Part 15 Class B
Encapsulation IP54 (IEC 60529)
Operating Temperature Range -15°C to 50°C (5°F to 122°F)
Shock 25 g (IEC 60068-2-27)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Vibration 2 g (IEC 60068-2-6)

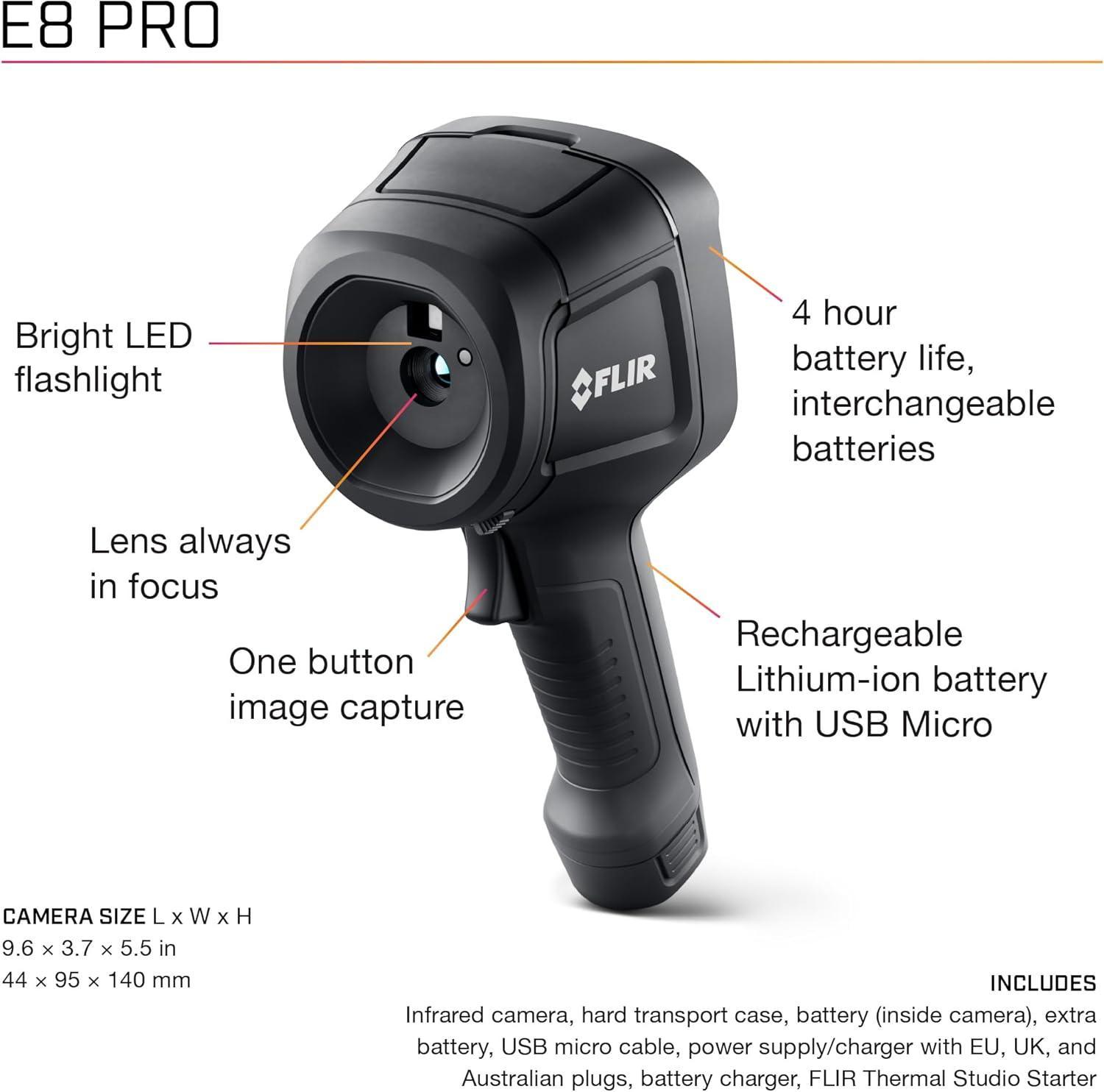

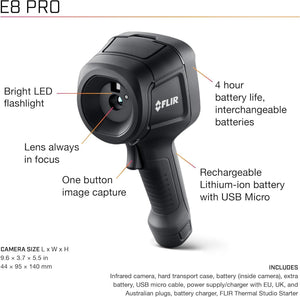

Flashlight Bright LED
List of Contents
  • Infrared camera
  • Hard transport case
  • Battery (inside camera) + extra battery
  • Tabletop charger
  • Power supply (with EU, UK, US, and AU plugs)
  • Micro USB adapter
  • FLIR Thermal Studio Starter
  • Printed documentation
Communication & Data Storage Storage Media Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
Bluetooth Uses Bluetooth to set up the peer-to-peer Wi-Fi network
File Formats Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
WiFi IEEE 802.11 a/b/g/n
Packaging Size Dimensions 385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in)
Description

The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX (Multi-Spectral Dynamic Imaging) enhancement. Your inspections will be more efficient because you can do all your work from the touchscreen: organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you’re ready to share images and create client reports, your images and notes are already available for your use in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.





Category Specification Details
Imaging & Optical IR Resolution 320 × 240 (76,800 pixels)
Thermal Sensitivity/NETD <0.04°C (0.07°F) / <40 mK at 30°C (86°F)
Field of View (FOV) 33°
Digital Camera 5 MP
Image Modes Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display 3.5 in, 640 × 480 color LCD
Storage Media Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
Color Palettes Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
Detector Type Uncooled microbolometer
Focus Focus free
Minimum Focus Distance 0.36 m (1.18 ft)
Spectral Range 7.5 µm to 13 µm
Measurement & Analysis Accuracy ±2°C (±3.6°F) or ±2% of reading
Delta T Yes, NFPA 70B compliant
Isotherm Above alarm, below alarm
Object Temperature Range -20°C to 550°C (-4°F to 1022°F) in two ranges
User Interface Display 3.5 in, 640 × 480 color LCD
Text Annotation Text annotation on image using onscreen keyboard
Touchscreen Capacitive touch
Power Battery Operating Time 4 hours
Battery Type Rechargeable Lithium-ion battery
Charging System Battery charged inside camera or in specific charger
Charging Time 2 hours
Power Management Automatic shut-down
Environmental & Certifications Certifications UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
EMC
  • EN 301 489-1
  • EN 301 489-17
  • EN 61000-6-3
  • EN 61000-6-2
  • FCC 47 CFR Part 15 Class B
Encapsulation IP54 (IEC 60529)
Operating Temperature Range -15°C to 50°C (5°F to 122°F)
Shock 25 g (IEC 60068-2-27)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Vibration 2 g (IEC 60068-2-6)
Flashlight Bright LED
List of Contents
  • Infrared camera
  • Hard transport case
  • Battery (inside camera) + extra battery
  • Tabletop charger
  • Power supply (with EU, UK, US, and AU plugs)
  • Micro USB adapter
  • FLIR Thermal Studio Starter
  • Printed documentation
Communication & Data Storage Storage Media Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
Bluetooth Uses Bluetooth to set up the peer-to-peer Wi-Fi network
File Formats Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
WiFi IEEE 802.11 a/b/g/n
Packaging Size Dimensions 385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in)
Free Shipping No Extra Costs
Easy Returns Return with Ease
Secure Checkout Secure Payment
Teledyne FLIR by Teledyne FLIR

FLIR E8 Pro Commercial Thermal Imaging Camera with Wifi. High Resolution Infrared Cameara with FLIR Ignite Cloud

Regular price
€2.938,95
Sale price
€2.938,95
Regular price
10 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Free 90-day returns
Shop risk-free with easy returns.
Need Help?
Call us 1 (248) 429-9073
Flir_authorized_retailer

Apollo Industries

A Michigan Company
