Kukko Threaded Extraction System

For extracting bushings and components with threads (e.g., dowel pins, parallel keys, bolts, etc.).

Key Features and Applications

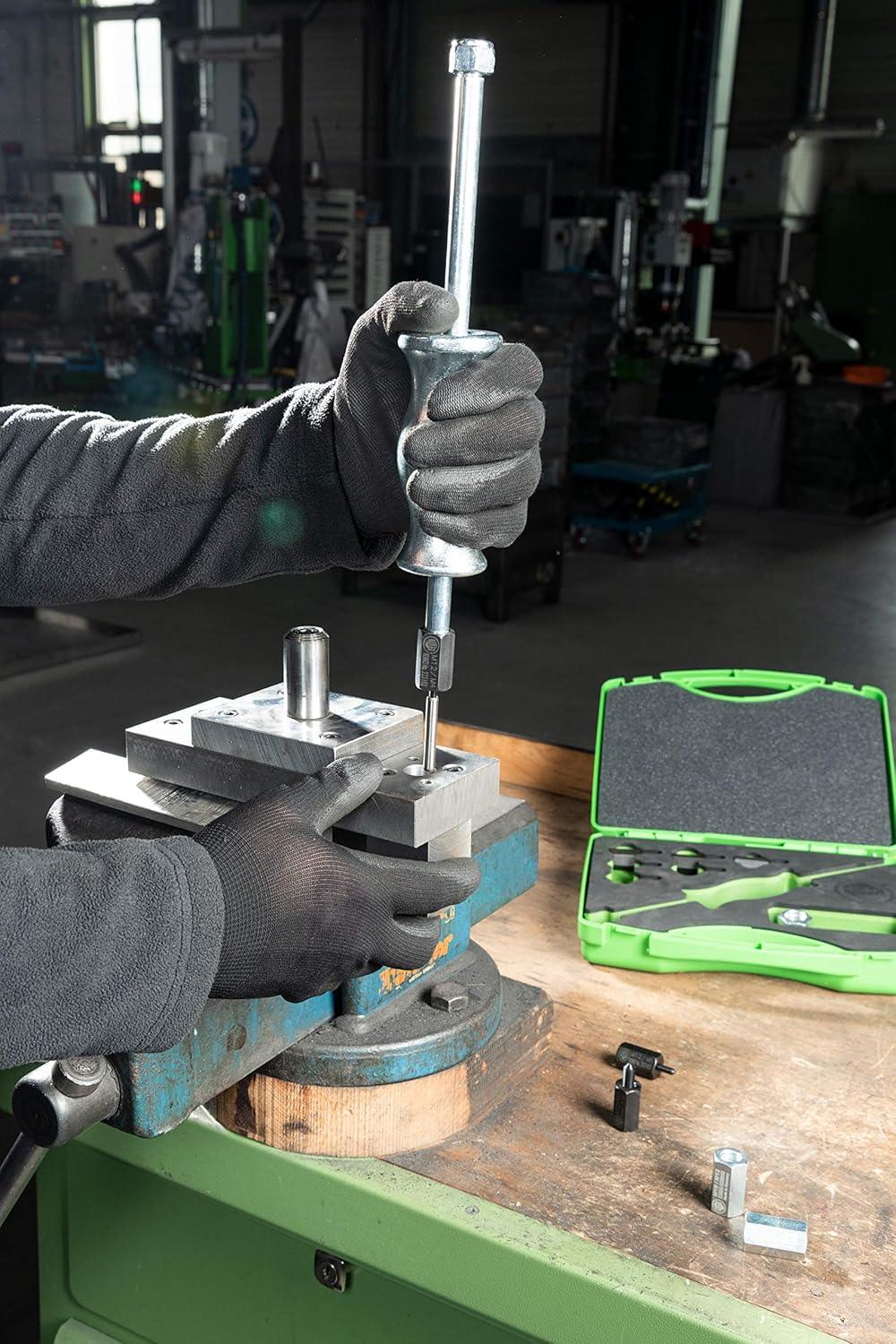

1. Extracting Register Pins

   • Designed to remove parts with internal and external threads, such as register pins, taper pins, or cylindrical dowels.

2. Measurement Function

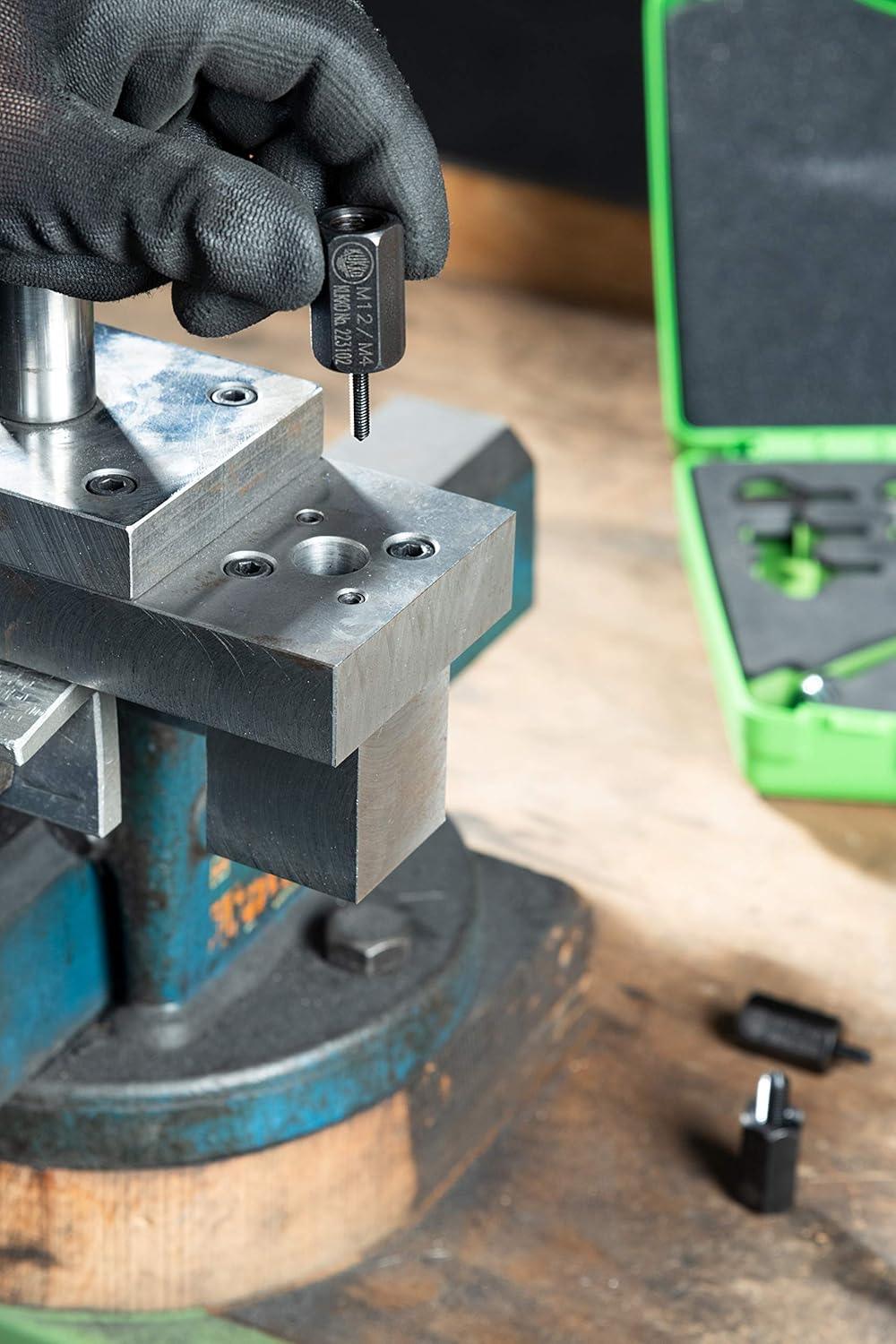

   • Threads can be clearly identified using the laser-etched measurements on the thread adapters.

3. Modular Replacement

   • Thanks to its modular construction with a flexible pin, broken adapters can be cost-effectively replaced with standard parts.

Advantages

• Practical Packaging: A universal solution with a complete, easy-to-manage package.
• Time-Saving Replacement Process: Quickly reorder replacement parts using the integrated numbering system.

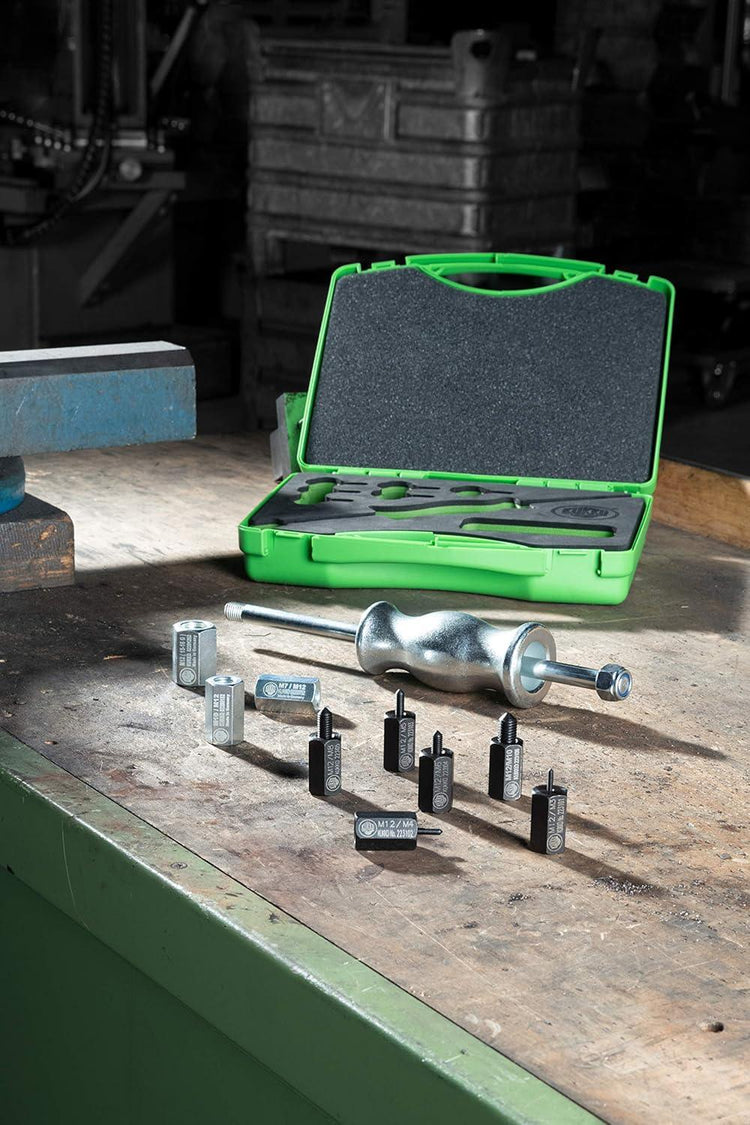

• Clean & Convenient Storage: Neatly stored in a durable plastic case with protective foam.

Technical Specifications

• Threaded Adapters (IG + AG)

  • IG: M12
  • AG: 1/4" - 20 UNC, 5/16" - 18 UNC, 3/8" - 16 UNC, 7/16" - 14 UNC, 1/2" - 13 UNC

• Internal Threads (Metric): M12/M7, M12/M10, M12/15-16G

• Mass of Impact: 0.9 kg

• Slide Hammer Rod Connection Thread (Metric): M12

• Overall Length of Slide Hammer: 290 mm
