LINK-BELT M5216TV Cylindrical Roller Bearing - Apollo Industries llc
    LINK-BELT M5216TV Cylindrical Roller Bearing - Apollo Industries llc
LINK-BELT M5216TV Cylindrical Roller Bearing - Apollo Industries llc
LINK-BELT M5216TV Cylindrical Roller Bearing - Apollo Industries llc
    LINK-BELT M5216TV Cylindrical Roller Bearing - Apollo Industries llc
LINK-BELT M5216TV Cylindrical Roller Bearing - Apollo Industries llc

About

Description
SHAFT FILLET RADIUS [MAX] 0.1
SERIES Wide Width
O.D. 140 mm
RETAINER MATERIAL Formed Steel
RADIAL INTERNAL CLEARANCE SPECIFICATION N/A
RADIAL INTERNAL CLEARANCE N/A
TOLERANCE Iso Class 0 (RBEC 1)
BORE DIA. [MIN] 16.0000 mm
BORE DIA. [MIN] 16
END TYPE Open End
NO. OF ROWS 1
INNER RING ROLLER TRACK DIAMETER 3.7514 in
CAGE MATERIAL Steel
OIL HOLE w/o Oil Hole
OUTER RING INNER DIAMETER 4.9078 in
PRECISION GROUND Yes
SHAFT FILLET RADIUS [MAX] 0.100 in
BORE DIA. [MAX] 80.0000 mm
BORE RANGE [MAX] 200 mm
I.D. 80 mm
BEARING DESIGN Outer Ring & Roller Assembly
BORE DIA. [MAX] 80
BORE RANGE [MIN] 25 mm
ENCLOSURE Open
HOUSING FILLET RADIUS [MAX] 0.08 in
CAPACITY Standard Capacity
OUTER RING Two Retaining Rings in Outer Ring OD
BORE TYPE Round Bore, Inch Type
WEIGHT 4.404 LB
EAN OR UPC 662327108069
Description
SHAFT FILLET RADIUS [MAX] 0.1
SERIES Wide Width
O.D. 140 mm
RETAINER MATERIAL Formed Steel
RADIAL INTERNAL CLEARANCE SPECIFICATION N/A
RADIAL INTERNAL CLEARANCE N/A
TOLERANCE Iso Class 0 (RBEC 1)
BORE DIA. [MIN] 16.0000 mm
BORE DIA. [MIN] 16
END TYPE Open End
NO. OF ROWS 1
INNER RING ROLLER TRACK DIAMETER 3.7514 in
CAGE MATERIAL Steel
OIL HOLE w/o Oil Hole
OUTER RING INNER DIAMETER 4.9078 in
PRECISION GROUND Yes
SHAFT FILLET RADIUS [MAX] 0.100 in
BORE DIA. [MAX] 80.0000 mm
BORE RANGE [MAX] 200 mm
I.D. 80 mm
BEARING DESIGN Outer Ring & Roller Assembly
BORE DIA. [MAX] 80
BORE RANGE [MIN] 25 mm
ENCLOSURE Open
HOUSING FILLET RADIUS [MAX] 0.08 in
CAPACITY Standard Capacity
OUTER RING Two Retaining Rings in Outer Ring OD
BORE TYPE Round Bore, Inch Type
WEIGHT 4.404 LB
EAN OR UPC 662327108069
Free Shipping No Extra Costs
Easy Returns Return with Ease
Secure Checkout Secure Payment
LinkBelt by LinkBelt

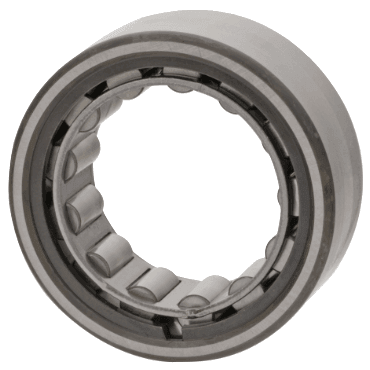

LINK-BELT M5216TV Cylindrical Roller Bearing

Regular price
€331,95
Sale price
€331,95
Regular price
1 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Free 30-day returns
Shop risk-free with easy returns.
Need Help?
Call us (248) 464-4912

Apollo Industries

A Michigan Company

Check Out These Related Products
