About
Description
SPECIFICATIONS
| Bore Type | Straight |
|---|---|
| Number of Rows | 1 |
| Bore Diameter | 45 mm |
| Outside Diameter | 100 mm |
| Overall Width | 25 mm |
| Internal Clearance | C0 |
| Ring Separation | Non-Separable |
| Flanges | (2) Inner Ring |
| Dynamic Load Capacity | 19400 lb |
| Static Load Capacity | 20400 lbs |
| Precision Rating | Not Rated |
| Bearing Material | Chrome Steel |
| Cage Material | Steel |
| Finish/Coating | Uncoated |
| Closure Type | Open |
| Outer Ring Width | 25 mm |
| Fillet Radius | 2.03 mm |
| Series | Medium |
| Weight | 2.12 lbs |
Description
SPECIFICATIONS
| Bore Type | Straight |
|---|---|
| Number of Rows | 1 |
| Bore Diameter | 45 mm |
| Outside Diameter | 100 mm |
| Overall Width | 25 mm |
| Internal Clearance | C0 |
| Ring Separation | Non-Separable |
| Flanges | (2) Inner Ring |
| Dynamic Load Capacity | 19400 lb |
| Static Load Capacity | 20400 lbs |
| Precision Rating | Not Rated |
| Bearing Material | Chrome Steel |
| Cage Material | Steel |
| Finish/Coating | Uncoated |
| Closure Type | Open |
| Outer Ring Width | 25 mm |
| Fillet Radius | 2.03 mm |
| Series | Medium |
| Weight | 2.12 lbs |
LinkBelt
by
LinkBelt

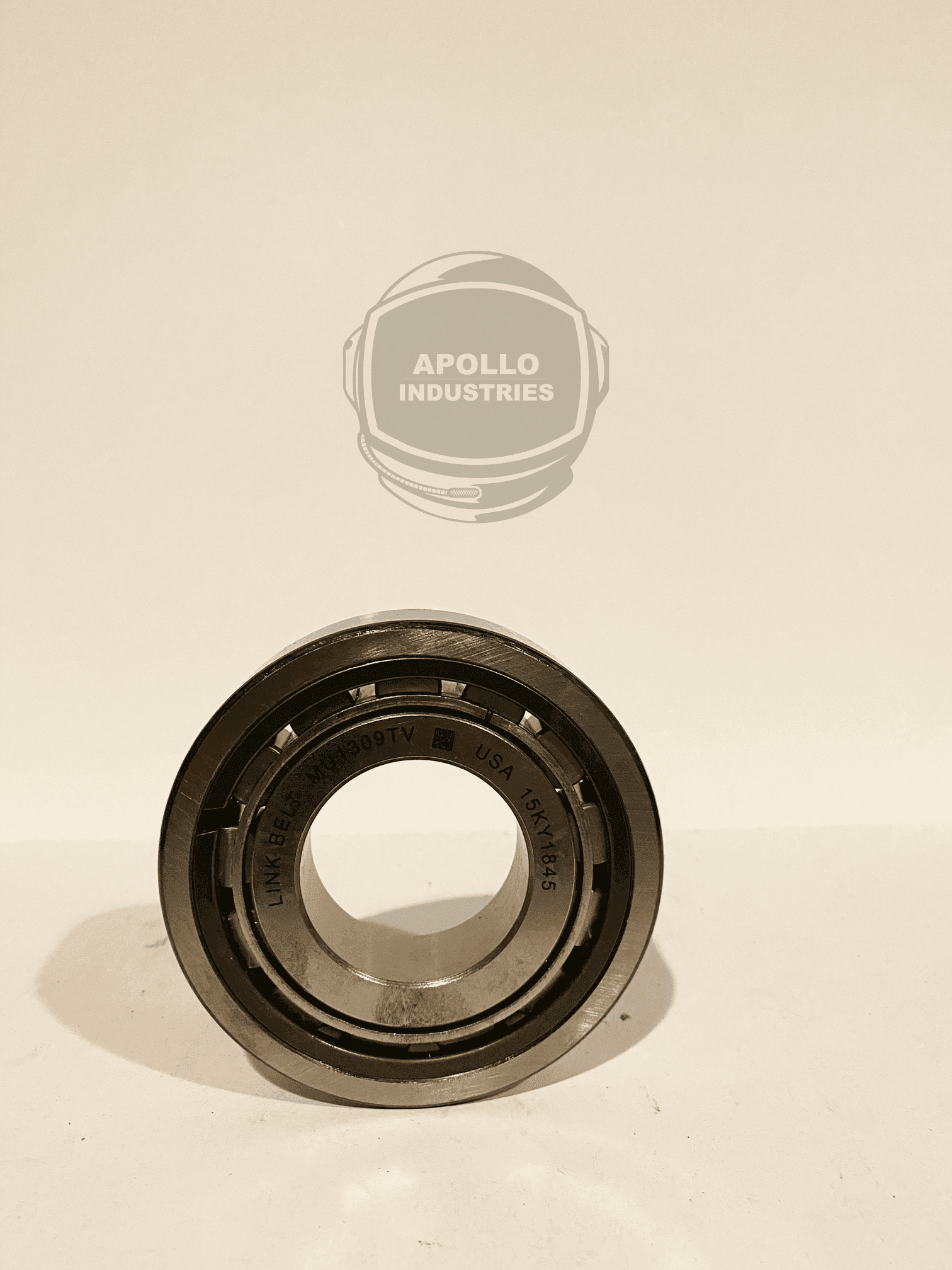

Link-Belt (Rexnord) MU1309TV Cylindrical Roller Bearing
- Regular price
- €78,95
- Sale price
- €78,95
- Regular price
-
Out of stock
Orders placed before 3:00pm (Est) ship same day
