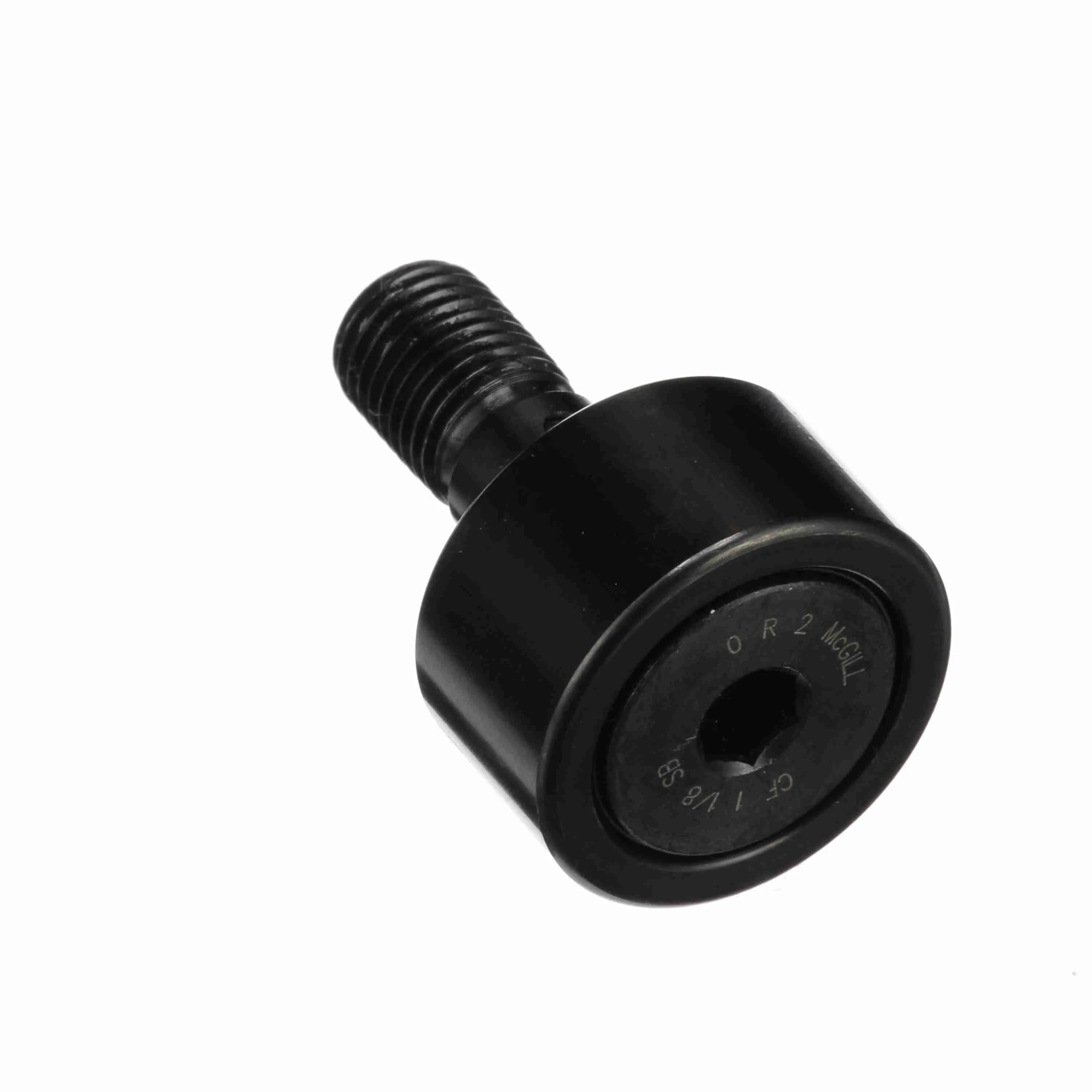

McGill CF 1 1/8 SB CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed
- Regular price
- €42,95
- Sale price
- €42,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
Description
McGill® bearings are recognized worldwide for their precision, reliability, and performance in demanding industrial applications. With decades of engineering expertise, McGill offers a complete line of cam followers, needle bearings, spherical roller bearings, and other specialty products designed to handle high loads, reduce friction, and extend service life.
Built with premium materials and advanced manufacturing processes, McGill bearings deliver consistent operation even in harsh environments such as oil & gas, food processing, power transmission, and heavy machinery. Their innovative designs provide superior load distribution, misalignment compensation, and resistance to wear, helping reduce downtime and maintenance costs.
Whether for OEM applications or critical replacement needs, McGill bearings are trusted by engineers and maintenance professionals across industries to ensure smooth, efficient, and long-lasting performance.
Specifications
Dimensions
| Threads | 7/16-20 |
| Roller Diameter (in) | 1.125 in |
| Oil Hole Center (in) | 0.25 in |
| Lubrication Fitting Size (in) | 0.1875 in |
| Lubrication Fitting Size (mm) | 0.1875 mm |
| Roller Width (in) | 0.625 in |
| Minimum Thread Length (in) | 0.5 in |
| Stud Diameter (in) | 0.4375 in |
| Stud Length (in) | 1 in |
| Hex Socket (in) | 0.25 in |
| Oil Hole Diameter (in) | 0.094 in |
| Weight (kg) | 0.1 kg |
Technical Specifications
| Hex/Slot | Hex Hole |
| Limiting Speed | 3,400 |
| Dynamic Radial Rating | 2,225 |
| Adjustment | None |
| Rolling Element | Needle Roller - Full Complement |
| Sealing | Sealed |
| Series | Inch CAMROL® |
| O.D. Configuration | Cylindrical |
| Material | Bearing Steel, Black Oxide Finish |
| Roller Shape | Cylindrical |
| Static Load Rating | 3,060 |
| Stud Type | Standard Stud |
| Platform | CAMROL® |
| Tolerance Class | P0 Equivalent |
| Dynamic Load Rating (lb) | 2,225 lb |
| Ability to Relubricate | Yes |
| Clamping Torque (in-lbf) | 250 lbs |
General Specifications
| UPC | 726166033910 |
| Weight | 0.21 LB |
| Packaged Length | 1.50 IN |
| Packaged Width | 1.75 IN |
| Packaged Height | 2.18 IN |
| HTC | 8482.40.0000 |
| Country of Origin | Mexico |
