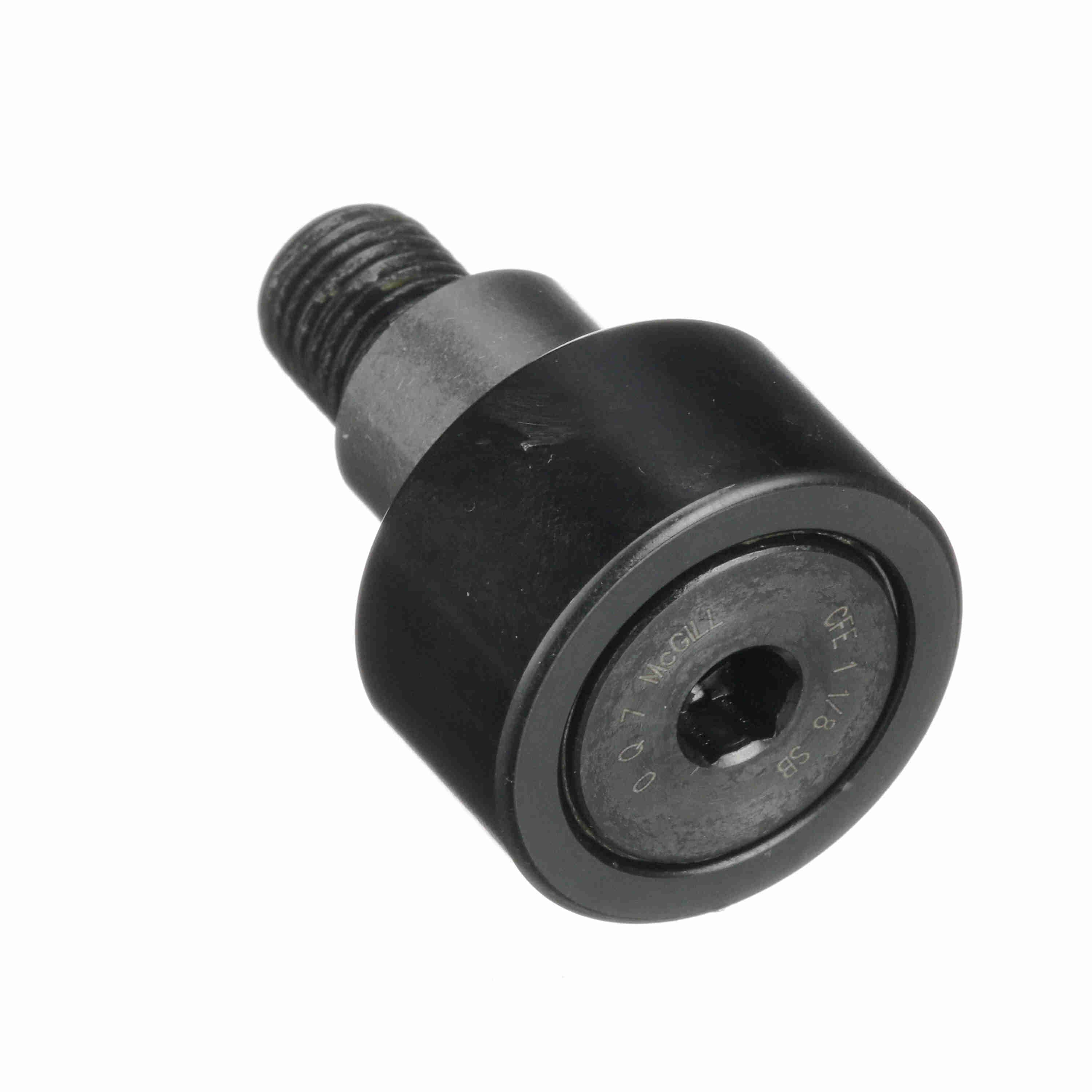

McGill CFE 1 1/8 SB CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed
- Regular price
- €50,95
- Sale price
- €50,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- Eccentric configuration
Description
McGill® bearings are recognized worldwide for their precision, reliability, and performance in demanding industrial applications. With decades of engineering expertise, McGill offers a complete line of cam followers, needle bearings, spherical roller bearings, and other specialty products designed to handle high loads, reduce friction, and extend service life.
Built with premium materials and advanced manufacturing processes, McGill bearings deliver consistent operation even in harsh environments such as oil & gas, food processing, power transmission, and heavy machinery. Their innovative designs provide superior load distribution, misalignment compensation, and resistance to wear, helping reduce downtime and maintenance costs.
Whether for OEM applications or critical replacement needs, McGill bearings are trusted by engineers and maintenance professionals across industries to ensure smooth, efficient, and long-lasting performance.
Specifications
Dimensions
| Threads | 7/16-20 |
| Roller Diameter (in) | 1.125 in |
| Minimum Thread Length (in) | 0.5 in |
| Hex Socket (in) | 0.25 in |
| Stud Diameter (in) | 0.4375 in |
| Lubrication Fitting Size (mm) | 0.1875 mm |
| Roller Width (in) | 0.625 in |
| Lubrication Fitting Size (in) | 0.1875 in |
| Bushing Diameter (in) | 0.625 in |
| Stud Length (in) | 1 in |
| Bushing Length (in) | 0.5 in |
| Eccentricity (in) | 0.03 in |
| Weight (kg) | 0.11 kg |
Technical Specifications
| O.D. Configuration | Cylindrical |
| Dynamic Radial Rating | 2,225 |
| Rolling Element | Needle Roller - Full Complement |
| Sealing | Sealed |
| Adjustment | Eccentric Bushing |
| Series | Inch CAMROL® |
| Limiting Speed | 3,400 |
| Hex/Slot | Hex Hole |
| Material | Bearing Steel, Black Oxide Finish |
| Roller Shape | Cylindrical |
| Tolerance Class | P0 Equivalent |
| Dynamic Load Rating (lb) | 2,225 lb |
| Stud Type | Standard Stud with Eccentric Bushing |
| Static Load Rating | 1,800 |
| Platform | CAMROL® |
| Ability to Relubricate | Yes |
| Clamping Torque (in-lbf) | 250 lbs |
General Specifications
| UPC | 726166033965 |
| Weight | 0.24 LB |
| Packaged Length | 1.75 IN |
| Packaged Width | 1.50 IN |
| Packaged Height | 2.18 IN |
| HTC | 8482.40.0000 |
| Country of Origin | Mexico |
