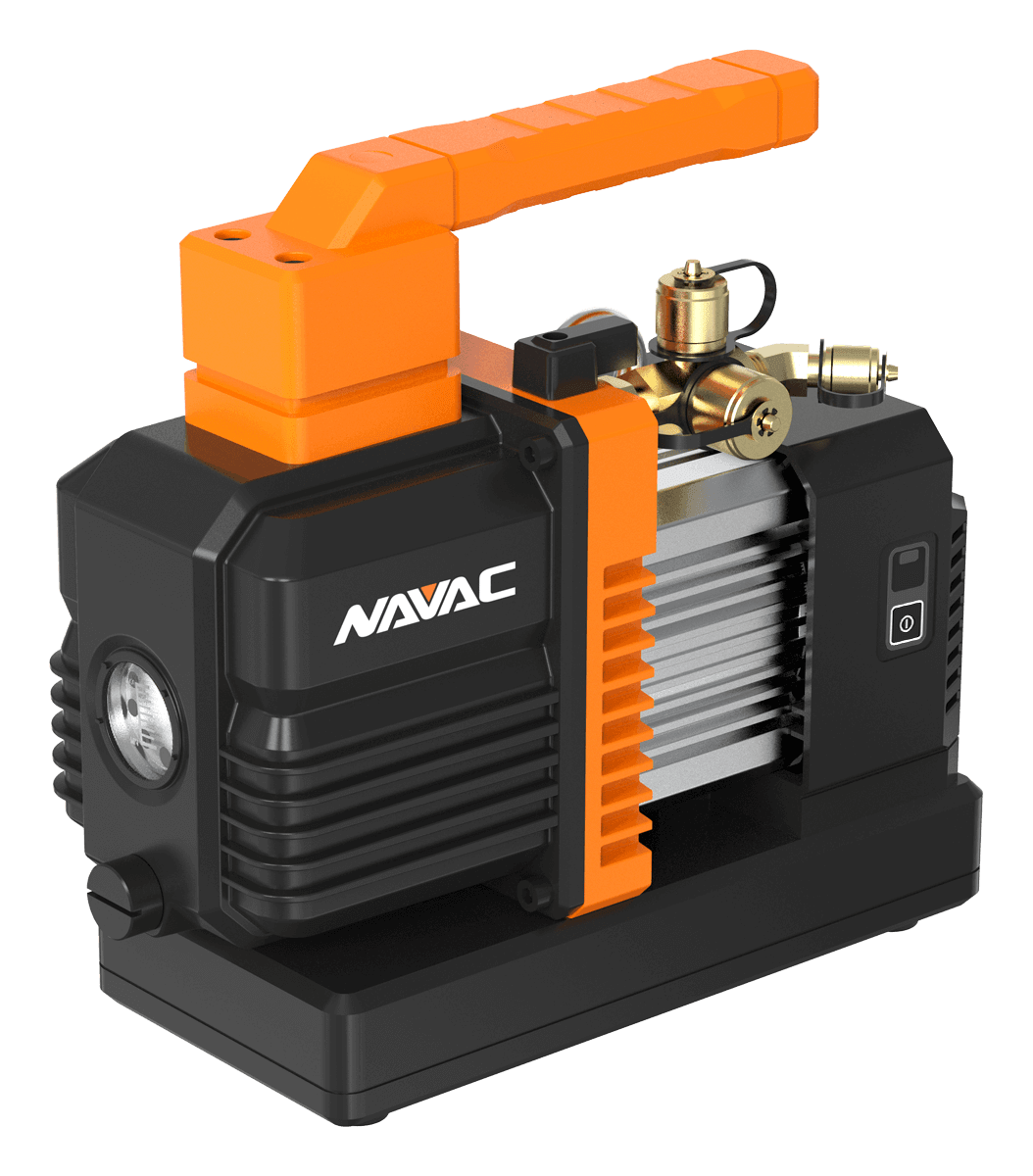

NAVAC NP4D - BreakFree Cordless Vacuum Pump (Pump Only), 4 CFM/15 microns

Brand: NAVAC

5.0

1 reviews
Regular price
€473,95
Sale price
€473,95
Regular price
Shipping calculated at checkout.
Call 1 (248) 429-9073 for Availability

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Need Help?
Call us 1 (248) 429-9073
Map showing Oxford, Michigan
Oxford, Michigan
Promotional banner

Need tax exemption or quantity pricing? We offer special rates for businesses and bulk orders.

Contact Us

FREE SHIPPING

All Orders Over $100 Ship Free Ground

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Full policy

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

PRICE MATCH

Simply provide proof of a competitor's advertised price on the same item, and we'll match it.

Full policy

Description

The NAVAC BreakFree® Cordless Vacuum Pumps are a technician’s favorite, offering unmatched portability, reliability, and performance for HVAC professionals. Now available in a pump-only form for even greater flexibility, they are compatible with DEWALT batteries using the included adapter for maximum convenience, while NAVAC batteries deliver optimal performance. Lightweight and compact, these brushless DC pumps are efficient, easy to carry, and store. With dual-stage technology, they achieve impressive vacuum performance: 2 CFM/23 microns (NP2D), 4 CFM/15 microns (NP4D), and 6 CFM/15 microns (NP6D). Additional features such as a backflow prevention check valve, isolation valve, lifting hook, and A2L refrigerant compatibility make the BreakFree® series the ultimate solution for modern HVAC needs.
*Not included in NP2D

NP4D Model Specifications

Specification Details
Model NP4D
Power Supply 18V, 9Ah (Recommend NBP2)
Flow Rate 4 CFM
Ultimate Vacuum 15 micron
Pump Design Dual-Stage, DC Motor
Motor Power 1/2 HP
Inlet Port 1/4”, 3/8”, 1/2” Flare
Oil Capacity 8.8 oz
Dimension 10.3 x 4.8 x 9.5 in
Weight 14 lbs (no battery)
Accessory Carry bag, NABA1 DEWALT Battery Adapter, Oil Bottle (Oil Not Supplied)
Warranty 2 Years
