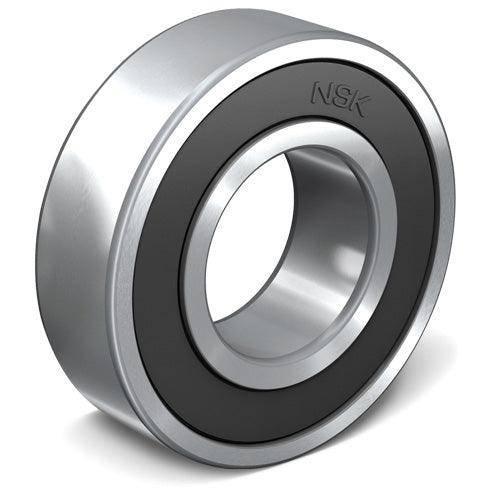

NSK 6000 VV C3 Single Row Ball Bearing

Brand: NSK
Regular price
€8,95
Sale price
€8,95
Regular price
Shipping calculated at checkout.
Call 1 (248) 429-9073 for Availability
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Need Help?
Call us 1 (248) 429-9073

Key Features

  • High quality steel—Ultra clean steel to extend bearing life by up to 80%
  • Advanced grease technology—NSK lubricants that can extend grease life and performance of deep groove ball bearings
  • High-grade balls—Quiet and smooth operation even at high speed

Description

NSK manufactures a full range of deep groove ball bearings (DGBBs). These versatile bearings are the most common type and serve a wide variety of industries.

Besides radial loads, DGBBs can take axial loads in both directions and offer low frictional torque and high-speed components ideal for applications requiring low noise and vibration.

Specifications

Technical Specifications

Designation 6000VVC3
Bore Type Straight
Bore Diameter 10 mm
Outside Diameter 26 mm
Overall Height 10 mm
Overall Width 8 mm
Overall Length 8 mm
Closure Type Double Sealed
Row Type Fill Slot Single Row Non-Fill Slot
Snap Ring Included Without Snap Ring
Internal Clearance C3
Operating Temperature Range -10 to +110 °C
Precision Rating ABEC 1 (ISO Class Normal)
Finish Coating Uncoated
Cage Material Steel
Outer Ring Width 8 mm
Fillet Radius 0.3 mm
Max RPM 30000 rpm
Series 60
Radial Dynamic Load Capacity 4550 N
Radial Static Load Capacity 1970 N
Manufacturer Catalog Number 6000VVC3
Manufacturer UPC Number 029176012198
UPC_NO 029176012198
Weight 0.02 lbs
