Description
| Bore Type | Round |
|---|---|
| Bore Diameter | 45 mm |
| Outside Diameter | 85 mm |
| Overall Width | 19 mm |
| Closure Type | Double Sealed |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C3 |
| Operating Temperature Range | -40 to 120 ºC |
| Dynamic Load Capacity | 32500 N |
| Static Load Capacity | 20400 N |
| Precision Rating | ISO Class 0 |
| Finish/Coating | Uncoated |
| Bearing Material | High Carbon Chrome Steel |
| Cage Material | Steel |
| Inner Ring Width | 19 mm |
| Outer Ring Width | 19 mm |
| Maximum RPM (Grease) | 7800 rpm |
| Fillet Radius | 1.1 mm |
| Maximum RPM | 9200 RPM |
| Series | 62 |
| Weight | 0.88 lbs |
Description
| Bore Type | Round |
|---|---|
| Bore Diameter | 45 mm |
| Outside Diameter | 85 mm |
| Overall Width | 19 mm |
| Closure Type | Double Sealed |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C3 |
| Operating Temperature Range | -40 to 120 ºC |
| Dynamic Load Capacity | 32500 N |
| Static Load Capacity | 20400 N |
| Precision Rating | ISO Class 0 |
| Finish/Coating | Uncoated |
| Bearing Material | High Carbon Chrome Steel |
| Cage Material | Steel |
| Inner Ring Width | 19 mm |
| Outer Ring Width | 19 mm |
| Maximum RPM (Grease) | 7800 rpm |
| Fillet Radius | 1.1 mm |
| Maximum RPM | 9200 RPM |
| Series | 62 |
| Weight | 0.88 lbs |
NTN
by
NTN

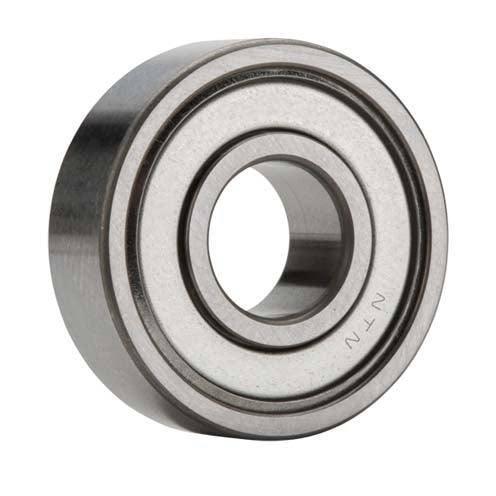

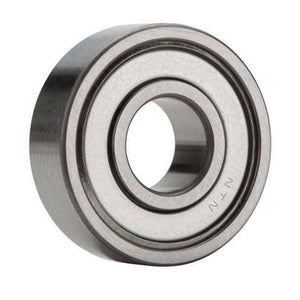

NTN 6209ZZC3 Radial/Deep Groove Ball Bearing
- Regular price
- €39,95
- Sale price
- €39,95
- Regular price
-
1 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Free 90-day returns
Shop risk-free with easy returns.
Need Help?
Call us 1 (248) 429-9073
Free Shipping
Free shipping on orders over 100$
Use code: FREESHIP
