About
Description
SPECIFICATIONS
| Bore diameter: | 25 mm | Finish/coating: |
Uncoated |
|
| Outside diameter: | 62 mm | Bearing material: |
High Carbon Chrome Steel |
|
| Overall width: | 17 mm | Cage material: |
Steel |
|
| Bore type: |
Round |
Inner ring width: |
17 mm |
|
| Closure type: |
Double Sealed |
Outer ring width: |
17 mm |
|
| Row type & fill slot: |
Single Row Non-Fill Slot |
Maximum rpm (grease): |
12000 rpm |
|
| Snap ring included: |
Without Snap Ring |
Fillet radius: |
1.1 mm |
|
| Internal clearance: |
CN |
Maximum rpm: |
1400 RPM |
|
| Operating temperature range: |
-40 to 120 ºC |
Standards met: |
MIL-G-18709A |
|
| Dynamic load capacity: |
21200 N |
Series: |
63 |
|
| Static load capacity: |
10900 N |
|||
| Precision rating: |
ISO Class 5 |
Description
SPECIFICATIONS
| Bore diameter: | 25 mm | Finish/coating: |
Uncoated |
|
| Outside diameter: | 62 mm | Bearing material: |
High Carbon Chrome Steel |
|
| Overall width: | 17 mm | Cage material: |
Steel |
|
| Bore type: |
Round |
Inner ring width: |
17 mm |
|
| Closure type: |
Double Sealed |
Outer ring width: |
17 mm |
|
| Row type & fill slot: |
Single Row Non-Fill Slot |
Maximum rpm (grease): |
12000 rpm |
|
| Snap ring included: |
Without Snap Ring |
Fillet radius: |
1.1 mm |
|
| Internal clearance: |
CN |
Maximum rpm: |
1400 RPM |
|
| Operating temperature range: |
-40 to 120 ºC |
Standards met: |
MIL-G-18709A |
|
| Dynamic load capacity: |
21200 N |
Series: |
63 |
|
| Static load capacity: |
10900 N |
|||
| Precision rating: |
ISO Class 5 |
NTN
by
NTN

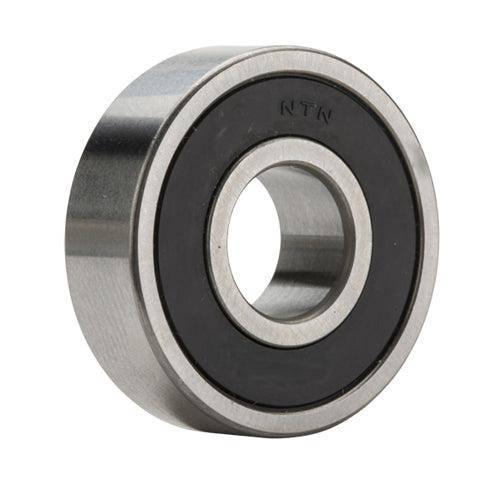

NTN 6305LLBP5 Bearing
- Regular price
- €78,95
- Sale price
- €78,95
- Regular price
-
Out of stock
