About

Description

SPECIFICATIONS


maximum rpm (grease) : 29760 rpm
closure type : Open
outer ring width : 12 mm
operating temperature range : -40 to 120 ºC
fillet radius : 0.6 mm
bearing material : High Carbon Chrome Steel
Bore Diameter : 20 mm
cage material : Nylon
outside diameter : 42 mm
finish/coating : Uncoated
overall width : 24 mm
inner ring width : 12 mm
contact angle : 15 °
maximum rpm (oil) : 47600 rpm
duplex type : Face to Face
precision rating : ISO Class 5
Description

SPECIFICATIONS


maximum rpm (grease) : 29760 rpm
closure type : Open
outer ring width : 12 mm
operating temperature range : -40 to 120 ºC
fillet radius : 0.6 mm
bearing material : High Carbon Chrome Steel
Bore Diameter : 20 mm
cage material : Nylon
outside diameter : 42 mm
finish/coating : Uncoated
overall width : 24 mm
inner ring width : 12 mm
contact angle : 15 °
maximum rpm (oil) : 47600 rpm
duplex type : Face to Face
precision rating : ISO Class 5
NTN by NTN

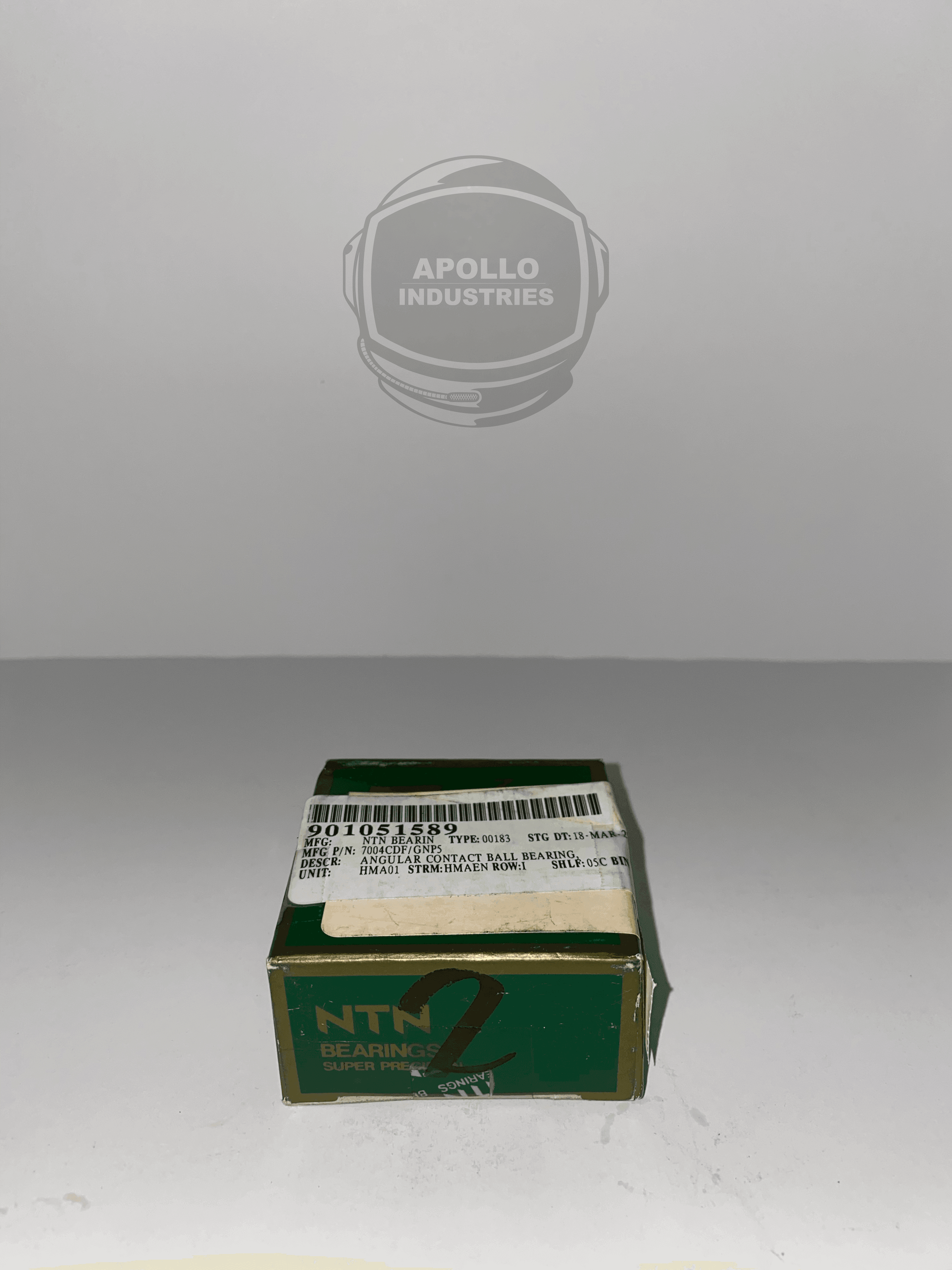

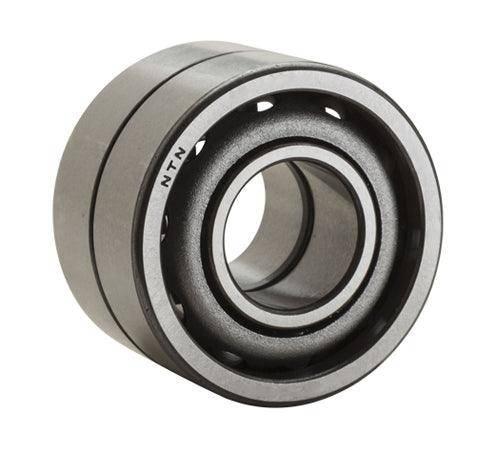

NTN 7004CDF/GNP5 Duplex Angular Contact Bearing

Regular price
€98,95
Sale price
€98,95
Regular price
7 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Free 90-day returns
Shop risk-free with easy returns.
