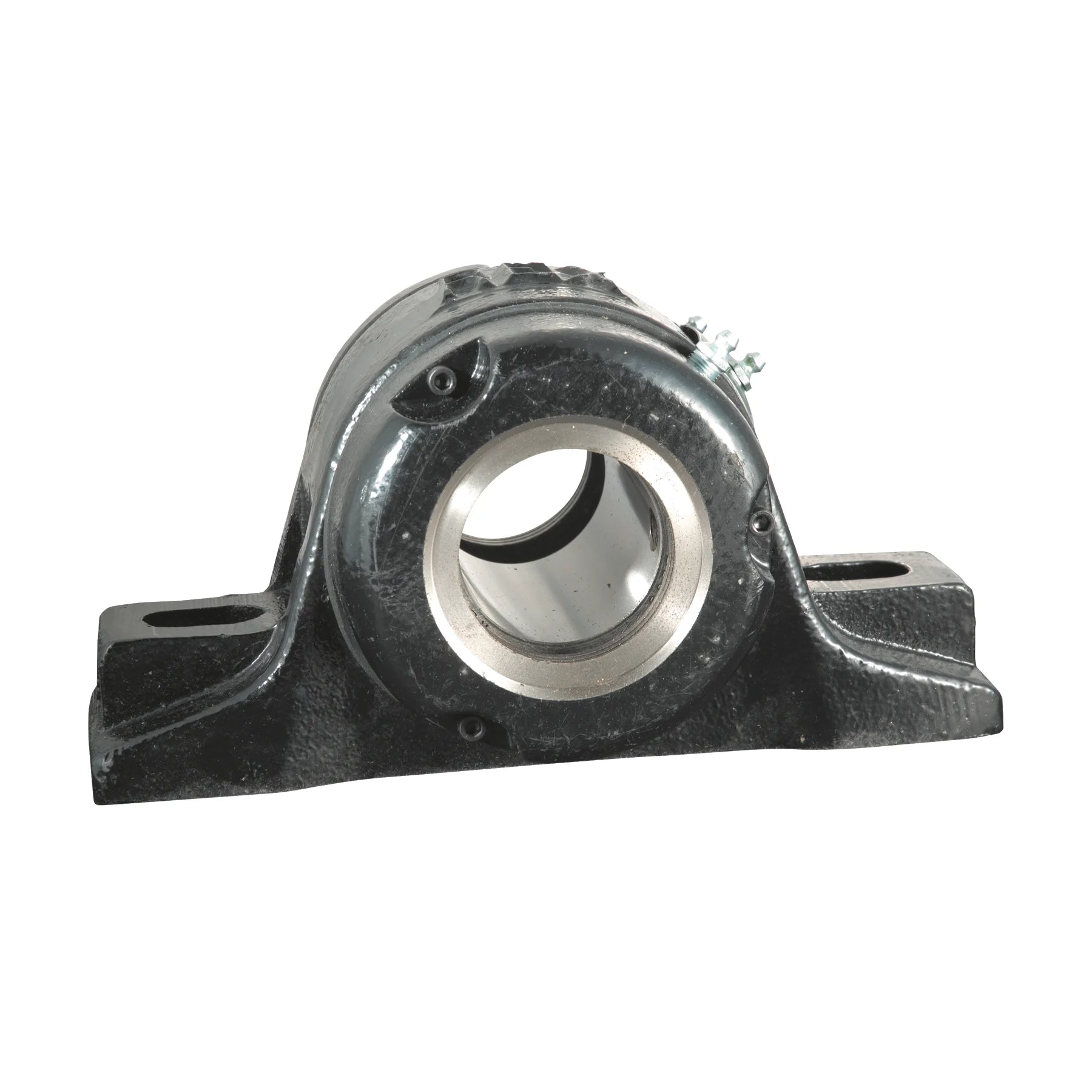

Rexnord BMP5415F Solid-housed Pillow Blocks Rex Spherical Roller Bearings
Brand:
Rexnord
- Regular price
- €12.459,95
- Sale price
- €12.459,95
- Regular price
-
Shipping calculated at checkout.
Call 1 (248) 429-9073 for Availability
Free shipping on orders over $100
Use code at checkout.
FREESHIP
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Need Help?
Call us 1 (248) 429-9073
Key Features
- 4 15/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 4-Bolt Pillow Block, Double Setscrew Locking Collar, Spring Loaded Heavy Contact Seal, One Open Auxiliary Cap, One Closed Auxiliary Cap
Description
Rexnord MA210772 is a robust, fixed, two-bolt pillow block housing engineered for high-demand industrial applications. Manufactured from cast steel and equipped with a spherical roller bearing insert, this unit is designed for exceptional load-bearing capability and durability.
Specifications
Dimensions
| Overall Width (in) | 10.13 in |
| Base Width (in) | 7.5 in |
| Base to Center Height (in) | 6.125 in |
| Overall Length (in) | 20.25 in |
| Foot Height (in) | 1.88 in |
| Bore Diameter (in) | 4.9375 in |
| Overall Height (in) | 12.5 in |
| Bolt Size (in) | 1 1/8 in |
| Slot Length (in) | 2 in |
| Locking Collar Outside Diameter (in) | 7.06 in |
| Length Through Bore (in) | 10.13 in |
| Inner Ring Outside Diameter (in) | 5.75 in |
| Bolt Spacing (in) | 16 in |
| Centerline to Cap Face (in) | 5.06 in |
| Housing Cast Face to Outermost Bearing Face (in) | 1.16 in |
| Bolt Spacing Width (in) | 4.25 in |
| Base Length (in) | 20.25 in |
Technical Specifications
| Series | Solid-housed Pillow Blocks |
| Product | ZP5000F |
| Fixed/Expansion | Fixed |
| Seal Type | Heavy Contact Seal |
| Misalignment Type | Dynamic |
| Housing Color | Black |
| Housing Construction | Solid |
| Static Load Rating (lb) | 241,900 lb |
| Rolling Element | Spherical Roller |
| Radial Dynamic Load Capacity (lb) | 191,500 lb |
| Housing Type | Pillow Block, Four Bolt |
| Housing Style | Pillow Block |
| Radial Clearance | C3 STANDARD |
| Cage Material | Engineered Polymer |
| Housing Material | Cast Iron |
| Shaft Locking Type | Double Set Collar |
| Setscrew Torque (in-lbs) | 1350 in/lbs |
| Seal Kit | MS13 |
| Auxiliary Cap Kit | A13415 (qty 1); B13 (qty 1) |
| Available Seal Type | M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Maximum Speed (RPM) | 1000 rpm |
| Microlock Kit | ML4 |
| Ability to Relubricate | Yes |
| Max Operating Temperature (C) | 107 °C |
| Vibration Frequency Inner Ring Defect | 0.173 cps |
| Misalignment Capability | ±2.0° Misalignment - Dynamic |
| Size Code | 13 |
| Vibration Frequency Roller Spin | 0.0515 cps |
| Vibration Frequency Outer Ring Defect | 0.127 cps |
| Vibration Frequency Fundamental Train | 0.0071 cps |
| Max Operating Temperature (F) | 225 °F |
| Locking Device Kit | SC13 QTY 2 |
| Housing Coating | POWDER COATED |
| Insert | 5415U |
| Lubricant | EXXON RONEX MP STD |
| Primary Seal | BUNA SPRING LOADED LIP SEAL |
| Grease Fitting Thread Size | 1/4 NPT |
| Auxiliary Seals | 1 OPEN 1 CLOSED CAP CAST IRON |
General Specifications
| UPC | 698210005726 |
| Weight | 200.00 LB |
| Packaged Length | 22.00 IN |
| Packaged Width | 8.00 IN |
| Packaged Height | 14.00 IN |
| HTC | 8483208080 |
| Country of Origin | Mexico |
