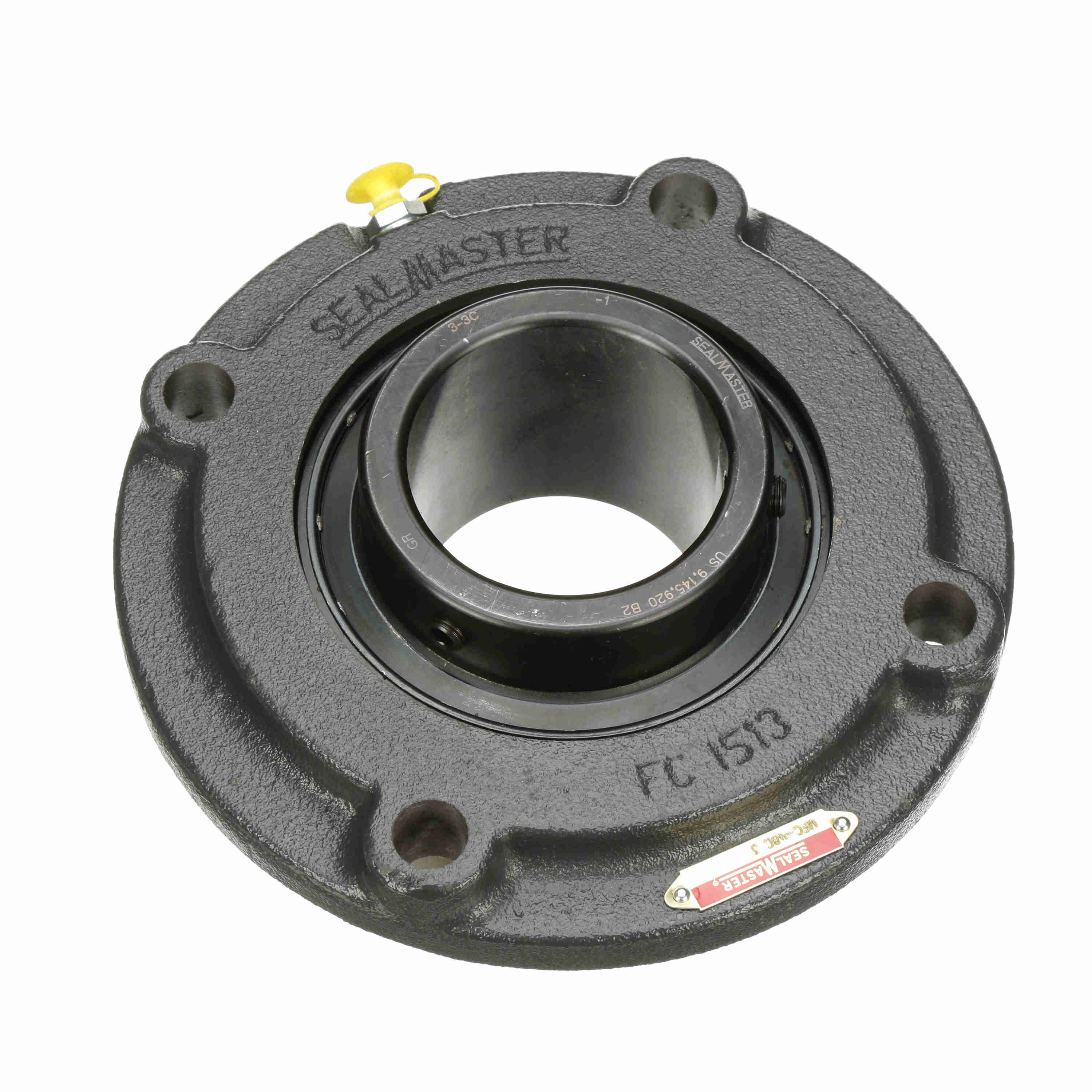

Sealmaster MFC-48C Mounted Cast Iron Flange Cartridge Ball Bearing Steel, Black Oxided - Setscrew Lock
- Regular price
- €1.397,95
- Sale price
- €1.397,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Description
Sealmaster® is a leading brand of mounted bearings known for durability, precision, and ease of installation. Engineered for demanding industrial applications, Sealmaster bearings are available in a wide range of styles including pillow blocks, flange units, and take-up housings, with options in ball, spherical, and tapered roller designs.
Sealmaster units feature rugged housings, advanced sealing systems, and multiple shaft locking options to deliver long service life and reliable performance, even in contaminated or high-load environments. Widely used in material handling, food and beverage, HVAC, agriculture, and heavy industry, Sealmaster bearings are trusted worldwide for reducing downtime and maintenance costs.
Specifications
Dimensions
| Bolt Size (in) | 5/8 in |
| Overall Width (in) | 8.75 in |
| Overall Length (in) | 8.75 in |
| Overall Height (in) | 3.25 in |
| Bore Diameter (in) | 3 in |
| Pilot Diameter (in) | 6.375 in |
| Foot Height (in) | 0.63 in |
| Length Through Bore (in) | 3.248 in |
| Housing Outside Diameter (in) | 8.75 in |
| Bolt Circle (in) | 7.5 in |
Technical Specifications
| Bore Shape | Straight |
| Rolling Element | Ball Bearing |
| Pilot Configuration | Piloted |
| Housing Construction | One Piece |
| Outer Ring Land Profile | Standard |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Cage Material | Brass |
| Housing Type | Flange, Piloted |
| Seal Type | Single Lip Contact Seal |
| Housing Style | Flange Block |
| Ability to Relubricate | Yes |
| Inner Race Heat Treat Method | Zone-Hardened |
| Pilot Depth (in) | 1.22 in |
| Cage Type | Land Riding Retainer |
| Bearing Insert Material | 52100 Bearing Steel |
| Radial Clearance | Standard |
| Inner Ring Outside Diameter (in) | 3.922 in |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Housing Coating | Powder Coated |
| Grease Fitting Thread Size | 1/4 NPT |
| Housing Material | Cast Iron |
| Fixed vs. Expansion | Fixed |
| Static Load Rating (lb) | 13,174 lb |
| Insert | 3-3C |
| End Cap Available | No |
| Bearing Type | Medium Duty |
| Bearing Insert Finish | Black Oxide |
| Maximum Speed (RPM) | 1950 rpm |
| Size Code | 2-33 |
| Shaft Locking Type | Set Screw |
| Max Operating Temperature (F) | 220 °F |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Dynamic Load Rating (lb) | 17,412 lb |
General Specifications
| UPC | 662461026397 |
| Weight | 19.10 LB |
| Packaged Length | 9.06 IN |
| Packaged Width | 8.88 IN |
| Packaged Height | 3.44 IN |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
