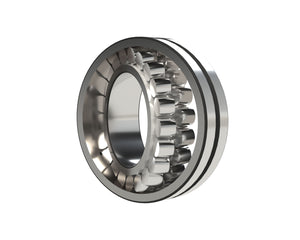

SKF 22312 E/C3 Spherical Roller Bearing - 60 mm ID, 130 mm OD, 46 mm Width, Straight Bore, C3
- Regular price
- €292,95
- Sale price
- €292,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Description
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Specifications
Dimensions
| Bore Diameter | 2.3622 in |
| Outside Diameter | 5.1181 in |
| Width | 1.811 in |
Performance
| Basic Dynamic Load Rating | 73 063 lbf |
| Basic Static Load Rating | 75 311 lbf |
| Reference Speed | 4 000 r/min |
| Limiting Speed | 5 300 r/min |
| SKF Performance Class | SKF Explorer |
Properties
| Number of Rows | 2 |
| Locating Feature, Bearing Outer Ring | Without |
| Bore Type | Cylindrical |
| Cage | Sheet metal |
| Radial Internal Clearance | C3 |
| Tolerance Class for Dimensions | Normal |
| Tolerance Class for Run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | With |
| Indicative Carbon Footprint for New Product | 23.2 lb CO2e |
Logistics
| Product Net Weight | 6.45 lb |
| eClass Code | 23-05-09-11 |
| UNSPSC Code | 31171510 |
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
