About
High heating capacity of up to 40 kg bearing

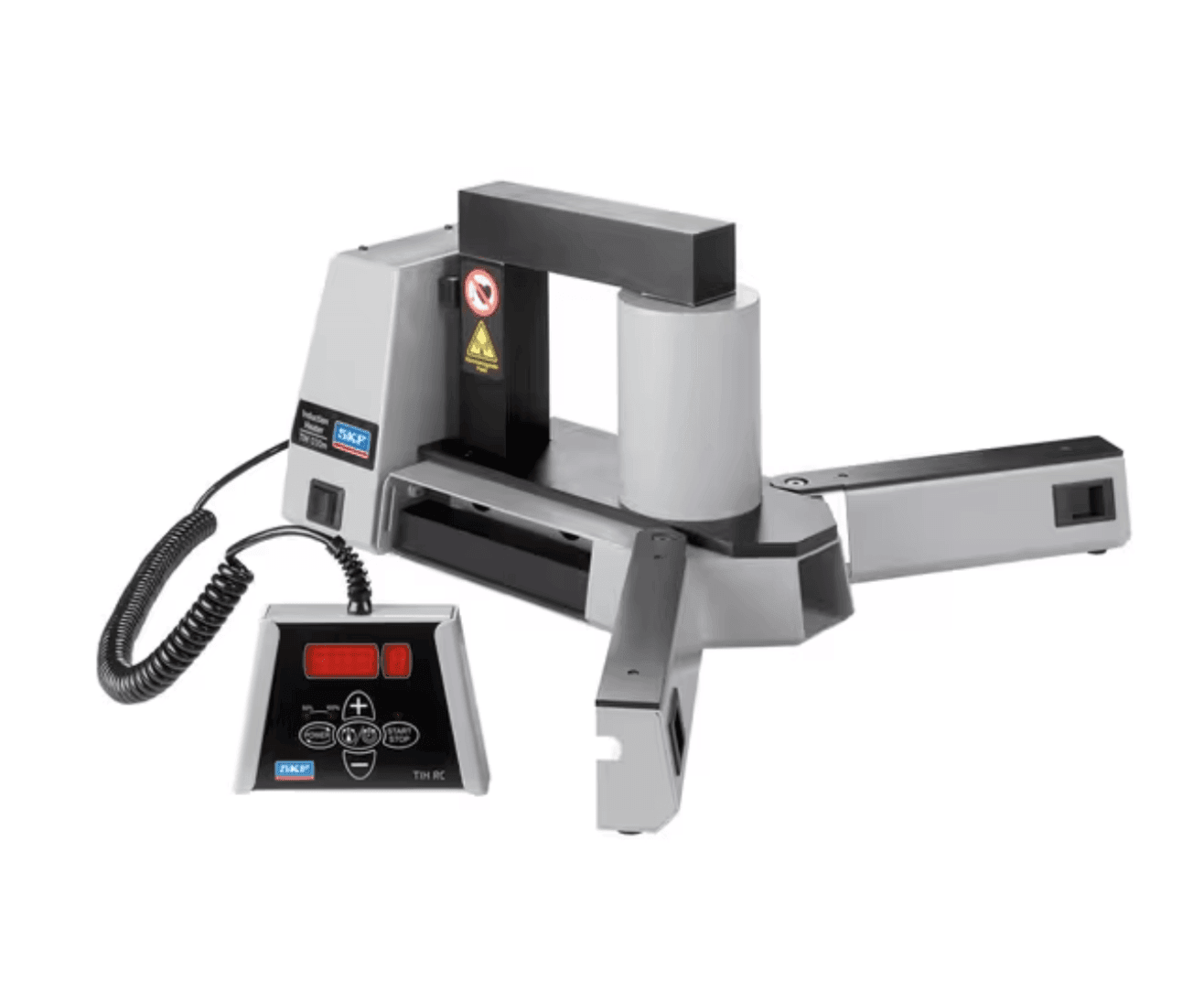

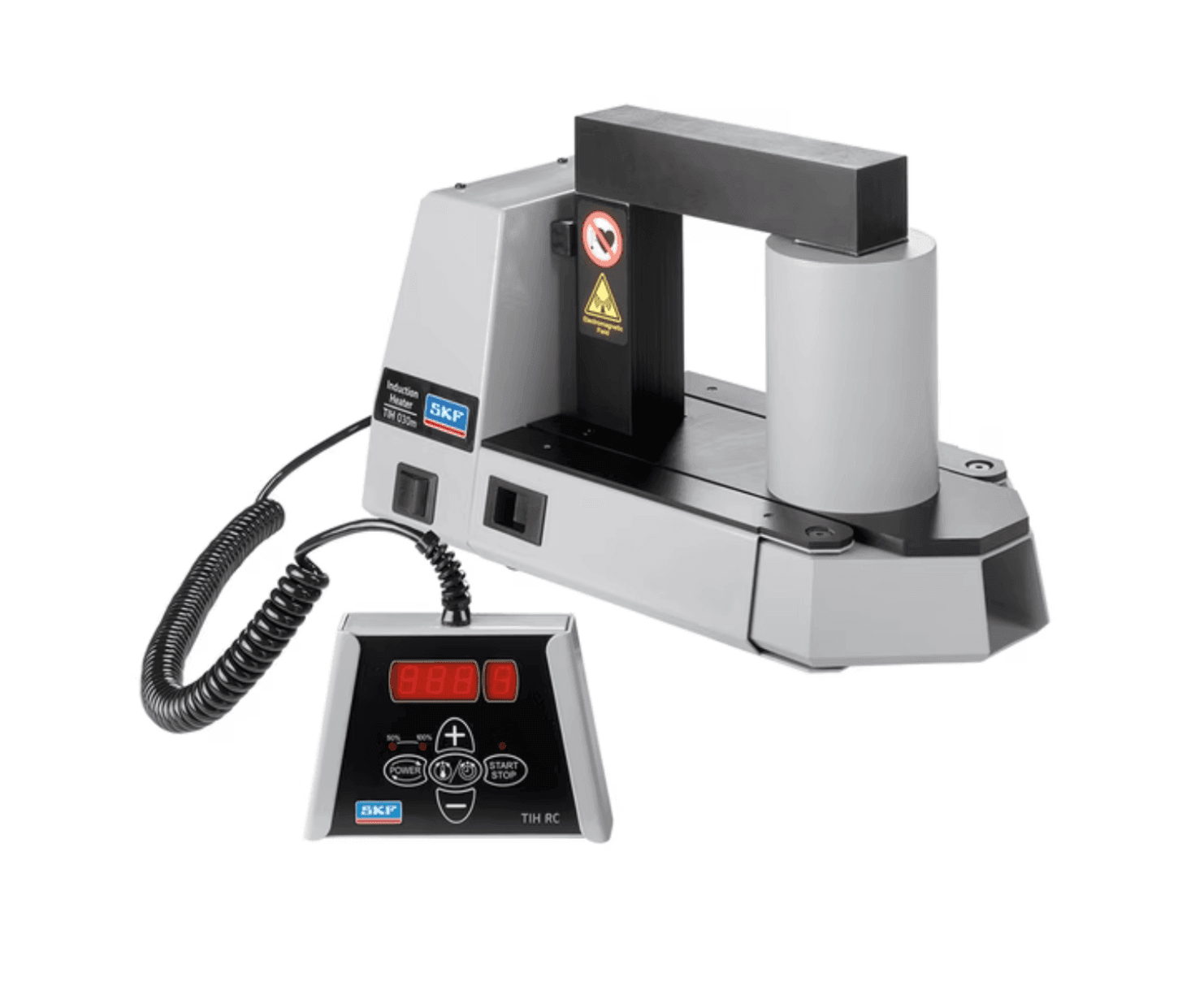

The SKF small induction heater TIH 030m combines high heating capacity with portability. The compact lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater's housing allows the heating of bearings weighing up to 40 kg (88 lb).
The induction heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings.
The induction heating system is supplied standard with three yokes and is available in two executions: 230V, 50/60Hz and 110V, 50/60Hz.
- Compact lightweight design; just 20.9 kg (46.0 lb) facilitating portability
- 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption

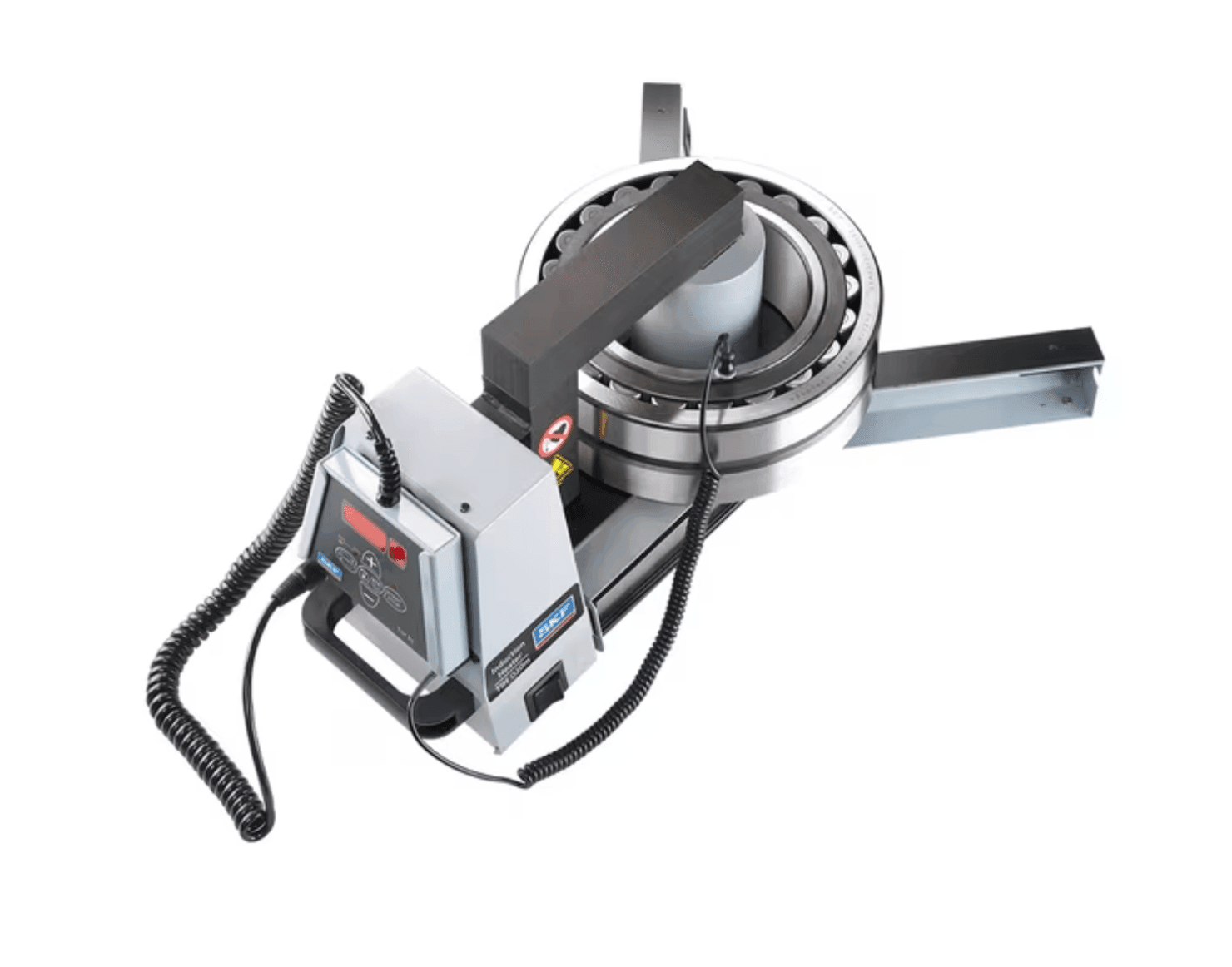

- Foldable bearing support arms allow larger diameter bearings to be heated, and reduce the risk of the bearing toppling during heating
- Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes
- Temperature mode pre-set at 110 °C (230 °F) to help prevent bearing over-heating
- Automatic demagnetization
Product Specifications
Dimensions
| Dimensions (W x L x H) | 195 x 450 x 210 mm |
| Operating Area Height | 5.315 in |
| Operating Area Width | 3.937 in |
| Workpiece Weight (max) | 88.185 lb |
Performance
| Heating Performance Example | 23136 CC/W33, 28 kg, 110 °C, 20 min |
Properties
| Bearing Support Arms | Yes, foldable |
| Coil Diameter | 3.74 in |
| Colour | Grey, Black |
| Cooling Fan | No |
| Demagnetisation After Heating | < 2 A/cm |
| Error Guiding Codes | Yes |
| Heating Temperature (max) | 482 °F |
| Heating Temperature Control | 32.0 – 482.0 °F |
| Heating Temperature Steps | 33.8 °F |
| Heating Time Control | 0.1 – 60.0 min |
| Heating Time Steps | 0.1 min |
| Housing Material | Steel, Glass fibre filled polyamide |
| Main Yoke Type | Loose yoke |
| Power Consumption (max) | 2 kVA |
| Power Setting | 50%, 100% |
| Remote Control Panel (Wired) | Yes, with LED display |
| Temperature Measurement | Magnetic probe K-type |
| Thermal Overload Protection | Yes |
| Thermometer Mode | Yes |
| Time Mode | Yes |
| Voltage | 100.0 – 120.0 V |
| Voltage Frequency | 50.0 – 60.0 Hz |
| Workpiece Bore Diameter | Not Provided |
| Yoke Storage | Yes, internal |
Logistics
| Product Net Weight | 46.784 lb |
| UNSPSC Code | 40101831 |
| eClass Code | 23-05-19-01 |
High heating capacity of up to 40 kg bearing
The SKF small induction heater TIH 030m combines high heating capacity with portability. The compact lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater's housing allows the heating of bearings weighing up to 40 kg (88 lb).
The induction heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings.
The induction heating system is supplied standard with three yokes and is available in two executions: 230V, 50/60Hz and 110V, 50/60Hz.
- Compact lightweight design; just 20.9 kg (46.0 lb) facilitating portability
- 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
- Foldable bearing support arms allow larger diameter bearings to be heated, and reduce the risk of the bearing toppling during heating
- Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes
- Temperature mode pre-set at 110 °C (230 °F) to help prevent bearing over-heating
- Automatic demagnetization
Product Specifications
Dimensions
| Dimensions (W x L x H) | 195 x 450 x 210 mm |
| Operating Area Height | 5.315 in |
| Operating Area Width | 3.937 in |
| Workpiece Weight (max) | 88.185 lb |
Performance
| Heating Performance Example | 23136 CC/W33, 28 kg, 110 °C, 20 min |
Properties
| Bearing Support Arms | Yes, foldable |
| Coil Diameter | 3.74 in |
| Colour | Grey, Black |
| Cooling Fan | No |
| Demagnetisation After Heating | < 2 A/cm |
| Error Guiding Codes | Yes |
| Heating Temperature (max) | 482 °F |
| Heating Temperature Control | 32.0 – 482.0 °F |
| Heating Temperature Steps | 33.8 °F |
| Heating Time Control | 0.1 – 60.0 min |
| Heating Time Steps | 0.1 min |
| Housing Material | Steel, Glass fibre filled polyamide |
| Main Yoke Type | Loose yoke |
| Power Consumption (max) | 2 kVA |
| Power Setting | 50%, 100% |
| Remote Control Panel (Wired) | Yes, with LED display |
| Temperature Measurement | Magnetic probe K-type |
| Thermal Overload Protection | Yes |
| Thermometer Mode | Yes |
| Time Mode | Yes |
| Voltage | 100.0 – 120.0 V |
| Voltage Frequency | 50.0 – 60.0 Hz |
| Workpiece Bore Diameter | Not Provided |
| Yoke Storage | Yes, internal |
Logistics
| Product Net Weight | 46.784 lb |
| UNSPSC Code | 40101831 |
| eClass Code | 23-05-19-01 |
SKF TIH 030M/110V - Small induction heater 50/60Hz
- Regular price
- €3.942,95
- Sale price
- €3.942,95
