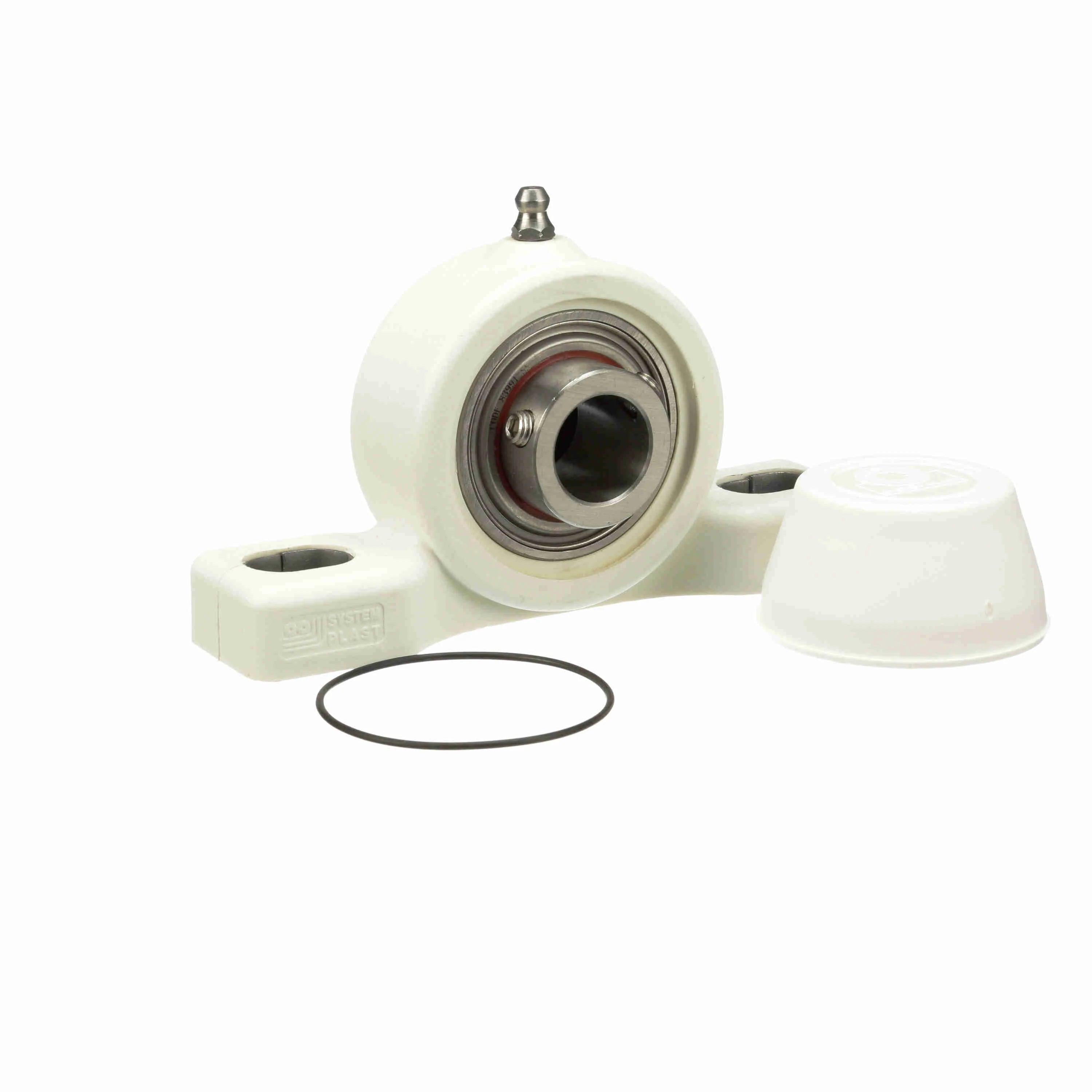

System Plast UCP206-30M-SS-NC-CEC Mounted Nolu-Clean Two Bolt Pillow Block Ball Bearing Stainless Steel - Setscrew Lock - Closed End Cap/Back Seal included (53206CGR/SS)
- Regular price
- €247,95
- Sale price
- €247,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 400 series stainless steel setscrew locking bearing insert.
- Includes white Nolu-Clean closed end cap with O-ring, and back side housing seal.
Description
System Plast Nolu-Clean two-bolt pillow block ball bearings are designed specifically for food, beverage, and washdown applications where cleanliness and corrosion resistance are critical. Featuring a durable, non-metallic housing and stainless-steel bearing inserts, these units resist rust, chemicals, and moisture while delivering reliable shaft support. The smooth, hygienic surfaces reduce contamination risks and make cleaning fast and efficient.
With a compact two-bolt mounting style, Nolu-Clean pillow block bearings are easy to install and provide secure performance in conveyors, bottling lines, and other sanitary environments. Their low-maintenance design helps extend service life while minimizing downtime.
Specifications
Dimensions
| Bolt Size (in) | 1/2 in |
| Overall Width (in) | 5.13 in |
| Overall Height (in) | 2.016 in |
| Overall Length (in) | 5.13 in |
| Bore Diameter (in) | 1.5 in |
| Foot Height (in) | 0.56 in |
| Length Through Bore (in) | 1.938 in |
| Bolt Spacing (in) | 4.0000 in |
Technical Specifications
| Bore Shape | Straight |
| Rolling Element | Ball Bearing |
| Pilot Configuration | No Pilot |
| Housing Construction | One Piece |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Housing Color | Black |
| Cage Material | PPS - Polyphenylene Sulfide |
| Seal Type | Felt Labyrinth Seal |
| Housing Type | Flange, Four Bolt |
| Housing Style | Flange Block |
| Ability to Relubricate | Yes |
| Inner Race Heat Treat Method | Zone-Hardened |
| Maximum Speed (RPM) | 4150 rpm |
| Fixed vs. Expansion | Fixed |
| Bearing Insert Material | 52100 Bearing Steel |
| Radial Clearance | Standard |
| Housing Backside Inner Diameter | 3.5 |
| End Cap Available | No |
| Bearing Insert Finish | Black Oxide |
| Shaft Locking Type | Set Screw |
| Grease Fitting Thread Size | 1/4-28 |
| Inner Ring Outside Diameter (in) | 2.07 in |
| Housing Coating | Powder Coated |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Cage Type | Land Riding Retainer |
| Housing Material | Cast Iron |
| Insert | 2-18 |
| Size Code | 2-19 |
| Bearing Type | Standard Duty |
| Max Operating Temperature (F) | 220 °F |
| Static Load Rating (lb) | 4,467 lb |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Dynamic Load Rating (lb) | 7,340 lb |
General Specifications
| UPC | 662461003510 |
| Weight | 5.10 LB |
| Packaged Length | 5.50 IN |
| Packaged Width | 2.13 IN |
| Packaged Height | 5.50 IN |
| HTC | 8483.20.4040 |
| Country of Origin | Mexico |
