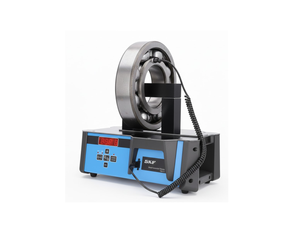

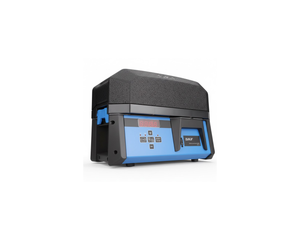

SKF TIH 15 Compact workbench heater, High efficiency, near silent operation
- Regular price
- €3.666,95
- Sale price
- €3.666,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Key Features
- Easily fits on a workbench, leaving space to spare.
- Highly energy efficient operation.
- Choice of power settings.
- Automatic temperature monitoring and shut off.
- All accessories can be stored inside the carry case.
Description
The TIH 15 compact workbench heater is engineered for the controlled heating and mounting of roller bearings onto shafts with an interference fit. Its design prioritizes portability and space efficiency, allowing it to be easily placed on a standard workbench or transported to field and remote service locations.
Key Applications:
-
Maintenance and service operations on assets such as gearboxes, pumps, fans, and blowers.
Advanced Technology: The TIH 15 utilizes sophisticated medium-frequency induction technology for near-silent operation and high energy efficiency.
-
A U-shaped iron core with underlying inductive coils generates a fluctuating magnetic field.
-
This field induces currents directly within the bearing or component.
-
These induced currents are converted into heat, ensuring only the component is heated.
This process guarantees that the bearing heats and expands homogeneously, allowing for effortless, force-free positioning onto the shaft during installation. The unit is also suitable for heating other metallic, ring-shaped components (e.g., couplings) that form a closed circuit.
Operation is simplified via an intuitive keyboard control panel, offering users a choice between Temperature Mode or Time Mode for precise control.
Specifications
SKF Compact Workbench Induction Heater TIH 15
General Data
| Designation | TIH 15/230V | TIH 15/120V |
| Description | Compact workbench induction heater |
| Colour | Blue |
| Maximum Power Consumption | 1.2 kVA |
| Voltage / Frequency | 200–240 V, 50/60 Hz (230 V version) 100–120 V, 50/60 Hz (120 V version) |
| Housing Material | Steel and glass-filled polyamide |
| Dimensions (W × D × H) | 350 × 206 × 240 mm (13.8 × 8.1 × 9.4 in) |
| Total Weight (incl. yokes) | 13 kg (28.7 lb) |
| Recommended Warranty | 3 years |
Bearing Heating Capability
| Maximum Bearing Weight | 15 kg (33.1 lb) |
| Minimum Bore Diameter | 20 mm (0.79 in) |
| Maximum Bore Diameter | 200 mm (7.87 in) |
| Maximum Heating Temperature | 250 °C (482 °F) |
| Can Heat Sealed Bearings | Yes |
| Can Heat Pre-Greased Bearings | Yes |
| Demagnetisation (automatic) | Yes (<2 A/cm) |
Temperature & Time Control
| Temperature Control Range | 20 – 250 °C (68 – 482 °F) |
| Magnetic Probe | Yes, K-type |
| Temperature Accuracy (electronics) | ±2 °C (±3.6 °F) |
| Time Control Range | 0 – 60 minutes |
| Time Accuracy | ±0.01 s |
| Thermometer Mode | Yes |
| Power Level Settings | 2-step: 50 % or 100 % |
| Thermal Overload Protection | Yes |
| Error Guiding Codes | Yes |
Yokes & Operation
| Standard Yokes Included | • TIH 15-Y5 (35 × 35 × 160 mm) – min. 50 mm workpiece TIH 15-Y4 (28 × 28 × 160 mm) – min. 40 mm workpiece TIH 15-Y2 (14 × 14 × 160 mm) – min. 20 mm workpiece |
| Operating Area (W × H) | 90 × 85 mm (3.54 × 3.35 in) |
| Core Cross-Section | 35 × 35 mm (1.38 × 1.38 in) |
| Control Panel | LED display |
| Cooling Fan | Yes |
| Swivel Arm | No |
| Top Storage | For yokes, gloves, temperature probe, etc. |
Kit Contents
| • TIH 15 heater • 3 standard yokes (TIH 15-Y5, Y4, Y2) • Temperature probe (K-type) • Heat-resistant gloves • Carrying case |
