Description
| STATIC LOAD RATING [MAX] | 310 lbf |
| O.D. | 0.875 in |
| CAPACITY | Standard Capacity |
| ICNUMBER | 7700799 |
| CAGE TYPE | Metal |
| INCH/METRIC | Inch Bore |
| ENCLOSURE | Double Shielded |
| TEMPERATURE RANGE [MAX] | 275 °F |
| MATERIAL | Steel |
| CONTACT ANGLE | 0° |
| ROWS OF BALLS | Single |
| RADIAL INTERNAL CLEARANCE SPECIFICATION | Greater Than Normal Clearance |
| BALL MATERIAL | Steel |
| INNER RING WIDTH | 0.281 in |
| PRECISION | Standard |
| TEMPERATURE RANGE [MIN] | -30 °F |
| O.D. TYPE | Flanged |
| WIDTH | 9/32 in |
| LUBRICANT | Polyurea Base |
| PRECISION LEVEL | Standard (ABEC 1) |
| NO. IN SET | Single Bearing |
| LOCKING DEVICE | No Locking Device |
| ORIGIN | Single Row Radial |
| SNAP RING | No Snap Ring |
| SEAL TYPE | Non-Contact Seals |
| SEAL MATERIAL | Metal |
| BEARING TYPE | Radial |
| OUTER RING WIDTH | 9/32 in |
| BORE TYPE | Round Bore |
| I.D. | 3/8 in |
| DYNAMIC LOAD RATING | 830 lbf |
| FLANGE O.D. | 0.969 |
| CAGE MATERIAL | Steel |
| RADIAL INTERNAL CLEARANCE | C3 |
| FLANGE WIDTH | 0.062 in |
| PRELOAD LEVEL | None |
| WEIGHT | 0.17 LB |
| EAN OR UPC | 87796044234 |
Description
| STATIC LOAD RATING [MAX] | 310 lbf |
| O.D. | 0.875 in |
| CAPACITY | Standard Capacity |
| ICNUMBER | 7700799 |
| CAGE TYPE | Metal |
| INCH/METRIC | Inch Bore |
| ENCLOSURE | Double Shielded |
| TEMPERATURE RANGE [MAX] | 275 °F |
| MATERIAL | Steel |
| CONTACT ANGLE | 0° |
| ROWS OF BALLS | Single |
| RADIAL INTERNAL CLEARANCE SPECIFICATION | Greater Than Normal Clearance |
| BALL MATERIAL | Steel |
| INNER RING WIDTH | 0.281 in |
| PRECISION | Standard |
| TEMPERATURE RANGE [MIN] | -30 °F |
| O.D. TYPE | Flanged |
| WIDTH | 9/32 in |
| LUBRICANT | Polyurea Base |
| PRECISION LEVEL | Standard (ABEC 1) |
| NO. IN SET | Single Bearing |
| LOCKING DEVICE | No Locking Device |
| ORIGIN | Single Row Radial |
| SNAP RING | No Snap Ring |
| SEAL TYPE | Non-Contact Seals |
| SEAL MATERIAL | Metal |
| BEARING TYPE | Radial |
| OUTER RING WIDTH | 9/32 in |
| BORE TYPE | Round Bore |
| I.D. | 3/8 in |
| DYNAMIC LOAD RATING | 830 lbf |
| FLANGE O.D. | 0.969 |
| CAGE MATERIAL | Steel |
| RADIAL INTERNAL CLEARANCE | C3 |
| FLANGE WIDTH | 0.062 in |
| PRELOAD LEVEL | None |
| WEIGHT | 0.17 LB |
| EAN OR UPC | 87796044234 |
Timken (Fafnir)
by
Timken (Fafnir)

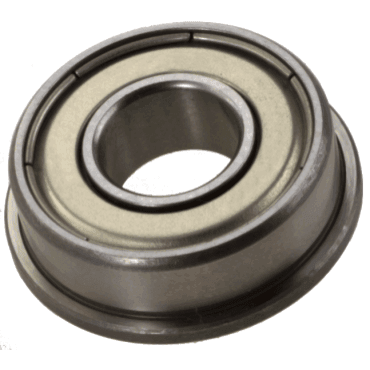

Timken FS3KDD Ball Bearing
- Regular price
- €47,95
- Sale price
- €47,95
- Regular price
-
3 in Stock Now
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Free 30-day returns
Shop risk-free with easy returns.
Need Help?
Call us (248) 464-4912
