Whittet Higgins CNF24-12S One Piece Clampnut UNF Fine Thread - Stainless Steel
- Regular price
- €31,95
- Sale price
- €31,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policyKey Features
- One-piece fine-thread (UNF) clampnut; greater axial strength and finer adjustment than the coarse-thread CNC series
- Mechanical self-locking via a tangential (X-axis) socket-head clamp screw
- Infinite adjustment and preloading capability; resists loosening from vibration, shock and torque
- Does not damage shaft threads and eliminates the need to cut or repair a shaft keyway
- Replaces traditional locknut and lockwasher for easier, faster installation
- Carbon steel base nut with hardened alloy clamp screw; black oxide coating with wax finish to resist corrosion
- Maximum operating temperature 300°F
- Manufactured in the USA and RoHS compliant
- Also offered in stainless steel and aluminum alloy versions
Description

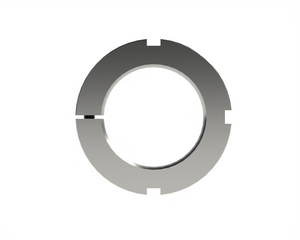

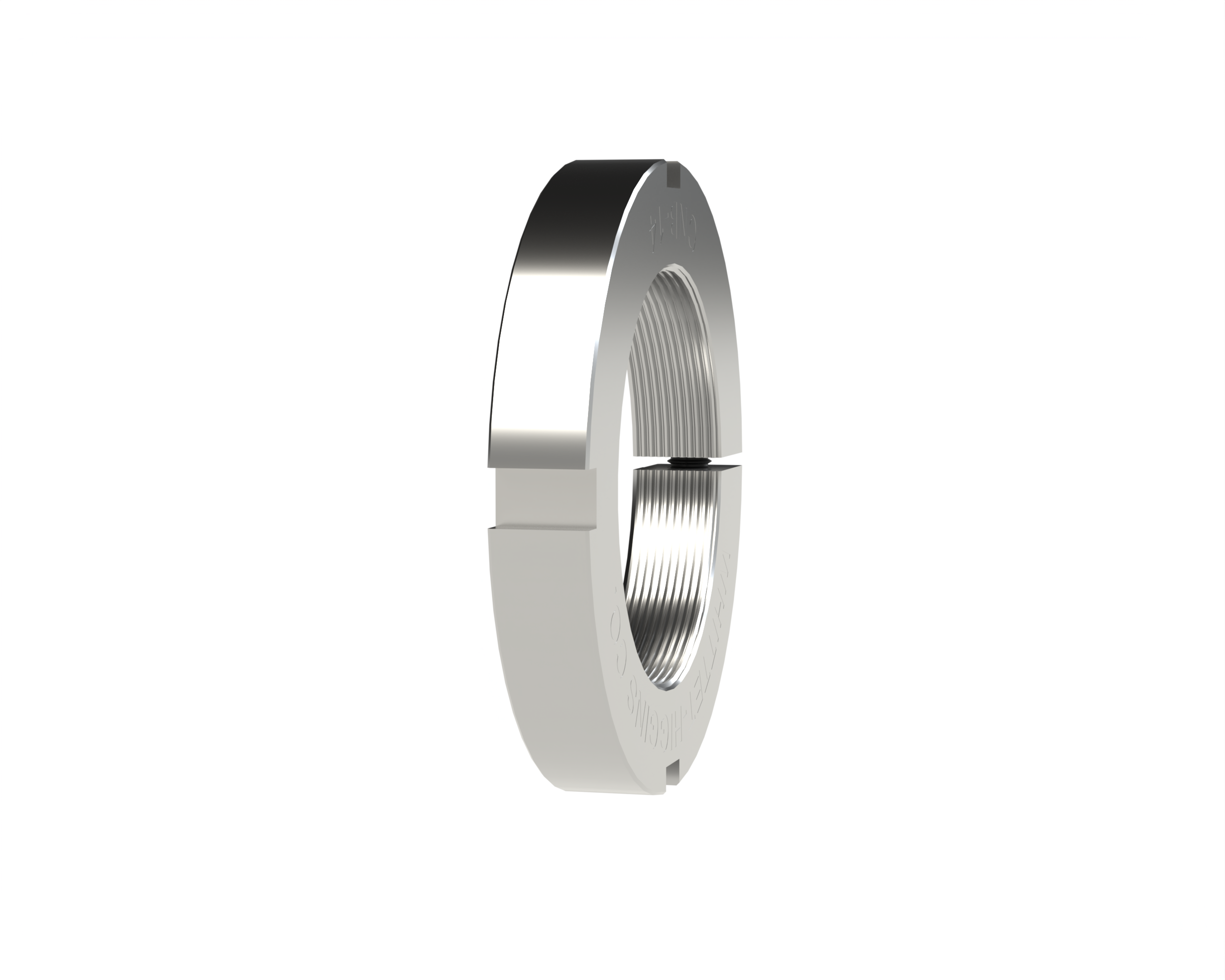

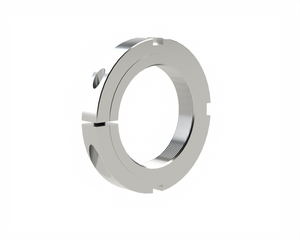

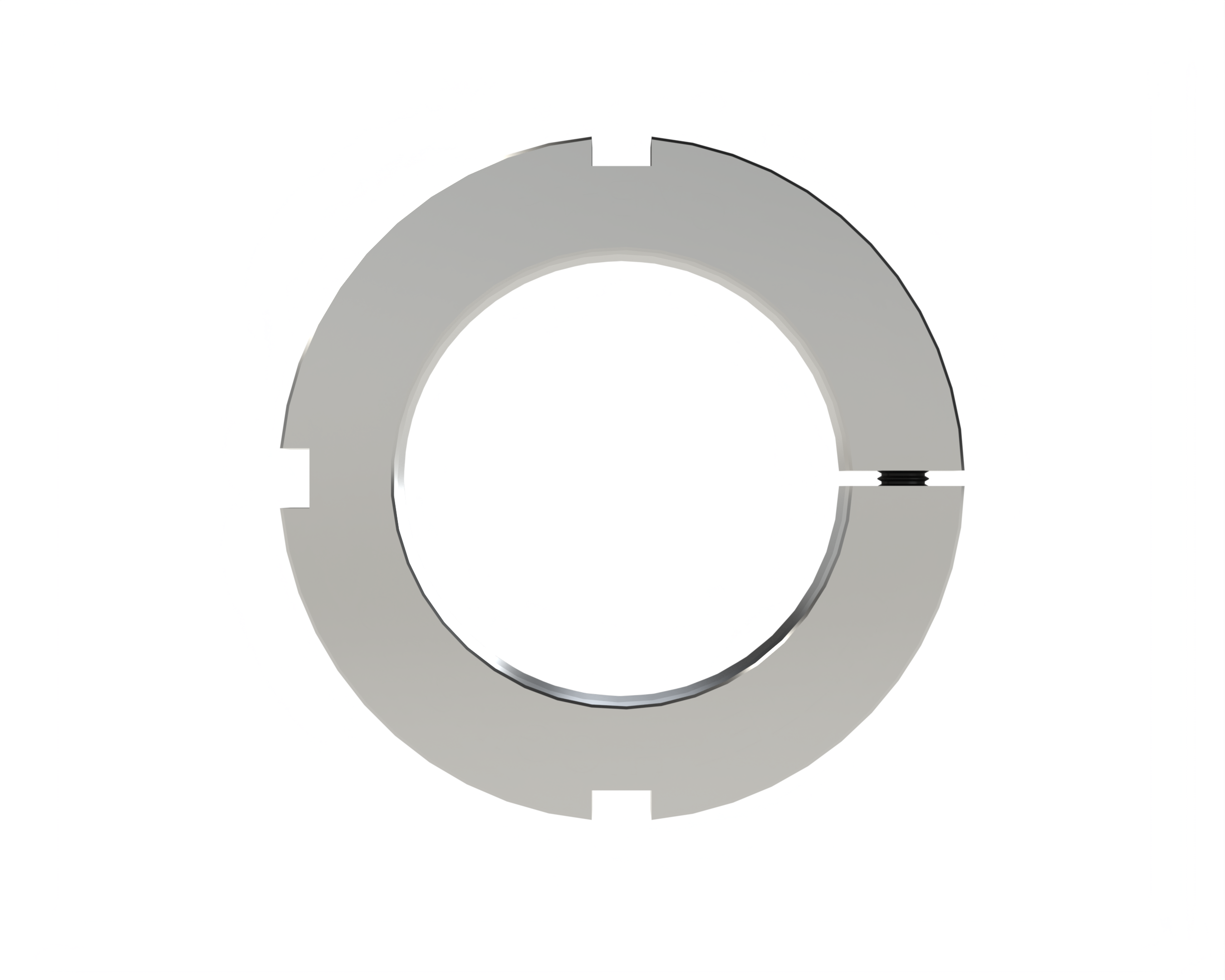

The Whittet-Higgins CNF24-12S is a one-piece, fine-thread (UNF) clampnut that mechanically self-locks to position and preload bearings, sleeves and other components on a threaded shaft. It locks by tightening a tangential (X-axis) socket-head cap screw, which clamps the base nut onto the shaft thread to resist loosening from vibration, shock and torque while still allowing infinite adjustment and preloading.
Because it secures without damaging the shaft threads and needs no keyway, the CNF24-12S eliminates the traditional locknut-and-lockwasher pairing and installs faster. The standard CNF nut pairs a carbon steel base nut with a hardened alloy clamp screw and a black-oxide-with-wax finish, is rated to 300°F, and offers greater axial strength and finer adjustment than the coarse-thread CNC series. Stainless steel and aluminum alloy versions are also available.
Specifications
CNF24-12S
| Specification | Value |
|---|---|
| Series | Whittet-Higgins CNF Series |
| Thread | 1.500-12 |
| Nominal Thread Diameter | 1.5 in (38.1 mm) |
| Outside Diameter | 2.375 in (60.32 mm) |
| Face Diameter | 1.844 in (46.84 mm) |
| Width | 0.563 in (14.3 mm) |
| Clamp Screw | 1/4-28 |
| Suggested Tightening Torque | 150 in-lb |
| Theoretical Axial Holding Capacity | 16900 lbf |
| Material | Stainless Steel |
| Standard | Mechanical Self-Locking |
| Weight (approx.) | 0.392 lb (177.808 g) |
| Country of Origin | USA |
