Whittet Higgins MB-29 Lockwasher

Brand: Whittet-Higgins
€115,95
€115,95
Shipping calculated at checkout.
By placing your order you agree to purchase from Global-e as the merchant of record, subject to Global-e’s Terms and Conditions and Privacy Policy, and share your information with Apollo Industries .
1000 in Stock Now

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Quantity Discount Table
Quantity Discounti
Quantity Discount
1 Unit No Discount
20-49 Units 5%
50-99 Units 8%
100-199 Units 15%
200-499 Units 18%
500+ Units 25%
Powered by Omni Themes
Need Help?
Call us 1 (248) 429-9073
Map showing Oxford, Michigan
Oxford, Michigan
Promotional banner

Need tax exemption or quantity pricing? We offer special rates for businesses and bulk orders.

Contact Us

FREE SHIPPING

All Orders Over $100 Ship Free Ground

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Full policy

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

PRICE MATCH

Simply provide proof of a competitor's advertised price on the same item, and we'll match it.

Full policy
Whittet-Higgins

Whittet-Higgins

Whittet-Higgins specializes in high-quality bearing retention and shaft-locking products used in demanding industrial applications. Its core product range includes precision locknuts, lockwashers, adapter and withdrawal sleeves, shaft nuts, and related installation tools designed to securely position bearings and rotating components. The company offers both inch and metric options, including heavy-duty and corrosion-resistant designs for power transmission, machinery, and other industrial equipment.

Key Features

  • Carbon steel construction
  • Meets and exceeds ISO 2982-2:2013(E) specification
  • Matched with KM / KML / KMM series bearing locknuts to lock and retain bearings
  • Prevents assembly loosening due to vibration, shock, and torque
  • Provides accurate angular positioning with numerous locking positions
  • Effective on both soft and hardened shafts
  • No special tools required for installation
  • Maximum operating temperature of 300 Deg F
  • Manufactured in the USA and RoHS compliant

Description

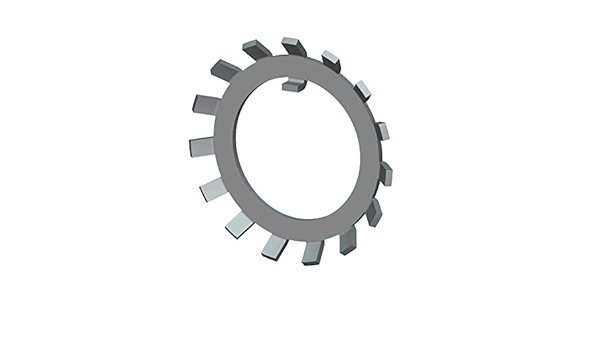

The Whittet-Higgins MB-29 is a metric tab-type bearing lockwasher made from carbon steel and manufactured to meet and exceed the ISO 2982-2:2013(E) specification. Used together with KM, KML, and KMM series bearing locknuts, it secures, locks, and retains bearings and power transmission assemblies against loosening from vibration, shock, and torque.

The washer delivers accurate angular positioning across numerous locking positions and works effectively on both soft and hardened shafts, with no special tools required for installation. Rated for a maximum operating temperature of 300 Deg F, it is manufactured in the USA and is RoHS compliant.

Specifications

MB-29

SpecificationValue
SeriesWhittet-Higgins MB Series
Bore Size145 mm (5.709 in)
Outside Diameter202 mm (7.953 in)
Face Diameter171 mm (6.732 in)
Thickness2 mm (0.079 in)
MaterialCarbon Steel
Used WithKM / KML / KMM series locknuts
StandardISO 2982-2:2013(E)
Weight (approx.)0.336 lb (152.407 g)
Country of OriginUSA
