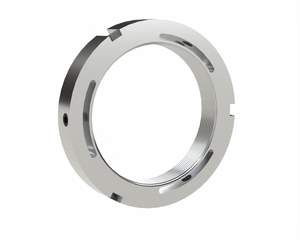

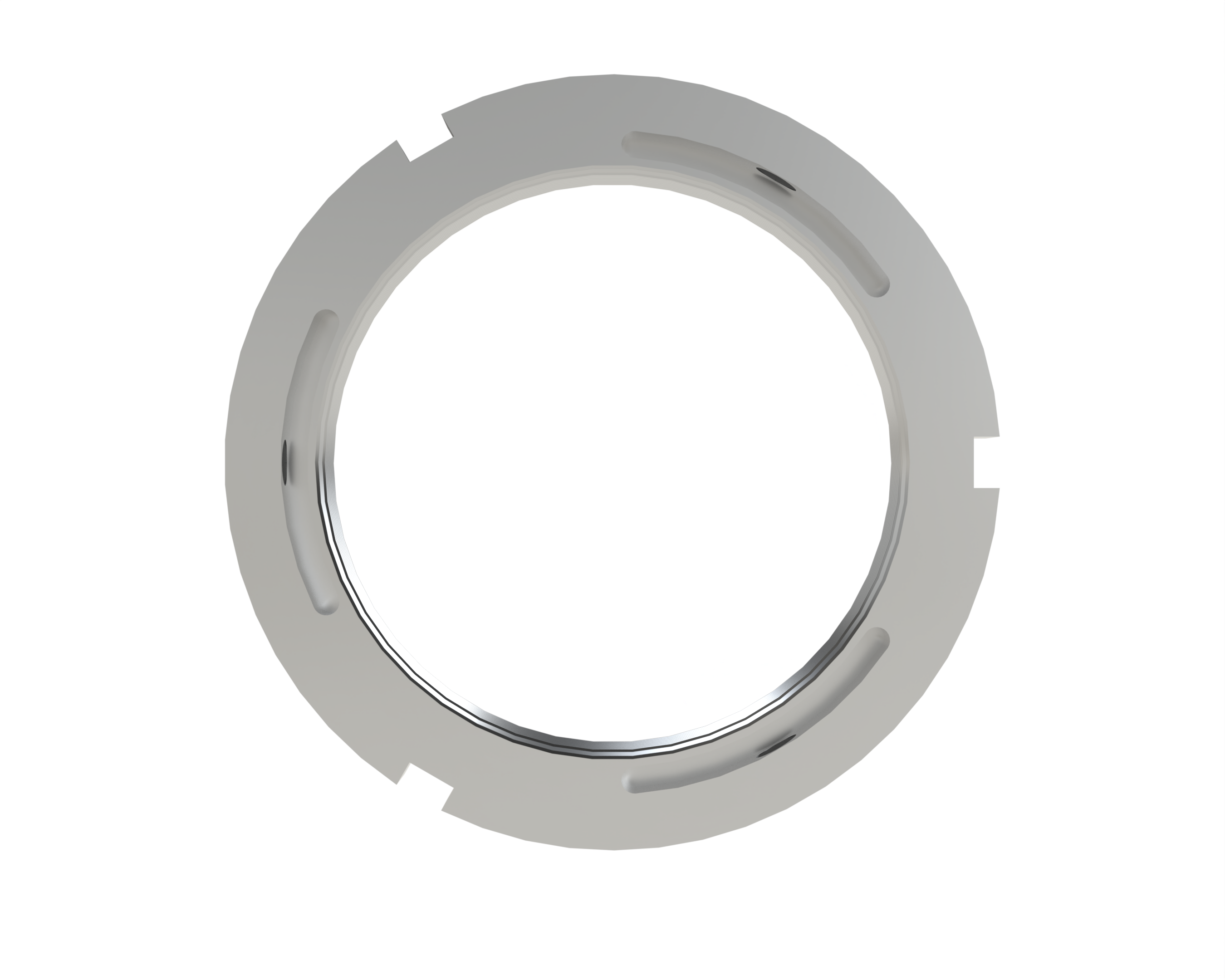

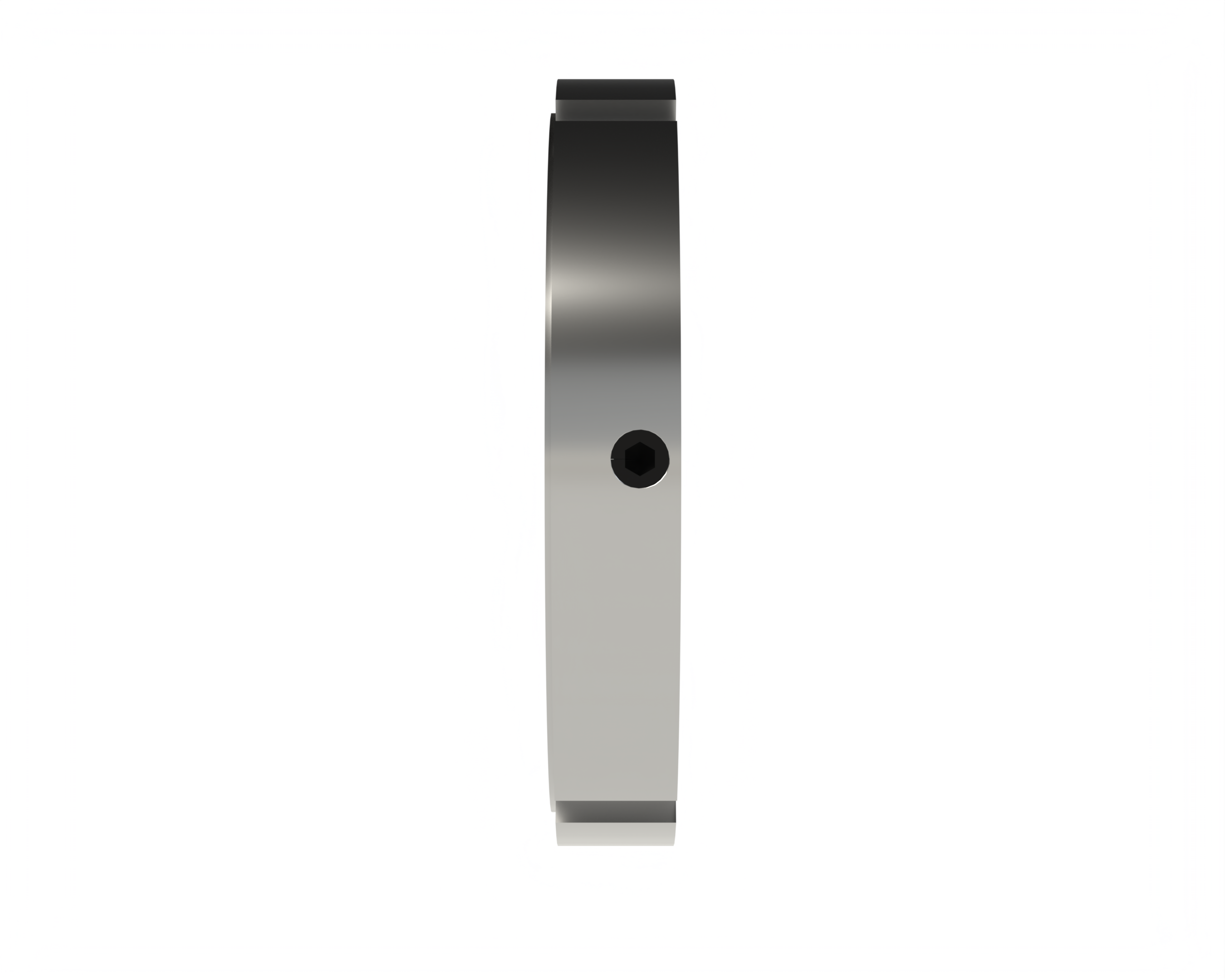

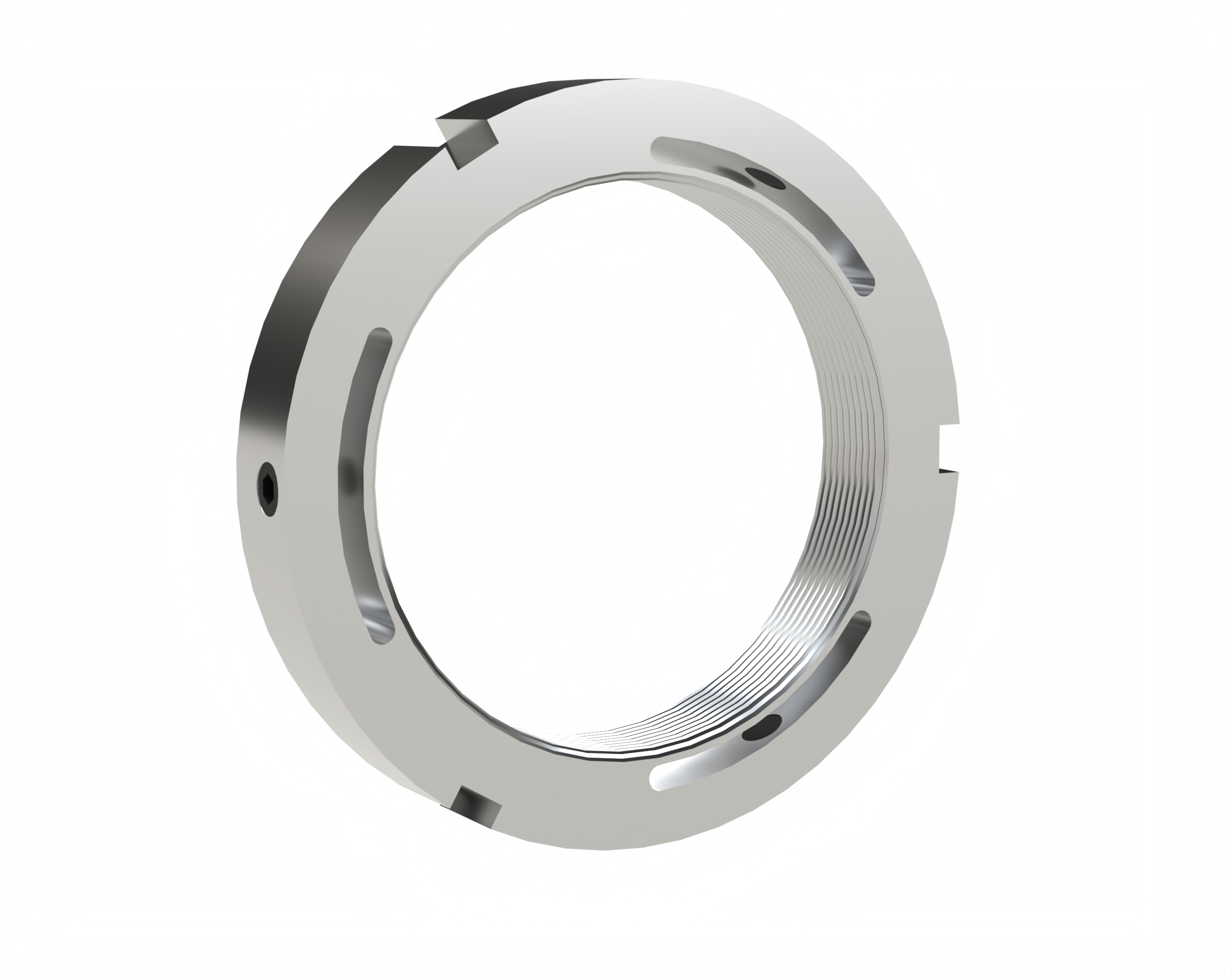

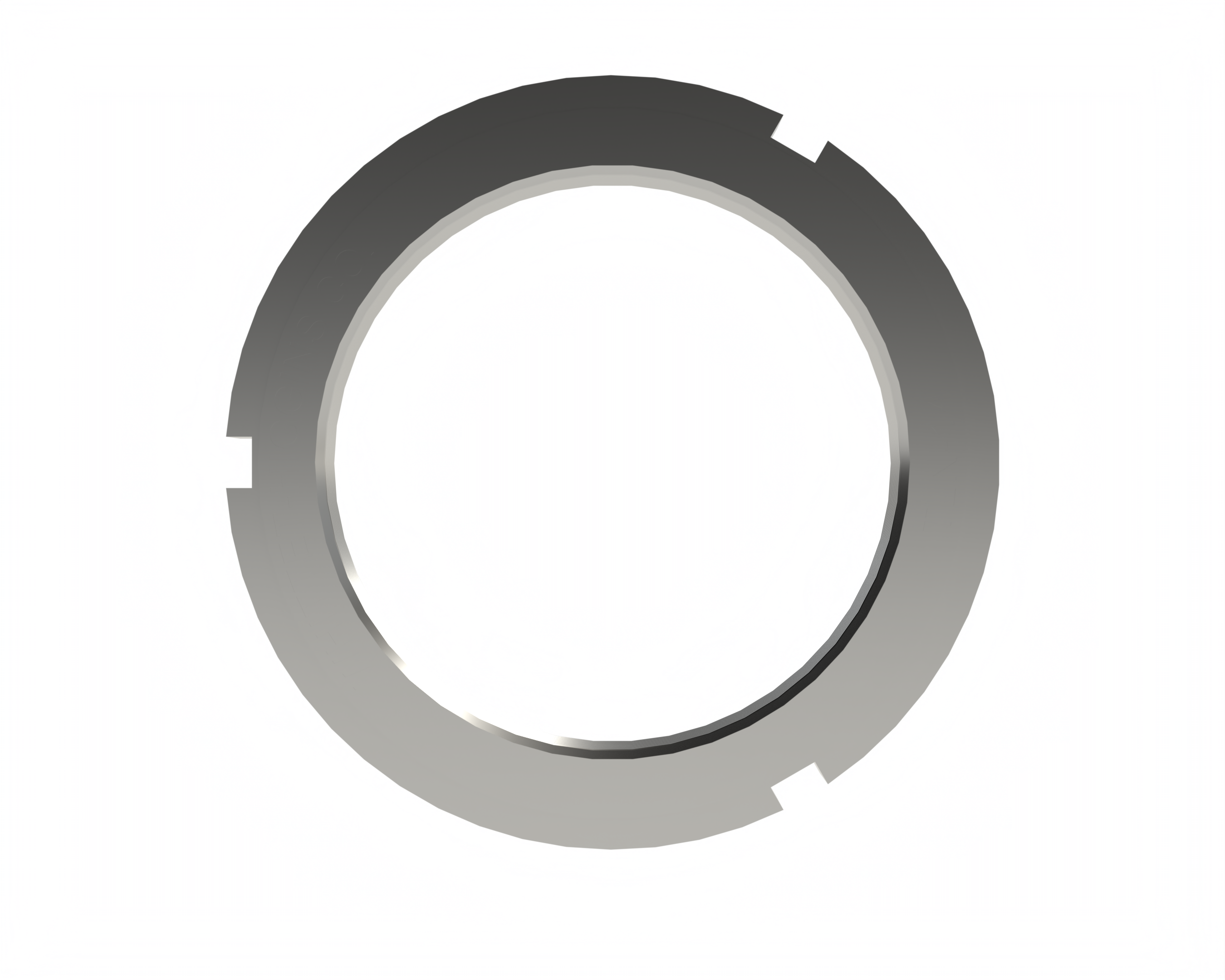

Whittet higgins TLN-15 Tangentlok Tangential Locking Retaining Nut
- Regular price
- €81,95
- Sale price
- €81,95
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
| Quantity | Discount |
|---|---|
| 1 Unit | No Discount |
| 20-49 Units | 5% |
| 50-99 Units | 8% |
| 100-199 Units | 15% |
| 200-499 Units | 18% |
| 500+ Units | 25% |
Whittet-Higgins manufactures premium bearing locknuts, shaft collars, and mechanical locking devices designed for secure, precise component retention. Trusted in industrial, aerospace, and power transmission applications, their products deliver strength, reliability, and precision engineering for critical assemblies.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Multiple-point self-locking design
- Balanced design for high-speed applications
- Prevents assemblies from loosening due to vibration, shock, and torque
- Uniform 360° clamping to center of shaft
- Tangential (X-axis) access for locking and adjustment of assembly
- Easier and faster to install than a traditional locknut & lockwasher
- Eliminates the need for cutting or repairing shaft keyways
- Infinite adjustment and preloading capability
- Does not deform or damage shaft threads
- Maximum operating temperature: 300°F
- Manufactured in USA & RoHS / REACH compliant
Description
| Thread: | 2.933-12 |
| Outside Dia (In): | 3.880 |
| Face Dia (In): | 3.563 |
| Width (In): | 0.604 |
| Axial Load (In-Lbs): | 74900 |
| Hex screws: | 5/16-18 |

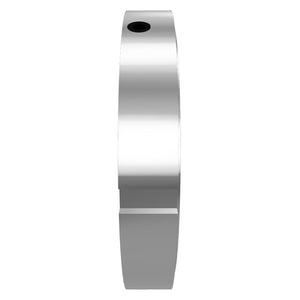

Whittet Higgins TLN/TLM Series – Tangential Locking Nuts & Modules
The Whittet Higgins TLN (Tangential Locking Nut) and TLM (Tangential Locking Module) series are advanced fastening solutions engineered for applications requiring superior stability, precision, and vibration resistance. These systems utilize a proprietary tangential locking mechanism, ensuring robust connections that remain secure even under dynamic loads and harsh operating conditions.
