Belt alignment tool TKBA 11
Precision tool allowing pulley and chain drive alignment

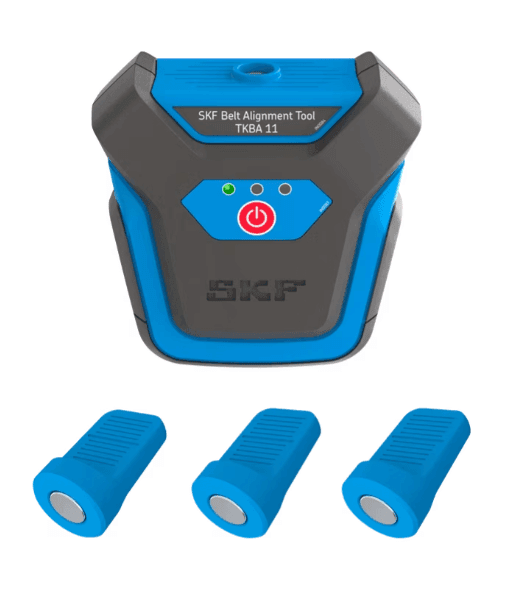

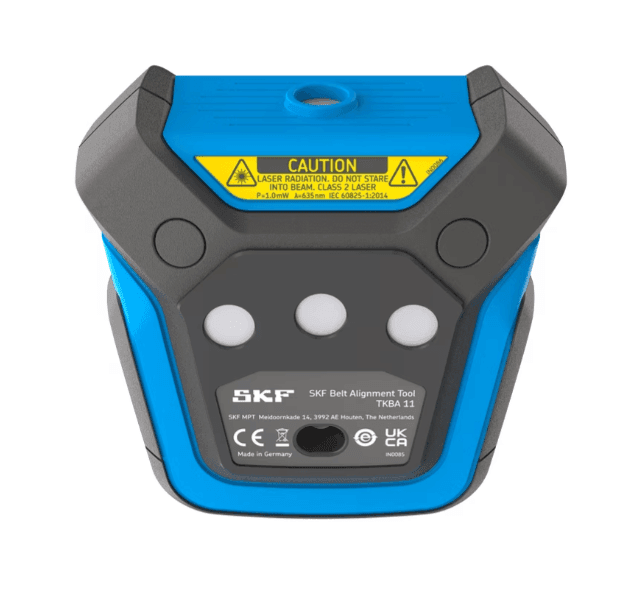

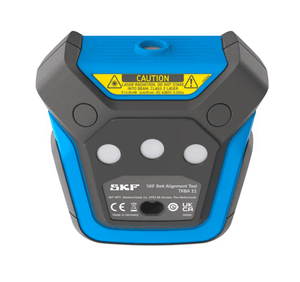

The tool has two components; a laser-emitting unit and three passive targets. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 11 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. A laser line is projected from the emitting unit to the passive targets - which are mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle and parallel misalignment – including combinations of all three.
- One laser emitter with three passive targets
- Uses a red laser diode and can be used for distances up to 3 m (10 ft)
- Fast, easy attachment
- Simplified alignment process
- Simultaneous adjustment of tension and alignment
- Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
Belt alignment tool TKBA 11
Precision tool allowing pulley and chain drive alignment
The tool has two components; a laser-emitting unit and three passive targets. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 11 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. A laser line is projected from the emitting unit to the passive targets - which are mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle and parallel misalignment – including combinations of all three.
- One laser emitter with three passive targets
- Uses a red laser diode and can be used for distances up to 3 m (10 ft)
- Fast, easy attachment
- Simplified alignment process
- Simultaneous adjustment of tension and alignment
- Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
SKF TKBA 11 Precision Belt alignment tool
- Regular price
- $1,200.00
- Sale price
- $1,200.00
