Handbook of Engineering & Design
Every Whittet-Higgins series with its drawing, dimensions, materials, temperature and applications: bearing locknuts and lockwashers, self-locking nuts, adapter sets, collars and installation tools.
1 (248) 429-9073
Authorized Whittet-Higgins retailer
Bearing locknuts and lockwashers, Bearhug, Shoelok, Bearlok and Tangentlok self-locking nuts, clampnuts, adapter sets, collars and installation tools, made by Whittet-Higgins in Central Falls, Rhode Island. Apollo Industries is an authorized Whittet-Higgins retailer.
Product families
Pick a family, then a series: each chip opens that series with its live count, and each family links its chapter in Whittet-Higgins' handbook. Not sure which lock you need? Turn them in 3D in the next section.
340 parts 11 series

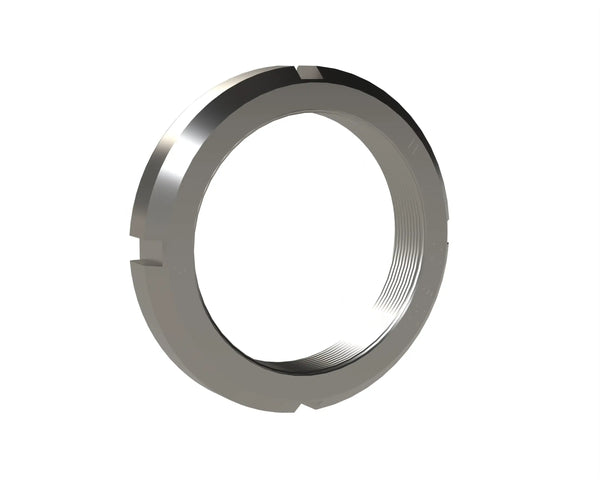

Slotted locknuts that hold a bearing, gear or pulley on a threaded shaft, set with a spanner and locked by a tanged lockwasher. N/AN inch locknuts meet ANSI/ABMA 8.2-1999; KM metric locknuts meet ISO 2982-2.
286 parts 7 series

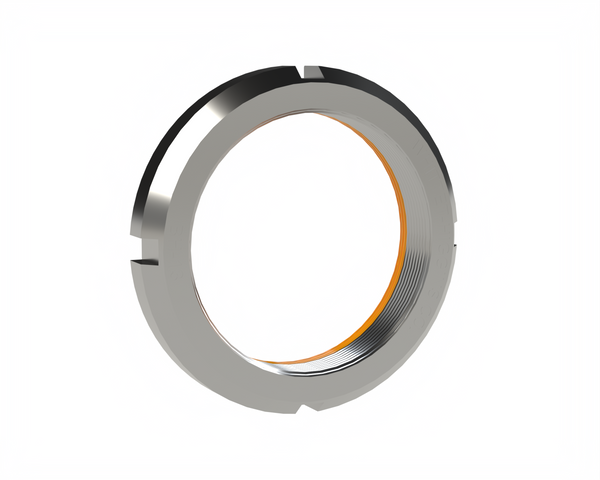

A heat-stabilized polymer ring locks the nut on the shaft thread: no lockwasher, no keyway to cut, and it holds at any setting. The all-metal BHT and BMT versions take heat to 300 °F.
66 parts 1 series

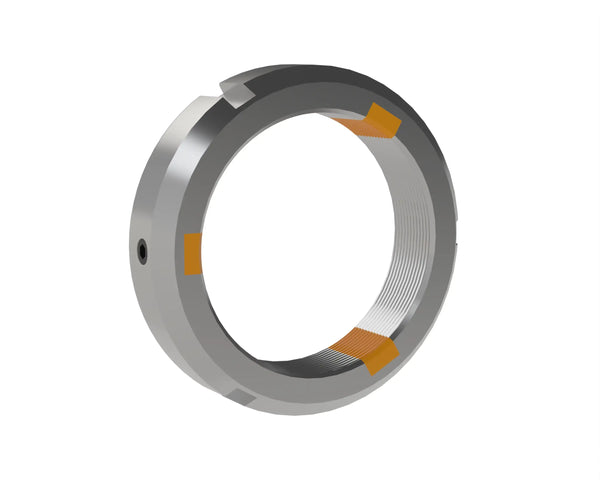

Hardened alloy locknuts locked by tangential screws and locking shoes that clamp the thread evenly all the way round, for high axial loads at high speed.
61 parts 1 series
Locked from the face of the nut: socket head screws load a hardened compression ring for uniform 360° clamping, where there is no room to reach the side of the nut.
42 parts 1 series
Tangential screws clamp the nut to the shaft thread evenly all the way round, locked and adjusted from the side.
281 parts 2 series
One-piece clampnuts close on the thread with a single screw; two-piece splitnuts bolt together around the shaft, so they go on without taking other parts off.
351 parts 10 series
Tanged lockwashers key into the shaft and bend into a slot of the locknut, so the nut cannot back off. W lockwashers pair with N/AN locknuts, MB with KM; PP lockplates lock the large N-048 and up locknuts.
Shop W lockwashers: Bearing lockwashers and lockplates Handbook p. 71
130 parts 5 series

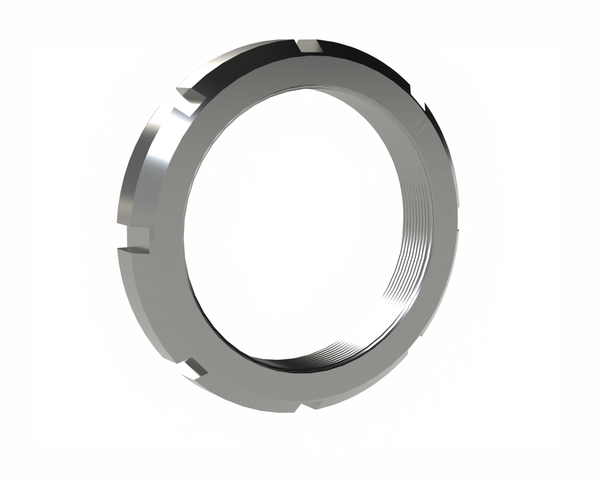

Eight-slot precision locknuts with twice the locking positions of an N/AN locknut, for finer adjustment, and their matched PW precision lockwashers.
Shop precision locknuts: Precision locknuts and lockwashers Handbook p. 47
360 parts 4 series

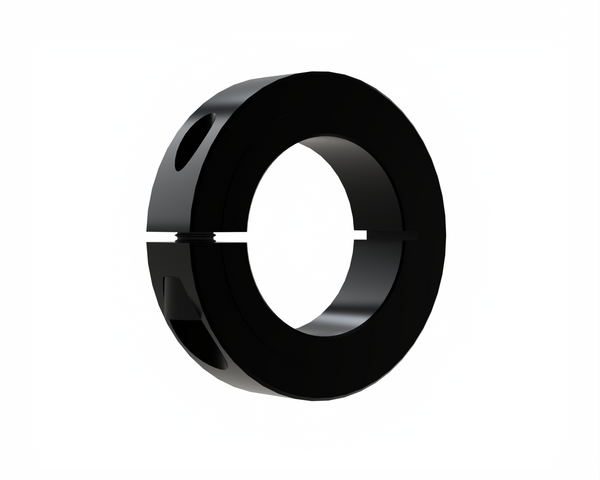

One-piece and two-piece clamp collars in steel, stainless and aluminum, and BLC Bearlok keyless shrink discs.
Shop shaft collars: Shaft collars and shrink discs Handbook p. 100
232 parts 8 series

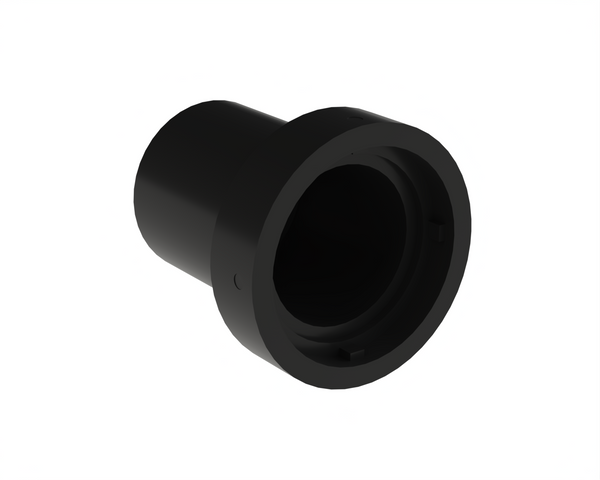

Assembly sockets sized to each locknut series, drive pins, adjustable pin spanner wrenches and rethreading dies.
Shop assembly sockets: Installation and repair tools Handbook p. 116
145 parts 3 series

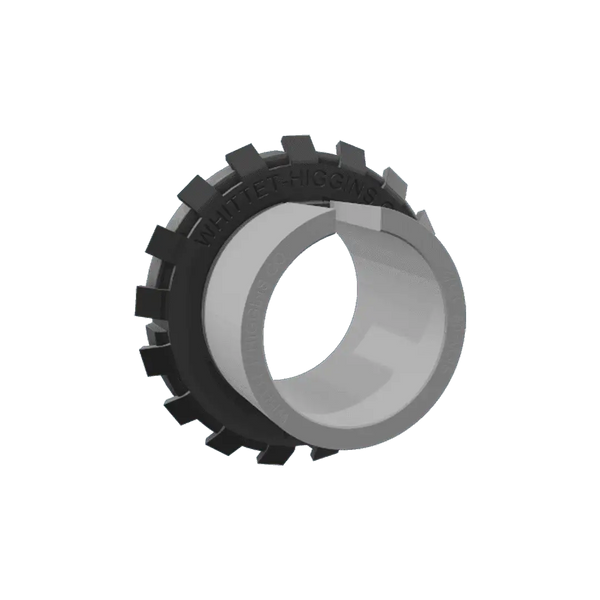

SNW bearing adapter sets mount a tapered-bore bearing on a plain shaft, with their locknut and lockwasher; removal nuts and hydraulic assembly nuts help mount and dismount them.
Shop adapter sets: Adapter sets, removal and hydraulic nuts Handbook p. 94
Quoted to order
Locknuts and lockwashers made to US military specifications. Ask us for a quote with the MS number.
Request a quote: Military specification locknuts and lockwashers Handbook p. 85
Locking methods in 3D
Eight ways to hold a bearing, gear or pulley on a threaded shaft, as 3D models of the real parts. Drag to turn them; on most phones you can also place one in the room at full size. The facts are from Whittet-Higgins' Handbook of Engineering & Design.

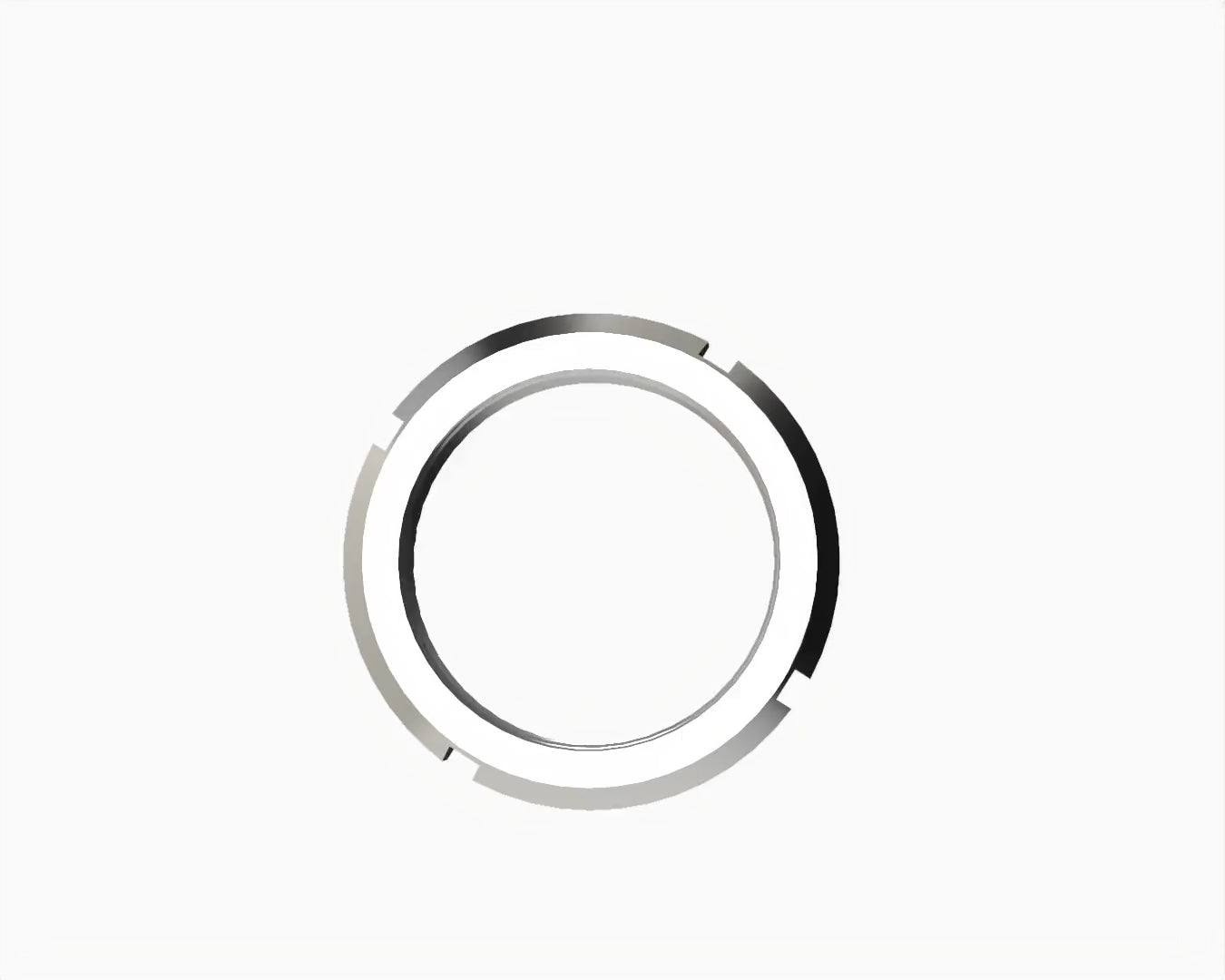

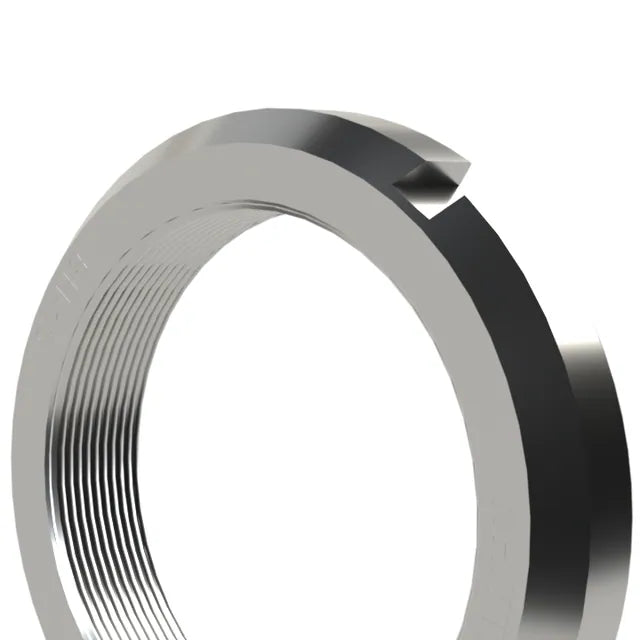

On the turntable Locknut + lockwasher
Drag to turn it, pinch or scroll to zoom.
Standard series · keyed
The slotted locknut threads onto the shaft against the bearing. The tanged lockwasher sits between them: its inner tab rides in the shaft keyway and one outer tang is bent into a slot of the nut, so the nut cannot turn back.
Polymer locking ring · self-locking
A heat-stabilized polymer ring in the nut grips the shaft thread, so the nut holds wherever it is set. There is no lockwasher to fit and no keyway to cut.
Locking shoes · self-locking
Screws set tangentially in the nut press hardened locking shoes against the shaft thread, clamping it evenly all the way round. Hardened alloy throughout, for high axial loads.
Compression ring · self-locking
Socket head cap screws, set from the face of the nut, load a hardened compression ring against the shaft thread for uniform 360° clamping. The screws point along the shaft, so the nut locks where there is no room at its side.
Tangential screws · self-locking
Screws set tangentially in the nut clamp it onto the shaft thread, evenly all the way round, locked and adjusted from the side.
Slotted clamp · self-locking
A slot through one side of the nut is closed by a single hardened screw, clamping the nut onto the shaft thread.
Two-piece clamp · self-locking
Two halves bolt together around the shaft, so the nut goes on without taking other parts off the shaft, and clamps the thread from the side.
Eight slots · keyed
Eight slots instead of four give twice the locking positions of an N/AN locknut, for finer adjustment and setting. Used with a matched PW precision lockwasher.
| Method | Needs keyway and lockwasher | Adjustment | Best for | Locked by | Max. temperature |
|---|---|---|---|---|---|
| Locknut + lockwasherN/AN + W (inch), KM + MB (metric) | Yes | Stepped, by slot | Gear boxes, pumps, non-balanced assemblies | Bending a lockwasher tang | 300 °F |
| BearhugBH (inch), BM (metric), plus left-hand, 16 TPI, hardened, stainless and all-metal | No | Infinite | Higher-speed, balanced assemblies | Its polymer ring, automatically | 160 °F (BHT/BMT all-metal: 300 °F) |
| ShoelokNSH (inch), NSHM (metric) | No | Infinite | High-speed balanced assemblies, heavy axial loads | Screws from the side (X-axis) | 300 °F |
| BearlokBL (inch), BLM (metric) | No | Infinite | High-speed balanced assemblies | Screws from the face (Z-axis) | 300 °F |
| TangentlokTLN (inch), TLM (metric) | No | Infinite | High-speed balanced assemblies | Screws from the side (X-axis) | 300 °F |
| ClampnutCNB, CNC, CNF, CNS (inch), CNM (metric) | No | Infinite | Lower-speed assemblies, ball screws, actuators | One screw from the side (X-axis) | 300 °F |
| SplitnutSNC (coarse), SNF (fine), SNS (16 TPI) | No | Clamped where set | Lower-speed assemblies, ball screws, actuators | Screws from the side (X-axis) | 300 °F |
| PrecisionPN, PL, PT locknuts with PW, PWT lockwashers | Yes | Stepped, twice as fine | Precision assemblies, gear boxes, pumps | Bending a lockwasher tang | 300 °F |
Maximum operating temperatures and materials from Whittet-Higgins' Handbook of Engineering & Design (rev. 2018-08-01).
Size chart
Every N/AN and KM locknut (34 inch, 50 metric sizes) with the lockwasher and assembly socket of the same size, from Whittet-Higgins' spec sheets. Point at a row to see its sizes on the drawing.
| Size | Thread T | Locknut | OD D | Face F | Width B | Load, lbf | Lockwasher | Socket |
|---|---|---|---|---|---|---|---|---|
| 00 | 0.391-32 | N-00 | 0.750 | 0.625 | 0.229 | 3,900 | W-00 | BAS-00 |
| 01 | 0.469-32 | N-01 | 0.875 | 0.719 | 0.323 | 7,700 | W-01 | BAS-01 |
| 02 | 0.586-32 | N-02 | 1.000 | 0.813 | 0.323 | 9,500 | W-02 | BAS-02 |
| 03 | 0.664-32 | N-03 | 1.125 | 0.938 | 0.354 | 12,200 | W-03 | BAS-03 |
| 04 | 0.781-32 | N-04 | 1.375 | 1.125 | 0.385 | 15,800 | W-04 | BAS-04 |
| 05 | 0.969-32 | N-05 | 1.563 | 1.281 | 0.416 | 21,700 | W-05 | BAS-05 |
| 06 | 1.173-18 | N-06 | 1.750 | 1.500 | 0.416 | 24,700 | W-06 | BAS-06 |
| 065 | 1.312-18 | N-065 | 2.063 | 1.813 | 0.448 | 30,600 | — | BAS-065 |
| 07 | 1.376-18 | N-07 | 2.063 | 1.813 | 0.448 | 32,100 | W-07 | BAS-07 |
| 08 | 1.563-18 | N-08 | 2.250 | 2.000 | 0.448 | 36,600 | W-08 | BAS-08 |
| 09 | 1.767-18 | N-09 | 2.531 | 2.281 | 0.448 | 41,000 | W-09 | BAS-09 |
| 10 | 1.967-18 | N-10 | 2.688 | 2.438 | 0.510 | 54,200 | W-10 | BAS-10 |
| 11 | 2.157-18 | N-11 | 2.969 | 2.656 | 0.510 | 58,900 | W-11 | BAS-11 |
| 12 | 2.360-18 | N-12 | 3.156 | 2.844 | 0.541 | 69,500 | W-12 | BAS-12 |
| 13 | 2.548-18 | N-13 | 3.375 | 3.063 | 0.573 | 80,700 | W-13 | BAS-13 |
| 14 | 2.751-18 | N-14 | 3.625 | 3.313 | 0.573 | 87,200 | W-14 | BAS-14 |
| 15 | 2.933-12 | AN-15 | 3.875 | 3.563 | 0.604 | 89,400 | W-15 | BAS-15 |
| 16 | 3.137-12 | AN-16 | 4.156 | 3.844 | 0.604 | 95,200 | W-16 | BAS-16 |
| 17 | 3.340-12 | AN-17 | 4.406 | 4.031 | 0.635 | 108,800 | W-17 | BAS-17 |
| 18 | 3.527-12 | AN-18 | 4.656 | 4.281 | 0.698 | 129,000 | W-18 | BAS-18 |
| 19 | 3.730-12 | AN-19 | 4.938 | 4.563 | 0.729 | 144,500 | W-19 | BAS-19 |
| 20 | 3.918-12 | AN-20 | 5.188 | 4.813 | 0.760 | 159,800 | W-20 | BAS-20 |
| 21 | 4.122-12 | AN-21 | 5.438 | 5.000 | 0.760 | 166,800 | W-21 | BAS-21 |
| 22 | 4.325-12 | AN-22 | 5.719 | 5.281 | 0.791 | 184,400 | W-22 | BAS-22 |
| 24 | 4.716-12 | AN-24 | 6.125 | 5.688 | 0.823 | 211,600 | W-24 | BAS-24 |
| 26 | 5.106-12 | AN-26 | 6.750 | 6.188 | 0.885 | 251,200 | W-26 | BAS-26 |
| 28 | 5.497-12 | AN-28 | 7.094 | 6.531 | 0.948 | 294,700 | W-28 | — |
| 30 | 5.888-12 | AN-30 | 7.688 | 7.063 | 0.979 | 328,500 | W-30 | — |
| 32 | 6.284-8 | AN-32 | 8.063 | 7.438 | 1.041 | 375,800 | W-32 | — |
| 34 | 6.659-8 | AN-34 | 8.656 | 8.031 | 1.073 | 413,600 | W-34 | — |
| 36 | 7.066-8 | AN-36 | 9.063 | 8.375 | 1.104 | 454,700 | W-36 | — |
| 38 | 7.472-8 | AN-38 | 9.489 | 8.781 | 1.135 | 497,500 | W-38 | — |
| 40 | 7.847-8 | AN-40 | 9.844 | 9.156 | 1.198 | 550,400 | W-40 | — |
| 44 | 8.628-8 | N-44 | 11.000 | 9.843 | 1.260 | 635,600 | W-44 | — |
| Size | Thread T | Locknut | OD D | Face F | Width B | Load, kN | Lockwasher | Socket |
|---|---|---|---|---|---|---|---|---|
| 00 | M10 × 0.75 | KM-00 | 18.0 | 13.5 | 4.0 | 11 | MB-00 | BASM-00 |
| 01 | M12 × 1 | KM-01 | 22.0 | 17.0 | 4.0 | 13 | MB-01 | BASM-01 |
| 02 | M15 × 1 | KM-02 | 25.0 | 21.0 | 5.0 | 24 | MB-02 | BASM-02 |
| 03 | M17 × 1 | KM-03 | 28.0 | 24.0 | 5.0 | 27 | MB-03 | BASM-03 |
| 04 | M20 × 1 | KM-04 | 32.0 | 26.0 | 6.0 | 41 | MB-04 | BASM-04 |
| 044 | M22 × 1 | KM-044 | 34.0 | 28.0 | 6.0 | 45 | MB-044 | BASM-044 |
| 05 | M25 × 1.5 | KM-05 | 38.0 | 32.0 | 7.0 | 55 | MB-05 | BASM-05 |
| 056 | M28 × 1.5 | KM-056 | 42.0 | 36.0 | 7.0 | 61 | MB-056 | BASM-056 |
| 06 | M30 × 1.5 | KM-06 | 45.0 | 38.0 | 7.0 | 66 | MB-06 | BASM-06 |
| 064 | M32 × 1.5 | KM-064 | 48.0 | 40.0 | 8.0 | 86 | MB-064 | BASM-064 |
| 07 | M35 × 1.5 | KM-07 | 52.0 | 44.0 | 8.0 | 94 | MB-07 | BASM-07 |
| 08 | M40 × 1.5 | KM-08 | 58.0 | 50.0 | 9.0 | 127 | MB-08 | BASM-08 |
| 09 | M45 × 1.5 | KM-09 | 65.0 | 56.0 | 10.0 | 165 | MB-09 | BASM-09 |
| 10 | M50 × 1.5 | KM-10 | 70.0 | 61.0 | 11.0 | 207 | MB-10 | BASM-10 |
| 11 | M55 × 2 | KM-11 | 75.0 | 67.0 | 11.0 | 217 | MB-11 | BASM-11 |
| 12 | M60 × 2 | KM-12 | 80.0 | 73.0 | 11.0 | 236 | MB-12 | BASM-12 |
| 13 | M65 × 2 | KM-13 | 85.0 | 79.0 | 12.0 | 289 | MB-13 | BASM-13 |
| 14 | M70 × 2 | KM-14 | 92.0 | 85.0 | 12.0 | 311 | MB-14 | BASM-14 |
| 15 | M75 × 2 | KM-15 | 98.0 | 90.0 | 13.0 | 372 | MB-15 | BASM-15 |
| 16 | M80 × 2 | KM-16 | 105.0 | 95.0 | 15.0 | 477 | MB-16 | BASM-16 |
| 17 | M85 × 2 | KM-17 | 110.0 | 102.0 | 16.0 | 551 | MB-17 | BASM-17 |
| 18 | M90 × 2 | KM-18 | 120.0 | 108.0 | 16.0 | 583 | MB-18 | BASM-18 |
| 19 | M95 × 2 | KM-19 | 125.0 | 113.0 | 17.0 | 661 | MB-19 | BASM-19 |
| 20 | M100 × 2 | KM-20 | 130.0 | 120.0 | 18.0 | 745 | MB-20 | BASM-20 |
| 21 | M105 × 2 | KM-21 | 140.0 | 126.0 | 18.0 | 782 | MB-21 | BASM-21 |
| 22 | M110 × 2 | KM-22 | 145.0 | 133.0 | 19.0 | 874 | MB-22 | BASM-22 |
| 23 | M115 × 2 | KM-23 | 150.0 | 137.0 | 19.0 | 914 | MB-23 | — |
| 24 | M120 × 2 | KM-24 | 155.0 | 138.0 | 20.0 | 1,014 | MB-24 | BASM-24 |
| 25 | M125 × 2 | KM-25 | 160.0 | 148.0 | 21.0 | 1,121 | MB-25 | — |
| 26 | M130 × 2 | KM-26 | 165.0 | 149.0 | 21.0 | 1,166 | MB-26 | BASM-26 |
| 27 | M135 × 2 | KM-27 | 170.0 | 160.0 | 22.0 | 1,278 | MB-27 | — |
| 28 | M140 × 2 | KM-28 | 180.0 | 160.0 | 22.0 | 1,326 | MB-28 | — |
| 29 | M145 × 2 | KM-29 | 190.0 | 171.0 | 24.0 | 1,520 | MB-29 | — |
| 30 | M150 × 2 | KM-30 | 195.0 | 171.0 | 24.0 | 1,573 | MB-30 | — |
| 31 | M155 × 3 | KM-31 | 200.0 | 182.0 | 25.0 | 1,676 | MB-31 | — |
| 32 | M160 × 3 | KM-32 | 210.0 | 182.0 | 25.0 | 1,731 | MB-32 | — |
| 33 | M165 × 3 | KM-33 | 210.0 | 193.0 | 26.0 | 1,871 | MB-33 | — |
| 34 | M170 × 3 | KM-34 | 220.0 | 193.0 | 26.0 | 1,928 | MB-34 | — |
| 36 | M180 × 3 | KM-36 | 230.0 | 203.0 | 27.0 | 2,134 | MB-36 | — |
| 38 | M190 × 3 | KM-38 | 240.0 | 214.0 | 28.0 | 2,337 | MB-38 | — |
| 40 | M200 × 3 | KM-40 | 250.0 | 226.0 | 29.0 | 2,565 | MB-40 | — |
| 44 | TR220 x 4 | KM-44 | 280.0 | 250.0 | 32.0 | 2,886 | — | — |
| 48 | TR240 x 4 | KM-48 | 300.0 | 270.0 | 34.0 | 3,402 | — | — |
| 52 | TR260 x 4 | KM-52 | 330.0 | 300.0 | 36.0 | 3,956 | — | — |
| 56 | TR280 x 4 | KM-56 | 350.0 | 320.0 | 38.0 | 4,556 | — | — |
| 60 | TR300 x 4 | KM-60 | 380.0 | 340.0 | 40.0 | 5,198 | — | — |
| 64 | TR320 x 5 | KM-64 | 400.0 | 360.0 | 42.0 | 5,901 | — | — |
| 68 | TR340 x 5 | KM-68 | 440.0 | 400.0 | 55.0 | 8,647 | — | — |
| 70 | TR350 x 5 | KM-70 | 450.0 | 410.0 | 55.0 | 8,933 | — | — |
| 72 | TR360 x 5 | KM-72 | 460.0 | 420.0 | 58.0 | 9,738 | — | — |
Diameters and widths are Whittet-Higgins' maximum sizes; axial load is its theoretical value. N/AN and W meet ANSI/ABMA 8.2-1999, KM and MB ISO 2982-2. A dash means Whittet-Higgins makes no lockwasher or socket for that size.
Technical library
Whittet-Higgins' own Handbook of Engineering & Design and its assembly guide, page by page: open a chapter, or read the whole book here.
Every Whittet-Higgins series with its drawing, dimensions, materials, temperature and applications: bearing locknuts and lockwashers, self-locking nuts, adapter sets, collars and installation tools.

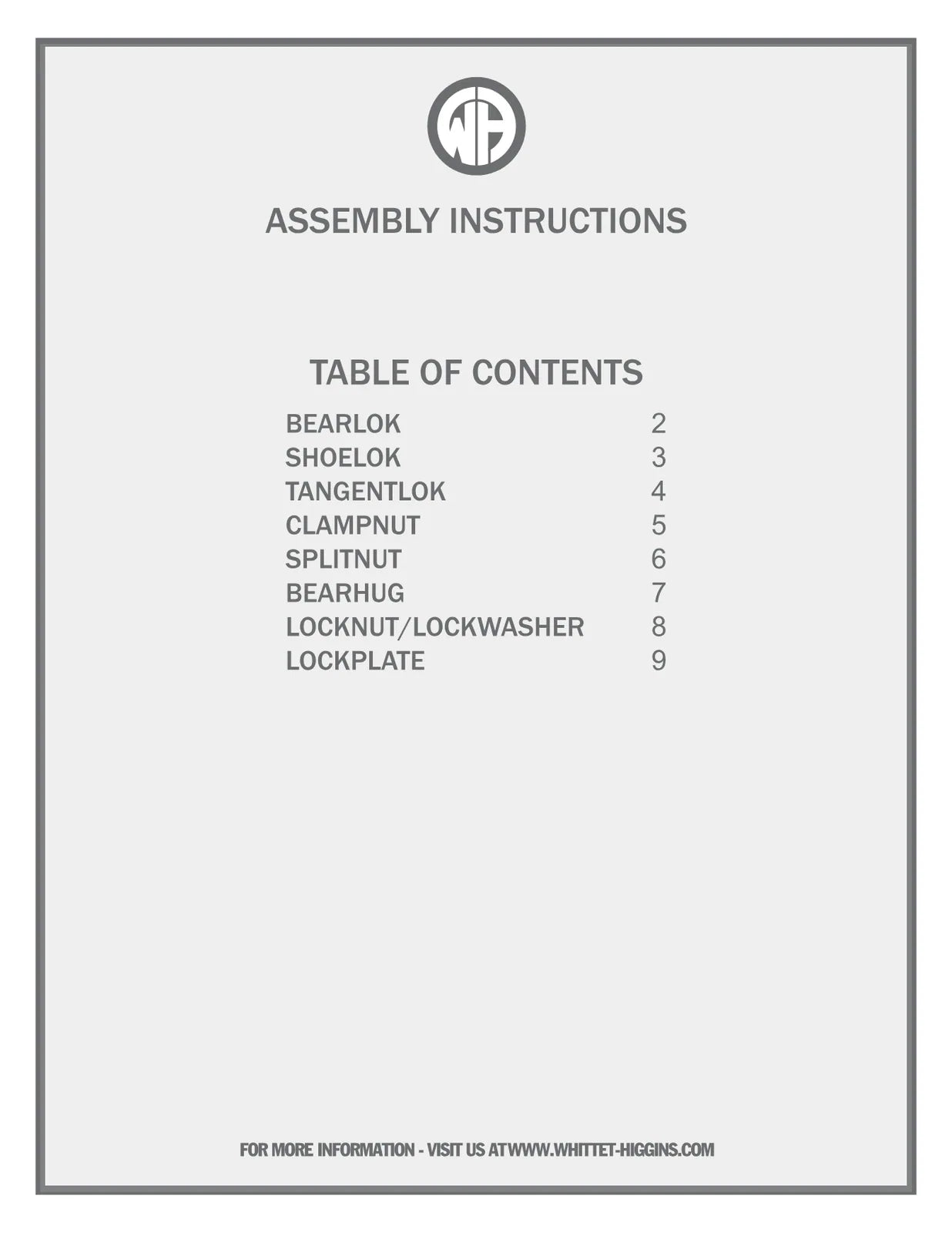

How to install and lock Bearlok, Shoelok, Tangentlok, clampnut, splitnut, Bearhug, locknut and lockwasher, and lockplate assemblies.
About Whittet-Higgins
Whittet-Higgins is family owned and operated, and makes its bearing retaining products in Central Falls, Rhode Island.
Authorized retailer
Apollo Industries is an authorized Whittet-Higgins retailer
Every Whittet-Higgins part we sell is genuine, made by Whittet-Higgins in Central Falls, Rhode Island, USA.
Whittet-Higgins Company1914
Henry Whittet and John Higgins set up in the basement of the mill at 27 Congress Avenue, Providence, Rhode Island, making super-precision bearing retaining components and machined parts for customers such as Brown & Sharpe.
1967
The company is sold to a young mechanical engineer, and from 1967 Whittet-Higgins makes its own line of bearing accessories from domestic steels, alloys and polymers.
1969
Whittet-Higgins moves to 33 Higginson Avenue, Central Falls, Rhode Island, still the address on every page and part print.
Today
From an initial 66 locknuts and lockwashers to over 4,300 super precision products, made on robotic CNC manufacturing systems. Still family owned and operated.
Why Apollo USA
Apollo Industries supplies bearings, locknuts, lockwashers and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.
Order by 3 PM EST for same-day shipping.
All orders over $100 ship free by ground with code FREESHIP.
Hassle-free returns on unused items within 90 days.
Show us a competitor's advertised price on the same item and we will match it.
Support staff available by phone, web chat or email.
We offer special rates for businesses and bulk orders.
Talk to a parts specialist
2695 Lake George RdQuestions
Choosing, matching and installing Whittet-Higgins locknuts, lockwashers and self-locking nuts. Do not see your question? We will help you find the exact part.
Whittet-Higgins is a family-owned manufacturer in Central Falls, Rhode Island, founded in 1914 and known for the design, engineering and precision manufacturing of retaining devices and bearing accessories.
The range runs to over 4,300 products: bearing locknuts and tanged lockwashers, Bearhug, Shoelok, Bearlok, Tangentlok, clampnut and splitnut self-locking nuts, adapter sets, shaft collars and shrink discs, and the sockets and tools to install them. Every part is made in the USA.
Yes. Apollo Industries is an authorized Whittet-Higgins retailer, and every Whittet-Higgins part we sell is genuine, made by Whittet-Higgins in Central Falls, Rhode Island, USA.
With the standard series you use them as a pair. The locknut (N/AN inch or KM metric) threads onto the shaft to position and preload the bearing. A tanged lockwasher (W for N/AN, MB for KM) sits between the bearing and the nut: its inner tab seats in the shaft keyway, and an outer tang is bent into a slot of the nut so it cannot back off under vibration, shock and torque.
The self-locking series (Bearhug, Shoelok, Bearlok, Tangentlok, clampnuts and splitnuts) lock by themselves and need no lockwasher and no keyway.
Choose a self-locking nut when you want faster installation, infinite adjustment and preload, or frequent re-adjustment, and when you would rather not cut or rely on a keyway. They resist loosening from vibration, shock and torque and do not damage the shaft threads:
You need four things: the thread size, inch or metric, the thread direction (right- or left-hand), and whether you also need the matching lockwasher. The fastest route is the marking on the part you are replacing: type it into the finder at the top of this page, or look up your thread in the size chart.
Not sure? Contact us with your shaft thread and the part number you are replacing, and we will match it for you.
The standard series are made to the industry standards other makers follow: KM locknuts and MB lockwashers to ISO 2982-2, and N/AN locknuts and W lockwashers to ANSI/ABMA 8.2-1999. Whittet-Higgins lists its N/AN locknuts as interchangeable with the TAN series.
Send us your current part number and we will confirm the exact equivalent before you order.
Yes. Most lines come in both: inch series (N/AN, W, NSH, BH, BL, TLN and more) and metric series (KM, MB, NSHM, BM, BLM, TLM and more). Match the thread system of your shaft; the size chart above lists both.
Yes: NL locknuts, KML metric locknuts, BHL / BML Bearhug and PL precision locknuts are left-hand. Left-hand threads are used where shaft rotation would tend to loosen a right-hand nut. Specify the thread direction when you order.
Standard parts are carbon steel, with hardened alloy in the Shoelok, BHM / BMM and the screws of the self-locking nuts. For corrosion resistance choose stainless steel: NS and WS (inch), KMS and MBS (metric), BHS / BMS Bearhug. NH locknuts with WH lockwashers are the heavy-duty option for higher axial loads.
Standard Bearhug locknuts are rated to 160 °F because of their polymer ring; the all-metal BHT / BMT Bearhug takes 300 °F.
Whittet-Higgins makes BAS (inch) and BASM (metric) assembly sockets sized to its locknuts, BLAS and SLAS sockets for Bearlok and Shoelok, and PAS adjustable pin spanner wrenches. The self-locking nuts are then locked with their own socket head screws and a hex key. The size chart lists the socket for each N/AN and KM size.
Very likely. Whittet-Higgins makes over 4,300 standard products. If you do not see your size or series here, ask us and we will check it with Whittet-Higgins and quote it.
Order any part directly from its product page; quantity pricing shows there. For volume pricing, availability or lead times, contact our team with the part number, thread size, series, thread direction and quantity.
