Proper shaft alignment is one of the most critical factors in rotating equipment reliability. Misalignment is responsible for a significant percentage of premature bearing failures, seal damage, coupling wear, vibration issues, and energy losses in industrial systems.
Using modern laser alignment systems like the SKF TKSA 71 and SKF TKSA 51 eliminates guesswork and provides precise, repeatable results. At Apollo Industries (ApolloUSA.com), we support maintenance teams, reliability engineers, and millwrights with advanced SKF alignment technology and application expertise.
This guide will walk through:
-
Why shaft alignment matters
-
Types of misalignment
-
Step-by-step laser alignment procedure
-
Soft foot detection
-
Thermal growth compensation
-
Tolerance standards
-
Best practices for long-term reliability
Why Shaft Alignment Is Critical
Even small amounts of misalignment (as little as 0.002–0.005 inches) can create:
-
Increased radial and axial bearing loads
-
Elevated operating temperatures
-
Excessive vibration
-
Coupling fatigue
-
Seal leakage
-
Reduced equipment life
Industry studies show that misalignment can reduce bearing life by up to 50% or more, depending on severity and load conditions.
Laser shaft alignment tools provide accuracy typically within ±0.01 mm (±0.0004 in), far superior to dial indicator methods.
Types of Shaft Misalignment
Understanding misalignment types is essential before correction.
1. Angular Misalignment
Shaft centerlines intersect but are not parallel.
Symptoms:
-
High axial vibration
-
Coupling wear patterns
-
Premature bearing fatigue
2. Parallel (Offset) Misalignment
Shaft centerlines are parallel but displaced.
Symptoms:
-
Radial vibration
-
Increased motor amperage
-
Heat generation
3. Combined Misalignment
Most real-world cases involve both angular and parallel misalignment simultaneously.
Laser systems measure both vertical and horizontal planes to provide correction values in real time.
Overview of SKF TKSA Alignment Systems

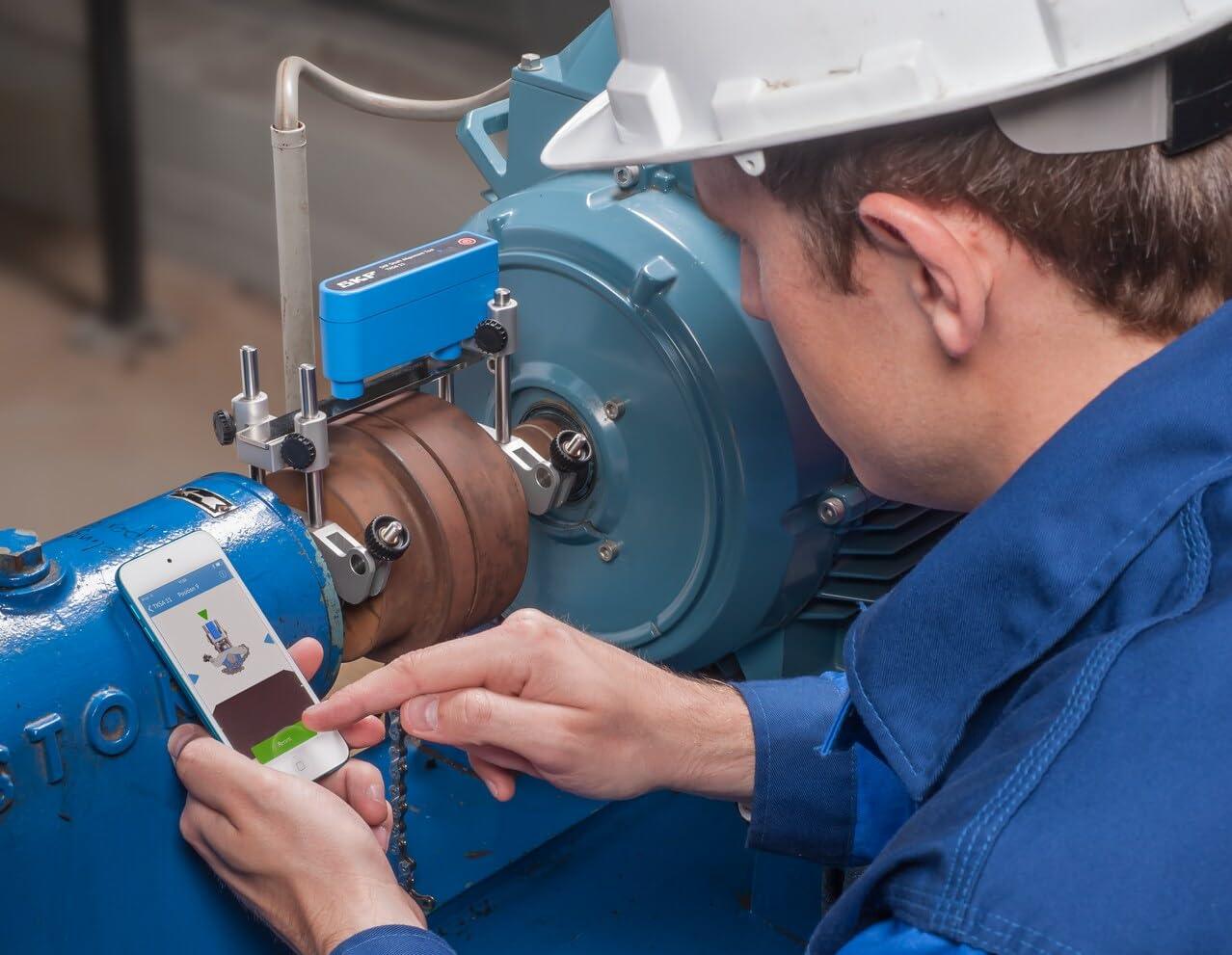

SKF TKSA systems use dual laser measurement units mounted on each shaft. Data is transmitted wirelessly to a display unit or mobile device app.
Key Features
-
Wireless laser measurement heads
-
Automatic measurement modes
-
Live correction view
-
Soft foot detection
-
Machine train alignment capability
-
Thermal growth compensation
-
Tolerance-based evaluation
The TKSA 71 offers higher measurement accuracy and expanded reporting features, ideal for precision industrial environments.
Step-by-Step Alignment Procedure
Step 1: Pre-Alignment Inspection
Before measurement:
-
Inspect coupling condition
-
Check foundation integrity
-
Ensure bolts are clean and lubricated
-
Verify no pipe strain
-
Perform rough alignment
Correct mechanical defects before fine alignment.
Step 2: Mount the Laser Units
Attach the laser heads securely to each shaft using magnetic brackets or chain fixtures.
Important:
-
Mount as close to the coupling center as possible
-
Ensure brackets are rigid
-
Check laser beam visibility
Step 3: Enter Machine Dimensions
Input:
-
Distance between laser units
-
Distance to coupling center
-
Distance to front and rear feet
Accurate dimension entry ensures precise correction values.
Step 4: Perform Measurement
Rotate shafts together (typically 3 positions minimum).
SKF TKSA tools calculate:
-
Angular misalignment (mils/in or mm/100 mm)
-
Parallel offset (mils or mm)
-
Vertical and horizontal corrections
The system instantly displays required shim adjustments and lateral movement values.
Step 5: Correct Vertical Misalignment (Shimming)
Add or remove shims under motor feet as instructed.
Example:
-
Front feet: +0.006 in
-
Rear feet: +0.003 in
Use stainless pre-cut shim kits for accuracy.
Step 6: Correct Horizontal Misalignment
Loosen anchor bolts and adjust motor position laterally.
Use:
-
Jack bolts (if installed)
-
Precision pry bars
-
Live view function on TKSA for real-time correction
Step 7: Re-Measure and Verify
After tightening bolts:
-
Recheck alignment
-
Confirm values fall within tolerance
-
Save alignment report
Soft Foot Detection
Soft foot occurs when one machine foot does not sit flat on the base, creating distortion when bolts are tightened.
SKF TKSA tools measure individual foot movement.
Soft foot types:
-
Parallel soft foot
-
Angular soft foot
-
Squishy foot (debris or paint under foot)
-
Induced soft foot (pipe strain)
Correction typically involves precision shimming.
Unchecked soft foot can distort the machine frame and affect alignment accuracy.
Thermal Growth Compensation
Machines expand during operation.
Example:
-
Electric motors may grow vertically 0.002–0.008 inches when heated.
SKF TKSA systems allow entry of thermal offset values so alignment is set correctly for operating conditions — not just cold state.
This is critical for:
-
Pumps
-
Compressors
-
Turbines
-
High-temperature process equipment
Alignment Tolerances
Tolerance depends on speed (RPM).
General guideline:
| RPM Range | Recommended Offset Tolerance |
|---|---|
| < 1800 RPM | 0.004 in (0.10 mm) |
| 1800–3600 RPM | 0.002 in (0.05 mm) |
| > 3600 RPM | 0.001 in (0.025 mm) |
Always follow equipment manufacturer recommendations when available.
Benefits of Laser Alignment vs Dial Indicators
| Laser Alignment | Dial Indicators |
|---|---|
| Faster setup | Time-consuming |
| Higher accuracy | Operator dependent |
| Digital documentation | Manual recording |
| Real-time correction view | No live feedback |
| Soft foot detection | Requires separate process |
Laser systems dramatically reduce downtime and improve repeatability across maintenance teams.
Real-World Applications
SKF TKSA alignment tools are commonly used in:
-
Pump and motor assemblies
-
HVAC systems
-
Industrial compressors
-
Gearboxes
-
Paper mills
-
Manufacturing production lines
In power transmission-heavy environments — such as facilities using high-load bearings and couplings — proper alignment directly impacts bearing life and energy efficiency.
How Alignment Impacts Bearing Life
Misalignment increases internal bearing load distribution irregularity.
Effects include:
-
Elevated contact stress
-
Increased friction
-
Lubrication breakdown
-
Reduced L10 life
Correct alignment can:
-
Extend bearing life
-
Reduce vibration levels
-
Lower energy consumption
-
Improve seal longevity
-
Decrease unplanned downtime
