Description

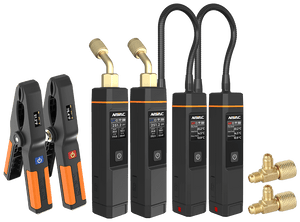

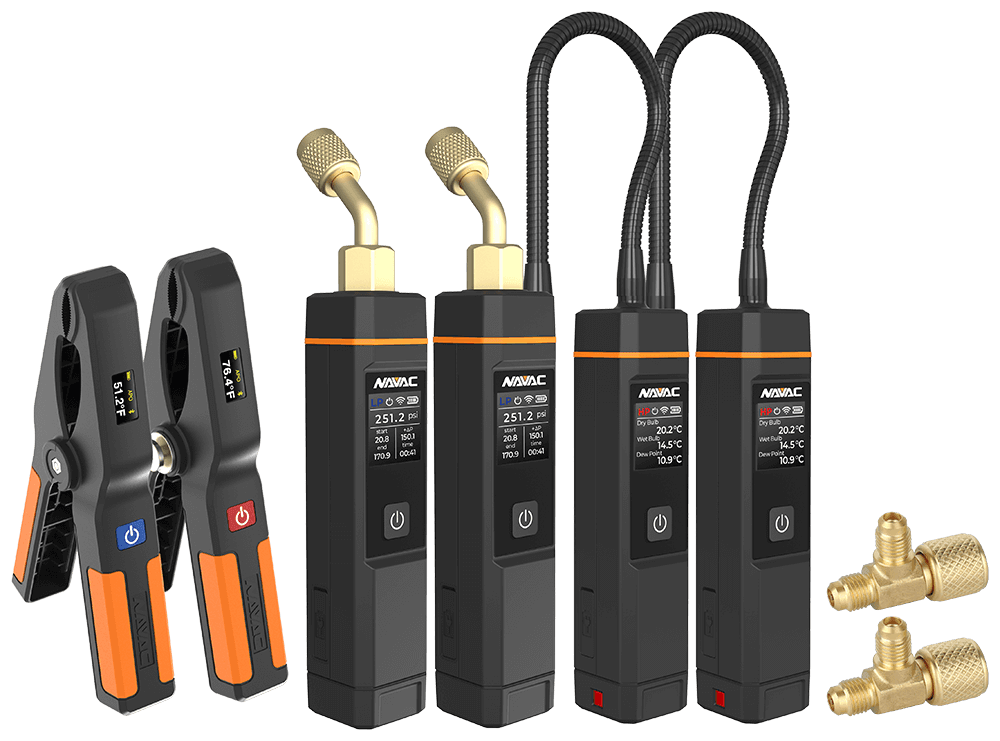

The SK3TPH1 Smart Refrigerant & Air Side Diagnostics Kit is an all-in-one solution for HVACR professionals. It includes two NST1 and NST2 Bluetooth Temperature Clamps with high-accuracy thermistor sensors, two NSP1 Bluetooth Pressure Probes with automatic VSAT/LSAT calculations, two NSH1 Bluetooth Psychrometers for detailed air-side data, and two F1030 1/4″ SAE Access Tee Connectors. Each probe (NSH1, NSP1) features a built-in digital display for standalone use, rechargeable lithium batteries, and user-friendly controls for smooth operation. This comprehensive kit ensures precision, efficiency, and convenience for system diagnostics and achieving optimal performance.
NST1 & NST2 Model Specifications
| Specification | Details |
|---|---|
| Model | NST1, NST2 |
| Temp Range | -40~257°F (-40~125°C) |
| Accuracy | ± 2.3°F (± 1.3°C) |
| Resolution | 0.1 |
| Sensor Type | Thermistor Pt100 |
| Temperature Units | °F, °C |
| Max. Tube OD | 1-5/8″ (42mm) |
| Battery Type | 2 x AAA |
| Max. Bluetooth Range | Up to 450′ (150m) |
| Display Type | TFT |
| Unit Weight | 0.35 lbs |
| IP Rating | IP54 |
NSP1 Model Specifications
| Specification | Details |
|---|---|
| Model | NSP1 |
| Measurement Range | -29.0 inHg to 725 psi |
| Maximum Overload Pressure | 1087 psi (7500 kPa) |
| Accuracy | ±0.5% of full range |
| Resolution | 0.01 psi |
| Sensor Type | Ceramic pressure sensor |
| Bluetooth Range | 164 ft (50m) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Battery Operating Time | Screen off: ＞200h; Screen on: ＞40h |
| Unit Weight | 7.6 oz (215g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
NSH1 Model Specifications
| Specification | Details |
|---|---|
| Model | NSH1 |
| Measurement Range | Temperature: -40°F to 249.8°F, Humidity: 0 to 100% RH |
| Measurement Units | °F, °C, % RH, °Ftd, °Ctd, Wet Bulb °F, Wet Bulb °C |
| Accuracy |
Humidity: ±2.0%RH (10 to 90%RH) (at 77°F/25°C), ±5.0%RH (< 10%RH or > 90%RH) (at 77°F/25°C) Temperature: ±1.1°F (−4°F to 32°F), ±0.9°F (32°F to 140°F), ±1.3°F (140°F to 248°F) |
| Resolution | Humidity: 0.1%RH, Temperature: 0.1°C |
| Sensor Type | Humidity: Capacitive Polymer Film, Temperature: Precision Thermistor |
| Response Time | 10 seconds |
| Bluetooth Range | 164 ft (50m) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Battery Operating Time | Screen off: ＞200h; Screen on: >40h |
| Unit Weight | 7.8 oz (220g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Flexible Probe | Length: 7.9 in (200 mm), Diameter: 0.39 in (10mm) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
F2010 Part Specifications
| Part No. | Fit Configuration | Qty |
|---|---|---|
| F2010 | 1/4″ LH FPT x 1/4″ MPT | 1 pack |
