About

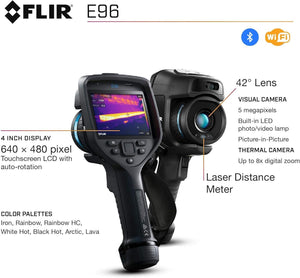

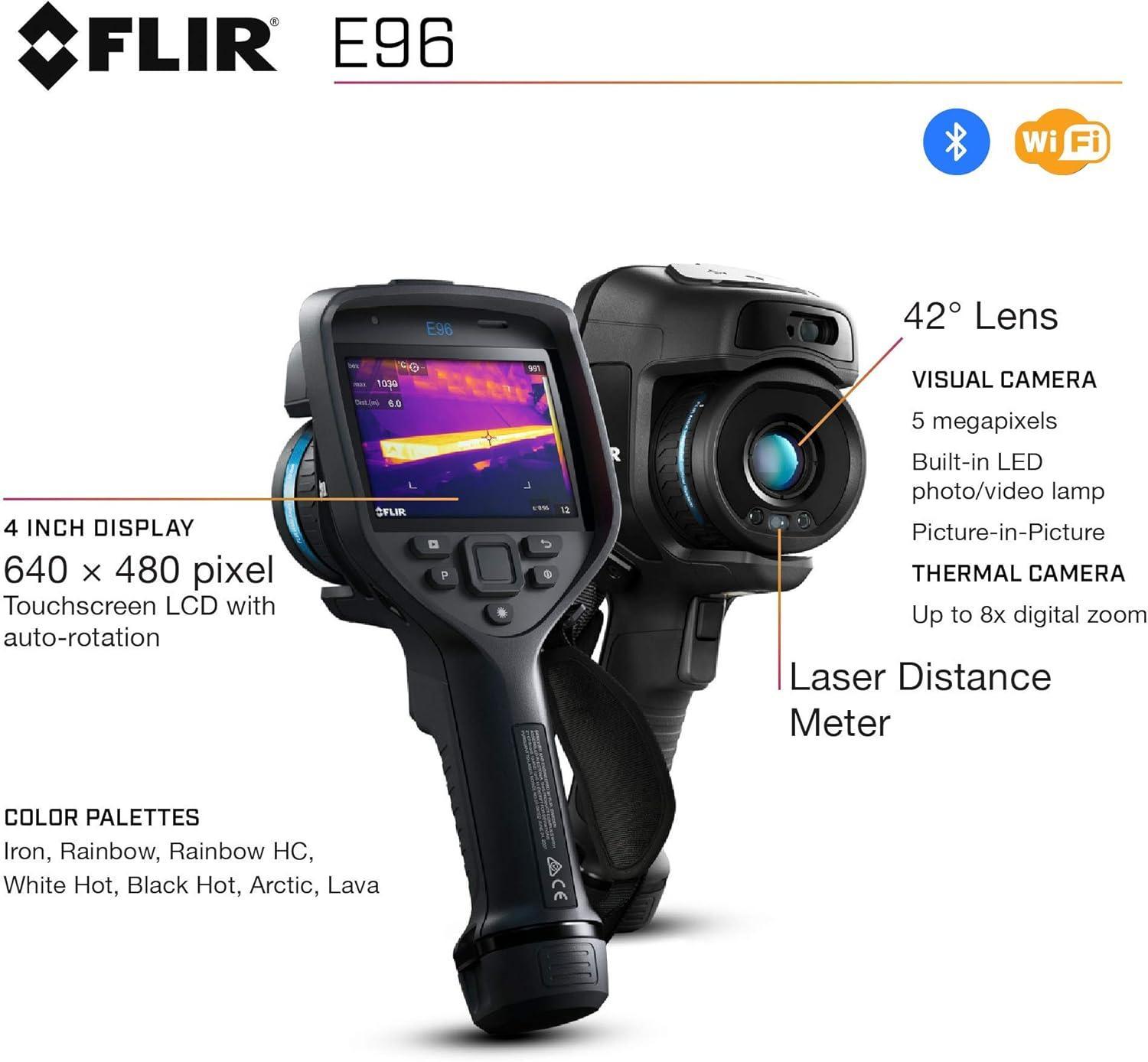

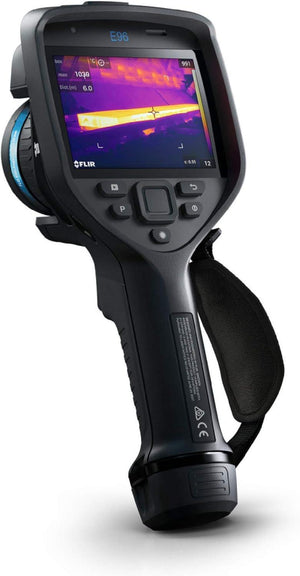

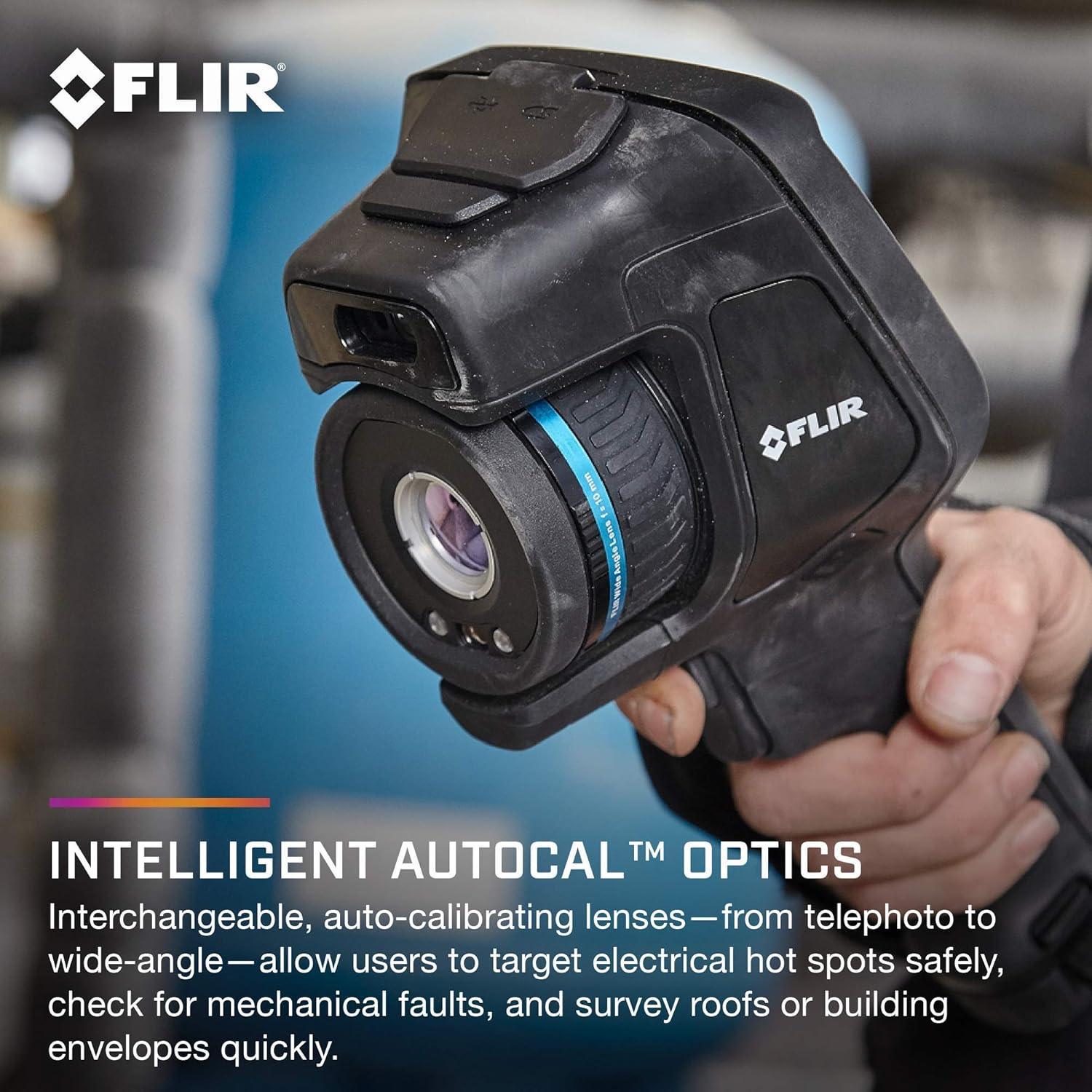

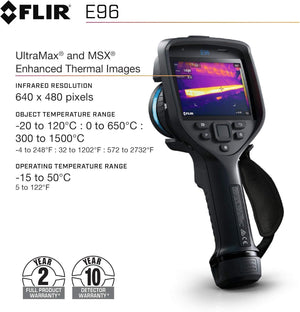

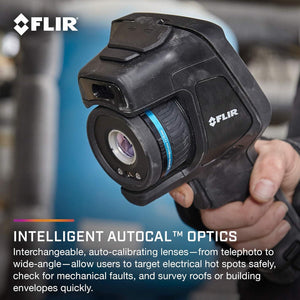

The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
Category | Specification | Details |
---|---|---|

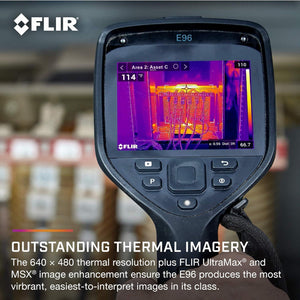

Specifications | IR Resolution | 640 × 480 pixels |
Thermal Sensitivity/NETD | <30 mK at 30°C (86°F) | |
Accuracy | ±2°C (±3.6°F) or ±2% of the reading | |
Digital Camera | 5 MP, with built-in LED photo/video lamp | |
Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation | |
Storage Media | Removable SD card | |
Imaging & Optical | Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
Detector Type and Pitch | Uncooled microbolometer, 12 µm | |
Digital Zoom | 1-8× continuous | |
f-number | 1.1 | |
Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual | |
Image Frequency | 30 Hz | |
Lens Identification | Automatic | |
Minimum Focus Distance | 0.15 m | |
Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC or Wi-Fi | |
Picture-in-Picture | Resizable and movable | |
Radiometric IR video recording | Real-time radiometric recording (.csq) | |
Radiometric IR video streaming | Yes, over UVC | |

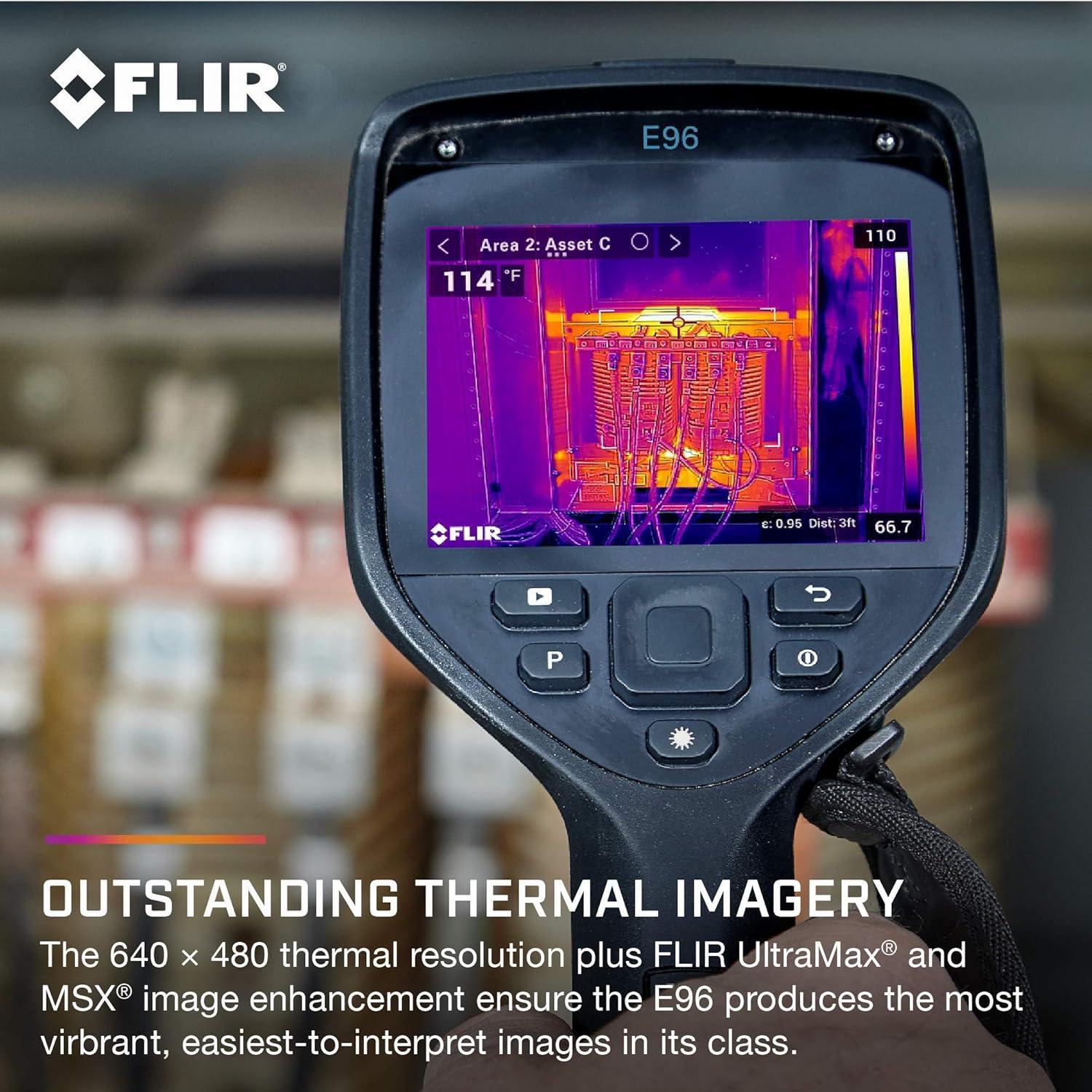

UltraMax | Yes | |
Measurement & Analysis | Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 | |
Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) | |
Spot Meter | 3 ea. in live mode | |
User Interface | Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
Text | Predefined list or touchscreen keyboard | |
Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® | |
Power | Battery Operating Time | >2.5 hours at 25°C (68°F) and typical use |
Battery Type | Rechargeable Li-ion battery | |
Charging System | Battery charged inside the camera or in specific charger | |
Environmental & Certifications | Operating Temperature Range | -15 to 50°C (5 to 122°F) |
Safety | EN/UL/CSA/PSE 60950-1 | |
Storage Temperature Range | -40 to 70°C (-40 to 158°F) | |

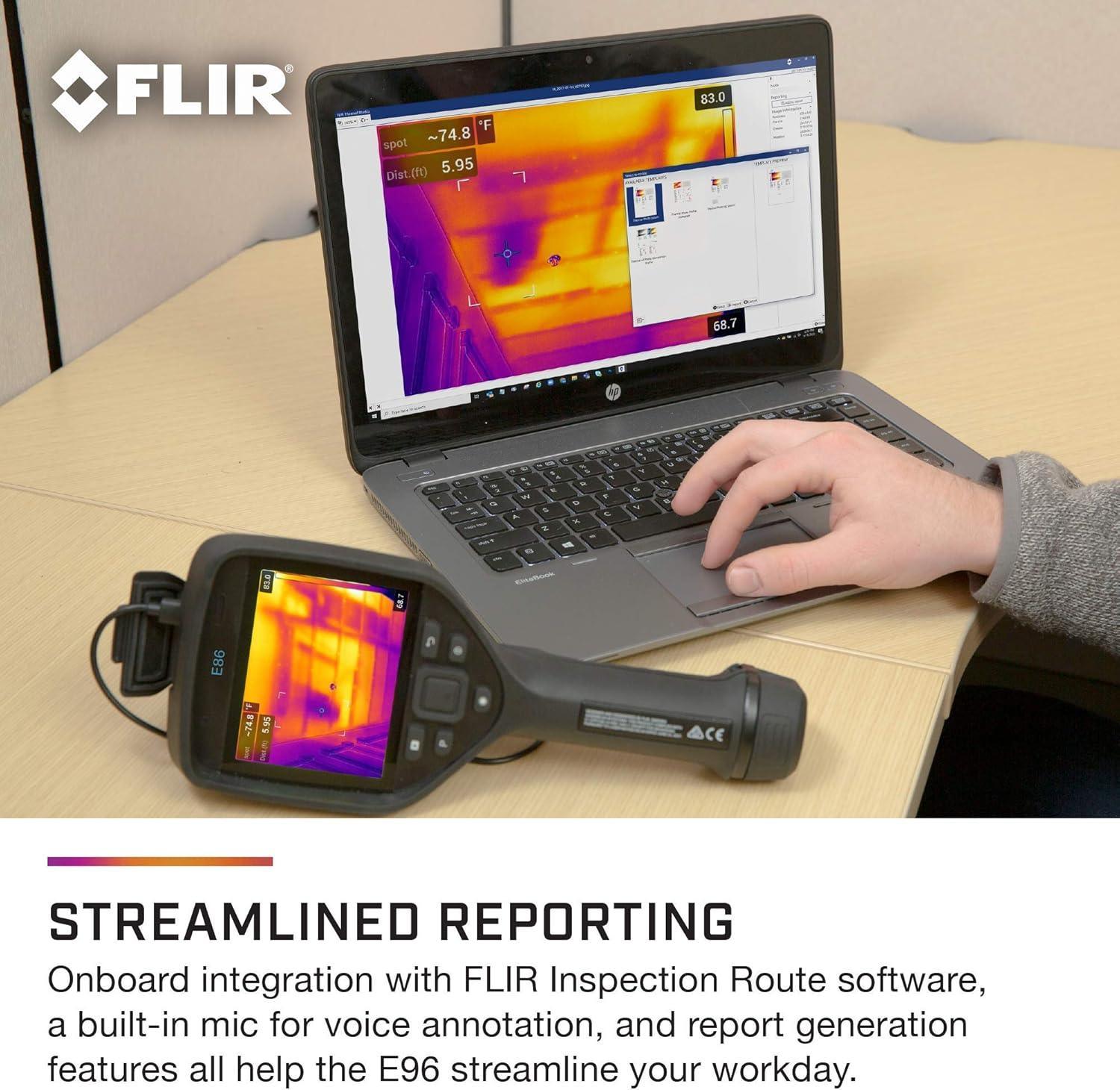

General | FLIR Inspection Route | Enabled in camera |
Laser Pointer | Yes | |

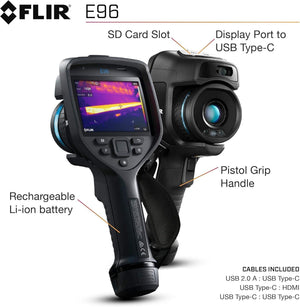

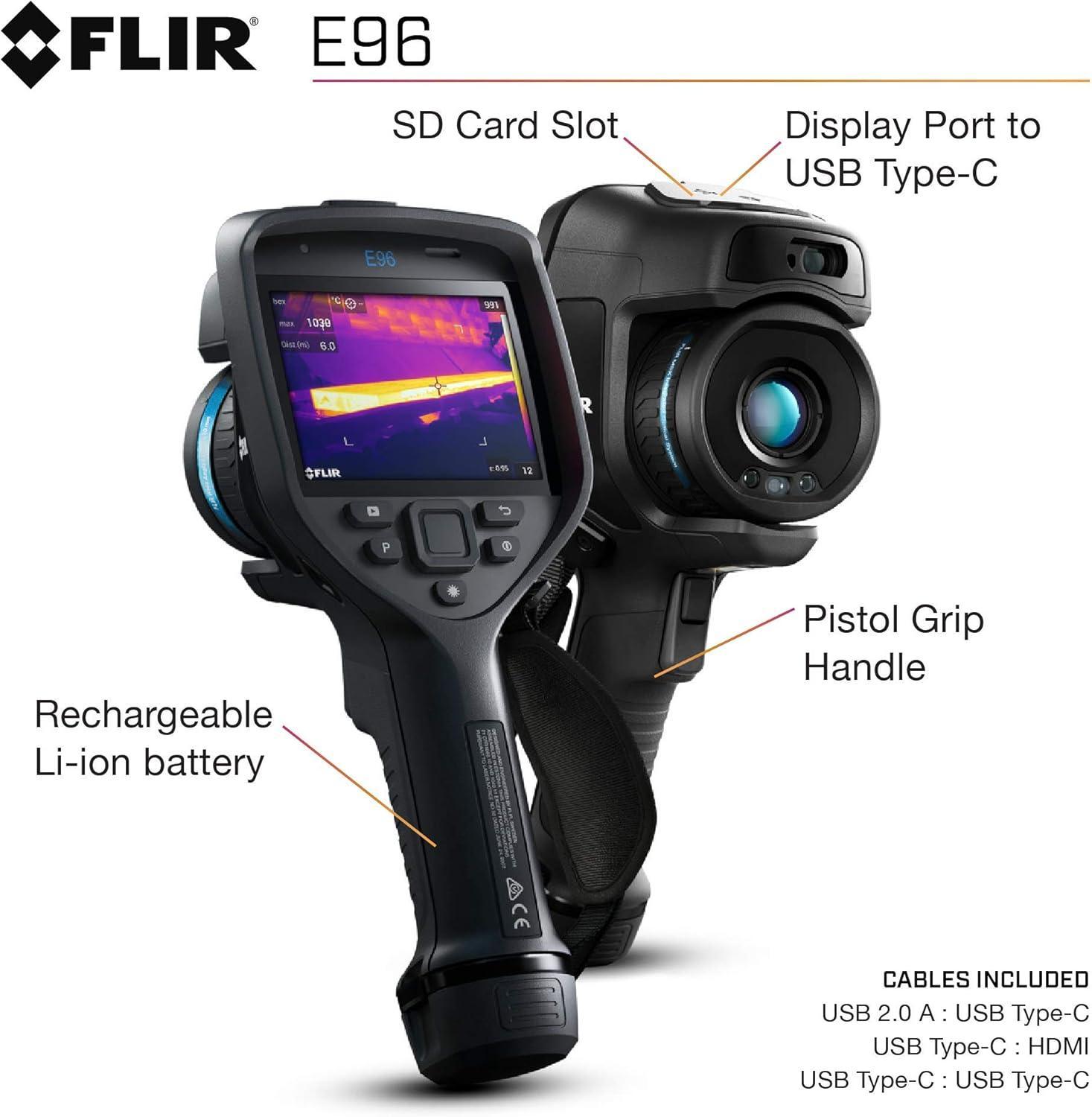

Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
Category | Specification | Details |
---|---|---|
Specifications | IR Resolution | 640 × 480 pixels |
Thermal Sensitivity/NETD | <30 mK at 30°C (86°F) | |
Accuracy | ±2°C (±3.6°F) or ±2% of the reading | |
Digital Camera | 5 MP, with built-in LED photo/video lamp | |
Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation | |
Storage Media | Removable SD card | |
Imaging & Optical | Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
Detector Type and Pitch | Uncooled microbolometer, 12 µm | |
Digital Zoom | 1-8× continuous | |
f-number | 1.1 | |
Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual | |
Image Frequency | 30 Hz | |
Lens Identification | Automatic | |
Minimum Focus Distance | 0.15 m | |
Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC or Wi-Fi | |
Picture-in-Picture | Resizable and movable | |
Radiometric IR video recording | Real-time radiometric recording (.csq) | |
Radiometric IR video streaming | Yes, over UVC | |
UltraMax | Yes | |
Measurement & Analysis | Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 | |
Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) | |
Spot Meter | 3 ea. in live mode | |
User Interface | Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
Text | Predefined list or touchscreen keyboard | |
Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® | |
Power | Battery Operating Time | >2.5 hours at 25°C (68°F) and typical use |
Battery Type | Rechargeable Li-ion battery | |
Charging System | Battery charged inside the camera or in specific charger | |
Environmental & Certifications | Operating Temperature Range | -15 to 50°C (5 to 122°F) |
Safety | EN/UL/CSA/PSE 60950-1 | |
Storage Temperature Range | -40 to 70°C (-40 to 158°F) | |
General | FLIR Inspection Route | Enabled in camera |
Laser Pointer | Yes | |
Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
FLIR E96 Advanced Thermal Imaging Camera with 42° Lens, 640x480, -20°C to +1500°C
- Regular price
- $13,549.00
- Sale price
- $13,549.00
