About
Series 71
Bearing installation tool set made of steel, heavy-duty.
Description

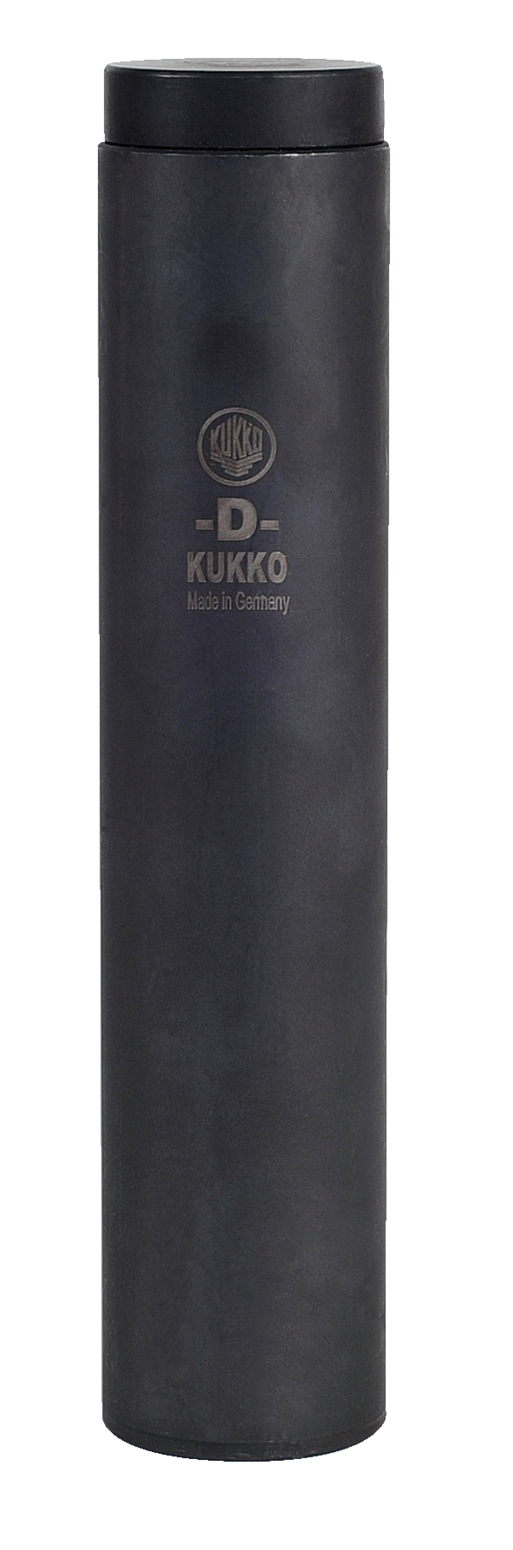

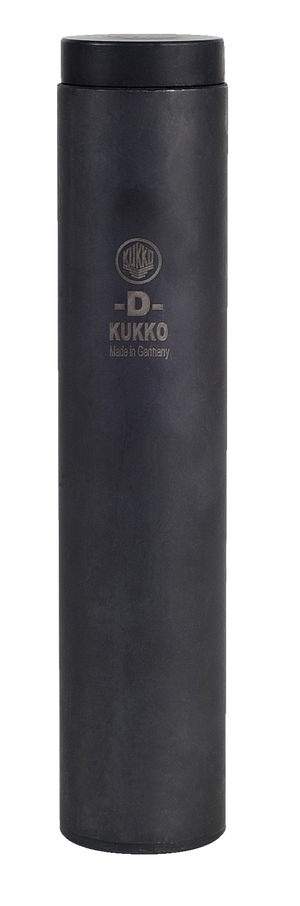

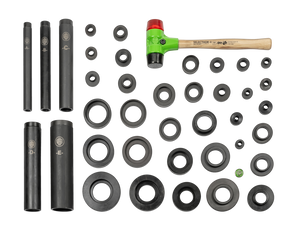

The heavy-duty bearing installation tool set made of steel from series 71 is used for the installation of bearings using a hydraulic press or hammer in crafts, industry, and workshops. The set includes 33 impact rings and 5 impact tubes made of extra strong steel, as well as 1 SELECTHOR with two different impact inserts (PU/CA). The tool set allows for damage-free installation of bearings without damaging shafts, bearing housings, or seal rings.
Area of application
-
For the installation of bearings using a hydraulic press or hammer in craft, industry, and workshop.
-
Application-oriented assembly for universal use
-

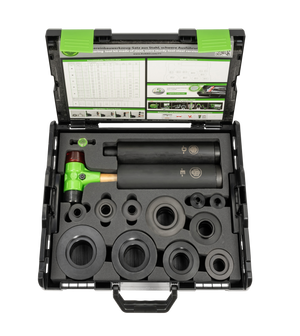

By storing it in the box, the completeness of the set can be easily overviewed.
-
The combination of the impact ring and impact sleeve required for the installation of the ball bearing can be found in the table on the lid of the suitcase.
-

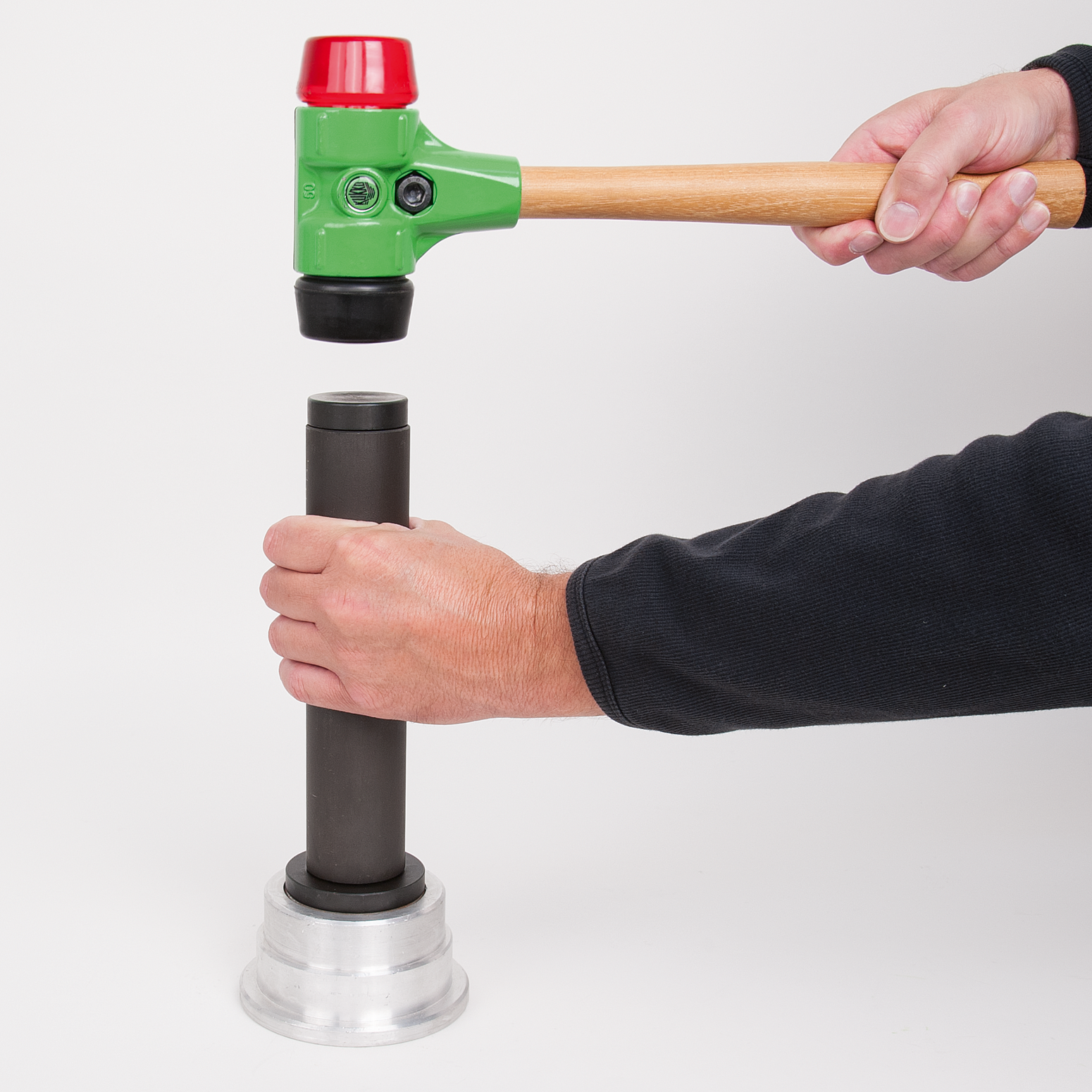

Combining the impact ring and impact tube ensures that the installation forces are never transmitted through the rolling bodies of the bearing, thus protecting it.
-
The included SELECTHOR hammer can be used flexibly by swapping the provided striking heads.
-
Usable for mounting into the housing, onto the shaft, or both at the same time
| Attribute | Details |
|---|---|
| Diameter of Impact Sleeves | 15; 20; 30; 40; 55 mm |
| Inner Diameter of Ball Bearing | 10 - 50 mm |
| Length of Impact Sleeve | 225 mm |
| Number of Impact Sleeves | 5 St. / pcs. |
| Outer Diameter of Ball Bearing | 26 - 110 mm |
| Series | 71 |
Series 71
Bearing installation tool set made of steel, heavy-duty.
Description
The heavy-duty bearing installation tool set made of steel from series 71 is used for the installation of bearings using a hydraulic press or hammer in crafts, industry, and workshops. The set includes 33 impact rings and 5 impact tubes made of extra strong steel, as well as 1 SELECTHOR with two different impact inserts (PU/CA). The tool set allows for damage-free installation of bearings without damaging shafts, bearing housings, or seal rings.
Area of application
-
For the installation of bearings using a hydraulic press or hammer in craft, industry, and workshop.
-
Application-oriented assembly for universal use
-
By storing it in the box, the completeness of the set can be easily overviewed.
-
The combination of the impact ring and impact sleeve required for the installation of the ball bearing can be found in the table on the lid of the suitcase.
-
Combining the impact ring and impact tube ensures that the installation forces are never transmitted through the rolling bodies of the bearing, thus protecting it.
-
The included SELECTHOR hammer can be used flexibly by swapping the provided striking heads.
-
Usable for mounting into the housing, onto the shaft, or both at the same time
| Attribute | Details |
|---|---|
| Diameter of Impact Sleeves | 15; 20; 30; 40; 55 mm |
| Inner Diameter of Ball Bearing | 10 - 50 mm |
| Length of Impact Sleeve | 225 mm |
| Number of Impact Sleeves | 5 St. / pcs. |
| Outer Diameter of Ball Bearing | 26 - 110 mm |
| Series | 71 |
Kukko 71 - Bearing Installation Tool Set Made Of Steel, Heavy Design
- Regular price
- $2,526.00
- Sale price
- $2,526.00
- Regular price
-
$2,784.00
