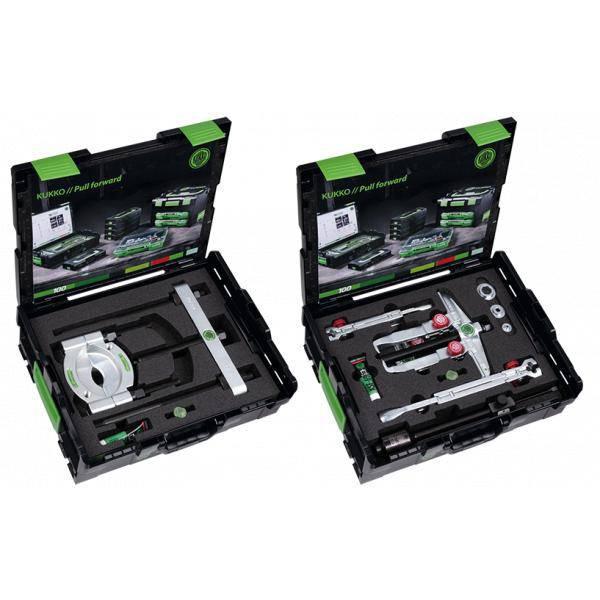

7 in 1" kit in the tried-and-tested KUKKO-L-Boxx system.
The set facilitates the assembly of seven different puller models through the combination of separators, mechanical and hydraulic spindles, pulling jaws and extensions.
For removing and separating ball bearings, roller bearings, inner rings and other flush parts.
Practical package for universal use.
Easy and even pulling for particularly tight parts.
The puller must be positioned centrally for centre shafts.
If the shaft is not sitting centrally, the parts can be removed asymmetrically with pullers with parallel pulling hooks.
Assembly instructions for the hydraulic spindle:
1. Loosen the side screw and unscrew the cap from the spindle body.
The pulling hooks' sliding parts must always sit stably and fully on the cross-beam.
If several parts have to be removed, always follow a step-by-step process.
Do not remove several parts at the same time.
Quality made in Germany.
Strong design, high performance and long service life.

• Diameter of the shaft: 22 - 115 mm
• External clamping width: 90 - 160 mm
• Max Torque: 80 - 150 Nm
• maximum load: 4,5 - 6,0 t
• Number of jaws: 2
• Series: K-20-15
• Width: 100 - 300 mm
