Description

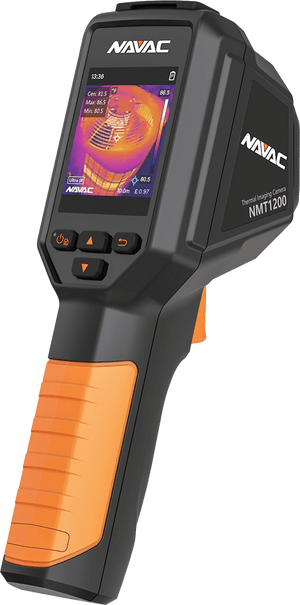

Introducing The NAVAC NMT1200 Thermal Imaging Camera. It designed for HVAC applications. Equipped with a 96×96 resolution thermal detector and Ultra IR technology, it provides the technician with fast and accurate thermal imaging of the entire field of the measurement vs. just spot temperature. It highlights the highest and lowest temperature spots in the field to assist with fast diagnosis and troubleshooting of HVAC systems.

NMT1200 Model Specifications

Specification	Details
Model	NMT1200
Ultra IR	240 x 240 (57,600 pixels)
IR Resolution	96 x 96 (9216 pixels)
Image Frequency	25 Hz
Display	240 × 320 Resolution, 2.4” LCD Screen
Temperature Range	-4°F to 1022°F (-20°C to 550°C)
Accuracy	Max (3.6°F/±2°C/, ±2%) at ambient temperature 77°F (25°C) and object temperature above 32°F (0°C)
Thermal Sensitivity (NETD)	< 50 mK (@ 25 °C, F#=1.0)
Battery Life	Approx. 8 hours
Measurement Presets	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
Warranty	1 Year
