Description

PERFORMANCE • RELIABILITY

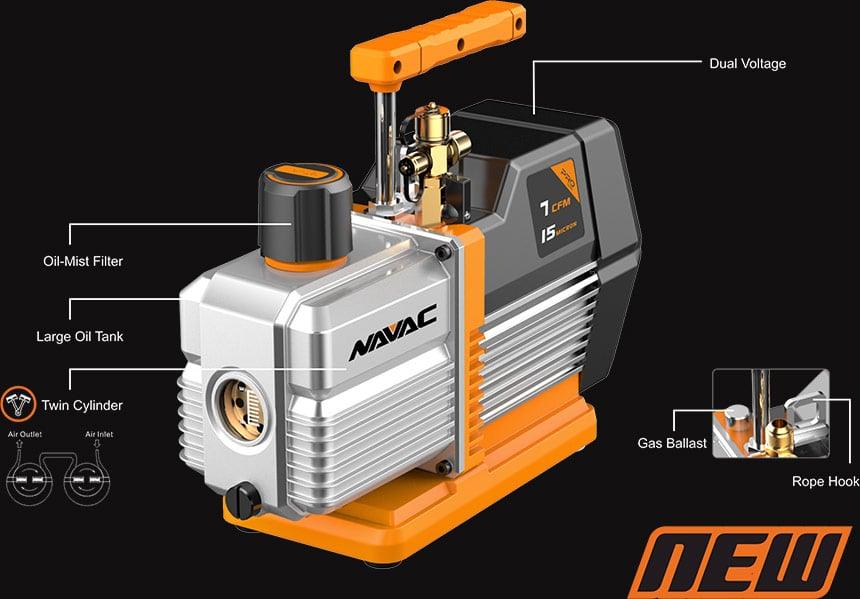

NAVAC NP7DP is a dual-voltage vacuum pump with expanded applications. Its twin-cylinder design delivers an ultimate vacuum down to 15 microns. Integrated cylinder structure coupled with forced oil circulation assure its high performance and reliability. Built-in hook makes it easy to carry to a high workplace.

Leading Technology, Superior Quality, Best Experience.
Empowering you to work smarter!

NP7DP Model Specifications

Specification Details
Model NP7DP
Power Supply 115V/60Hz, 230V/60Hz
Flow Rate (CFM) 7
Run Load Amps (RLA) 4A (115V), 1.8A (230V)
Ultimate Vacuum 15 micron
Pump Design Dual-Stage, AC Motor
Motor Power 3/4 HP
Inlet Port 1/4″, 3/8″, 1/2″ Flare
Oil Capacity 15 oz
Dimensions (in) 14″ x 5″ x 11.3″
Weight (lbs) 26
Warranty 1 Year

⚠ Warning: Do not leave pump running unattended in a closed environment without adequate ventilation.
