About
Lightweight, Fast and Compact

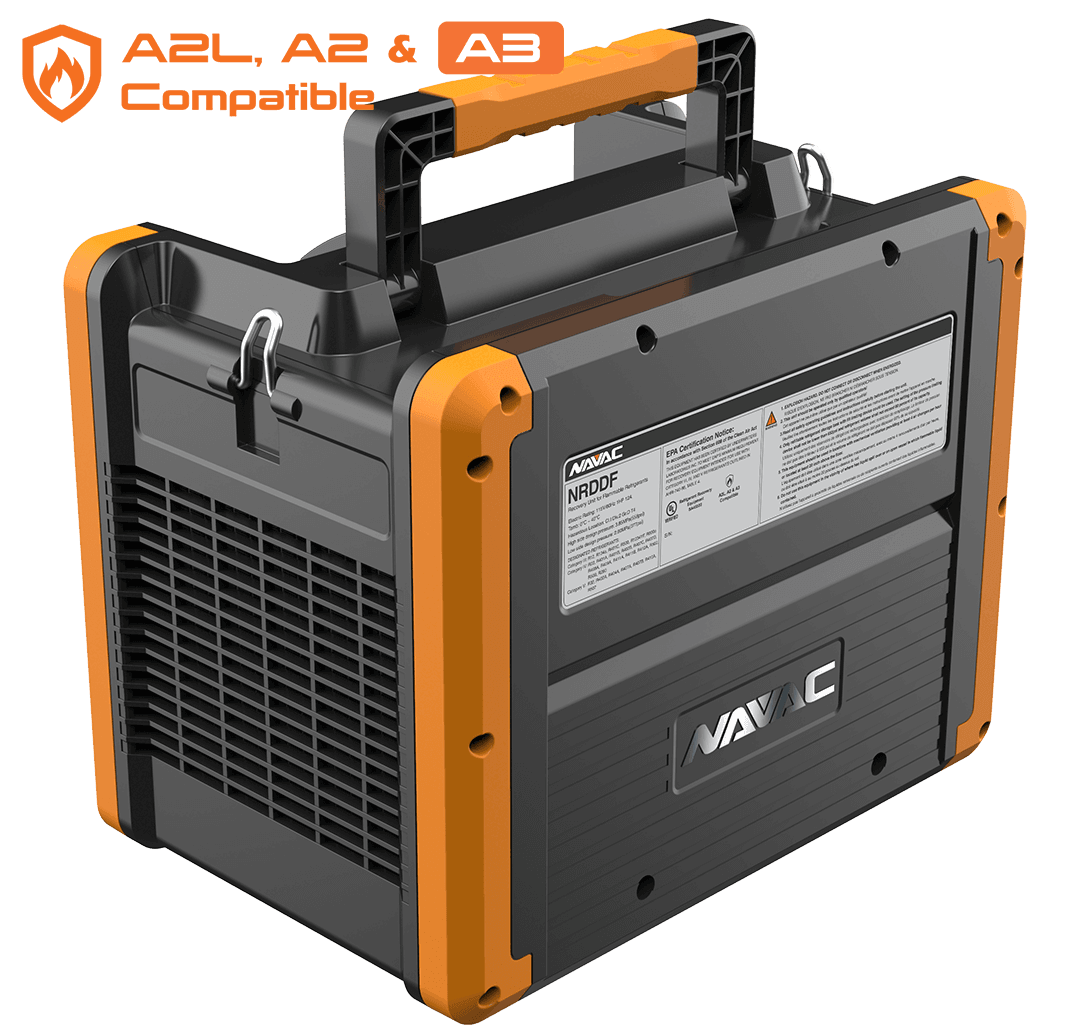

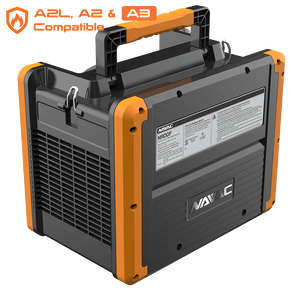

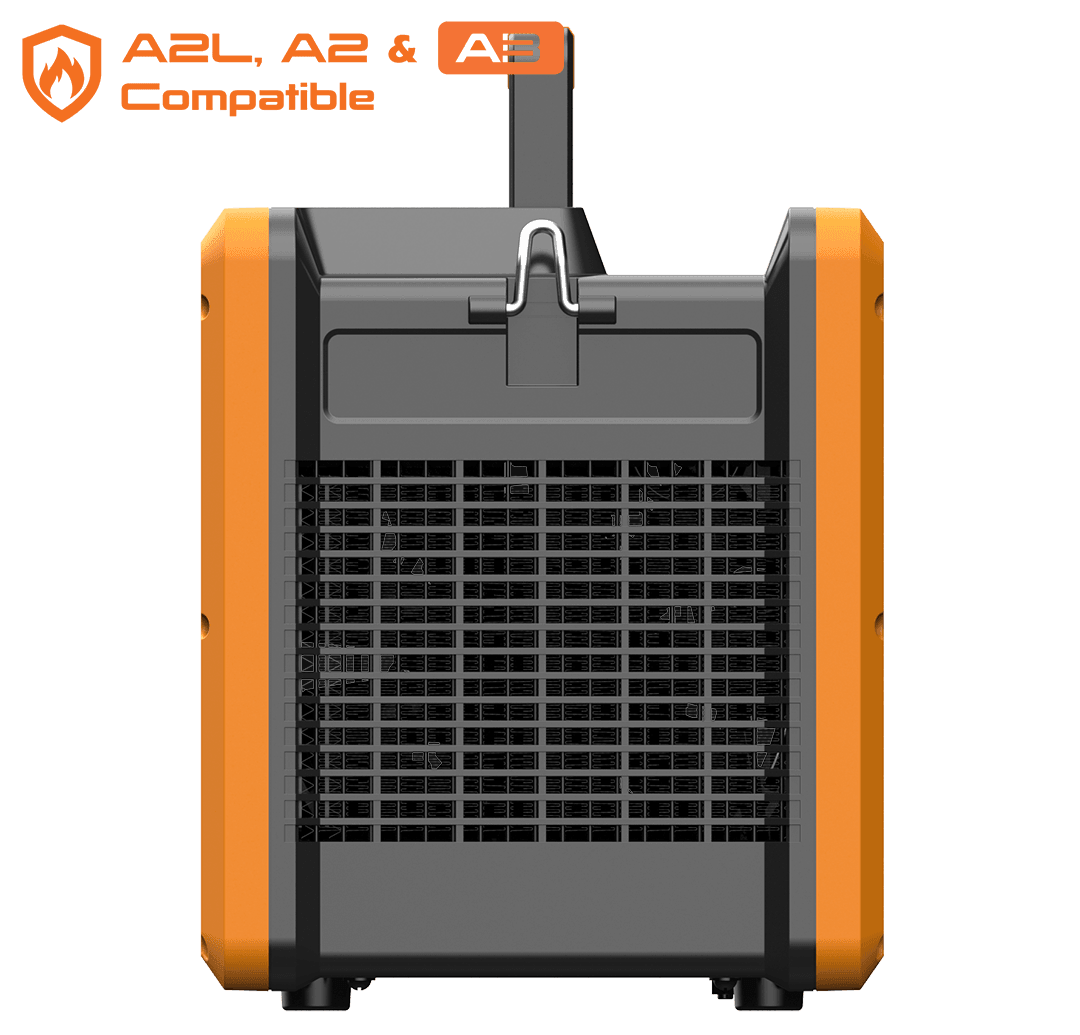

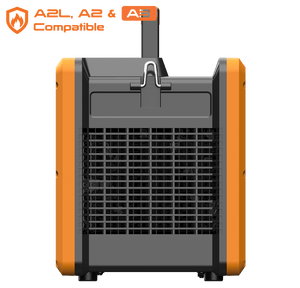

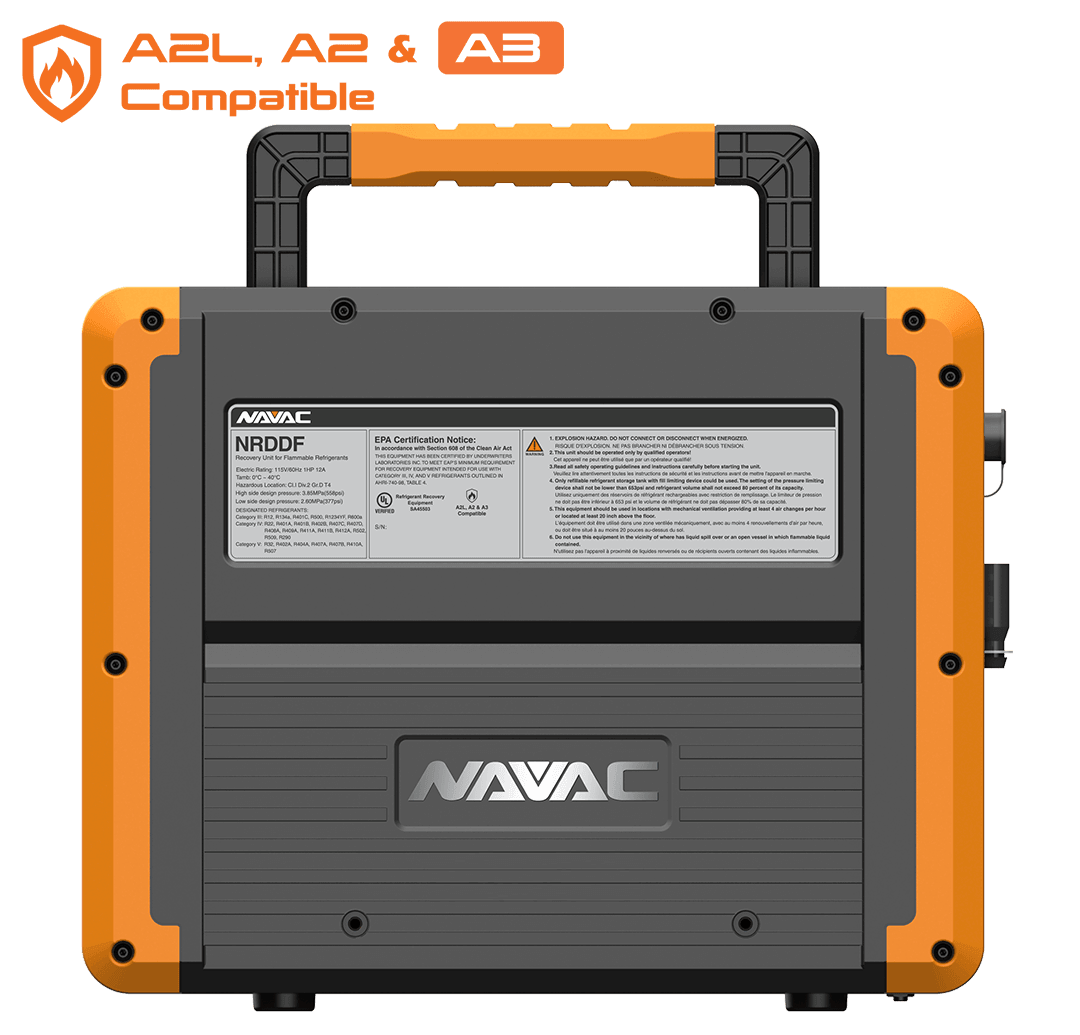

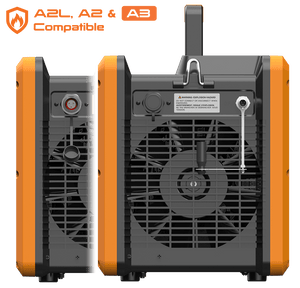

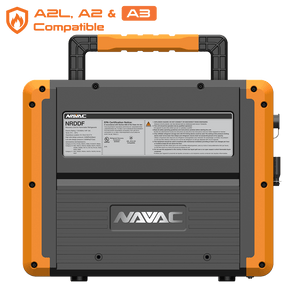

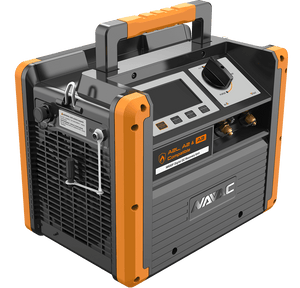

Suitable for A3 refrigerants, The NRDDF recovery unit is designed and tested to UL 121201, CSA C22.2 No. 213-17 and IEC 60079-7 Standards. It features a Brushless DC Motor making it lightweight and much more efficient, a large backlit display, twin cylinder design with 2-row oversized condenser, oil free compressor and self-purging functionality. The NRDDF recovery unit is suitable for all commonly used refrigerants making it the ideal recovery unit!
NRDDF Model Specifications
| Specification | Details |
|---|---|
| Model | NRDDF |
| Refrigerant Type |
Category III: R-12, R-134a, R-401C, R-500, R-1234yf, R-600a Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509, R-290 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Prohibited Refrigerants | RE170, R702, R1150, R429A, R432A, R435A, R510A |
| Power Supply | 115V / 60Hz |
| Motor | 1 HP |
| Max Current Draw | 10 A |
| Compressor | Oil-less, Air-cooled, Piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| UL Verified Recovery Rate (lbs/min, kg/min) |
R-410A: Direct Vapor: 0.75 (0.34), Direct Liquid: 14.44 (6.55), Push/Pull Liquid: 18.41 (8.35) R-22: Direct Vapor: 0.64 (0.29), Direct Liquid: 11.11 (5.04), Push/Pull Liquid: 17.04 (7.73) R-134a: Direct Vapor: 0.57 (0.26), Direct Liquid: 7.85 (3.56), Push/Pull Liquid: 12.81 (5.81) |
| Dimensions (inches) | 14.5 × 9.9 × 11.7 |
| Weight | 24.3 lbs |
| Warranty | 1 Year* *For recovering only HVAC/R refrigerants from sealed HVAC/R systems. Warranty voided if used for any other purposes. |
⚠ WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling, including wearing Personal Protective Equipment such as safety glasses and gloves.
Lightweight, Fast and Compact
Suitable for A3 refrigerants, The NRDDF recovery unit is designed and tested to UL 121201, CSA C22.2 No. 213-17 and IEC 60079-7 Standards. It features a Brushless DC Motor making it lightweight and much more efficient, a large backlit display, twin cylinder design with 2-row oversized condenser, oil free compressor and self-purging functionality. The NRDDF recovery unit is suitable for all commonly used refrigerants making it the ideal recovery unit!
NRDDF Model Specifications
| Specification | Details |
|---|---|
| Model | NRDDF |
| Refrigerant Type |
Category III: R-12, R-134a, R-401C, R-500, R-1234yf, R-600a Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509, R-290 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Prohibited Refrigerants | RE170, R702, R1150, R429A, R432A, R435A, R510A |
| Power Supply | 115V / 60Hz |
| Motor | 1 HP |
| Max Current Draw | 10 A |
| Compressor | Oil-less, Air-cooled, Piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| UL Verified Recovery Rate (lbs/min, kg/min) |
R-410A: Direct Vapor: 0.75 (0.34), Direct Liquid: 14.44 (6.55), Push/Pull Liquid: 18.41 (8.35) R-22: Direct Vapor: 0.64 (0.29), Direct Liquid: 11.11 (5.04), Push/Pull Liquid: 17.04 (7.73) R-134a: Direct Vapor: 0.57 (0.26), Direct Liquid: 7.85 (3.56), Push/Pull Liquid: 12.81 (5.81) |
| Dimensions (inches) | 14.5 × 9.9 × 11.7 |
| Weight | 24.3 lbs |
| Warranty | 1 Year* *For recovering only HVAC/R refrigerants from sealed HVAC/R systems. Warranty voided if used for any other purposes. |
⚠ WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling, including wearing Personal Protective Equipment such as safety glasses and gloves.
NAVAC NRDDF - Recovery Unit for Flammable Refrigerants, twin cylinder, Brushless Motor
