About

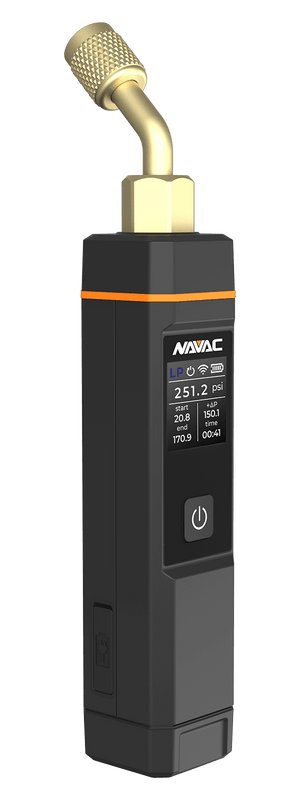

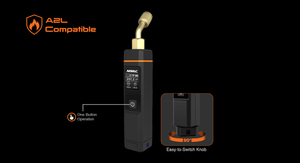

The NSP1 Bluetooth Pressure Probe is a versatile tool for precise pressure measurements in HVAC applications. Compatible with the myNAVAC™ App and A2L refrigerants, it offers the flexibility of wireless connectivity or standalone operation with its large, easy-to-read digital display. The probe features a high-accuracy piezoelectric sensor for quick and reliable readings and a simple one-button operation for ease of use. Smart functions such as VSAT/LSAT calculations on myNAVAC™ App, simultaneous pressure and temperature display, and pressure decay testing through the app enhance diagnostic capabilities. Built for convenience, the NSP1 includes a rechargeable lithium battery with up to 150 hours of life, an auto power-off option, and an easy-to-switch knob for use on high (HP) or low (LP)
NSP1 Model Specifications
| Specification | Details |
|---|---|
| Model | NSP1 |
| Measurement Range | -29.0 inHg to 725 psi |
| Maximum Overload Pressure | 1087 psi (7500 kPa) |
| Accuracy | ±0.5% of full range |
| Resolution | 0.01 psi |
| Sensor Type | Ceramic pressure sensor |
| Bluetooth Range | 164 ft (50 m) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
| Unit Weight | 7.6 oz (215 g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
The NSP1 Bluetooth Pressure Probe is a versatile tool for precise pressure measurements in HVAC applications. Compatible with the myNAVAC™ App and A2L refrigerants, it offers the flexibility of wireless connectivity or standalone operation with its large, easy-to-read digital display. The probe features a high-accuracy piezoelectric sensor for quick and reliable readings and a simple one-button operation for ease of use. Smart functions such as VSAT/LSAT calculations on myNAVAC™ App, simultaneous pressure and temperature display, and pressure decay testing through the app enhance diagnostic capabilities. Built for convenience, the NSP1 includes a rechargeable lithium battery with up to 150 hours of life, an auto power-off option, and an easy-to-switch knob for use on high (HP) or low (LP)
NSP1 Model Specifications
| Specification | Details |
|---|---|
| Model | NSP1 |
| Measurement Range | -29.0 inHg to 725 psi |
| Maximum Overload Pressure | 1087 psi (7500 kPa) |
| Accuracy | ±0.5% of full range |
| Resolution | 0.01 psi |
| Sensor Type | Ceramic pressure sensor |
| Bluetooth Range | 164 ft (50 m) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
| Unit Weight | 7.6 oz (215 g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
NAVAC NSP1 - Bluetooth Pressure Probe w/ Digital Display
- Regular price
- $179.00
- Sale price
- $179.00
