NAVAC NX1V - NEXUS Digital Manifold Gauge, w/ Bluetooth, Micron Gauge, Class 0.4 accuracy and clear digital display (Copy)

Brand: NAVAC
$665.00
$665.00
$931.00
Shipping calculated at checkout.
16 in Stock Now

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Need Help?
Call us 1 (248) 429-9073
Left banner
Logo
Authorized Retailer

NAVAC offers innovative HVAC tools and equipment designed for efficiency, durability, and ease of use. From vacuum pumps and recovery machines to tubing tools and gauges, NAVAC delivers professional-grade solutions that help technicians work faster and more effectively.

Bottom image 1

FREE SHIPPING

All Orders Over $100 Ship Free Ground

Bottom image 2

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Bottom image 3

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

Bottom image 4

PRICE MATCH GUARANTEE

Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it

Description

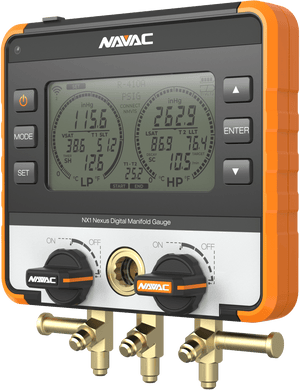

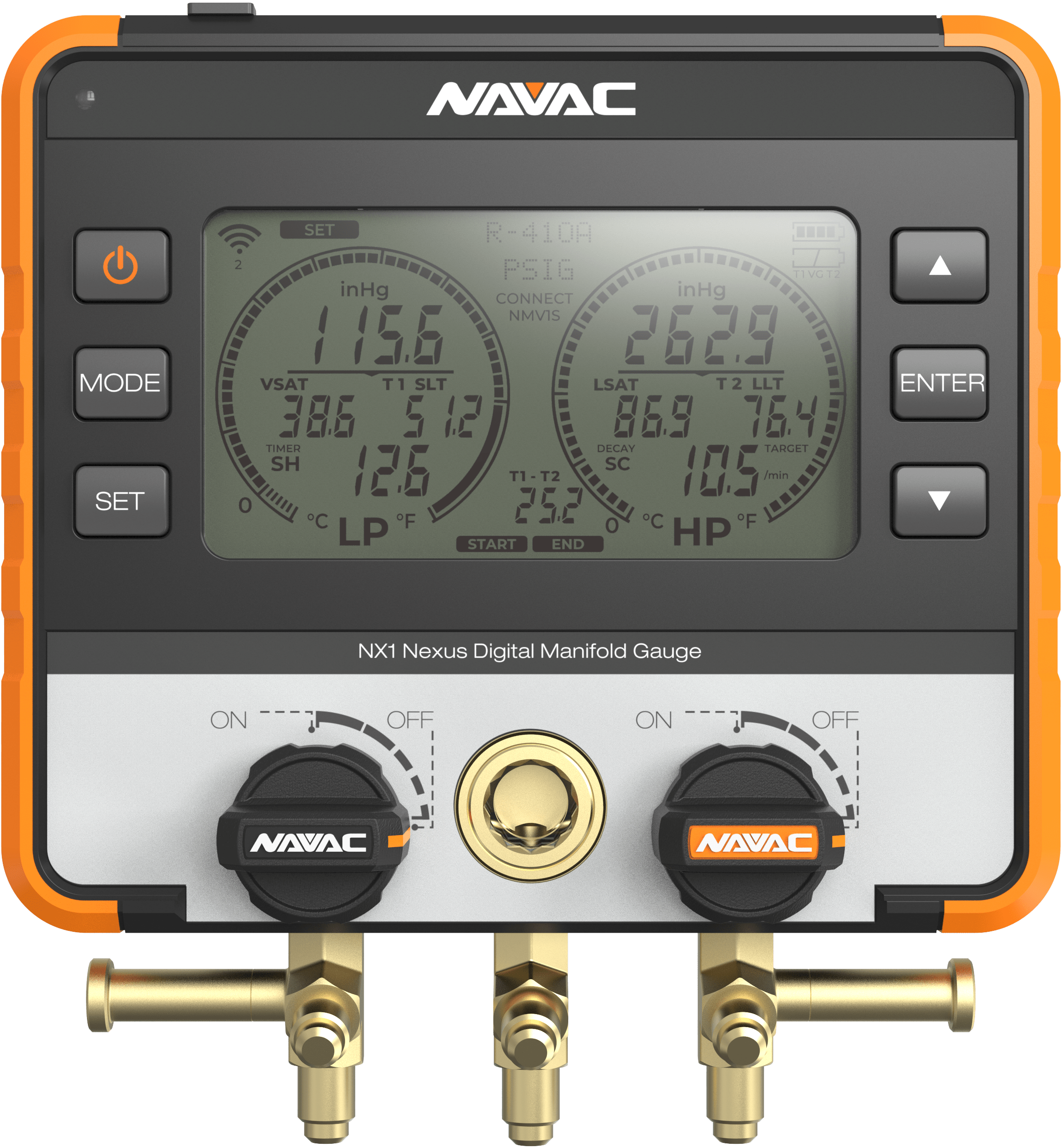

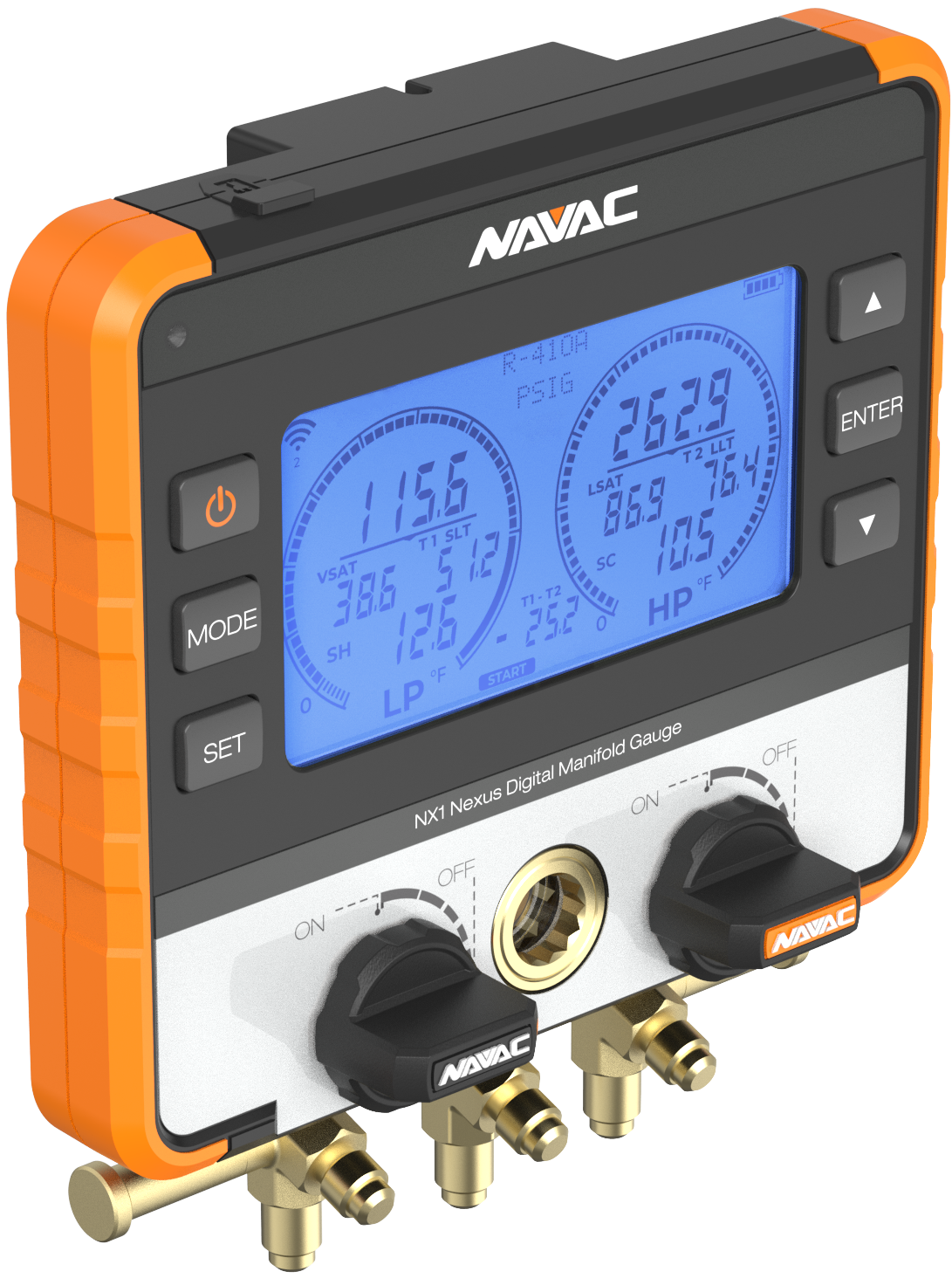

Smart & Precise NEXUS Digital Manifold Gauge

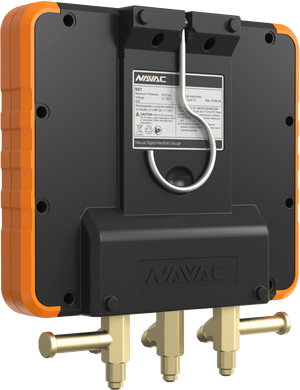

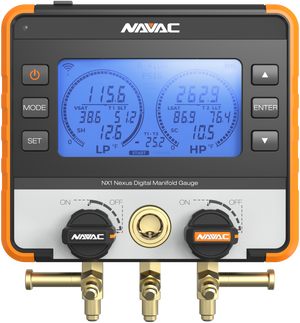

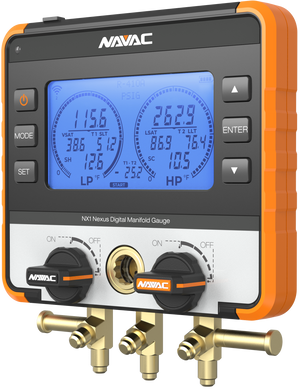

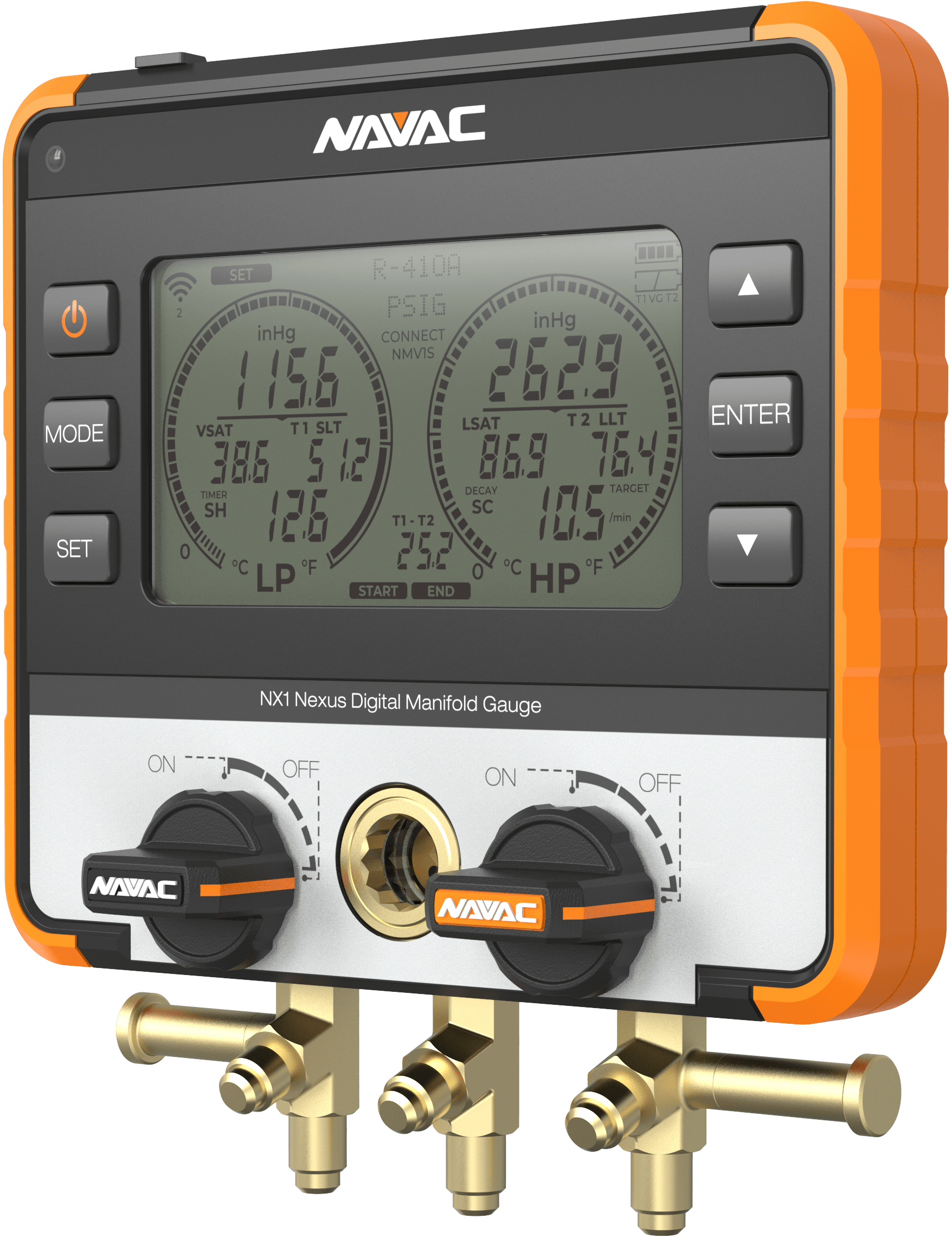

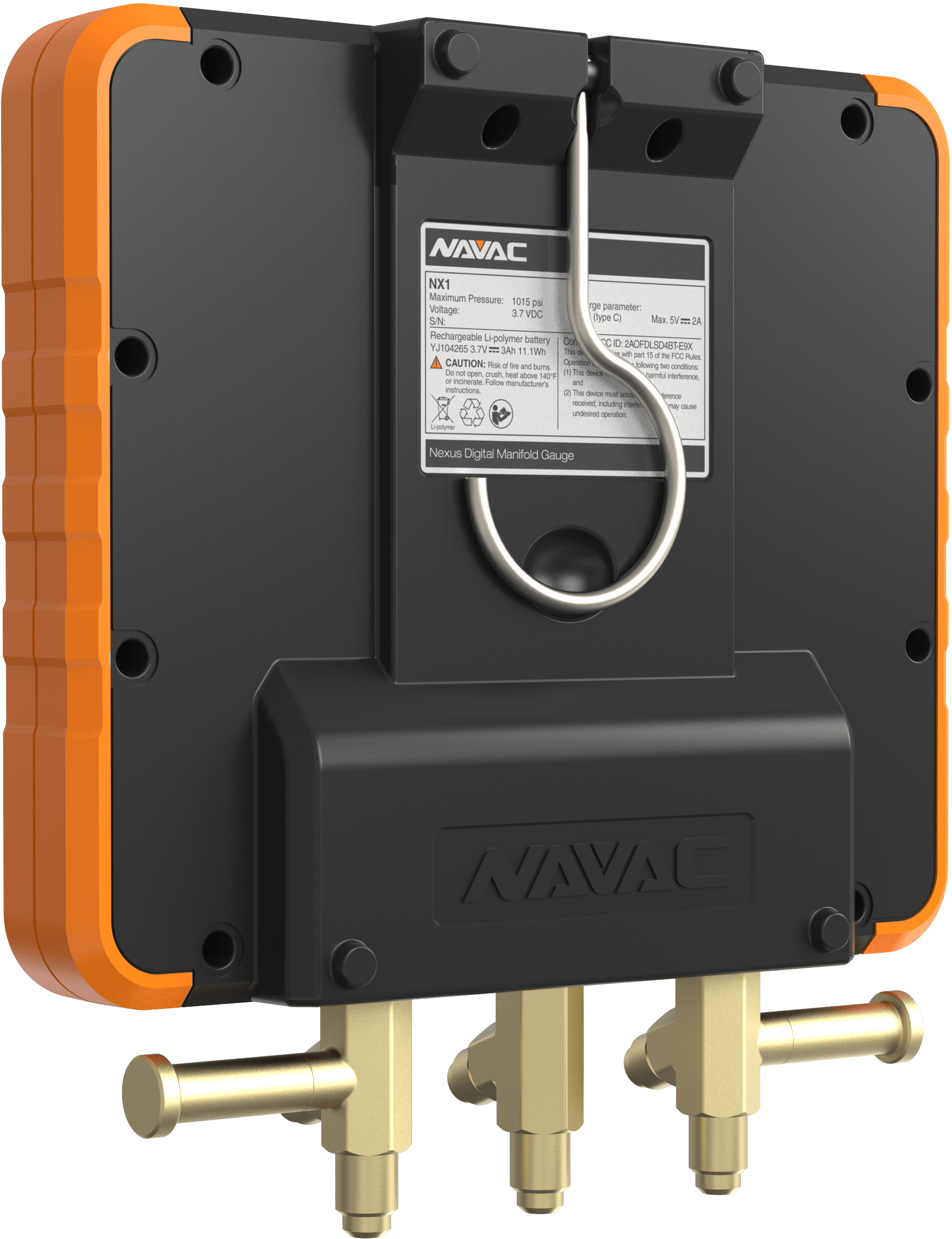

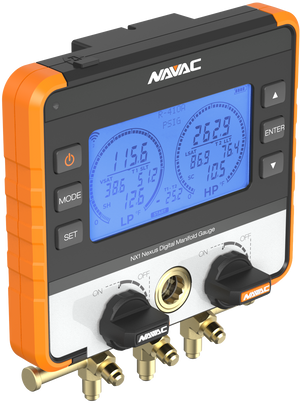

The NAVAC NX1 Nexus Digital Manifold Gauge enhances the HVAC diagnostics experience with its wireless features. Bluetooth connectivity for temperature probes and micron gauges provides comprehensive remote insights all on the screen of Nexus. It caters to various needs with 4 operation modes (Manifold, Leak Test, Evacuation, and Decay Test). Built with an aluminum body and a 1/4 turn ball valve, it ensures durability. The foldable hidden hook enhances portability, while its Class 0.4 accuracy and clear digital display offer precise readings. Impact-resistant and covered in durable rubber, the NX1 withstands field challenges, ensuring a prolonged, resilient work experience.

Leading Technology, Superior Quality, Best Experience.
Empowering you to work smarter!

NAVAC NX1 and NX1V Specifications

Category Property NX1 NX1V
General Model NX1 NX1V
Refrigerant Type R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116, R-123, R-124, R-125, R-134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A, R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A, R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502, R-503, R-507A, R-508B, R-513A, R-600, R-600a, R-601, R-601a, R-744*, R-1233zd, R-1234yf, R-1234ze
*Maximum pressure: 600 Psi (4200 kPa)
Pressure Pressure Range -30 inHg to 720 psi
Power Power Supply Rechargeable 3000 mAh Lithium Battery
For the best charging experience, please use the provided cable, or USB-A to USB-C cables
Firmware Update Firmware can be updated on NAVAC website or with MyNAVAC™ App
Connectivity Bluetooth Range Up to 260 feet

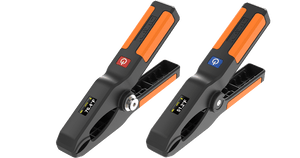

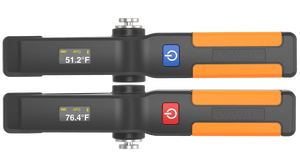

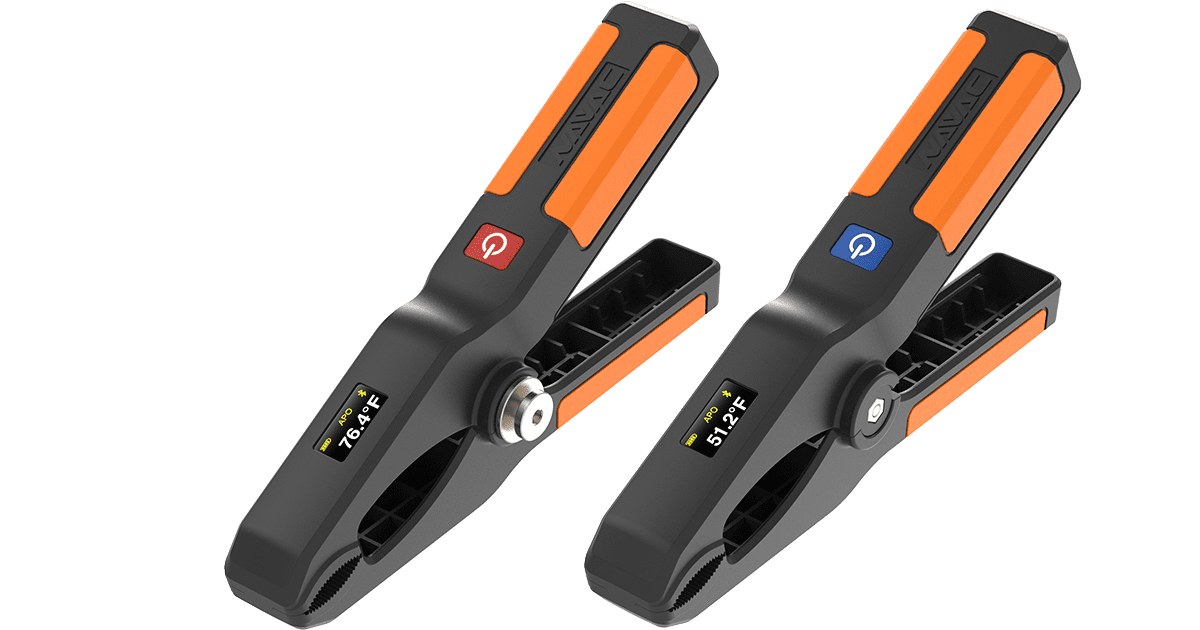

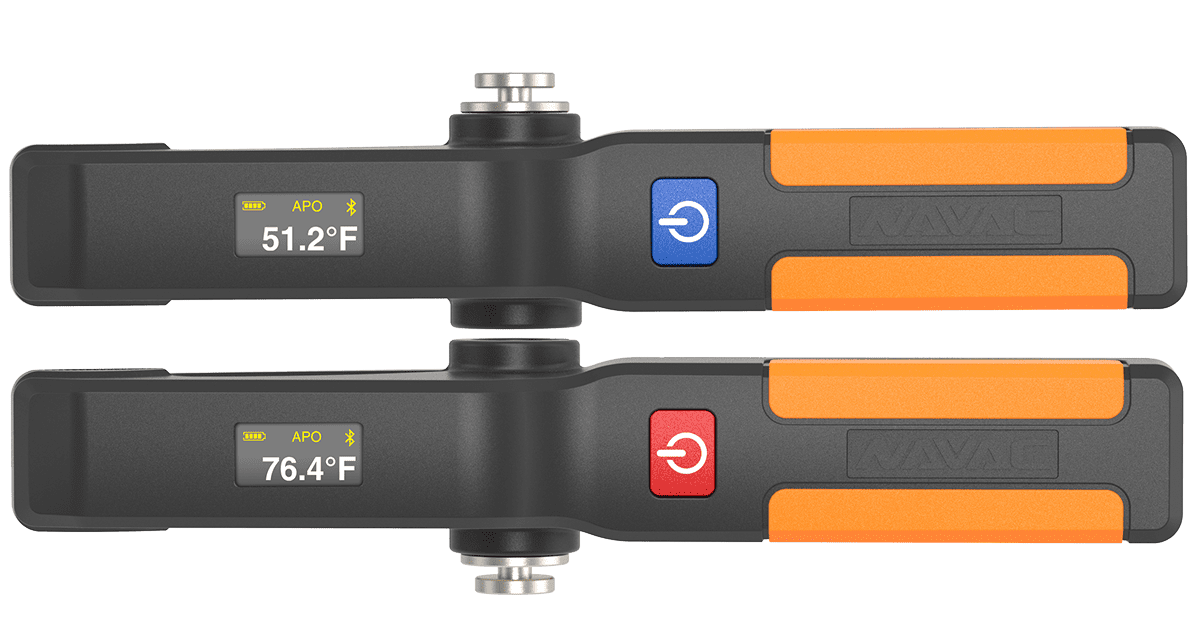

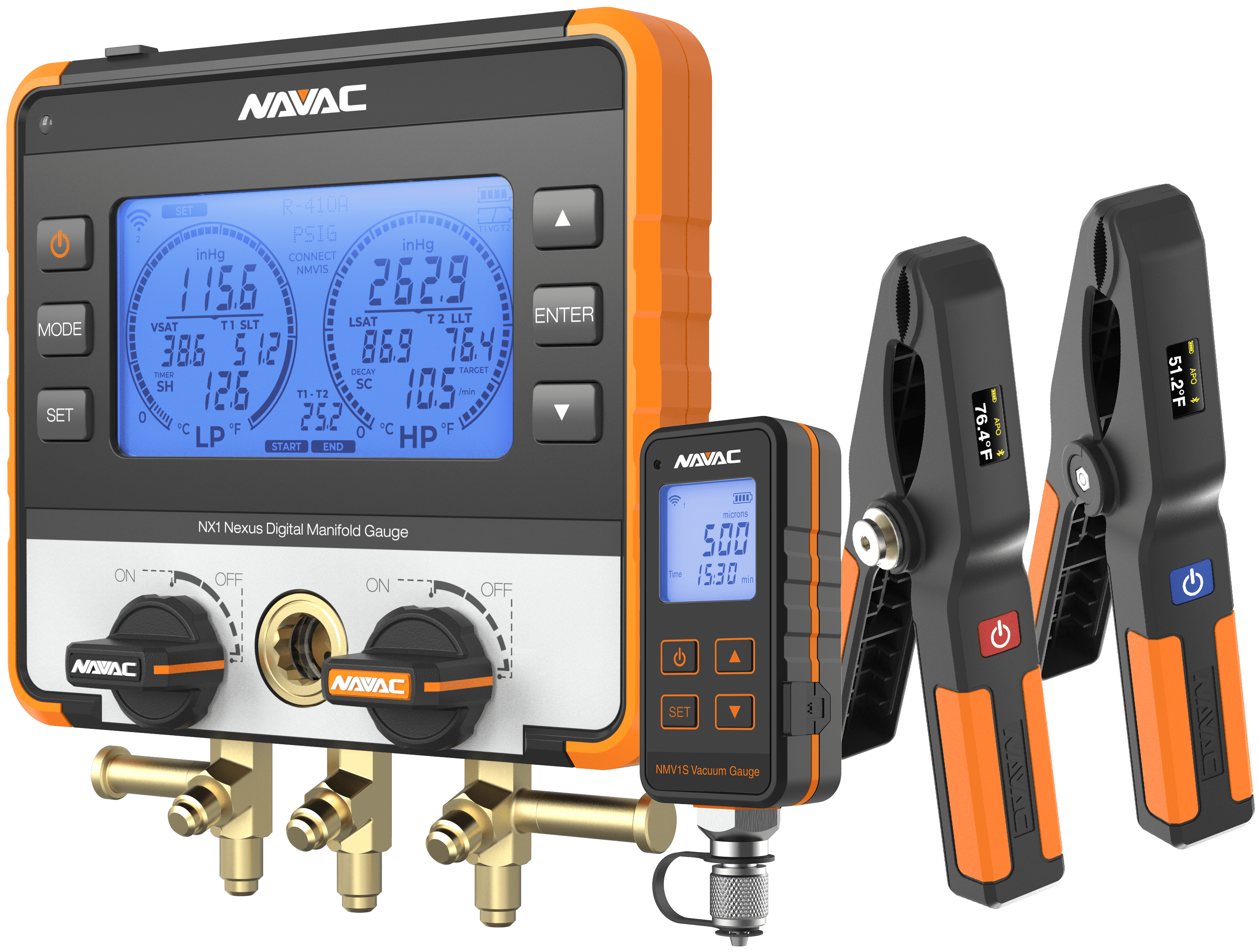

Accessories Accessory Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case, NMV1S Micron Gauge
Warranty Warranty 2 years 2 years
