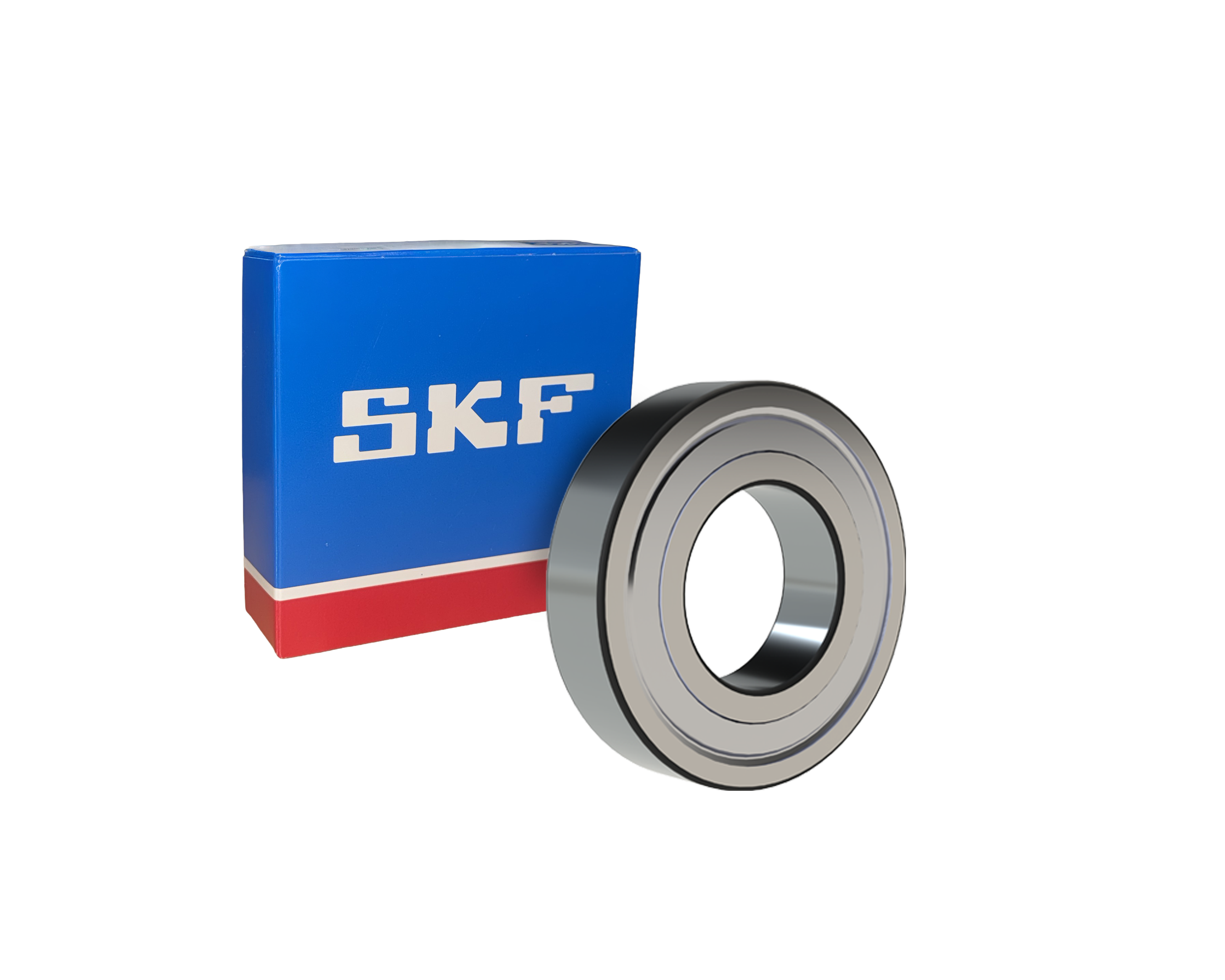

SKF 6320 -2RS1 Deep Groove Ball Bearing - 100 mm ID, 215 mm OD, 47 mm Width
- d 100 mm
- D 215 mm
- B 47 mm
- Double Rubber Seals
- C0 - Normal
Genuine SKF product, SKF
- Regular price
- $3,640.44
- Sale price
- $3,640.44
- Regular price
-
$4,550.55
Same-day shipping
Order by 3 PM ET for same-day shipping
SKF 6320-2RS1
$3,640.44
Why Apollo USA
Bearings from Apollo Industries, Oxford, Michigan
Apollo Industries supplies bearings, seals and maintenance tools to businesses across the US, with real people on the phone when you need a part matched.
-
Same-day shipping
Order by 3 PM EST for same-day shipping.
-
Free shipping over $100
All orders over $100 ship free by ground with code FREESHIP.
-
90-day returns
Hassle-free returns on unused items within 90 days.
-
Price match
Show us a competitor's advertised price on the same item and we will match it.
-
Expert support
Support staff available by phone, web chat or email.
-
Need tax exemption or quantity pricing?
We offer special rates for businesses and bulk orders.
Talk to a bearing specialist
2695 Lake George RdOxford, MI 48370
Overview
SKF 6320-2RS1 Deep groove ball bearing
Deep Groove Ball Bearing
SKF deep groove ball bearings are versatile, low-friction bearings that accommodate radial and axial loads in both directions. Their robust design, low noise and low vibration make them suitable for a very wide range of applications, from electric motors to gearboxes and pumps.
Key features
- Low friction and low noise
- Accommodates radial and axial loads
- Versatile, all-purpose design
- Sealed for contamination protection
Specifications
SKF 6320-2RS1 dimensions & specifications
- Bearing type
- Deep groove ball bearing
- Bore diameter d
- 100 mm (3.937 in)
- Outside diameter D
- 215 mm (8.465 in)
- Width B
- 47 mm (1.85 in)
- Seals / shields
- Double Rubber Seals
- Internal clearance
- C0 - Normal
- Weight
- 16.45 lb
- Brand
- SKF
- Part number
- 6320-2RS1 also written 63202RS1
- UPC / EAN
- 7316575470340
All specifications
Dimensions
| Bore Diameter | 100 mm |
| Outside Diameter | 215 mm |
| Width | 47 mm |
Properties
| Ball rows | Single row bearing |
| Bore | Cylindrical bore |
| Cage | Sheet steel cage |
| Clearance | Normal radial clearance |
| Current insulation | No current insulation |
| Material | Standard bearing steel |
| Material of rolling elements | Standard bearing steel |
| Outer ring | Without flange/groove |
| Seal | Contact seal on both sides |
| Temperature range | -20 to +120 °C |
| Tolerance class | Tolerance class P0/PN2 / ABEC 1 |
Logistics
| Product Net Weight | 7.46 |
Cross reference
6320-2RS1 cross reference & equivalents
Bearings from other brands with the same boundary dimensions. Check seals, clearance, cage and precision class before you order.
-
Timken
6320-2RSTimken 6320-2RS Single Row Deep Groove Ball Bearing, Metric Series, 100.0mm Bore, 215.0mm OD, 47.0mm Width, Double Sealed, Cylindrical Bore, Steel Cage, C0 (Normal) Clearance, ISO P0 Tolerance
- Same size
- Same seals
- Same clearance
$698.43
Call for availability -
JTEKT-KOYO
6320-2RSJTEKT-KOYO 6320-2RS Deep Groove Ball Bearing - 100 mm ID, 215 mm OD, 47 mm Width
- Same size
- Same seals
- Same clearance
$1,426.79
In stock
-
Consolidated
6320-2RS
Contact seals both sides
-
FAG
6320-2RSR
Contact seals both sides
-
NTN
6320LLU
Contact seals both sides
-
Nachi
6320-2NSE
Contact seals both sides
Reference data only. Verify specifications before you order.
Search more equivalents in the Apollo Bearing IndexTools & lubrication
Complete the job for your 6320-2RS1
Mount it without damage and keep it lubricated. Tick what you need and add it with one click.
Part number decoded
What every part of 6320-2RS1 means
- 63
- 63xx medium deep groove ball (dimension series 03)
- 20
- Bore code 20 × 5 = 100 mm (ISO convention)
- 2RS1
- Contact seal (NBR rubber) on both sides
Catalogs & documents
SKF 6320-2RS1 catalogs & documents
Official catalogs and data from the manufacturer. They open as PDFs in a new tab.
-
Catalog
SKF Rolling bearings catalogue (PUB BU/P1 17000) (opens in a new tab)
PDF · 23.0 MB · English
-
Catalog
SKF Explorer deep groove ball bearings (BU/P2 17453/2) (opens in a new tab)
PDF · 0.5 MB · English
-
Mounting
SKF Bearing maintenance handbook (10001/1) (opens in a new tab)
PDF · 14.2 MB · English
-
Guide
SKF Bearing damage and failure analysis (14219/3) (opens in a new tab)
PDF · 8.7 MB · English
-
Guide
SKF Bearing damage evaluation guide (07038/4) (opens in a new tab)
PDF · 0.9 MB · English
-
Technical
SKF Electrically insulated bearings (6160) (opens in a new tab)
PDF · 0.7 MB · English
-
Safety
Buy genuine SKF products (GC/S9 19135) (opens in a new tab)
PDF · 0.4 MB · English
About the brand
About SKF
Inventor of the self-aligning ball bearing and the spherical roller bearing.
SKF (AB Svenska Kullagerfabriken) was founded in Gothenburg, Sweden, on 16 February 1907, on one invention: the double-row self-aligning ball bearing of Sven Wingquist, a maintenance supervisor at a Gothenburg textile factory. The factory stood on clay, so the building moved, the line shafts fell out of alignment and the rigid ball bearings of the day overheated and failed. Wingquist's bearing let the shaft run out of line without shortening its service life.
SKF invented the spherical roller bearing in 1919 and launched the spherical roller thrust bearing in 1939, the CARB toroidal roller bearing in 1995 and SKF Explorer bearings in 1999. Explorer bearings have optimized internal designs and surfaces that reduce friction and heat and carry heavier loads, for a longer service life.
In 1926 an SKF subsidiary, AB Volvo, built a trial series of cars; the first Volvo rolled out in Gothenburg in 1927.
Genuine SKF product
Founded
1907
Headquarters
Gothenburg, Sweden
Employees (2025)
37,271
Present in
About 130 countries
Known for
- Self-aligning ball bearings
- Spherical roller bearings
- SKF Explorer bearings
- CARB toroidal roller bearings
- INSOCOAT and hybrid bearings
Disclaimer: Apollo Industries is not an authorized distributor, reseller, or representative of SKF. All SKF trademarks and product names are the property of their respective owners. We sell genuine SKF products purchased through independent channels.
FAQ
6320-2RS1 questions & answers
What are the dimensions of the SKF 6320-2RS1?
The SKF 6320-2RS1 has a 100 mm bore (d), a 215 mm outside diameter (D) and a 47 mm width (B). In inches: 3.937 × 8.465 × 1.85 in.
What type of bearing is the 6320-2RS1?
The SKF 6320-2RS1 is a deep groove ball bearing.
Is the 6320-2RS1 sealed or shielded?
The SKF 6320-2RS1 is sealed: Double Rubber Seals.
What internal clearance does the 6320-2RS1 have?
The SKF 6320-2RS1 has C0 - Normal internal clearance.
What can I use instead of the SKF 6320-2RS1?
Equivalents with the same boundary dimensions include Timken 6320-2RS, JTEKT-KOYO 6320-2RS, Consolidated 6320-2RS, FAG 6320-2RSR, NTN 6320LLU, Nachi 6320-2NSE. Check the seals, internal clearance, cage and precision class before you order.
Is this a genuine SKF bearing?
Yes. Apollo Industries sells genuine SKF products, purchased through independent channels. Apollo is not an authorized distributor, reseller, or representative of SKF.
Do you ship the 6320-2RS1 the same day?
In-stock orders placed by 3 PM EST ship the same day. All orders over $100 ship free by ground with code FREESHIP.
Can I get quantity pricing or buy tax-exempt?
Yes. Apollo offers special rates for businesses and bulk orders. Use Request a quote on this page or call (248) 429-9073.
