About

Description

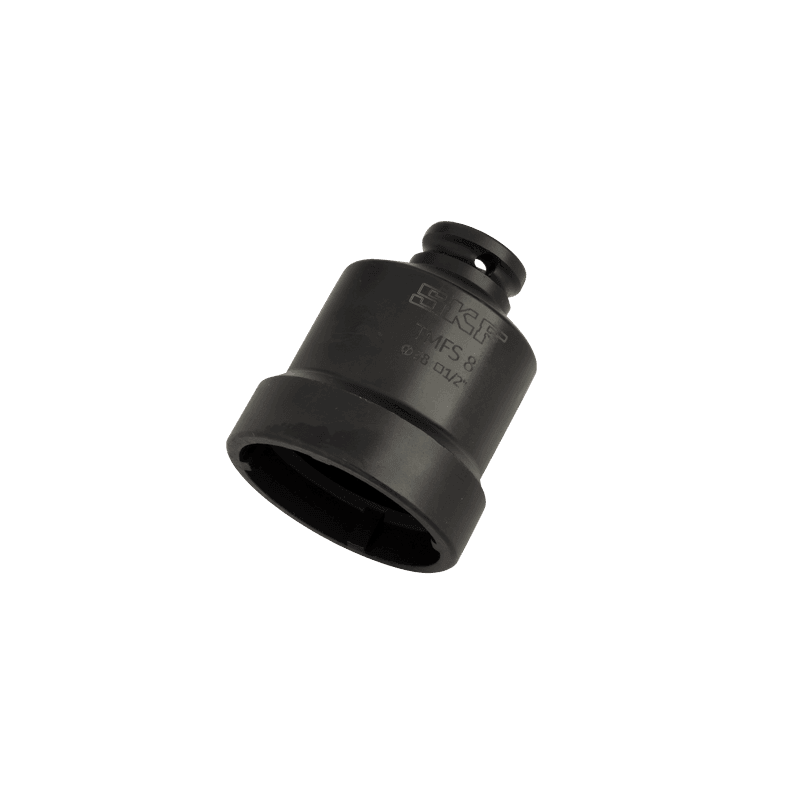

SKF axial lock nut sockets are designed for safe and easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves.

  • Demands less space around the bearing arrangement than hook spanners
  • Inch connections for power tools or torque wrenches
  • TMFS fits nuts of series KM, KMK (metric) and KMF
  • Special longer length versions are available upon request
Designation
 Dimensions Drive connection


 Outer diameter lock nut
 Outer diameter socket
 Effective height
mm
 in.
 mm
 in.
 mm
 in.
 in.
TMFS 0
 18
 0.7
 22,0
 0.9
 45
 1.8
 3/8
TMFS 1
 22
 0.9
 28,0
 1.1
 45
 1.8
 3/8
TMFS 2
 25
 1.0
 33,0
 1.3
 61
 2.4
 1/2
TMFS 3
 28
 1.1
 36,0
 1.4
 61
 2.4
 1/2
TMFS 4
 32
 1.3
 38,0
 1.5
 58
 2.3
 1/2
TMFS 5
 38
 1.5
 46,0
 1.8
 58
 2.3
 1/2
TMFS 6
 45
 1.8
 53,0
 2.1
 58
 2.3
 1/2
TMFS 7
 52
 2.0
 60,0
 2.4
 58
 2.3
 1/2
TMFS 8
 58
 2.3
 68,0
 2.7
 58
 2.3
 1/2
TMFS 9
 65
 2.6
 73,5
 2.9
 63
 2.5
 3/4
TMFS 10
 70
 2.8
 78,5
 3.1
 63
 2.5
 3/4
TMFS 11
 75
 3.0
 83,5
 3.3
 63
 2.5
 3/4
TMFS 12
 80
 3.1
 88,5
 3.5
 63
 2.5
 3/4
TMFS 13
 85
 3.3
 94,0
 3.7
 63
 2.5
 3/4
TMFS 14
 92
 3.6
 103,0
 4.1
 80
 3.2
 1
TMFS 15
 98
 3.9
 109,0
 4.3
 80
 3.2
 1
TMFS 16
 105
 4.1
 116,0
 4.6
 80
 3.2
 1
TMFS 17
 110
 4.3
 121,0
 4.8
 80
 3.2
 1
TMFS 18
 120
 4.7
 131,0
 5.2
 80
 3.2
 1
TMFS 19
 125
 4.9
 137,0
 5.5
 80
 3.2
 1
TMFS 20
 130
 5.1
 143,0
 5.7
 80
 3.2
 1
