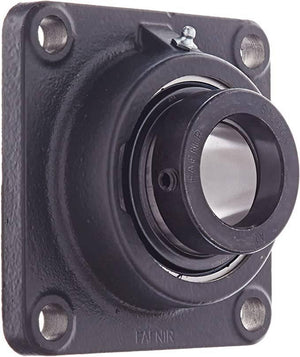

Timken RCJ2 Flange Unit, 4 Bolt Holes, Industrial-Duty, Relubricatable, Non-Expansion, Cast Iron, Eccentric Locking Collar, Inch, 2" Bore Diameter
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
$315.25
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
Key Features
- Rigid cast iron or pressed steel housings for durability and stability
- Factory-sealed, pre-lubricated bearings for low maintenance
- Self-aligning design compensates for minor shaft misalignment
- Handles both radial and axial loads efficiently
- Ideal for conveyors, agricultural machinery, and industrial equipment
Description
Timken® Flange Ball Bearing Units
Timken® Flange Ball Bearing Units are engineered for reliable performance, easy installation, and long service life in demanding industrial environments. Each unit combines a precision deep groove ball bearing with a high-quality cast iron or pressed steel housing to deliver superior alignment and load support for both radial and axial forces.
The self-aligning design compensates for minor shaft misalignment, reducing stress on equipment and extending service life. Factory-sealed and pre-lubricated, Timken flange units minimize maintenance requirements and ensure consistent performance under varying speeds and loads. Available in two-bolt, three-bolt, and four-bolt configurations, these units provide mounting flexibility for conveyors, material handling systems, agricultural equipment, and general machinery.
Specifications
Specifications
| Product Type | Flange-Mount Ball Bearing Units |
| Bore Diameter | 2 in |
| Housing Material | Cast Iron |
| Duty Type | Standard Duty |
| Bolt Center To Center Length | 5.1250 in |
| Bolt Circle Diameter | 7.2480 in |
| Locking Device | Eccentric Collar |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Seal Type | Contact Seal |
| Overall Length Diameter | 6.3750 in |
| Lubrication Type | Relubricatable |
| Bore Type | Straight |
| Radial Dynamic Load Capacity | 10800 lbf |
| Radial Static Load Capacity | 6400 lbf |
| Length Through Bore | 75.1 mm |
| Finish Coating | Uncoated |
| Max RPM | 2710 rpm |
| Series | RCJ |
| Standards Met | FDA Compliant, USDA Compliant |
| Replacement Bearing | G1200KRRB |
| Manufacturer UPC Number | 087796060968 |
| UPC_NO | 087796060968 |
| Weight | 8.47 lbs |
| Type Of Bearing | Ball |
| Mounting Type | 4-Bolt Flange |
