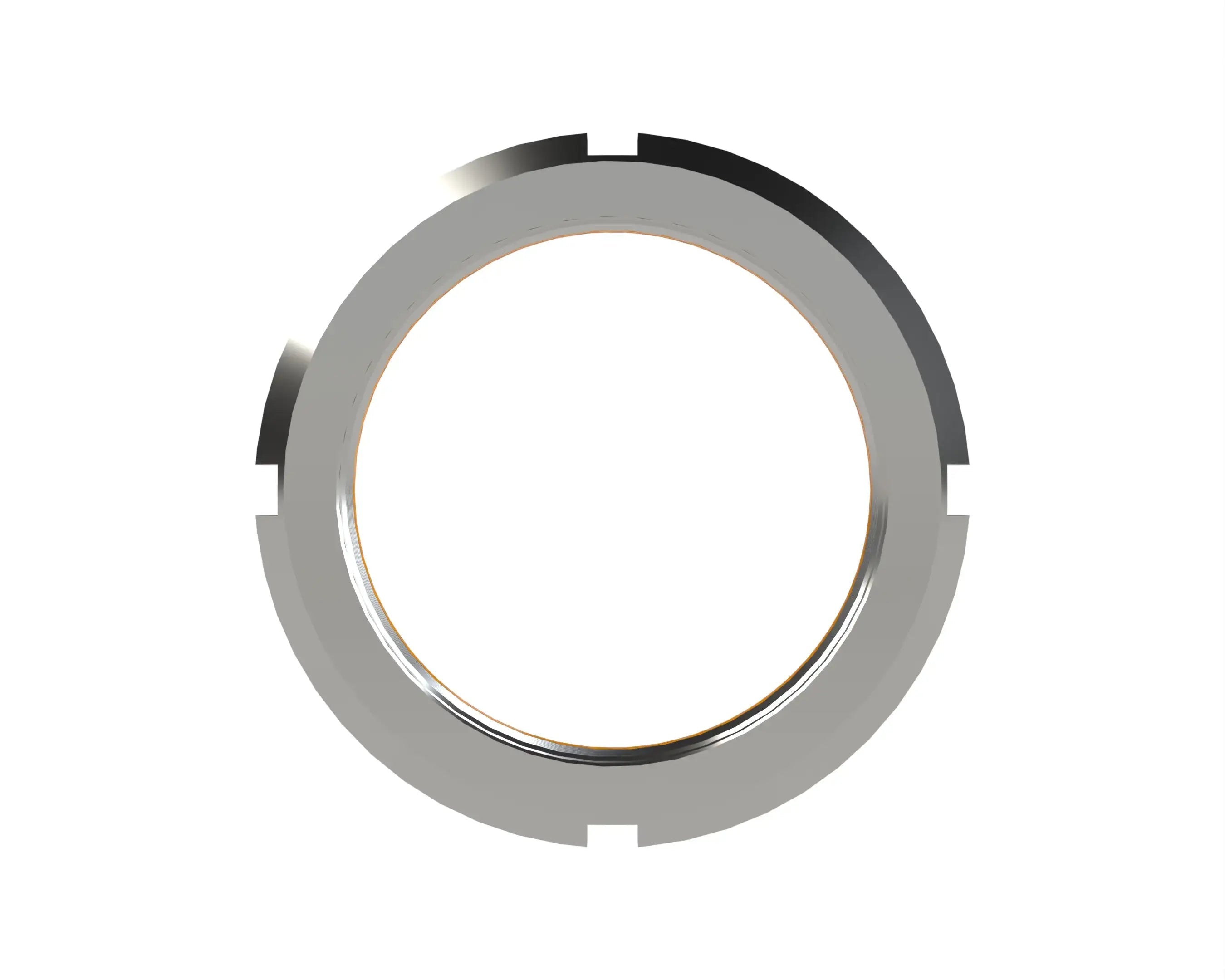

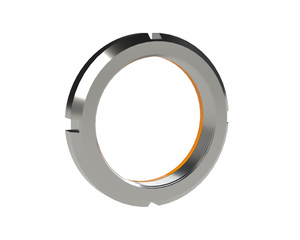

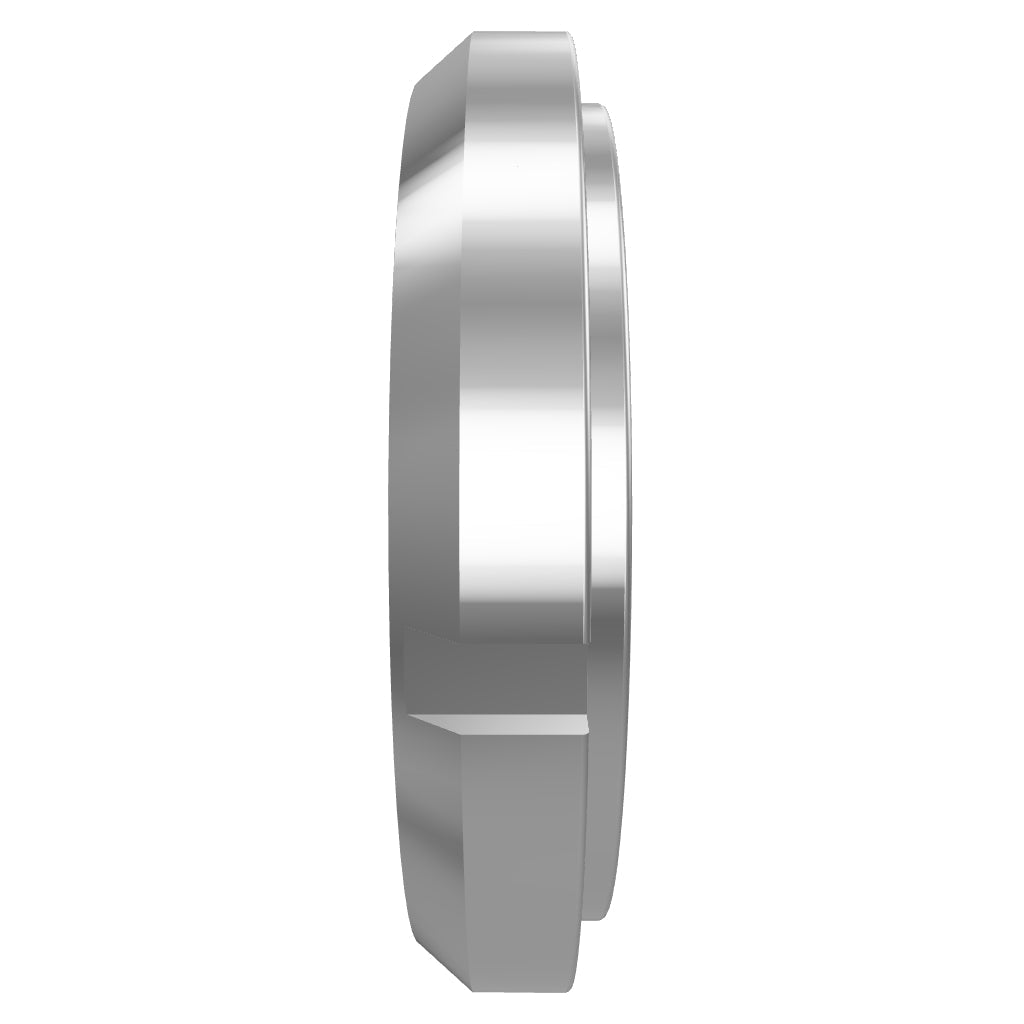

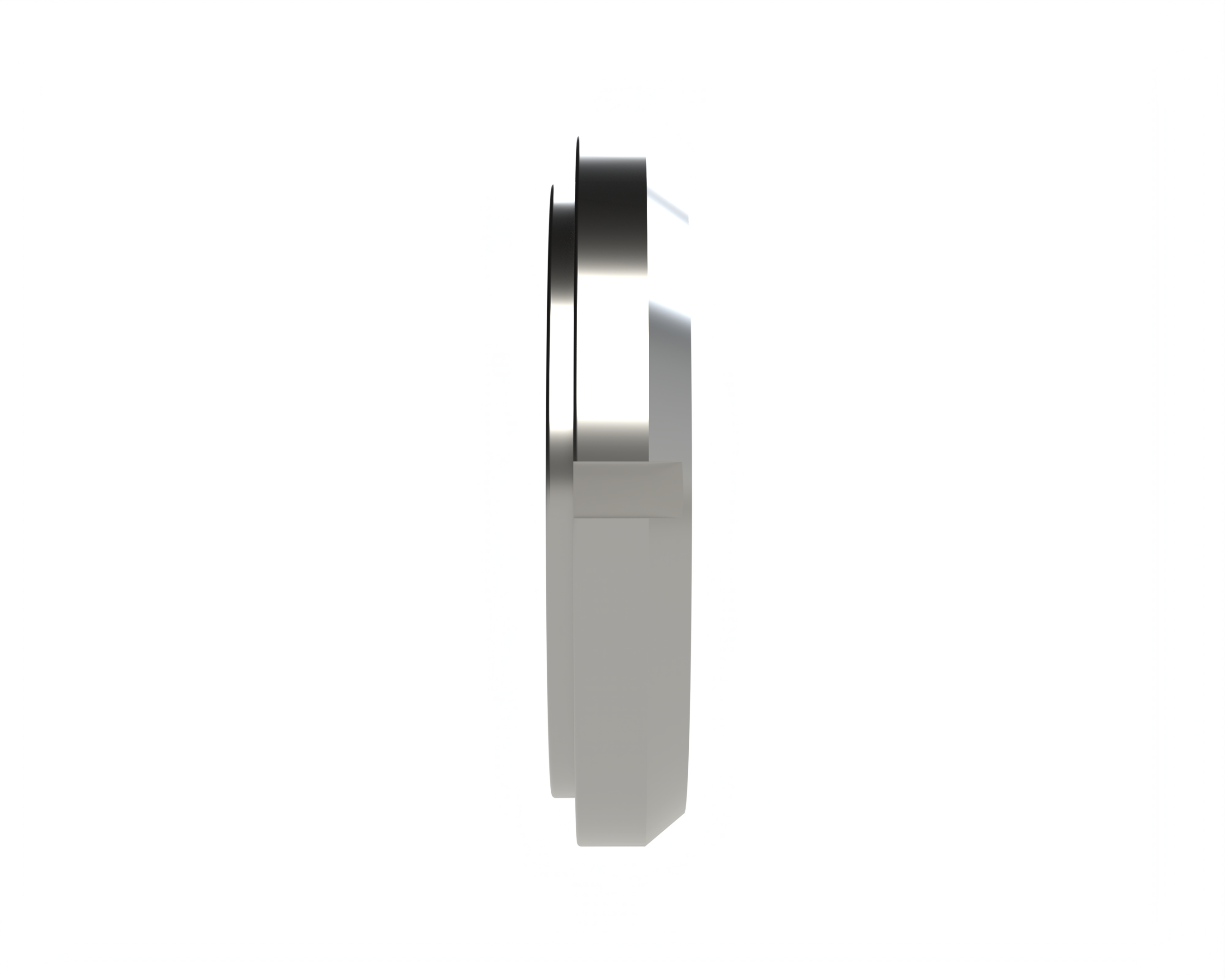

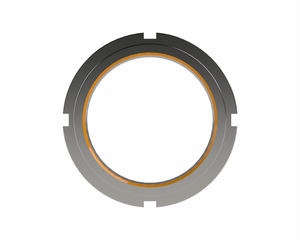

Whittet Higgins BHS-065 Bearhug Locknut, Stainless

Brand: Whittet-Higgins
$89.20
$89.20
Shipping calculated at checkout.
1000 in Stock Now

Free shipping on orders over $100

Use code at checkout.

FREESHIP
Orders placed before 3:00pm (Est) ship same day

Lightning-fast shipping, guaranteed.

Quantity Discount Table
Quantity Discounti
Quantity Discount
1 Unit No Discount
20-49 Units 5%
50-99 Units 8%
100-199 Units 15%
200-499 Units 18%
500+ Units 25%
Powered by Omni Themes
Need Help?
Call us 1 (248) 429-9073
Map showing Oxford, Michigan
Oxford, Michigan
Promotional banner

Need tax exemption or quantity pricing? We offer special rates for businesses and bulk orders.

Contact Us

FREE SHIPPING

All Orders Over $100 Ship Free Ground

HASSLE-FREE RETURNS

Free 90-Day Returns No Questions Asked

Full policy

EXPERT SUPPORT

Support Staff Available By Phone, Web Chat, Or Email.

PRICE MATCH

Simply provide proof of a competitor's advertised price on the same item, and we'll match it.

Full policy
Whittet-Higgins

Whittet-Higgins

Whittet-Higgins specializes in high-quality bearing retention and shaft-locking products used in demanding industrial applications. Its core product range includes precision locknuts, lockwashers, adapter and withdrawal sleeves, shaft nuts, and related installation tools designed to securely position bearings and rotating components. The company offers both inch and metric options, including heavy-duty and corrosion-resistant designs for power transmission, machinery, and other industrial equipment.

Key Features

  • Prevailing torque self-locking design prevents the assembly from loosening due to vibration, shock and torque
  • Corrosion-resistant stainless steel locknut with a heat-stabilized polymer locking ring
  • Replaces the traditional locknut and lockwasher for easier, faster installation
  • Does not damage shaft threads and eliminates the need to cut or repair a shaft keyway
  • Infinite adjustment and preloading capability
  • Balanced for higher-speed applications
  • Meets and exceeds ANSI/ABMA 8.2-1999
  • Maximum operating temperature of 160 degrees F
  • Manufactured in the USA and RoHS compliant

Description

The Whittet-Higgins BEARHUG (stainless) is a one-piece, prevailing-torque self-locking bearing retention nut that replaces the traditional locknut-and-lockwasher assembly. A stainless steel nut body works with an integral heat-stabilized polymer locking ring to grip the shaft thread and hold preload against vibration, shock and torque, without cutting a keyway or damaging the shaft threads.

Its balanced construction suits higher-speed, high-precision and corrosive-environment assemblies while providing infinite adjustment and preloading. The BEARHUG (stainless) meets and exceeds ANSI/ABMA 8.2-1999, carries a 160 degrees F maximum operating temperature, and is manufactured in the USA and RoHS compliant.

Specifications

BHS-065

Specification Value
Thread 1.312-18
Outside Diameter (inches) 2.063
Face Diameter (inches) 1.813
Width (inches) 0.500
Material Stainless Steel
Weight 0.2 lb (90.718 g)
Country of Origin USA
