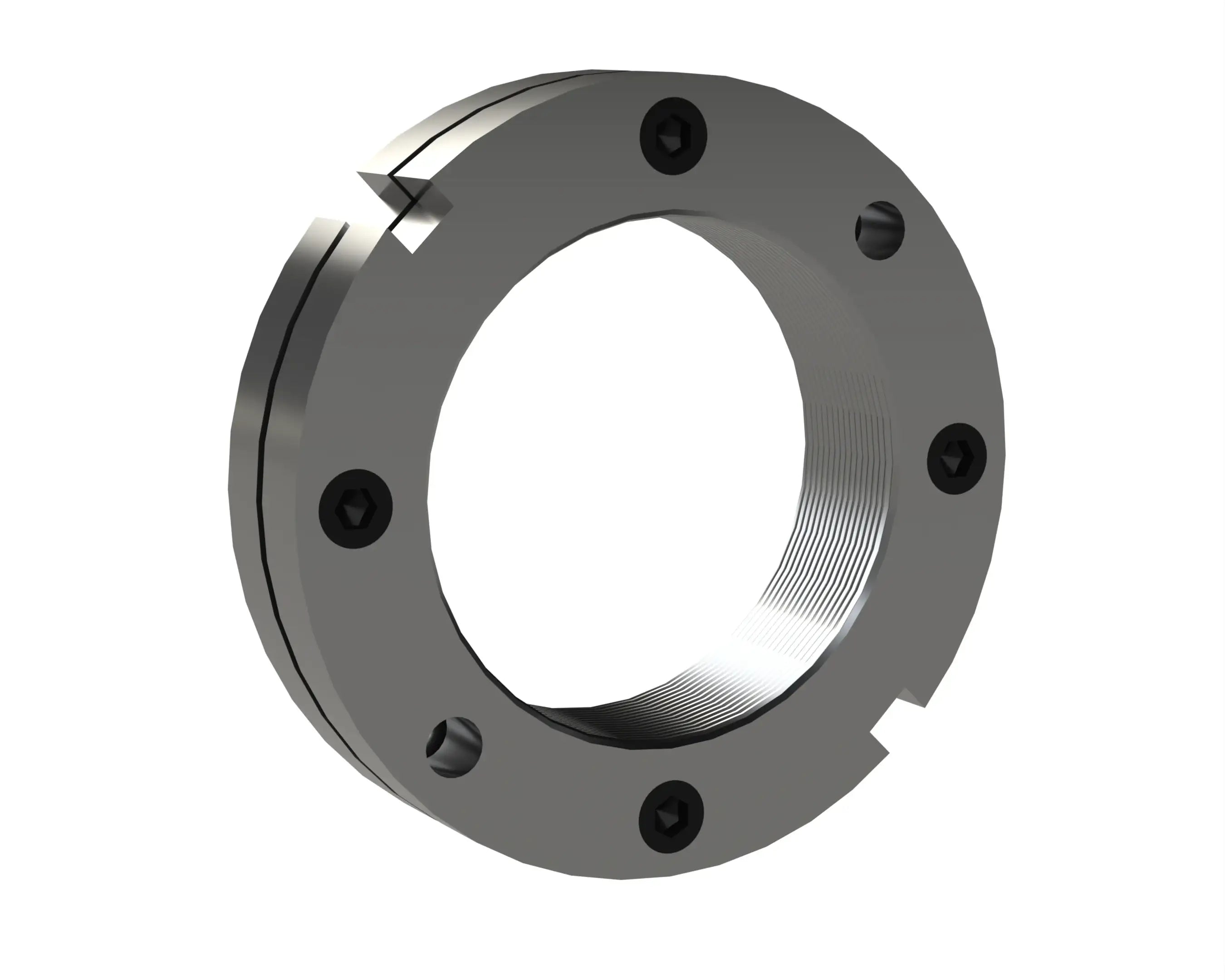

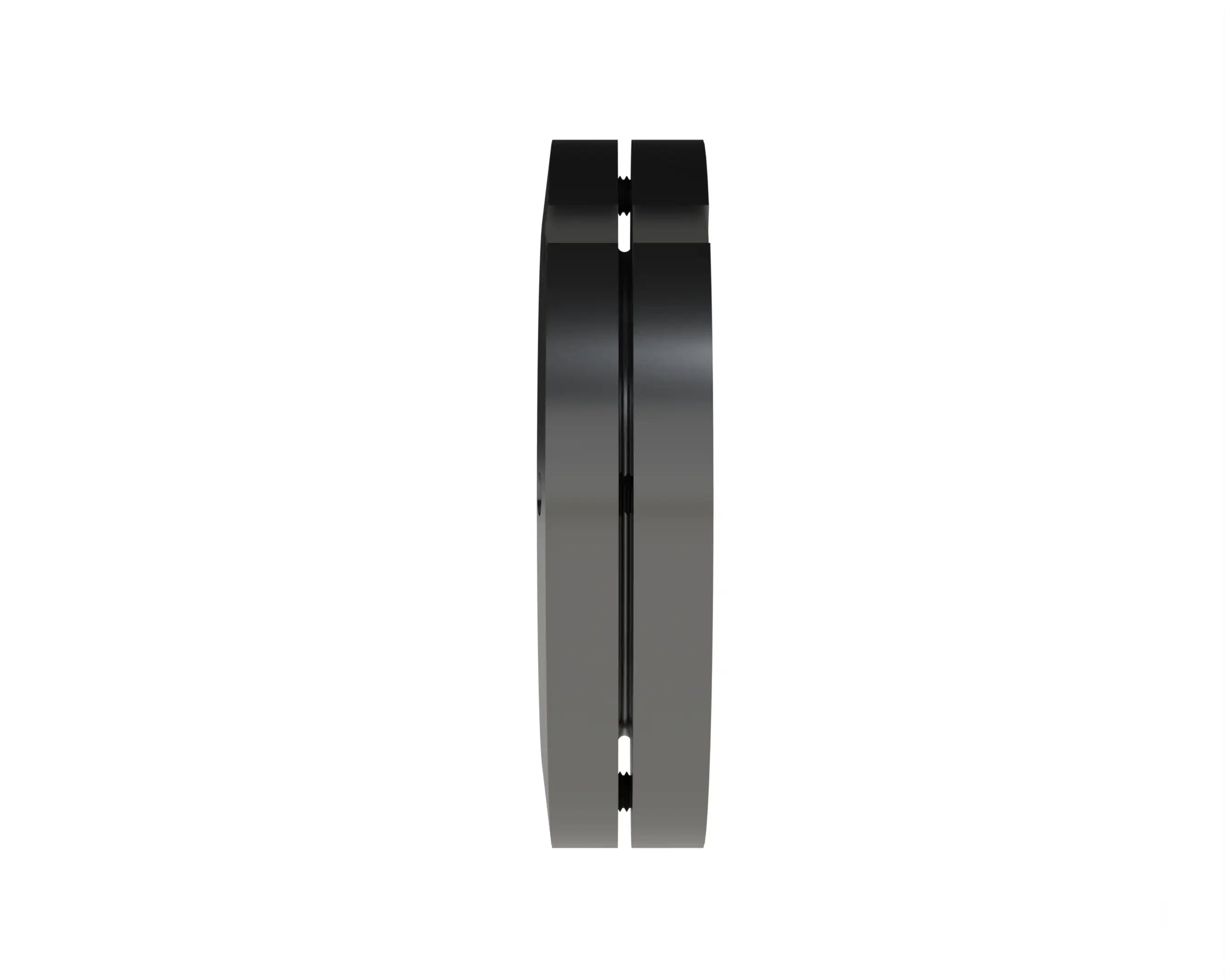

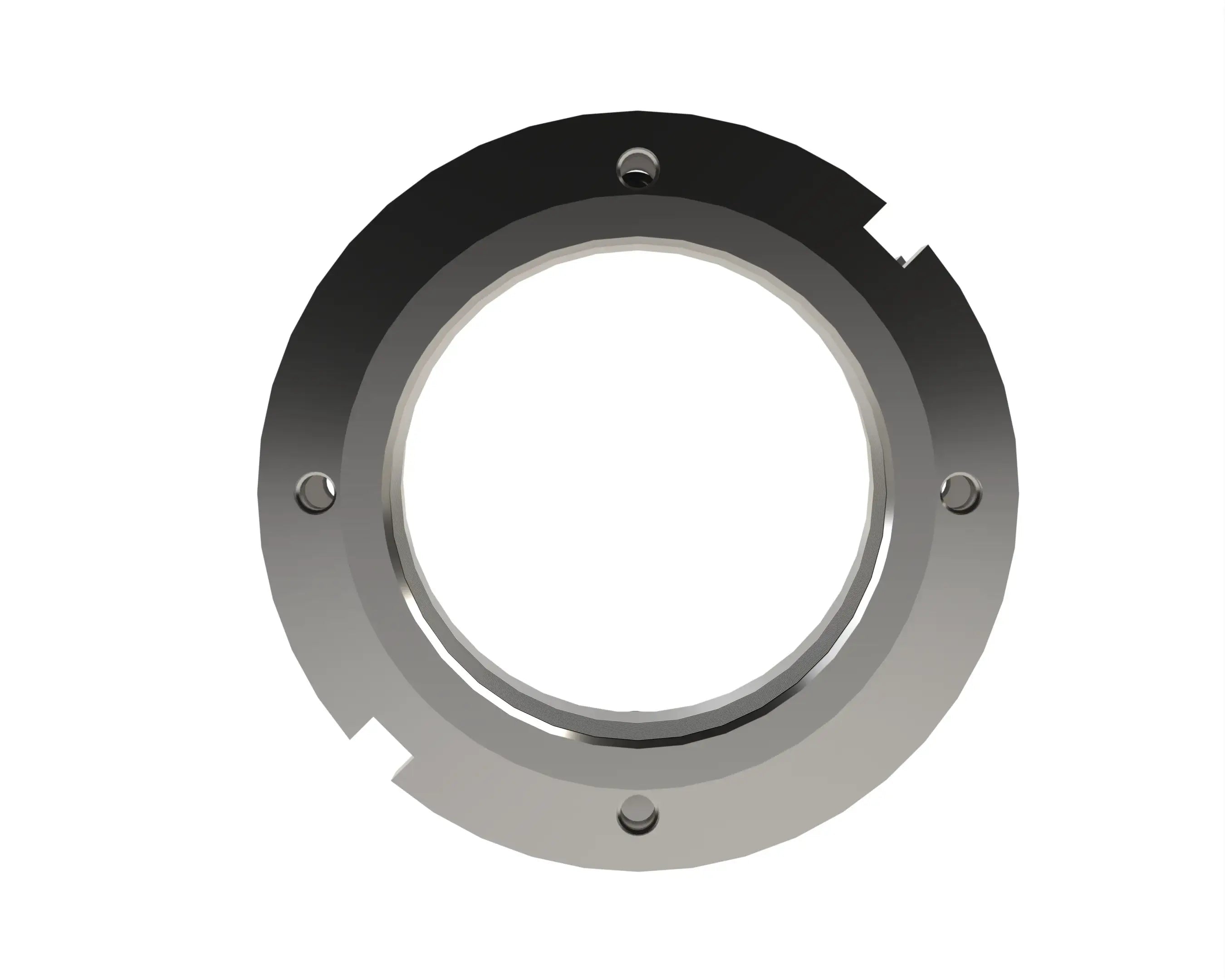

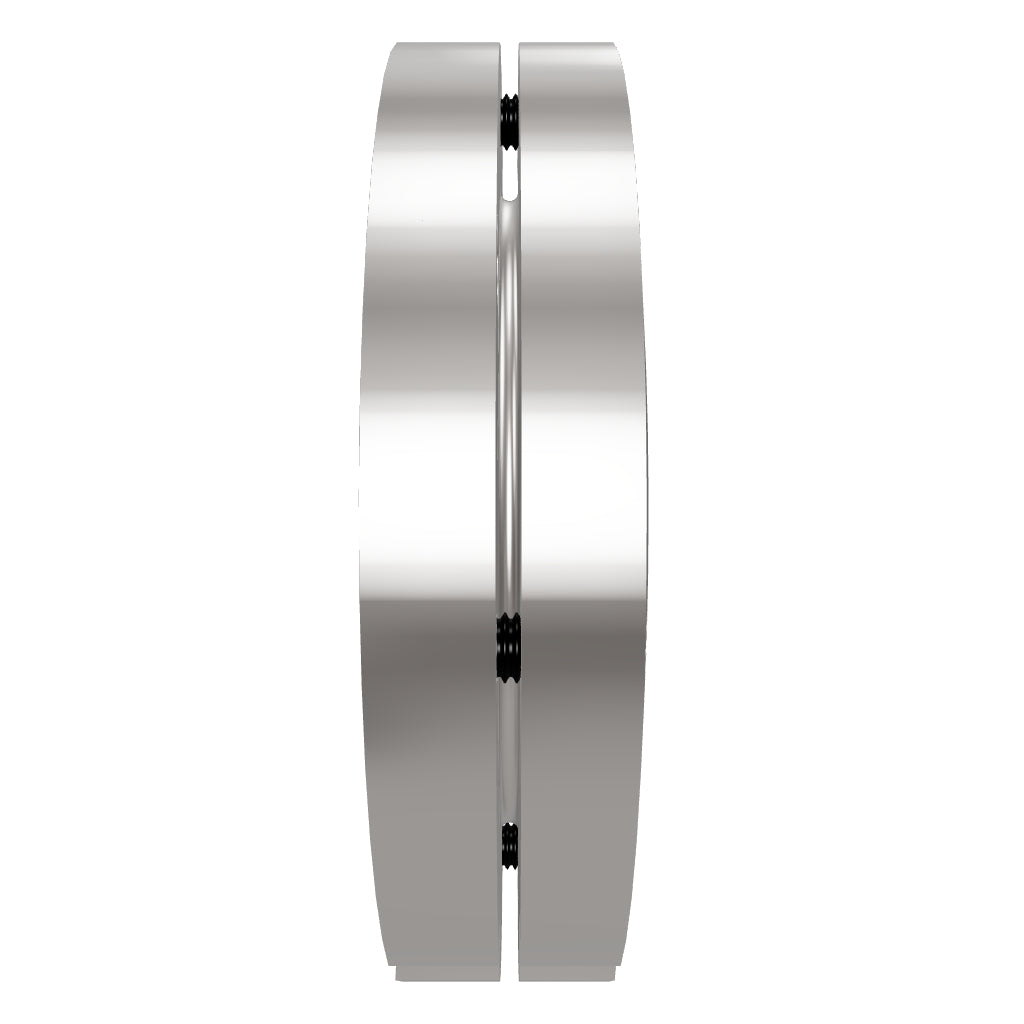

Whittet Higgins BL-065 Bearlok Locknut
- Regular price
- $163.17
- Sale price
- $163.17
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
| Quantity | Discount |
|---|---|
| 1 Unit | No Discount |
| 20-49 Units | 5% |
| 50-99 Units | 8% |
| 100-199 Units | 15% |
| 200-499 Units | 18% |
| 500+ Units | 25% |
FREE SHIPPING
All Orders Over $100 Ship Free Ground
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH
Simply provide proof of a competitor's advertised price on the same item, and we'll match it.
Full policy
Key Features
- Mechanical self-locking BEARLOK retaining nut that threads onto a shaft to position and secure bearings and components

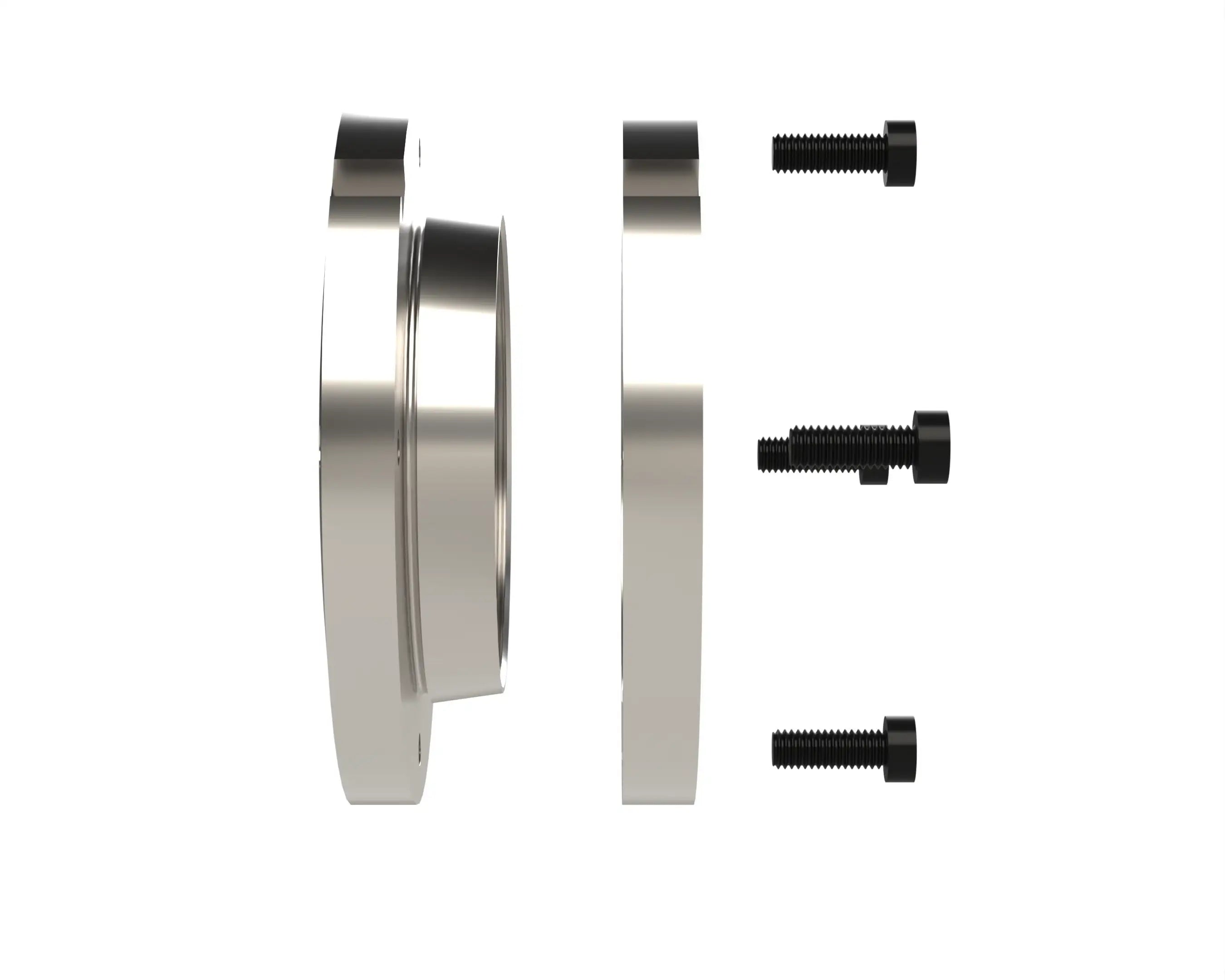

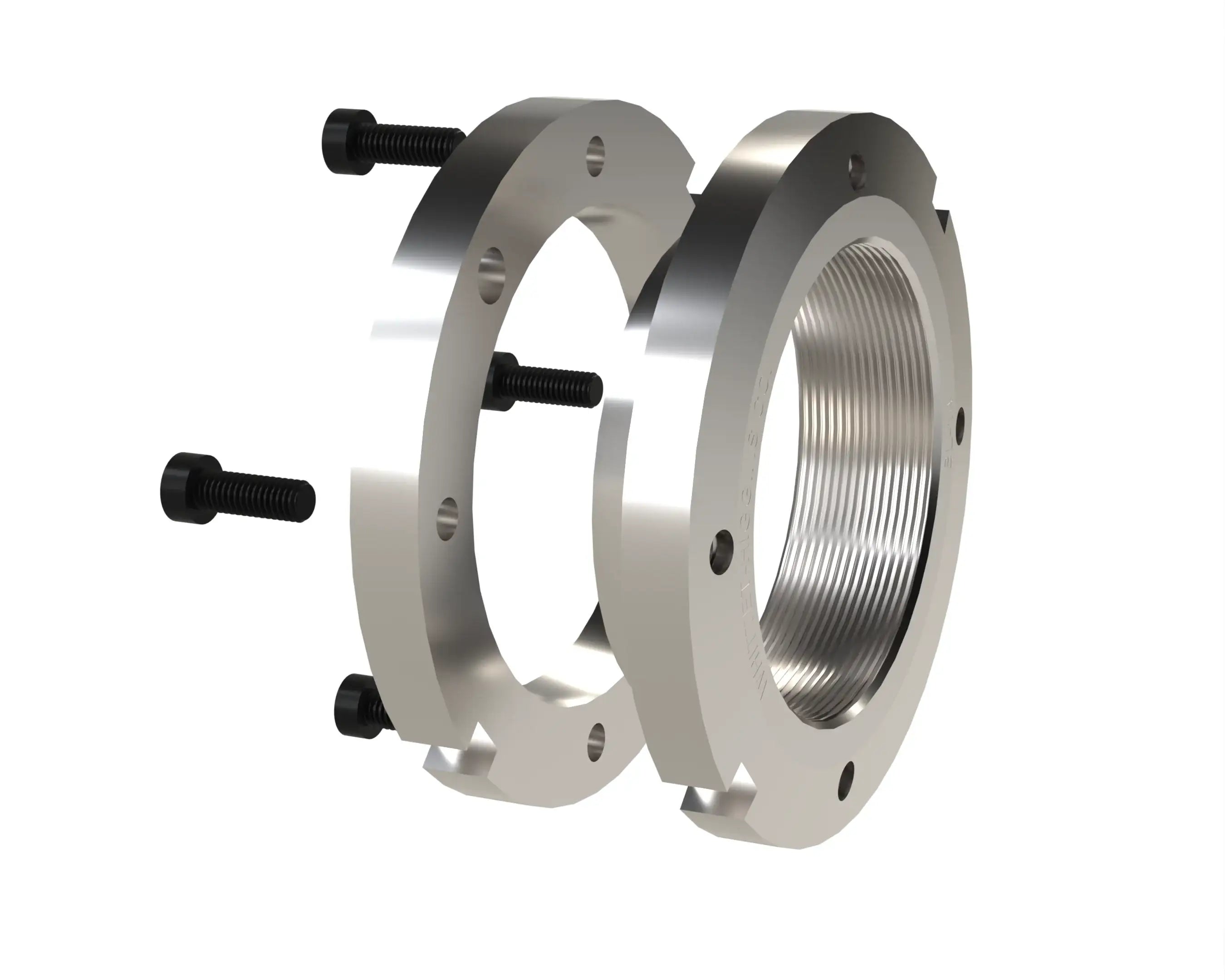

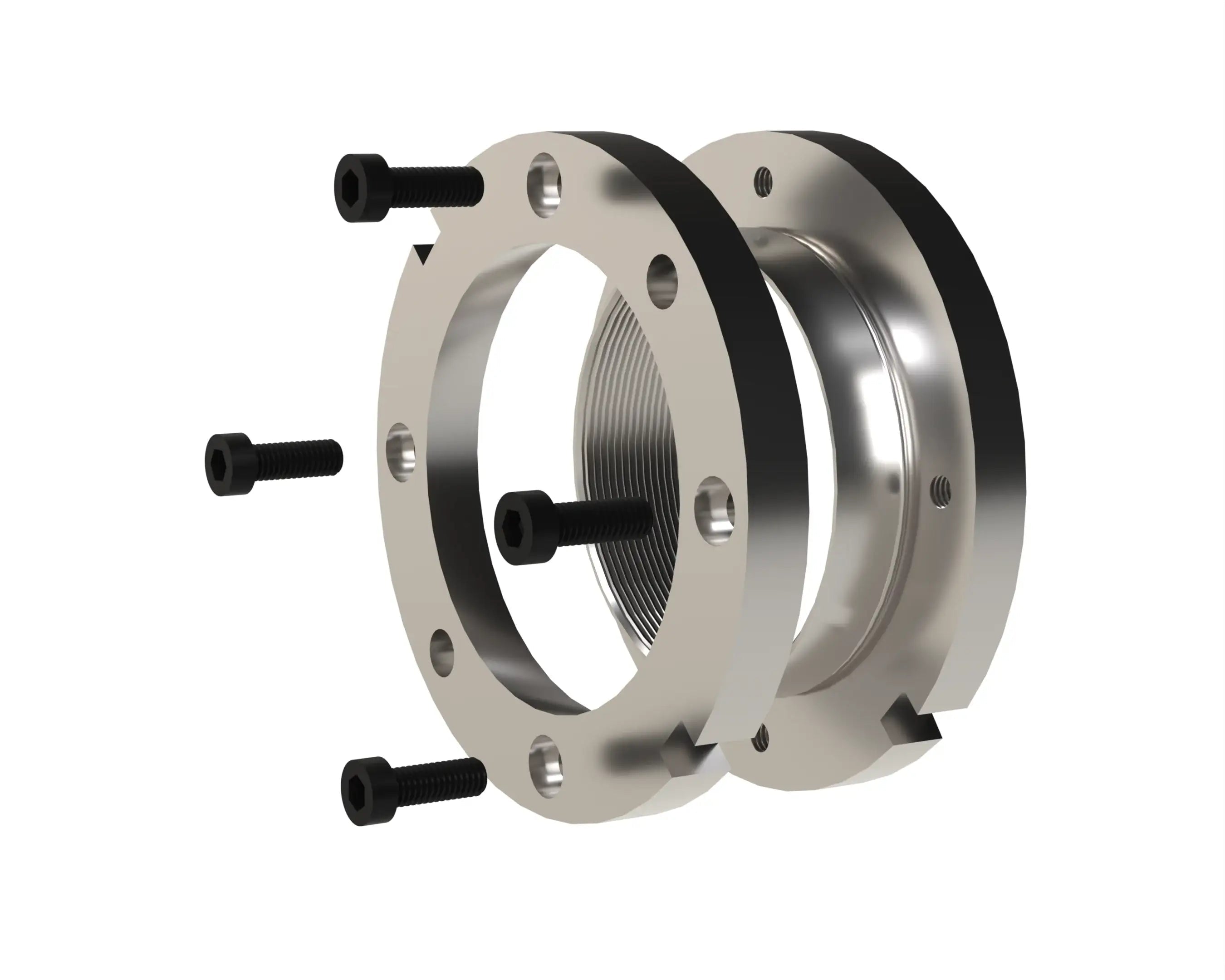

- Socket-head cap screws draw a hardened alloy compression ring into uniform 360-degree thread clamping to the center of the shaft
- Balanced design for high-speed applications; resists loosening from vibration, shock, and torque
- Infinite adjustment and preloading with longitudinal (Z-axis) access; does not damage shaft threads when secured
- Carbon steel base threaded nut with hardened alloy compression ring and hardened alloy fasteners
- Manganese phosphate coated for corrosion resistance
- Maximum operating temperature 300 degrees F
- Meets and exceeds the specifications of ANSI/ABMA 8.2-1999
- Manufactured in USA and RoHS compliant
Description
The Whittet-Higgins BL-065 is a BEARLOK mechanical self-locking bearing retaining nut that threads onto a shaft or spindle to position and secure bearings, sleeves, and other components against an axial shoulder. Tightening its socket-head cap screws draws a hardened alloy compression ring into uniform 360-degree clamping contact with the shaft threads, locking the nut without damaging the threads and allowing infinite adjustment and preloading with longitudinal (Z-axis) access to the assembly.
Its balanced design suits high-speed and high-precision assemblies, while the self-locking action resists loosening from vibration, shock, and torque and eliminates the need for a separate locknut, lockwasher, or shaft keyway. The BL-065 pairs a carbon steel base threaded nut with a hardened alloy compression ring and fasteners, is manganese phosphate coated for corrosion resistance, and meets and exceeds the specifications of ANSI/ABMA 8.2-1999.
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.Specifications
BL-065
| Specification | Value |
|---|---|
| Thread | 1.312-18 |
| Outside Diameter (inches) | 2.063 |
| Face Diameter (inches) | 1.813 |
| Width (inches) | 0.178-0.198 |
| Material | Steel |
| Weight | 0.5 lb (226.796 g) |
| Country of Origin | USA |
