Thread: | M20 x 1,0 |
Outside Dia (mm): | 41,1 |
Face Dia (mm): | 26,2 |
Width (mm): | 17,5 |
Axial Load (kN): | 88 |
Lockscrew: | M4 |
Installation instructions for Bearlok with 4 cap screws |
Installation instructions for Bearlok with 8 cap screws |
The BEARLOK versatile mechanical lock retaining nut adjusts, pre-loads, and secures bearings and other components to the shafts and spindles of power transmission assemblies with the most consistent precision squareness, centerline alignment, and the axial location from loading through locking procedures. Its strong uniform circumferential locking deep into the shaft or spindle threads prevents loosening from vibration, shock, and heavy loads. These benefits of precision and consistency make it the ideal threaded retaining device for an infinite array of machinery and equipment. In operational and comparative testing against other self-locking devices the BEARLOK has demonstrated its superiority in precision alignment and holding power. This version of the BEARLOK is made with ISO Metric threads made to closer tolerances as are all metric Whittet-Higgins products.
As with all precision retaining devices, care must be taken during assembly to assure premium performance. Please open and review our installation instructions for proper technique and best results.
Thread: | M20 x 1,0 |
Outside Dia (mm): | 41,1 |
Face Dia (mm): | 26,2 |
Width (mm): | 17,5 |
Axial Load (kN): | 88 |
Lockscrew: | M4 |
Installation instructions for Bearlok with 4 cap screws |
Installation instructions for Bearlok with 8 cap screws |
The BEARLOK versatile mechanical lock retaining nut adjusts, pre-loads, and secures bearings and other components to the shafts and spindles of power transmission assemblies with the most consistent precision squareness, centerline alignment, and the axial location from loading through locking procedures. Its strong uniform circumferential locking deep into the shaft or spindle threads prevents loosening from vibration, shock, and heavy loads. These benefits of precision and consistency make it the ideal threaded retaining device for an infinite array of machinery and equipment. In operational and comparative testing against other self-locking devices the BEARLOK has demonstrated its superiority in precision alignment and holding power. This version of the BEARLOK is made with ISO Metric threads made to closer tolerances as are all metric Whittet-Higgins products.
As with all precision retaining devices, care must be taken during assembly to assure premium performance. Please open and review our installation instructions for proper technique and best results.

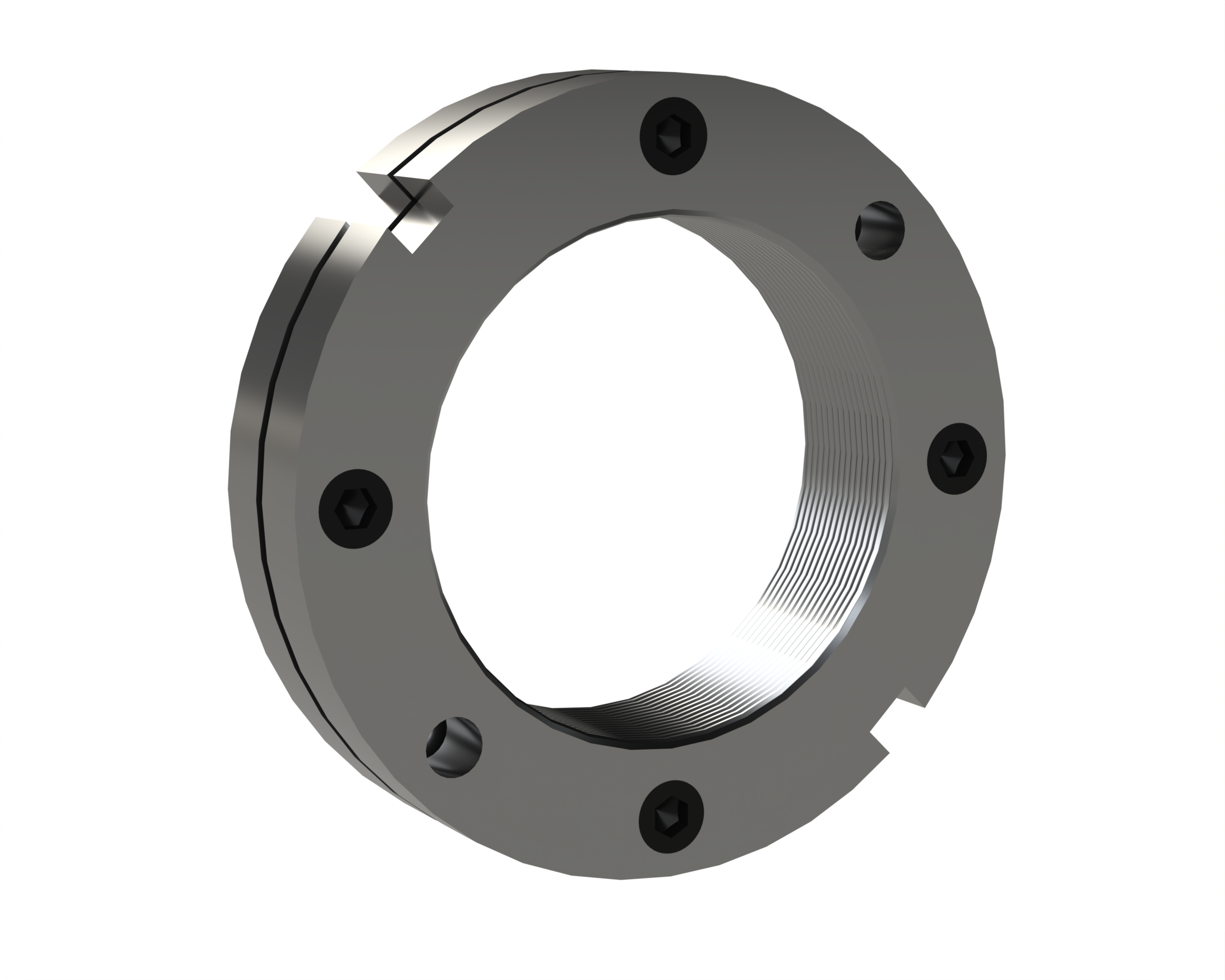

Whittet higgins BLM-04 Bearhug Retaining Nut M20 x 1,0
- Regular price
- $89.00
- Sale price
- $89.00
