Whittet higgins CC-28 Clamp Collar
- Regular price
- $18.90
- Sale price
- $18.90
- Regular price
-
Free shipping on orders over $100
Use code at checkout.
Orders placed before 3:00pm (Est) ship same day
Lightning-fast shipping, guaranteed.
| Quantity | Discount |
|---|---|
| 1 Unit | No Discount |
| 20-49 Units | 5% |
| 50-99 Units | 8% |
| 100-199 Units | 15% |
| 200-499 Units | 18% |
| 500+ Units | 25% |
Whittet-Higgins manufactures premium bearing locknuts, shaft collars, and mechanical locking devices designed for secure, precise component retention. Trusted in industrial, aerospace, and power transmission applications, their products deliver strength, reliability, and precision engineering for critical assemblies.
FREE SHIPPING
All Orders Over $100 Ship Free Ground
HASSLE-FREE RETURNS
Free 90-Day Returns No Questions Asked
EXPERT SUPPORT
Support Staff Available By Phone, Web Chat, Or Email.
PRICE MATCH GUARANTEE
Simply provide proof of a competitor’s advertised price on the same item, and we’ll match it
Key Features
- Self-locking design
- More secure than set-screw collars
- Designed for inch-sized shafting
- Infinite axial adjustment and securing of PT components
- Prevents assemblies from loosening due to vibration & shock
- Does not deform or damage shafting
- Effective on soft or hardened shafting
- Manufactured in USA & RoHS / REACH compliant
Description
| Bore (inches): | 1.750 |
| Outside Dia (inches): |
2.750 |
| Face Dia (inches): | 2.219 |
| Width (inches): | 0.625 |
| Axial Load (lbs): | 2830 |
| Lockscrew: | 5/16-24 |
Installation instructions for Clamp collar |
Split Collars with a locking screw were an outgrowth of threaded adjustable retaining devices made and used by precision instruments and machinery manufacturers in the early twentieth century.
These CLAMP COLLARS are often adequate to position and lock to shaft cams, conveyor rolls, gears, pulleys, sheaves, sprocket and the multitude of other machine components where exacting adjustment is not required to transmit thrust and torque loads. They are great as adjustable shaft spacers or limiters. They become an easy way to create a shoulder eliminating the need to machine expensive keyways, splines and shoulders on rods, shafts, and spindles.

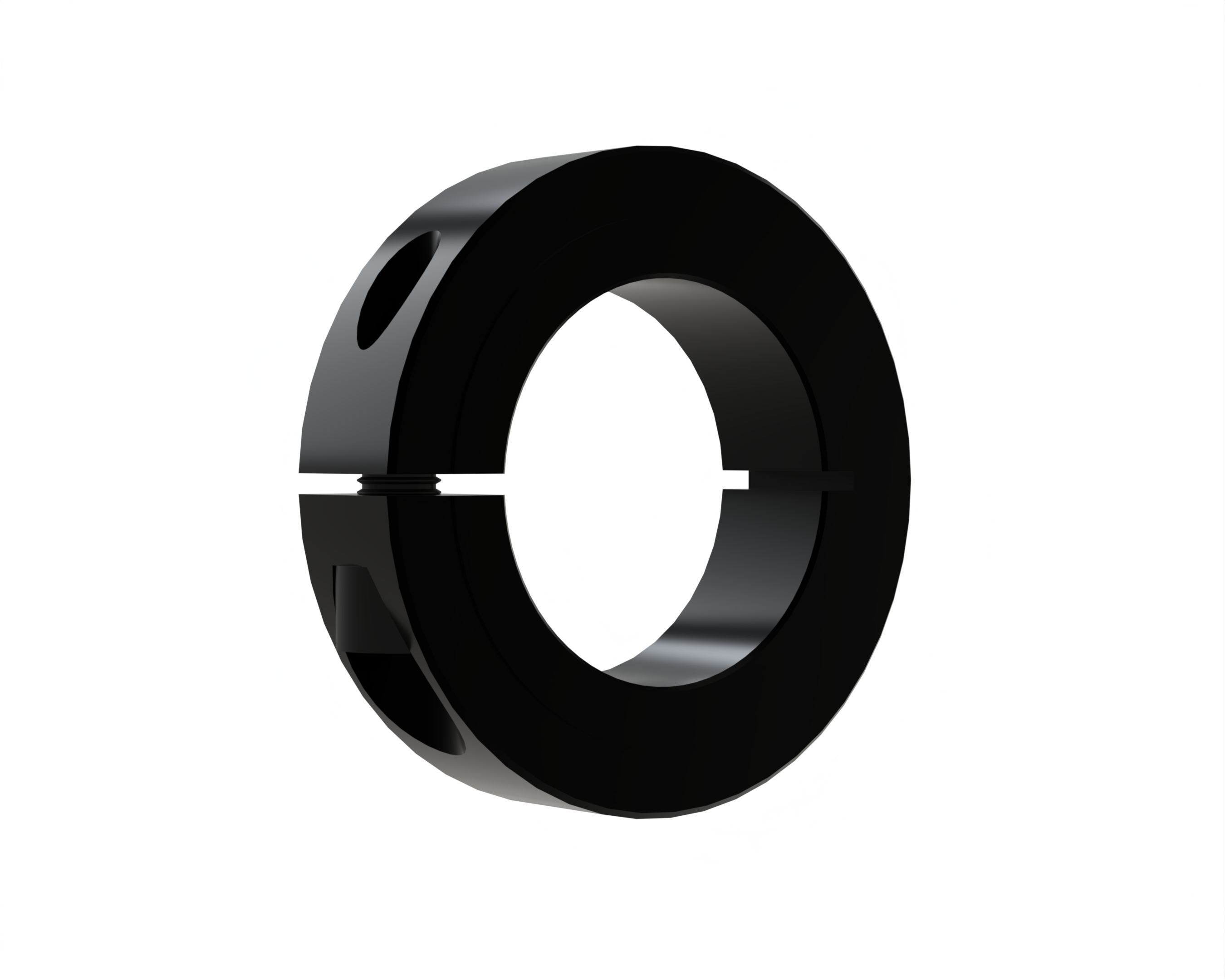

This model is a One piece single slit design, made with low carbon steel with a black oxide finish and blackened alloy steel socket head cap screws.
As with all precision retaining devices, care must be taken during assembly to assure premium performance. Please open and review our installation instructions for proper technique and best results.
